Summary of Contents for BroadLink S1 SmartONE Kit
- Page 1 SmartONE Kit User Manual...
- Page 2 Thank you for choosing BroadLink DNA series products...
-
Page 3: Packing List

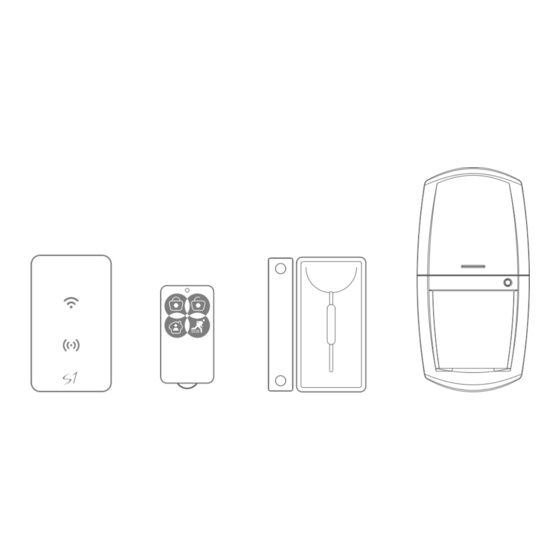

Packing List Please confirm the items are in good conditions as below SmartONE x1 Wireless Key Fob Wireless Door Sensor Wireless Motion Sensor Remote x1 Infrared Installation Accessry Bracket base Screw x2 AA Battery x3 Bolt x4 Wireless Door Sensor Installation Accessory 3M Adhesive Lable Screw x2... -
Page 4: Device Reset
SmartONE Wi-Fi LED Status LED Ventilation Holes Buit-in Buzzer Reset Button Alarm * Device Reset - Long press the reset button for more than 6 seconds until the Wi-Fi LED is blinking rapidly... - Page 5 e-Control APP User Guide Step Download the e-Control APP PC/Web download APP Forum e-Control Scan QR code to download Page1 Scan QR code from the packing Visit www.ibroadlink.com using box or the user manual to your mobile browser and tap download and install the APP.
-
Page 6: Configure The Device
Step Configure the Device Configuration Mode Ensure the Wi-Fi LED is blinking rapidly about 5-6 times per sec Plug into the power outlet SmartONE Connect to Wi-Fi Wi-Fi Router Smart Phone Open e-Control APP e-Control... - Page 7 Step Configure the Device Enter the Wi-Fi user name Enter the password * If the configuration is failed,please refer to Page14...
-
Page 8: Device Control Panel
Step Start to experience Function Tap to view sensor Alarm Status alarm history Quick Setup Available Sensor Status Sensors Tap to view the history info/ setup sensor Device Control Panel... -
Page 9: Add Sensor
Add Sensor e-Control APP Scan Barcode Back ① ② Sensor status ② Align the barcode on sensor in scanning box. The sensor can be added automatically. Enter serial number Add sensor as shown on the page above Please scan QR code, or manually enter serial number... - Page 10 Scan Barcode Back Next vendor name ******company Sensor definition Sensor type Back Save Wireless Door Sensor Tap to change Sensor ID Name Door sensor 088888880 senor name Door sensor Type Part-arm Tap to select Living room Zone the location Enable by default Door Attach to Tap to select the...
-
Page 11: Ifttt Style Interaction
If Living room - [Door sensor](Open), then [Smart plug] - Desk Lamp (On) ( ) is the condition to be triggered or action to be performed. [ ] is the BroadLink brand or Broadink DNA products. When adding IFTTT, make sure all the sensors added to WLAN should have Internet access,... - Page 12 IFTTT Settings e-Control APP ① ② IFTTT Back Save Add new Task list Tap to IFTTT Tap to IFTTT Sensor& condition Settings setup Motion Sensor No Person Key Fob SOS ③ Delete IFTTT Delete Tap to SmartPlug zj ON Timer setup Settings Then...
-
Page 13: E-Control App General Settings
General Settings e-Control APP ① ② General settings Home Edit device Alarm setting Back Save Delay time settings Delay time settings Create shortcut Lock device Set the alarm duration Lock device Select sensor ③ Door Sensor Alarm setting Motion Sensor Firmware update Edit Device Tap to change the icon and name... - Page 14 Function Scene Settings Shortcut door Sensor Door opened Full-Arm Long Press Part Arm What action you want to be performed by this shortcut? Disarm Delete Tap to create the shortcut on your Create shortcut desktop Cancel Share configuration Cancel Full-Arm Default the situation in which all the Enter Control page for more operations sensors will be involved in alarm.
-
Page 15: Search/Edit Device
Search/Edit Device Configuration Failed IFTTT Back IFTTT Back SmartONE 长 SmartONE 按 Reset device Press the reset button Edit name more than 6 seconds Delete until the Wi-Fi LED is blinking rapidly Cance New device New device added； If APP shows the page 2 as above when Wi-Fi light keep flashing... - Page 16 SP 2 e - Control RM Pro More Smart Devices...
