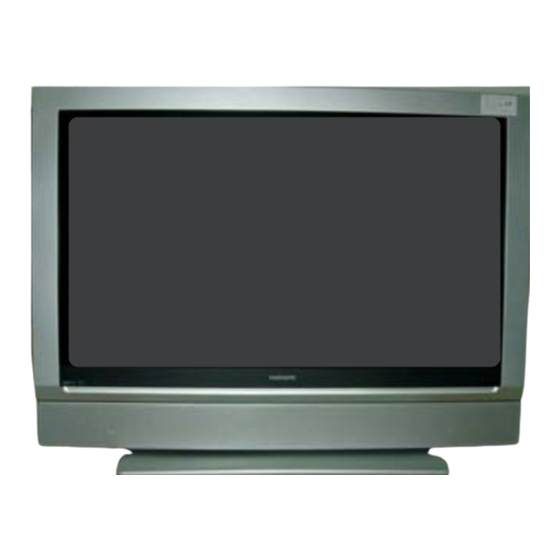

Philips 37TA1800/93 Service Manual

Tft wxga lcd tv
Hide thumbs Also See for 37TA1800/93:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
TFT WXGA LCD TV
Service
Service
Service
Service
Service
Service
Contents
6. Circuits Diagrams & PWB Layouts
Chassis Overview & Exploded View
Contents
DSUB/DVI
HDMI
TUNNER
AV CONNECTOR
IO
CPU M30620SPGP
SVP-PX66-1
SVP-PX66-2
SVP-PX66-3
SVP-PX66-4
DDR 4Mx32
SOUND DELAY
AUDIO DECODER
AUDIO AMP
POWER 1
POWER2
RESET
Page
2~4
5
~6
7
8~9
10
11~12
13~14
Diagram
PWB
(Diagram S-A01)15
33~34
(Diagram S-A02)16
33~34
(Diagram S-A03)17
33~34
(Diagram S-A04)18
33~34
(Diagram S-A05)19
33~34
(Diagram S-A06)20
33~34
(Diagram S-A07)21 33~34
(Diagram S-A08)22 33~34
(Diagram S-A09)23 33~34
(Diagram S-A10)24 33~34
(Diagram S-B11)25 33~34
(Diagram S-B12)26
33~34
(Diagram S-B13)27 33~34
(Diagram S-B14)28
33~34
(Diagram S-B15)29 33~34
(Diagram S-B16)30 33~34
(Diagram S-B17)31 33~34
(Diagram S-B18)32 33~34
Subject to modification
Chassis: TPT1.0A LA
37TA1800/93
42TA1800/93
37TA2000/93
42TA2000/93
Contents
")
8.
Circuit Description
"
Power Board(42")
Exploded View(42")
Feb. 09 , 2006
Page
(Diagram P)35
(Diagram A)38
(Diagram I)41
(Diagram K)44
51~52
55~60
61~62
63~73
Diagram
(Diagram P)74 75 ~76
78~84
EN: 3138 106 50050
PHILIPS
36~37
39~40
42~43
45
53
54
PWB
77
85

Advertisement

Table of Contents
loading

Related Manuals for Philips 37TA1800/93

Summary of Contents for Philips 37TA1800/93

  • Page 1: Table Of Contents

    Chassis: TPT1.0A LA TFT WXGA LCD TV Service Service 37TA1800/93 42TA1800/93 Service Service 37TA2000/93 42TA2000/93 Service Service Contents Page Contents Page 1. Technical Specifications and Connections ") Power Board(37 (Diagram P)35 36~37 2. Safety Instructions, Warnings and Notes SIDE AV Board...

  • Page 2: Technical Specifications And Connections

    TPT1.0A LA 1. Technical Specifications and Connections Technical Specifications and Connections Operating: Temperature : 0 C to 40 C Index of this chapter: Humidity : 10 to 90%(non condensing) 1.1 Technical Specifications Altitude : 0 to 1,2000 feet 1.2 Connections Air pressure : 645 mBAR (guaranteed optical performance)
  • Page 3 TPT1.0A LA 1. Technical Specifications and Connections 1.2.2.1.2TV mode signal type Red video input Green video input /SOG RF Signal : Aerial input / 10mV(30-100dBuV) Blue video input Video signal : CVBS input ( RCA jack) / 1Vpp (300mV-sync, 700mV-video.) GND- cable detect S video input / 1VppY-signal, +/-300mV C-signal Red video ground...
  • Page 4 TPT1.0A LA 1. Technical Specifications and Connections 1.2.2.3.5 Component Video The input signals are applied to display through Component Video RCA Jack pin assignment PIN NO. SIGNAL Red à Pr Blue à Pb Green àY 1.2.2.3.6 SCART Scart connector is only used in WE model. The Scart (Syndicat des Constructeurs d'Appareils Radiorécepteurs et Televiseurs) connector is used for combined audio and video connections.

  • Page 5: Safety Instructions, Warnings And Notes

    Where necessary, measure the waveforms and voltages For more information on how to handle BGA devices, visit this with ( ) and without ( ) aerial signal. Measure the www.atyourservice.ce.philips.com URL: (needs subscription, voltages in the power supply section both in normal not available for all regions).
  • Page 6 In case of doubt whether the board is lead-free or not (or with mixed technologies), you can use the following method: · Philips CE is going to produce lead-free sets (PBF) from Always use the highest temperature to solder, when using 1.1.2005 onwards.

  • Page 7: Directions For User

    TPT1.0A LA 3. Directions for Use 3. Directions for Use You can download this information from the following websites: http://www.philips.com/support http://www.p4c.philips.com...

  • Page 8: Mechanical Instructions

    TPT1.0A LA 4. Mechanical Instructions 4. Mechanical Instructions Index of this chapter: 4.1 Assy/Panel Removal 4.2 Set Re-assembly 4.1 Assy/Panel Removal Front view Fig.5 Step 3. Remove IR, Side AV, Key board and Main shield assy as Fig.6~8. a. Remove the 4 screws to remove the as Fig.6 b.
  • Page 9 TPT1.0A LA 4. Mechanical Instructions 4.2 Set Re-assembly To re-assemble the whole set, execute all processes in reverse order. Notes: a. While re-assembling, make sure that all cables are placed and connected in their original position. b. Pay special attention not to damage the EMC foams at the SSB shielding.

  • Page 10: Wiring Diagram

    TPT1.0A LA 5. Block Diagram Block Diagram Index of this chapter: Wiring Diagram 5.2 Block Diagram 5.1 Wiring Diagram COMPONENT SIDE 3138 147 23781 3138 147 23781 PHILIPS PHILIPS...
  • Page 11 TPT1.0A LA 5. Block Diagram 5.2 Block Diagram Function block of scaler Board SIF_OUT 5V_SDA 5V_SCL PC_HSIN PC_VSIN RESET_H PX_INT# 3V_SCL 3V_SDA MSP_INT 8051_ALE 8051_WR# 5V_SDA 8051_RD# 5V_SCL 8051_CS2PX 8051_A0-7 8051_AD0-7 SOUND_EN...
  • Page 12 TPT1.0A LA 5. Block Diagram Function block of power Board...

  • Page 13: Power Board

    TPT1.0A LA 6.Circuit Diagram & PWB Layouts Index of this chapter: 6.1 Chassis Overview 6.2 Exploded View 6.3 Scaler Board Schematic Diagram & Layouts 6.4 Power Board Schematic Diagram & Layouts 6.5 SIDE AV Board Schematic Diagram & Layouts 6.6 IR Board Schematic Diagram &...
  • Page 14 TPT1.0A LA 6.Circuit Diagram & PWB Layouts 6.2 37 Exploded View "...
  • Page 15 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.1 Scaler Schematic Diagram-Contents Board S-01...
  • Page 16 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.2 Scaler Schematic Diagram - DSUB/DVI Board S-02...
  • Page 17 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.3 Scaler Schematic Diagram - HDMI Board S-03...
  • Page 18 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.4 Scaler Schematic Diagram - TUNNER Board S-04...
  • Page 19 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.5 Scaler Schematic Diagram - AV CONNECTOR Board S-05...
  • Page 20 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.6 Scaler Schematic Diagram - IO Board S-06...
  • Page 21 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.7 Scaler Schematic Diagram - CPU M30620SPGP Board S-07...
  • Page 22 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.8 Scaler Schematic Diagram - SVP-PX66-1 Board S-08...
  • Page 23 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.9 Scaler Schematic Diagram - SVP-PX66-2 Board S-09...
  • Page 24 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.10 Scaler Schematic Diagram - SVP-PX66-3 Board S-10...
  • Page 25 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.11 Scaler Schematic Diagram - SVP-PX66-4 Board S-11...
  • Page 26 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.12 Scaler Schematic Diagram - DDR 4Mx32 Board S-12...
  • Page 27 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.13 Scaler Schematic Diagram - SOUND DELAY Board S-13...
  • Page 28 7. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.14 Scaler Schematic Diagram - AUDIO DECODER Board S-14...
  • Page 29 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.15 Scaler Schematic Diagram - AUDIO AMP Board S-15...
  • Page 30 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.16 Scaler Schematic Diagram - POWER 1 Board S-16...
  • Page 31 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.17 Scaler Schematic Diagram - POWER2 Board S-17...
  • Page 32 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.18 Scaler Schematic Diagram - RESET Board S-18...
  • Page 33 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.19 Scaler Board Layouts-1 S-19 S-19...
  • Page 34 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.3.20 Scaler Board Layouts - 2 S-20...
  • Page 35 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.4 Power Board Schematic Diagram(37 ) "...
  • Page 36 6. Circuit Diagrams and PWB Layouts TPT1.0A LA 6.4 Power Board Layouts - 1(37")
  • Page 37 6.Circuit Diagrams and PWB Layouts TPT1.0A LA 6.4 Power Board Layouts - 2(37")
  • Page 38 TPT1.0A LA 6. Circuit Diagrams and PWB Layouts 6.5 Side AV Board Schematic Diagram...
  • Page 39 TPT1.0A LA 6.Circuit Diagram & PWB Layouts 6.5 SIDE AV Board Layouts-1...
  • Page 40 TPT1.0A LA 6. Circuit Diagrams and PWB Layouts 6.5 SIDE AV Board Layouts-2...
  • Page 41 TPT1.0A LA 6.Circuit Diagram & PWB Layouts 6.6 IR Board Schematic Diagram...
  • Page 42 TPT1.0A LA 6. Circuit Diagrams and PWB Layouts 6.6 IR Board Layouts-1...
  • Page 43 TPT1.0A LA 6.Circuit Diagram & PWB Layouts 6.6 IR Board Layouts-2...
  • Page 44 TPT1.0A LA 6. Circuit Diagrams and PWB Layouts 6.7 KEY Board Schematic Diagram...
  • Page 45 TPT1.0A LA 6.Circuit Diagram & PWB Layouts 6.7 KEY Board Layouts-1 6.7 KEY Board Layouts-2...

  • Page 46: Alignments

    TPT1.0A LA 7. Alignments 7. Alignments - Maximum : 1.5 V rms. - Impedance < 1 k . 2.1.4 Scart output: ( for WE model only) Index of this chapter: Video: CVBS output 1Vpp / Impedance : 75 . 7.1 Electrical Instructions &Serial NO.
  • Page 47 Greyscale 190.75 184.25 MHz PAL D/K (8M) 100% White Mono 6.5 AU10 214.75 209.25 MHz PAL B/G(7M) Philips Circle Mono 5.5 1 KHz (E12) 349.25 343.25 MHz PAL I (8M) 100% White + Circle Mono 6.0 Music 16 : 9...
  • Page 48 TPT1.0A LA 7. Alignments Apply full white pattern, select smart setting to be PERSONAL. Item 720X576P 720X480P 720X576i 720X480i 50Hz 60Hz 50Hz 60Hz Adjusting Normal SCALER GAIN RG B to reach W/D and Pixel rate 27 MHz 27.027MHz 13.5MHz 13.5MHz luminance in factory mode (37.037 ns) (37.000 ns)
  • Page 49 TPT1.0A LA 7. Alignments Check the analog interface cable AV1/AV2 Check the color poor & noise condition of 64 gray scale pattern. CVBS PERSONAL RICH NATURAL SOFT MULTIMEDIA Contrast Comp video Mode display adjust Brightness 6.1 White balance adjustment (B) Color General set-up: Equipment: Quantum Data Pattern Generator 801GD or 802G or 802R;...
  • Page 50 TPT1.0A LA 7. Alignments 8.3 Factory settings: The user OSD should have the following factory default values after pushing reset to factory. And personal smart setting will return to default. PC Mode Picture Color temp Normal Brightness Contrast Sound Smart Sound Movie Incredible Surround Off Features...

  • Page 51: Software Updrade With Ispwriter

    TPT1.0A LA 7. Alignments 7.2 Software Updrade With ISPWriter A. Install Run SETUP.exe in ISPWriter2 folder Copy all files in ISP3Writer3 folder to ..\Program Files\Trident\ ISPWriter2 B. Use. Step 3.1 Trident tool(3138 106 10549) Connect the PC with the UART_422 board by the RS232 cable and connect UART_422 board "con2"...
  • Page 52 TPT1.0A LA 7. Alignments 6.1. CPU enters ISP mode by hardware way, if PC software ( ISPWriter3.exe) does not send any data during 30 seconds, the CPU will leave ISP mode and go on to continue normal boot operation (To run TV application). When the system power-on, if the "Power"...

  • Page 53: Circuit Descriptions And Ic Data Sheets

    TPT1.0A LA 8. Circuit Descriptions and IC Data Sheets 8. Circuit Descriptions and IC Data Sheets Index of this chapter 8.1 Trouble shooting 8.2 Circuit Description 8.3 IC Data Sheets 8.4 Repair Flow Chart 8.1 Trouble Shooting Symptoms Items to Check and Actions to follow ·...
  • Page 54 TPT1.0A LA 8. Circuit Descriptions and IC Data Sheets 8.2 Circuit Description Description of Scaler board There are video processing and some audio function in scaler board. The 37/42TA1800 uses Trident SVP-PX66 as Scaler engine, which has embedded Analog D-SUB, digital HDMI receiver, scaling input signal to panel OSD mapping and simple 3D de-interlacer. The extra DDR is to accomplish video frame rate conversion and to provide OSD and de-interlacer with enough memory.
  • Page 55 TPT1.0A LA 8. Circuit Descriptions and IC Data Sheets 8.3 IC Data Sheets .3.1 IC Data Sheets-CS4344(U111)
  • Page 56 TPT1.0A LA 8. Circuit Descriptions and IC Data Sheets...
  • Page 57 TPT1.0A LA 8. Circuit Descriptions and IC Data Sheets .3.2 IC Data Sheets-M30620SPGP(U107) Block Diagram...
  • Page 58 TPT1.0A LA 8. Circuit Descrfiptions and IC Data Sheets 8.3.3 IC Data Sheets-PCA9512(U132)
  • Page 59 TPT1.0A LA 8. Circuit Descriptions and IC Data Sheets BLOCK DIAGRAM .3.4 IC Data Sheets-SVP-PX66LX66(U110) Block Diagram...
  • Page 60 TPT1.0A LA 8.Circuit Descriptions and IC Data Sheets PIN Configuration...
  • Page 61 TPT1.0A LA 8. Circuit Descriptions and IC Data sheets 8.4 Repair Flow Chart 1.No work/LED is off 3.No picture/LED is green Check if power switch is Replace Power switch Check normal power board 1088, Check power board pin1~5=24V,pin6= 2.6V pin7=6.1V Check power board 1089 pin1,2=16V,pin3=24V,...
  • Page 62 TPT1.0A LA 8. Circuit Descriptions and IC Data Sheets 4.No TV sound 6.No remote function Check if tuner TU101 pin11 Tty another Replace one good Replace TU101 output IF remote control remote control signal Check IR receiver Check U118 7.LED and function key poor 5.No earthphone sound Check circuit around...
  • Page 63 TPT1.0A LA Spare Parts List C248 9965 000 31326 CHIP 10UF 16V Y5V 65T120610617 Model: 37TA1800/93(CPT) 12NC: 8639 000 17108 C250 9965 000 31326 CHIP 10UF 16V Y5V 65T120610617 C252 9965 000 31326 CHIP 10UF 16V Y5V 65T120610617 Item Philips 12NC...

  • Page 64: Spare Parts List

    R295 9965 000 39595 CHIPR 10K OHM -5% 1/16W 61L0603103 R296 9965 000 39595 CHIPR 10K OHM -5% 1/16W 61L0603103 D114 9965 000 39285 DIODE BAV99 BY PHILIPS 93G6433 R297 9965 000 39609 CHIPR 75 OHM -5% 1/16W 61L0603750 R298 9965 000 39551...
  • Page 65 TPT1.0A LA Spare Parts List U102 9965 000 39579 M24C02-WMN6TP 56G113334 3064 2122 101 02173 RST CRB CF1/6 A 2R2 PM5 A 3065 2138 112 01689 RST SM 0805 RC05 68R PM5 R U103 9965 000 31352 74LVC14ADT 56T4LVC14P U105 9965 000 39586 CM2021-00TR TSSOP-38 56T6623 3066...
  • Page 66 TPT1.0A LA Spare Parts List 7057 9965 000 39691 MOSFET 20A 600V TO-3P 823827735005 7061 9352 673 56112 IC TEA1507P/N1 (PHSE) L 7062 8238 277 35006 MOSFET 13A 800V TO-247 7062 9965 000 39692 MOSFET 13A 800V TO-247 823827735006 7063 4822 130 41327 BC327-40 933179540126...
  • Page 67 9965 000 40839 2200UF 25V GF 67G5152224C Model:42TA1800/93(AUO) 12NC:863900017107 2075 2022 031 00273 ELCAP PF 25V S 100U PM20 A Item Philips 12NC Description 18NC 2076 2222 580 15649 100NF 10% 50V X7R 0805 2077 9965 000 40840 15N/100V PPN 64G47J1531HEU...
  • Page 68 TPT1.0A LA Spare Parts List 5062 9965 000 40856 BEAD COIL 71G55907 CN104 9965 000 39671 RCA JACK G/B/R G/B/R 5105-885-2 88T7813902TN 5063 3138 168 72620 BEAD COIL (BF30TA-2.5X3X1B) 313816872621 CN105 9965 000 39669 RCA JACK 2*2 W/R W/R 5105-855-0 88T7813900TN 5065 9965 000 40856 BEAD COIL...
  • Page 69 TPT1.0A LA Spare Parts List C223 9965 000 39621 CHIP 0.1UF 25V X7R 65T060310422 C317 9965 000 39612 CHIP 1UF 16VX7R 0603 65G060310512 C224 9965 000 31079 1UF -10% 6V X7R 65T080510517 C318 9965 000 39612 CHIP 1UF 16VX7R 0603 65G060310512 C225 9965 000 31326 CHIP 10UF 16V Y5V...
  • Page 70 TPT1.0A LA Spare Parts List C411 9965 000 39625 ELCAP SM HV 16V 22U PM20 67G3112203 R171 2122 118 05678 RST SM 0603 RC0603 47K PM5 R C412 9965 000 39626 ELCAP SM HV 25V 47U PM20 67G3114704 R172 2122 118 05678 RST SM 0603 RC0603 47K PM5 R C414 9965 000 39625 ELCAP SM HV 16V 22U PM20 67G3112203...
  • Page 71 TPT1.0A LA Spare Parts List R272 2122 118 05665 RST SM 0603 RC0603 4K7 PM5 R R396 2122 118 05631 RST SM 0603 JUMP. MAX 0R05 R R273 2122 118 05665 RST SM 0603 RC0603 4K7 PM5 R R397 2122 118 05643 RST SM 0603 RC0603 100R PM5 R R275 2122 118 05665 RST SM 0603 RC0603 4K7 PM5 R R398...
  • Page 72 TPT1.0A LA Spare Parts List FB122 9965 000 39556 CHIP BEAD 71T56K121M U102 9965 000 40821 AT24C02BN-10SU-1.8(ATMEL/ WPI) 56T1133907 FB123 9965 000 39556 CHIP BEAD 71T56K121M U103 9965 000 40822 74LVC14APW 56G4LCX14PH FB124 9965 000 39556 CHIP BEAD 71T56K121M U104 9322 206 24668 IC SM M24C02-WMN6P (ST00) R 932214526668...
  • Page 73 TPT1.0A LA Spare Parts List R037 2122 118 05663 RST SM 0603 RC0603 3K3 PM5 R R038 2122 118 05663 RST SM 0603 RC0603 3K3 PM5 R R039 2122 118 05678 RST SM 0603 RC0603 47K PM5 R R040 2122 118 05678 RST SM 0603 RC0603 47K PM5 R R041 2122 118 05678 RST SM 0603 RC0603 47K PM5 R R042...
  • Page 74 10. 42 Supplement Material " TPT1.0A LA 10.1 Power Board Schematic Diagram(42")
  • Page 75 10. 42 Supplement Material " TPT1.0A LA TPT1.0A LA 10.1 Power Board Layouts - 1(42")
  • Page 76 10. 42 Supplement Material " TPT1.0A LA 10.1 Power Board Layouts - 2(42")

  • Page 77: Supplement Material

    10.42"Supplement Material TPT1.0A LA 10.2 42 Exploded View "...

  • Page 78: Different Parts List

    TPT1.0A LA 11. Different Parts List Diversity of 37TA2000/93 compared with 37TA1800/93 TPV 18NC Description Philips 12NC 867000027476 37TA2000/93 POWER BUTTON 3138 154 17551 CUSHION - BTM-BA-R 3138 156 42191 CUSHION - BTM-BB-L 3138 156 42201 CUSHION - BTM-BB-R 3138 156 42211...
  • Page 79 11. Different Parts List TPT1.0A LA 065G080510332K CAP CHIP 0805 10N 50V X7R 10% Model: 42TA1800/93(LPL) 12NC: 8639 000 17107 063G214J225GNH CAP MPP 2.2uF 450V 5% 065G080510332K CAP CHIP 0805 10N 50V X7R 10% 063G214J225GNH CAP MPP 2.2uF 450V 5% 065G080510332K CAP CHIP 0805 10N 50V X7R 10% TPV 18NC...
  • Page 80 RST CHIPR 100 OHM +5% 1/10W 067G215R4714K EC 470uF 25V EB 10x13mm 061G0603101 RST CHIPR 100 OHM +5% 1/10W 057G763904 TRA FET 2N7002 SOT-23 PHILIPS 067G215R4714K EC 470uF 25V EB 10x13mm 057T7581 FET 2N7002E VISHAY 061G0603101 RST CHIPR 100 OHM +5% 1/10W...
  • Page 81 11. Different Parts List TPT1.0A LA 061G0603103 RST CHIPR 10 KOHM +5% 1/10W 061G0603472 RST CHIPR 4.7KOHM +5% 1/10W 061G1206220 RST CHIPR 22 OHM +5% 1/4W 061G0603103 RST CHIPR 10 KOHM +5% 1/10W 061G0603472 RST CHIPR 4.7KOHM +5% 1/10W 061G1206220 RST CHIPR 22 OHM +5% 1/4W 061G0603103 RST CHIPR 10 KOHM +5% 1/10W...
  • Page 82 TPT1.0A LA 11. Different Parts List 065G060310422 CHIP 0.1UF 25V X7R 065G060310422K CAP CHIP 0603 100N 25V X7R 10 065G060310422K CAP CHIP 0603 100N 25V X7R 10 065G060310422 CHIP 0.1UF 25V X7R 065G060310422K CAP CHIP 0603 100N 25V X7R 10 065G060310422K CAP CHIP 0603 100N 25V X7R 10 065G060310422...
  • Page 83 11. Different Parts List TPT1.0A LA 071G56K121 CHIP BEAD 065G060322422 CHIP 0.22UF 25V X7R 065G120610617Z CER 1206 10U 16V Y5V -20%% 071G56K121 CHIP BEAD 065G060322422 CHIP 0.22UF 25V X7R 065G120610617Z CER 1206 10U 16V Y5V -20%% 071G56K121 CHIP BEAD 065G060322422 CHIP 0.22UF 25V X7R 065G120610617Z CER 1206 10U 16V Y5V -20%%...
  • Page 84 TPT1.0A LA 11. Different Parts List 071G57C101 CHIP BEAD HCB3216K-101T30 061G0603562 RST CHIPR 5.6 KOHM +5% 1/10W 071G57C101 CHIP BEAD HCB3216K-101T30 061L06033601F CHIP 3.6KOHM 1% 1/10W 071G57C101 CHIP BEAD HCB3216K-101T30 061L0603562 CHIP 5.6K OHM 1/10W 071G57C101 CHIP BEAD HCB3216K-101T30 065G060310422K CAP CHIP 0603 100N 25V X7R 10 071G57C101 CHIP BEAD HCB3216K-101T30...

  • Page 85: Revision List

    4.According to the CP-CL60037,37TA1800 model change the Version from V202 to V203,42TA1800 model change the Version from V201 to V202,detail as following: Code number Description Model *P40TL000813*8A LABEL-Flash 37TA1800/93 *P40TL000813*9A LABEL-EEPROM 37TA1800/93 *P40TN00081312A LABEL-Flash 42TA1800/93 *P40TN00081313A LABEL-EEPROM 42TA1800/93 Code number Action Component Code Description...

This manual is also suitable for:

42ta1800/9342ta2000/9337ta2000/93
