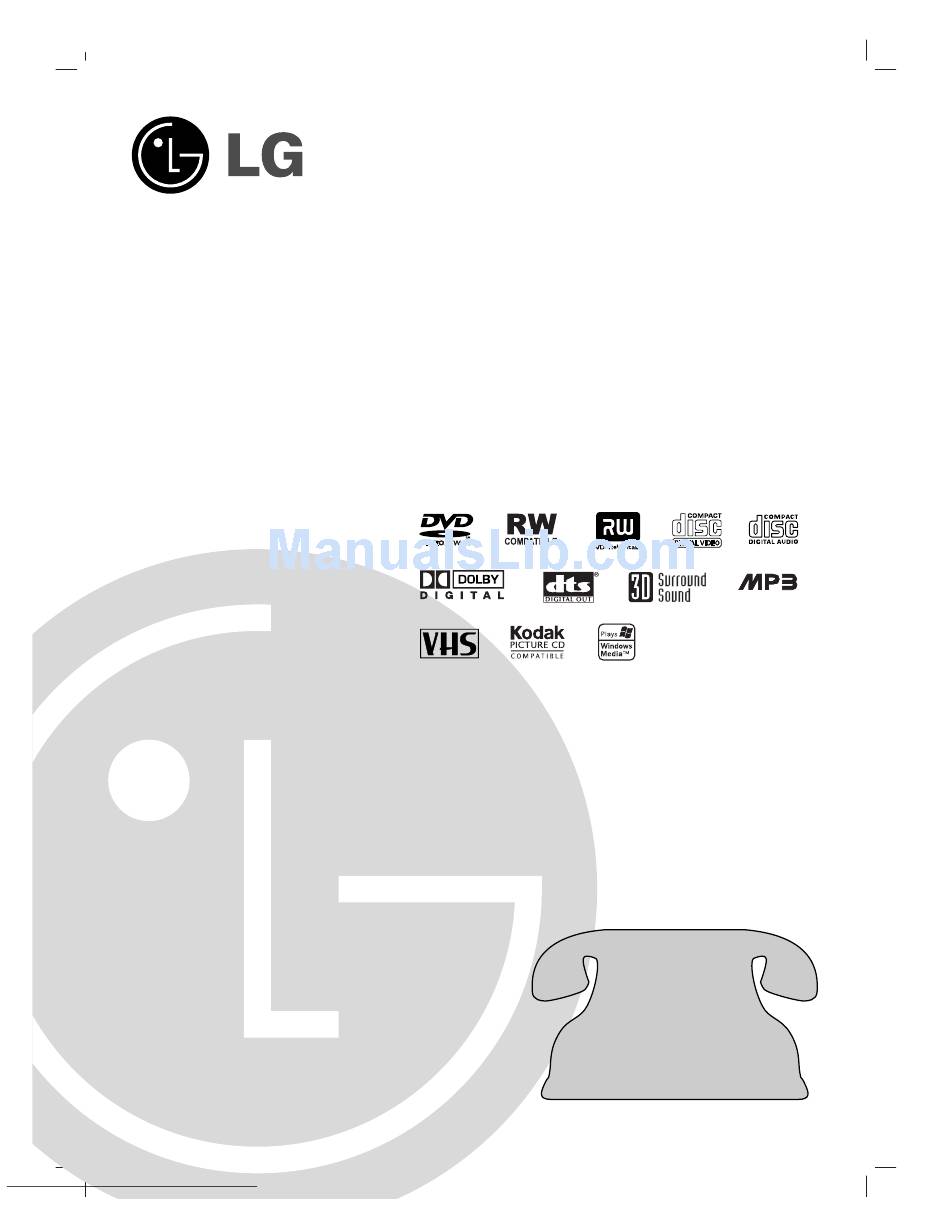

VCR / DVD Recorder
OWNER'S MANUAL
MODEL: LGXBR446
CD-R/RW
Before connecting, operating or adjusting this product,
please read this owner's manual carefully and completely.
Call us and we will
guide you through
your first recording,
for free.
1 1 - - 8 8 0 0 0 0 - - 2 2 4 4 3 3 - - 0 0 0 0 0 0 0 0
Downloaded From Disc-Player.com LG Manuals

Advertisement

Troubleshooting

   Also See for LG LGXBR446

   Related Manuals for LG LGXBR446

   Summary of Contents for LG LGXBR446

  • Page 1

    1 1 - - 8 8 0 0 0 0 - - 2 2 4 4 3 3 - - 0 0 0 0 0 0 0 0 Downloaded From Disc-Player.com LG Manuals...

  • Page 2: Safety Precautions

    FCC COMPLIANCE: The responsible party for this product’s DANS LA BORNE CORRESPONDANTE DE LA PRISE ET compliance is: POUSSER JUSQU’AU FOND. LG Electronics U.S.A., Inc.,1000 Sylvan Avenue, Englewood Cliffs, NJ. WARNING: Do not install this equipment in a confined space Phone: 1-201-816-2000.

  • Page 3: Important Safety Instructions

    The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Downloaded From Disc-Player.com LG Manuals...

  • Page 4: Table Of Contents

    • Factory Setting ..... 22 LANGUAGE ......22 Downloaded From Disc-Player.com LG Manuals...

  • Page 5: Table Of Contents

    • DV-Related Messages ....48 • Troubleshooting ....48 Downloaded From Disc-Player.com LG Manuals...

  • Page 6: Overview

    - When a DVD disc recorded in a DVD recorder of and Video CDs. Some DVDs made for business pur- another manufacturer, or in a personal computer poses may not be played on the unit. DVD drive is used. Downloaded From Disc-Player.com LG Manuals...

  • Page 7: Disc-related Terms

    The finalized DVD disc is a DVD-Video disc Video CDs not equipped with PBC (Version 1.1) Video CDs without PBC are similar to audio CDs, except they allow playback of video as well as sound. Downloaded From Disc-Player.com LG Manuals...

  • Page 8: About Recordable Discs

    Playback, limited Recording, limited Editing DVD-R Video format Video mode Playback, limited Recording, limited Editing DVD+RW +RW Video format DVD+RW Playback, limited Recording, Title/Chapter Editing DVD+R +R Video format DVD+R Playback, limited Recording, limited Title/Chapter Editing Downloaded From Disc-Player.com LG Manuals...

  • Page 9: About Dvd Recording

    Video mode). the picture quality and how much space the recording • The overwrite recording is available with DVD+RW will take up on the disc. disc. Downloaded From Disc-Player.com LG Manuals...

  • Page 10: Recording Tv Audio Channels

    Memory Card slot. 3. You can select between the Music menu and Photo menu using TITLE button on the Remote Control. 4. Press RETURN to exit the Photo or Music menu for memory card. Downloaded From Disc-Player.com LG Manuals...

  • Page 11: Precautions

    Detach the battery cover on the rear of the Remote Control, and insert two AAA batteries with aligned correctly. Caution Do not mix old and new batteries. Never mix different types of batteries (standard, alkaline, etc.). Downloaded From Disc-Player.com LG Manuals...

  • Page 12: Front Panel

    (TV/ Monitor, VCR, Camcorder, etc.). CH (v / V) Scans up or down through AV2 IN (VIDEO / AUDIO (Left/Right)) memorized channels. Connect the audio/video output of an external source (Audio system, TV/ Monitor, VCR, Camcorder, etc.). Downloaded From Disc-Player.com LG Manuals...

  • Page 13: Function Display Window

    Indicates when the VCR/DVD Recorder is Locked. Hi-Fi Indicates when the VCR/DVD Recorder is playing a tape in Hi-Fi. ST Indicates a stereo broadcast is being received. SAP Indicates when a SAP BILINGUAL broadcast is being received. Downloaded From Disc-Player.com LG Manuals...

  • Page 14: Remote Control Overview

    Removes a mark on the Marker Search children from tampering with menu. Accesses the Photo (or Music) menu for the VCR/DVD Recorder. memory card. Simply press LOCK on the Remote Control to toggle this feature on and off. Downloaded From Disc-Player.com LG Manuals...

  • Page 15: Rear Panel

    RF. OUT (DVD/VCR OUT) Connect to a TV with RF coaxial inputs. Caution Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit. Downloaded From Disc-Player.com LG Manuals...

  • Page 16: Connections

    The Adapter does not screw on to the VCR/DVD Recorder, it just slips over the jack. Rear of VCR/DVD Recorder Antenna Antenna Cable TV Wall Jack Flat Wire (300 ohm) 300/75 ohm Adaptor (Not supplied) Rear of VCR/DVD Recorder Downloaded From Disc-Player.com LG Manuals...

  • Page 17: Connecting To A Tv

    TV using the supplied audio cables (A). otes Set Progressive Scan option to “ON” in the General menu, see page 22. Progressive Scan does not work with the RF, Audio/Video or S-Video connections. Rear of VCR/DVD Recorder Downloaded From Disc-Player.com LG Manuals...

  • Page 18: Connecting To Optional Equipment

    This VCR/DVD Recorder does not perform internal (2 channel) decoding of a DTS sound track. To enjoy DTS multi channel surround, you must connect this VCR/DVD Recorder to a DTS compatible receiver via one of this VCR/DVD Recorder’s digital audio outputs. Downloaded From Disc-Player.com LG Manuals...

  • Page 19: Accessory Audio/video (a/v) Connections To Vcr/dvd Recorder

    VIDEO jack on the front panel is not available. This jack is for connection to DV equipment only. It is not compatible with digital satellite tuners or D-VHS video decks. DV Digital Camcorder IN/OUT Front of VCR/DVD Recorder Downloaded From Disc-Player.com LG Manuals...

  • Page 20: Before Operation

    Use v / V to select the tuning band option (TV or CATV) then press ENTER. TV: If you are using a standard antenna to receive channels. CATV: If you are using basic cable to receive channels. Downloaded From Disc-Player.com LG Manuals...

  • Page 21: To Add Or Erase Channels From Memory

    / V (up/down): Changes the setting at the current Prev. Select Close cursor position. Press SETUP. Press ENTER to confirm your setting, then The Setup menu appears. press SETUP to exit the Setup menu. Use v / V to select the GENERAL menu. Downloaded From Disc-Player.com LG Manuals...

  • Page 22: Tv Aspect

    English standard setting, and a picture will once again be visible Disc Audio French Disc Subtitle Italian on a conventional analog TV or monitor. Japanese Spanish Chinese Other - - - - Prev. Select Close Downloaded From Disc-Player.com LG Manuals...

  • Page 23: Audio

    Bitstream: Select when connected to an MPEG decoder Dolby Digital (or an amplifier or other equipment with an MPEG decoder). MPEG Sampling Freq. Dolby Digital Vocal MPEG Sampling Freq. Bitstream Vocal Prev. Select Close Prev. Select Close Downloaded From Disc-Player.com LG Manuals...

  • Page 24: Lock (parental Control)

    2 Use the Number buttons to enter the 5-digit number “21019”. The message appears on the TV screen. 3 Select “Yes” then press ENTER. The 4-digit pass- word is cleared. Enter a new code as shown above. Downloaded From Disc-Player.com LG Manuals...

  • Page 25: Country Code

    Shift the cursor using B buttons and select the VCR Record Mode second character using v / V buttons. DV Record Audio Auto Chapter Press ENTER to confirm your country code selection, then press SETUP to exit the menu. Prev. Select Close Downloaded From Disc-Player.com LG Manuals...

  • Page 26: Dv Record Audio

    Mode” or “Video Mode” then press ENTER. DVD+R: The Initialize menu will appears. Select “Yes” then press ENTER. DVD+RW: The recorder initialize the disc to DVD+RW mode. Also, you can format the disc from the Setup menu as below. Downloaded From Disc-Player.com LG Manuals...

  • Page 27: Disc Finalize

    ‘Unfinalize’ it by choosing Unfinalize from the Disc Protect Finalize menu. After doing this, you can edit and re- AutoPlay record onto the disc. You cannot unfinalize a DVD-R and DVD+R disc. Prev. Select Close Downloaded From Disc-Player.com LG Manuals...

  • Page 28: Disc Label

    • Delete: Deletes the character to the left of the cursor position. • b / B: Moves the cursor left or right. • OK: Confirms the name you have entered. • Cancel: Deletes all characters and exits the Keyboard menu. Downloaded From Disc-Player.com LG Manuals...

  • Page 29: General Explanation Of On-screen Display

    Indicates the Recording mode, signal received free space, and elapsed time by the tuner. progress bar. DVD-VR VR Mode 1H 32M Free Ch. 6 MONO Mono 10/08/2004 11:35AM Indicates output audio signal. Indicates current date and time. Downloaded From Disc-Player.com LG Manuals...

  • Page 30: Osd Menu Options By Media Type

    Digital Audio Shows the current audio soundtrack encoding method, b / B Output mode and channel number, and changes the setting. Sound Shows the current sound mode, and b / B NORMAL changes the setting. Downloaded From Disc-Player.com LG Manuals...

  • Page 31: Video/+rw/+r

    Selection Method (Use v / V to select desired option) Time Shows the elapsed playing time (Display only). 0:00:20 – Audio Channel Shows the audio channel, and b / B HIFI changes the audio channel. Downloaded From Disc-Player.com LG Manuals...

  • Page 32: Operation With Dvd Or Video Cd

    Your VCR/DVD Recorder will not play discs that have a region code different from your VCR/DVD Recorder. Slow motion playback in reverse is not applicable for The region code for this VCR/DVD Recorder is 1 Video CD. (one). Downloaded From Disc-Player.com LG Manuals...

  • Page 33: Still Picture And Frame-by-frame Playback

    This function only works with DVD Karaoke discs or video CDs without PBC. On a Video CD with PBC, you must set PBC to OFF in the DISC menu to use the Random function. See page 27. Downloaded From Disc-Player.com LG Manuals...

  • Page 34: Time Search

    1 During disc playback, press MARKER when playback reaches the spot that you want to memorize. The Marker icon will appear on the TV screen briefly. 2 Repeat step 1 to enter up to six Marker points on a disc. Downloaded From Disc-Player.com LG Manuals...

  • Page 35: Camera Angle

    1 Press DISPLAY twice then use v / V to select the sound icon. Then, use b / B to select “3D SUR.”. 2 To turn off the 3D Surround effect, select “NORMAL”. Downloaded From Disc-Player.com LG Manuals...

  • Page 36: Audio Cd And Mp3/wma Operation

    Open: Displays sub-folders and Open MP3/WMA files only in the folder. Program Add Program Add: Adds all track(s) in the folder to Program List. (page 39) Delete Delete: Deletes the folder(s) from the memory card. (page 38) Downloaded From Disc-Player.com LG Manuals...

  • Page 37: Pause

    3 To exit SEARCH mode, press PLAY (N). required in order to download MP3/WMA files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner. Downloaded From Disc-Player.com LG Manuals...

  • Page 38: Copying Mp3/wma File(s) On The Disc To Memory Card

    • You must insert a memory card in the VCR/DVD recorder to use this function. You can create new album (folder). Select “New album” option on the Copy menu then press ENTER. “NONAME##” folder is created. Downloaded From Disc-Player.com LG Manuals...

  • Page 39: Programmed Playback With Audio Cd And Mp3/wma

    MARKER Mark LIST List Audio CD : Use B to move the tracks to the Program list. The programmed track you selected last is highlighted on the program list. MP3/WMA : Go to next step. Downloaded From Disc-Player.com LG Manuals...

  • Page 40: Repeat Programmed Tracks

    3 Use v/V to move the yellow bar to the desired loca- tion, then press ENTER. The selected track is moved. 4 If you wish to move other tracks repeat stages 1 - 3. Use MARKER to move multiple tracks. Downloaded From Disc-Player.com LG Manuals...

  • Page 41: Photo Disc Operation

    ENTER to return to • When you select a folder. the previous menu screen. Open: Displays sub-folders and Open JPEG files in the folder. Delete Delete: Deletes the selected folder(s) from the memory card. (page 42) Downloaded From Disc-Player.com LG Manuals...

  • Page 42: Still Picture

    File names without the “.jpg” or “.jpeg” extension NONAME 01 Cancel cannot be read by this recorder, even though the files NONAME 02 NONAME 03 are shown as JPEG image files in Windows New album Explorer ® Downloaded From Disc-Player.com LG Manuals...

  • Page 43: Vcr Mode Tape Playback

    0:00:00 by pressing CLEAR. Continue to play or record. 4 Press STOP when recording or playback finishes. 5 Press RETURN (O). The tape automatically stops when the tape counter returns to about “0:00:00”. Downloaded From Disc-Player.com LG Manuals...

  • Page 44: Recording

    ) to put the unit in pause mode. Then select If the VCR/DVD Recorder is powered off during DVD the desired channel on the VCR/DVD Recorder, and press recording, the recording will not be saved. PAUSE/STEP ( ) again to resume recording. Downloaded From Disc-Player.com LG Manuals...

  • Page 45: Dubbing From Dvd To Vcr

    DVD movie ends, or the unit may replay and record over and over again. Stop the Dubbing Process To stop dubbing at any other time, press STOP (x). Dubbing will stop automatically when the VHS tape ends. Downloaded From Disc-Player.com LG Manuals...

  • Page 46: Timer Recording

    “Rec. OK”, it may not be. confirm the recorded program. If two timer recordings are set to record sequentially (one right after the other), the very beginning of the later program may not be recorded. Downloaded From Disc-Player.com LG Manuals...

  • Page 47: Recording From An External Input

    PAUSE/STEP or STOP. You cannot control the cam- corder from this Remote Control during recording. • In Video mode, the final frame of the recording may remain displayed on screen for a while after recording stops. Downloaded From Disc-Player.com LG Manuals...

  • Page 48: What Is Dv

    Remote Control sup- plied with this VCR/DVD Recorder. • Before you set the mode of your Camcorder to cam- era mode, turn down the volume of connected Sound device. There can be a howling sound. Downloaded From Disc-Player.com LG Manuals...

  • Page 49: Title List And Chapter List Menu

    Playlist Add: Adds the title to Playlist Add: Adds the chapter the Playlist. (see page 55) to the Playlist. (page 55) Dubbing: Copys the title to a VHS tape. Press RETURN (O) repeatedly to exit Chapter List-Original menu. Downloaded From Disc-Player.com LG Manuals...

  • Page 50: Using The Title List-playlist Menu

    Press RETURN (O) repeatedly to exit Title List- tion on the Chapter List-Playlist Playlist menu. menu (page 58) Combine: Merges two chapters into one (page 57). Press RETURN (O) repeatedly to exit Chapter List-Playlist menu. Downloaded From Disc-Player.com LG Manuals...

  • Page 51: Using The Title List Menu

    Indicates total and current page number Disc name Title list DVD VIDEO Moves to the next or PAGE TITLE 1 1/03 0:02:01 previous page PAGE TITLE 2 1/03 0:24:12 DOWN TITLE 3 1/03 0:36:30 Exits the Title List screen. EXIT Downloaded From Disc-Player.com LG Manuals...

  • Page 52: Using The Title List Menu +rw

    List menu. • Hide (Show): Hides (or Shows) the title or all chapters within the title. (page 59) Dubbing: Copys the title to a VHS tape. Press RETURN (O) repeatedly to exit Title List menu. Downloaded From Disc-Player.com LG Manuals...

  • Page 53: Using The Title List Menu (+r)

    Hide (Show) • Hide (Show): Hides (or Shows) the all chapters within the title. (page 59) Dubbing: Copys the title to a VHS tape. Press RETURN (O) repeatedly to exit the Title List menu. Downloaded From Disc-Player.com LG Manuals...

  • Page 54: Title And Chapter Editing

    You can also change the thumbnail picture of the title on the Chapter List-Original or Chapter List-Playlist menu. Select a chapter on the Chapter List-Original or Chapter List-Playlist menu then press THUMBNAIL. The thumb- nail picture of the title that includes the chapter is changed. Downloaded From Disc-Player.com LG Manuals...

  • Page 55: Making A New Playlist

    Playlist. Press RETURN (O O ) repeatedly to exit the menu. Select ‘New Playlist’ then press ENTER. The new title appears in the updated Playlist. All chapters of the title are added to the Playlist. Downloaded From Disc-Player.com LG Manuals...

  • Page 56: Deleting A Title/chapter

    ‘Deleted Title’. If you select “Cancel” then press ENTER, the VCR/DVD If more than two titles are repeatedly deleted, the titles Recorder will go to previous option and into Pause are combined into one. mode. Downloaded From Disc-Player.com LG Manuals...

  • Page 57: Naming A Title

    • For discs formatted on a different DVD Recorder, you will see only a limited character set. • When recording in DVD-R, DVD+R or DVD+RW, the entered name is displayed on the DVD player only after finalizing. Downloaded From Disc-Player.com LG Manuals...

  • Page 58: Moving A Playlist Chapter

    ENTER. After pressing ENTER, the new, updated menu is displayed. Repeat steps 2 - 5 to continue to move from the menu. Press RETURN (O) repeatedly to exit the menu. Downloaded From Disc-Player.com LG Manuals...

  • Page 59: Hide A Title/chapter

    To cancel the dividing point, select “Cancel” using v / V then press ENTER. Press ENTER to fix the dividing point. The title is divided into two new titles. It take up to 4 minutes to divide. Downloaded From Disc-Player.com LG Manuals...

  • Page 60: Clean-up Recording

    If the selected title’s recording length is less than 10 compatible on regular DVD players. (Hide, chapter seconds, the next title is overwriten. But if next title is combine, added chapter mark, etc.) protected, the overwriting is impossible. Downloaded From Disc-Player.com LG Manuals...

  • Page 61: Controlling Your Tv With The Supplied Remote

    Set the appropriate code number You can control the sound level, input source, and again. power switch of non-LG TVs as well. If your TV is listed in the table below, set the appropriate manufacturer code. 1. While holding down TV POWER button, press...

  • Page 62: Language Code And Country Code List

    Pakistan Turkey Costa Rica Italy Panama Uganda Croatia Jamaica Paraguay Ukraine Czech Republic Japan Philippines United States Denmark Kenya Poland Uruguay Ecuador Kuwait Portugal Uzbekistan Egypt Libya Romania Vietnam El Salvador Luxembourg Russian Federation Zimbabwe Downloaded From Disc-Player.com LG Manuals...

  • Page 63: Troubleshooting

    Video mode. player. The disc was recorded in VR mode. The other player must be RW compatible in order to play it. Discs recorded with copy-once material can- No solution. not be played on other players. Downloaded From Disc-Player.com LG Manuals...

  • Page 64: Reset The Vcr/dvd Recorder

    Press and hold the POWER button for more than five seconds. This will force the VCR/DVD Recorder to power off. . Press the POWER button again to turn the VCR/DVD Recorder back on. Unplug the power cord and then plug the power cord again after more than five seconds. Downloaded From Disc-Player.com LG Manuals...

  • Page 65: Specifications

    -6 dBm more than 47 kohms, RCA jack (L, R) x 2 S-VIDEO IN (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1 (C) 0.286 V (p-p) 75 Ω DV IN 4 pin (i.LINK/IEEE 1394 standard) Downloaded From Disc-Player.com LG Manuals...

  • Page 66

    Design and specifications are subject to change without notice. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. DTS and DTS Digital Out are registered trademarks of Digital Theater Systems, Inc. Downloaded From Disc-Player.com LG Manuals...

  • Page 67

    Limited Warranty - USA This LG Electronics product, will be repaired or replaced, at LG’s option, if it proves to be defective in material or workmanship, under normal use, during the warranty period (“Warranty Period”) listed below, effective from the date (“Date of Purchase”) of original consumer purchase of the product.
