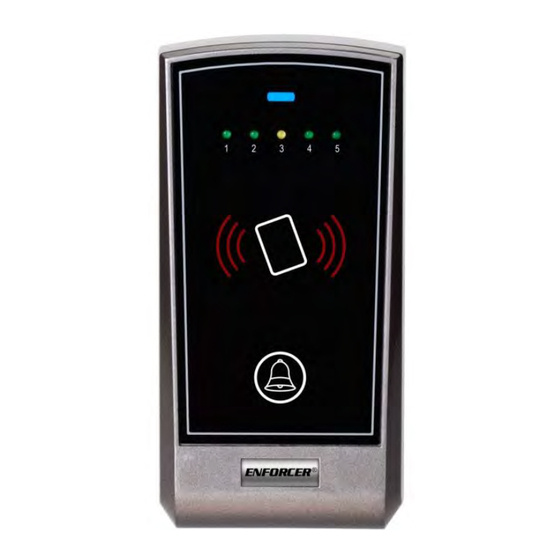

Indoor proximity card reader
Hide thumbs
Table of Contents

Advertisement

Quick Links

Indoor Proximity Card Reader
Stand-alone operation
Status LEDs for operations and
programming
Solid-state lock relay for longer life,
lower power consumption, and
shock/vibration resistance
PR-312S-PQ
Manual
Up to 500 user cards
Up to 5 super user cards, plus
1 master card
10 Cards included (additional cards
available – sold separately in packs of 10)
Integrated doorbell button

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-312S-PQ and is the answer not in the manual?

Questions and answers

Related Manuals for ENFORCER PR-312S-PQ

Summary of Contents for ENFORCER PR-312S-PQ

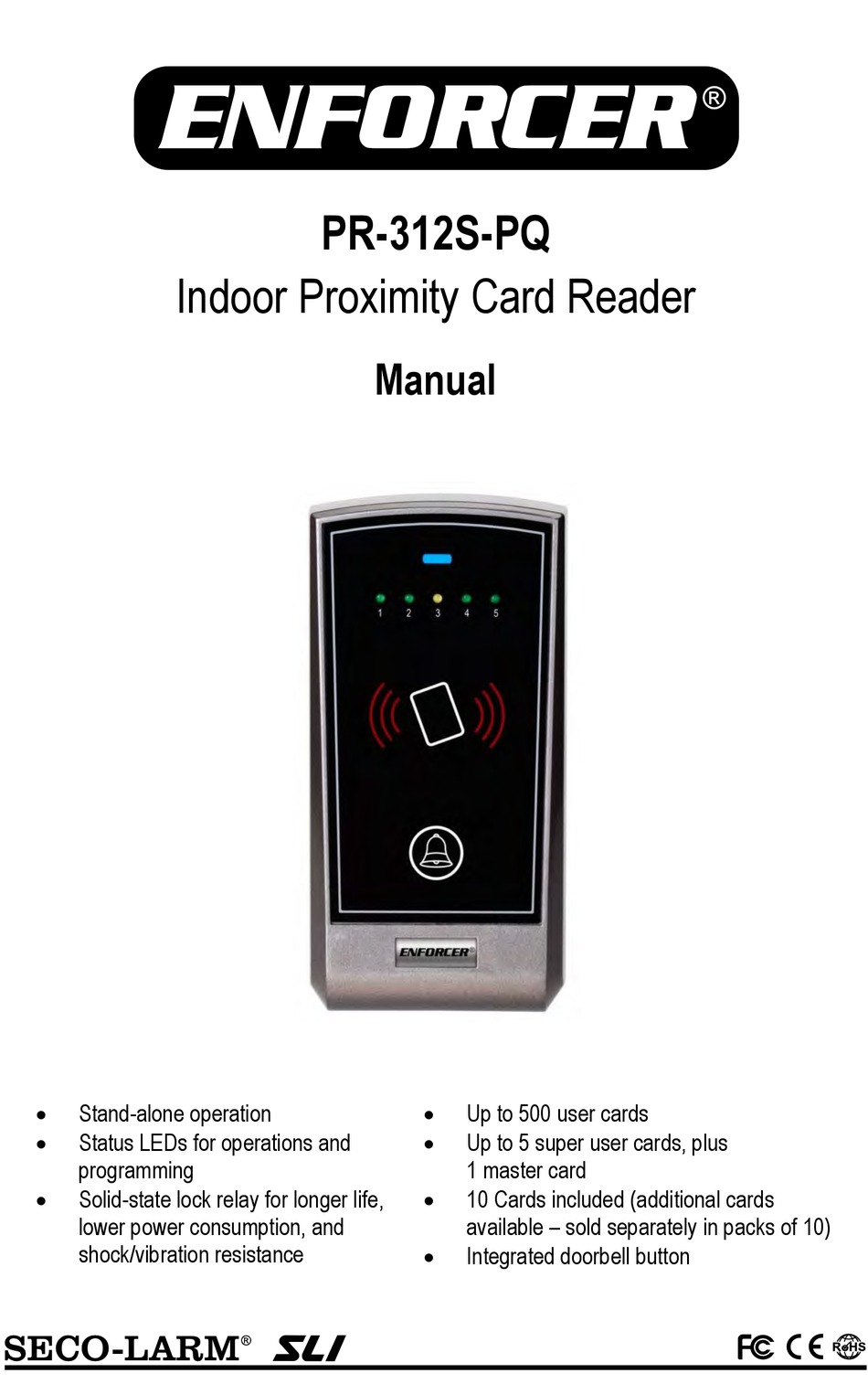

  • Page 1 PR-312S-PQ Indoor Proximity Card Reader Manual   Stand-alone operation Up to 500 user cards   Status LEDs for operations and Up to 5 super user cards, plus programming 1 master card   Solid-state lock relay for longer life,...

  • Page 2: Table Of Contents

    FCC Statement / Warranty ......16 Introduction: The ENFORCER Indoor Proximity Card Reader is a flexible solution for securing controlled access. Its stylish case and small size make it ideal for use in most residential, commercial, and industrial sites. Simple enough to deploy in small businesses, it also has the programming capability to meet the needs of midsize and enterprise companies.

  • Page 3: Dimensions And Overview

    ENFORCER Indoor Proximity Card Reader Dimensions and Overview: Front view Back view (cover removed) Door lock Status LED Operation Front View Side View selection jumper Jumper (blue) indicator LEDs ” (60mm) Card reader Terminal Tamper Doorbell ” block switch (23mm)

  • Page 4: Wiring The Proximity Card Reader

    ENFORCER Indoor Proximity Card Reader Wiring the Proximity Card Reader: (–) (–) DATA DOOR BELL TAMPER 12VDC DOOR LOCK N.O. N.C. Terminals 1 & 2 – 12VDC Power input: 1. Connect terminal 1 (+) to the positive output of a 12VDC power supply.

  • Page 5: Wiring Diagram

    ENFORCER Indoor Proximity Card Reader Wiring Diagram: Use the following wiring diagrams to wire the ENFORCER PR-312S-PQ Proximity Card Reader for typical installations: (–) (–) DATA DOOR BELL TAMPER 12VDC DOOR LOCK N.O. N.C. N.O. Egress button 12VDC Power PUSH...

  • Page 6: Types Of Proximity Cards

    The master card will not unlock the door lock device.  When the PR-312S-PQ Proximity Card Reader is first installed, or if the existing master card is lost, a new master card must first be configured before any programming can be done.

  • Page 7: The Master Card

    ENFORCER Indoor Proximity Card Reader The Master Card: The master card is necessary to do any programming of the ENFORCER Proximity Card Reader. It will be necessary to configure a master card if:  The proximity card reader is being installed for the first time, OR ...

  • Page 8: Basic Programming

    LED 1 turns to a steady ON Wait 2 seconds 2 Beeps Tap a blank user card 1 time 2 Beeps Exit programming by tapping the 2 Beeps master card once The ENFORCER Indoor Proximity Card Reader is now ready for use. SECO-LARM U.S.A., Inc.

  • Page 9: Operating The Proximity Card Reader

    ENFORCER Indoor Proximity Card Reader Operating the Proximity Card Reader: Unlocking the door with a user card: 1. Tap the user card once. 2. Two beeps confirm that a valid user card was read. The LED corresponding to the user group (1 through 5) flashes once while the door strike is opened.

  • Page 10: Advanced Programming

    Basic Programming (page 8). Adding User Cards: The ENFORCER Proximity Card Reader can learn up to 500 user cards. This memory is divided into five user card groups, each of which holds a maximum of 100 user cards.

  • Page 11: Deleting User Cards

    ENFORCER Indoor Proximity Card Reader Advanced Programming (continued): Deleting User Cards: There are three ways to delete user cards: 1. Delete a single user card. 2. Delete a lost user card. 3. Delete a group of user cards. Deleting a Single User Card:...

  • Page 12: Deleting An Entire User Group

    ENFORCER Indoor Proximity Card Reader Advanced Programming (continued): Deleting an Entire User Group: Occasionally it may be necessary to delete an entire user group. For example, there may be a group of temporary users whose contract has ended, or several cards are lost and the administrator is not sure which cards to delete.

  • Page 13: Prog. System Lockout

    Programming System Lockout: The ENFORCER PR-312S-PQ Indoor Proximity Card Reader can be programmed to temporarily lock out user cards if non-programmed user cards are used. There are three possible modes: 1. No system lockout (default mode) (option 1) 2.

  • Page 14: Prog./Deleting Super User Cards

    Advanced Programming (continued): Creating/Deleting Super User Cards: The ENFORCER PR-312S-PQ Proximity Card Reader can be programmed to read up to five super user cards, one for each of the five user groups. The super user cards can be used for the following tasks: 1.

  • Page 15: Troubleshooting

    ENFORCER Indoor Proximity Card Reader Advanced Programming (continued): To delete a super user card: Step Action Reaction Blue status LED flashes, and LED 5 Tap the master card 5 times flashes once Wait 2 seconds 2 Beeps, then LEDs 1 and 2 flash LED 2 turns to a steady ON to indicate Press the “Bell”...

  • Page 16: Fcc Statement / Warranty
