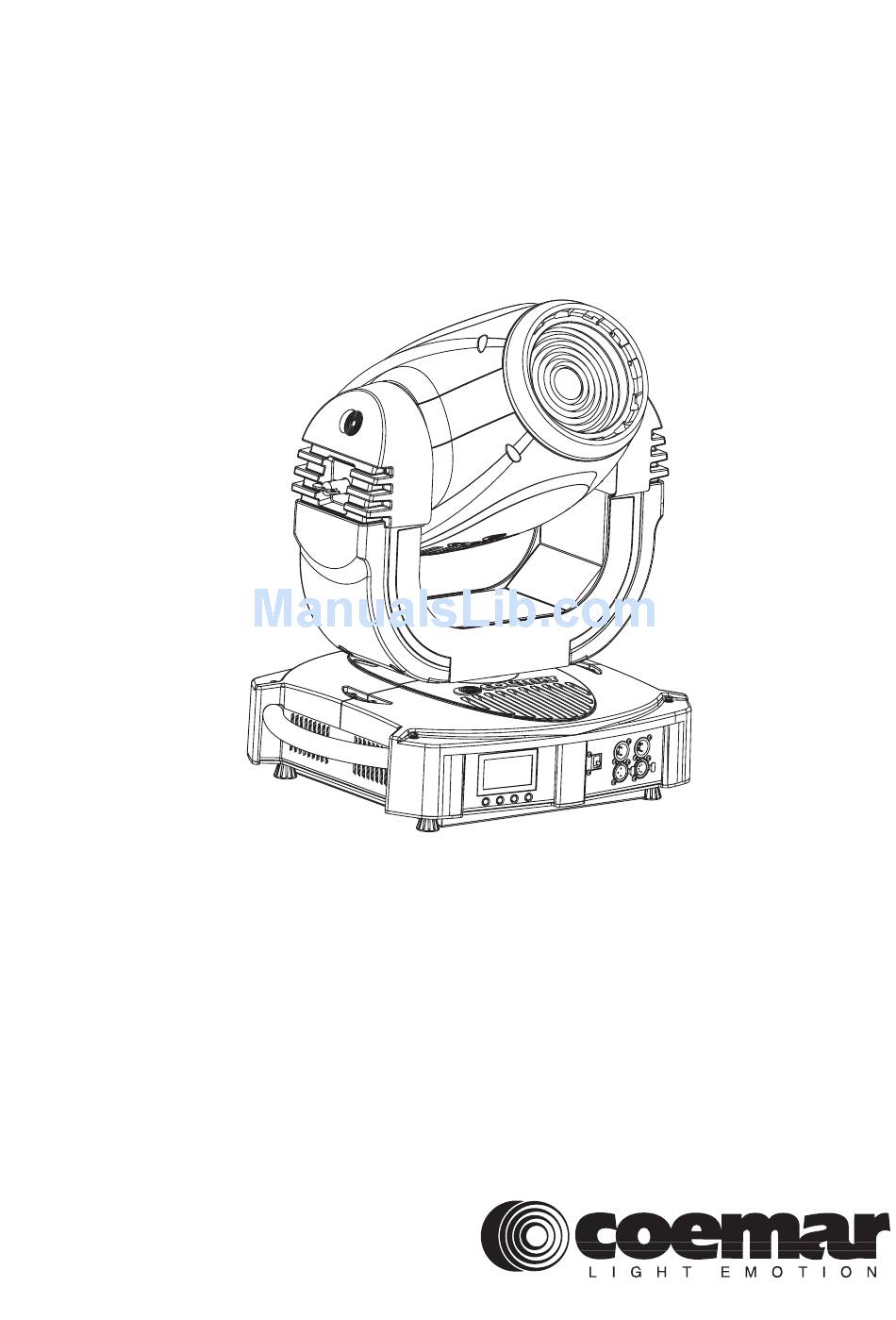

- Page 1 ∞ Infinity Wash S instruction manual manuale di istruzioni Version 1.2 DIS112...
- Page 2 Please note in the space provided above the relative service information of the model and the retailer from whom you purchased your infinity Wash S : this information will assist us in providing spare parts, repairs or in answer- ing any technical enquiries with the utmost speed and accuracy.
-
Page 3: Table Of Contents
English Index .Packaging and transportation....................6 1.1 Packaging........................1.2 Trasportation........................ 2.General information........................6 2.1 Important safety information..................2.2 Warranty conditions..................... 2.3 CE norms........................3. Product specifications......................7 3.1 Technical characteristics..................... 3.2 Dimensions......................... 3.3 Components........................ 4. Installation..........................8 4.1 Mechanical installation....................4.2 Safety connections...................... 5. Powering up..........................9 5.1 Mains cable characteristic................... -
Page 4: Packaging And Transportation
2.1. Important safety information Fire prevention: 1.Infinity Wash S utilises a Philips MSR GOLD 300 FastFit; the use of any alternative lamp is not recommended and will null and void the warranty of the fixture. 2.Never locate the fixture on any flammable surface. -
Page 5: Warranty Conditions
3.The warranty is immediately void if the projector has been operated or dismantled by unauthorised personnel. 4.The warranty does not extend to fixture replacement. 5.The serial number of the projector is required for any advice or service fro your authorised Coemar service centre. 2.3. CE norms The projector meets or exceeds all applicable CE requirements. -
Page 6: Components
4. Installation 4.1 Mechanical installation Infinity Wash S may be either floor or ceiling mounted. For floor mounting, the unit is provided with four rubber feet mounted on the its base allowing its top to be placed on a level surface. -
Page 7: Safety Connections
4.2 Safety connections If the Infinity Wash S is fixed to a structure the use of a safety chain is recommended in order to meet the relevant safety standards. The safety chain should pass through the holes “E” located on the base of the fixture and then fixed to the structure itself You may attach the safety chain to the holes “E”... -
Page 8: Control Signal Connection
(found on the panel near DMX connectors) to a generic Ethernet HUB by using a RJ45 patch. The HUB itself, must be connected to an ArtNet controller. Each Coemar Fixture has its own IP address, so it’s not needed to set it in order to include one fix- ture in your network. -
Page 9: Turning On The Projector
1 to 22 from your DMX 512 controller. A second unit should be addressed as, for example, A023, a third as A045 and so on until the final projector has been addressed The operation must be carried out on every Infinity Wash S that has an address different to A001. Altering DMX addresses 1. -
Page 10: Dmx Functions
English 7.2 DMX functions Note: factory default setting is 16 bit/24 channels. function type of control effect decimal percentage channel X axis, base movement proportional proportional coarse control of the base motor movement - 255 0% - 100% (pan) coarse X axis, base movement proportional proportional fine control of the base motor movement... - Page 11 English step no effect - 10 0% - proportional proportional indexing of the effect through 360° 11 - 127 4% - 50% continuous rotation of the effect in a clockwise direction with proportional 128 - 190 50% - 75% indexing effect rotation through proportional control over decreasing speed 360°...
-
Page 12: Display Panel Functions
English 8. Display panel functions The display panel of the Infinity Wash S shows all the functions available; it is possible to change some of those parameters and to add some functions. Changing the preset settings made by Coemar can vary the functions of the device so that it may respond in different ways depen- ding on the controller, therefore carefully follow the instructions before carryng out any possible selection. -
Page 13: Main Functions
English 8.3. Main functions This section gives the opportunity to change and customize some functional settings of the fixture. MAIN FUNCTIONS It allows the complete management of the horizontal and vertical movements. PAN/TILT see diagram in the next page. It allows to choose an alternative colour insertion curve. -STANDARD CMY SETTINGS -SPECIAL... - Page 14 English The following diagram explains the sub menu for the management of pan and tilt, regarding the pan/tilt menu item described in the diagram at previous page. PAN/TILT -CLOCKWISE PAN/TILT PAN DIRECTION -COUNTERCLOCKWISE Inverts the horizontal beam direction, from left to right or vice-versa by the same DMX change.
-
Page 15: Measures
English 8.4 Measures The internal microprocessor of the Infinity Wash S allows for several diagnostic and output parameters to be displayed. MEASURES It shows the temperatures in the base of the fixture. TEMPERATURE Measures main power voltage of the fans; values over 28.5V must be VOLTAGE considerated as abnormal. -
Page 16: Display Setup
English 8.5 Display setup The Display setup allows to tune the Infinity Wash S functions according to your needs. The following diagram shows the section’s features. DISPLAY SETUP It allows 180° rotation of the display graphics in case of upside down... -
Page 17: Special Mode And Electronic Motor Adjustment
The display panel of the Infinity Wash S allows for the electronic alignment of the projector motors in the optical system. This proce- dure is performed by Coemar at the factory. It may be useful to perform this procedure in order to obtain particular effects or in the case of internal components being replaced (motors, electronic boards, sensors, etc..).. -
Page 18: Lamp Installation And Alignment
English 9. lamp installation and alignment The Infinity Wash S utilises the Philips MSR GOLD 300/2 FastFit with PGJX28 base lamps. The use power is 300W. These lamps are available at your Coemar’s distributor or service centre.. Lamp Philips MSR Gold 300/2 Fast Fit... -
Page 19: Aligning The Lamp In The Optical Path
The combined regulation of the 3 adjusters allows horizontal, vertical and axial regulation of the lamp . 10. Operating on inside groups Infinity Wash S allows extraction of both gobos and colour changer assemblies in order to facilitate inspection, gobos replacing and cleanning of coloured filters and lens. -
Page 20: How To Extract The Colour Assembly
English 10.2 How to extract the colour assembly. 1.Remove “B” screws on the connector labelled “COLOUR CHANGER” and gently remove the “E” connector. 2.Remove the fixed screws of the colour changer assembly and gently extract it. Now it is possible to inspect, clean and replace the filters. 10.3 Standard color wheel configuration 1 mm 40 mm... -
Page 21: How To Replace Filters
English 10.4 How to replace filters 1.Facing the front side of the colour wheel, gently hold the filter you want to replace with thumb and finger, then put a little pressure down and extract the filter. 2.Insert the new filter making it slip under the spring until it locks; respect the coated side of the filter which must be placed on the part where the spring is. -
Page 22: How To Replace Effects
12. Spare parts All the components of the Infinity Wash S are available as replacement spares fat your authorised Coemar service centre. Accurate description of the fixture, model number, and type will assist us in providing for your requirements in an efficient and effective manner. -
Page 23: Error Messages
13. Error messages If you have tocheck a malfunction, Infinity Wash S has an auto-diagnostic system that visualises in the lower part of the display one or more intermittent messages, preceded by “ERR”. The folllowing table will help you to understand these message correctly. If the problem persists despite carryng out the suggested procedure, contact your Coemar Customer Service Centre. - Page 24 Coemar s.p.a. via Inghilterra 2/A - 46042 Castel Goffredo (Mantova) Italy ph. +39 0376/77521 - fax +39 0376/780657 info@coemar.com Coemar si riserva il diritto di apportare modifiche senza preavviso. Coemar reserves the right to effect modifications without notification...
