HDFury NEW-HDF0090-1 User Manual

4k integral
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
4K Integral
User Manual 4K Integral Rev 1.4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEW-HDF0090-1 and is the answer not in the manual?

Questions and answers

Related Manuals for HDFury NEW-HDF0090-1

Summary of Contents for HDFury NEW-HDF0090-1

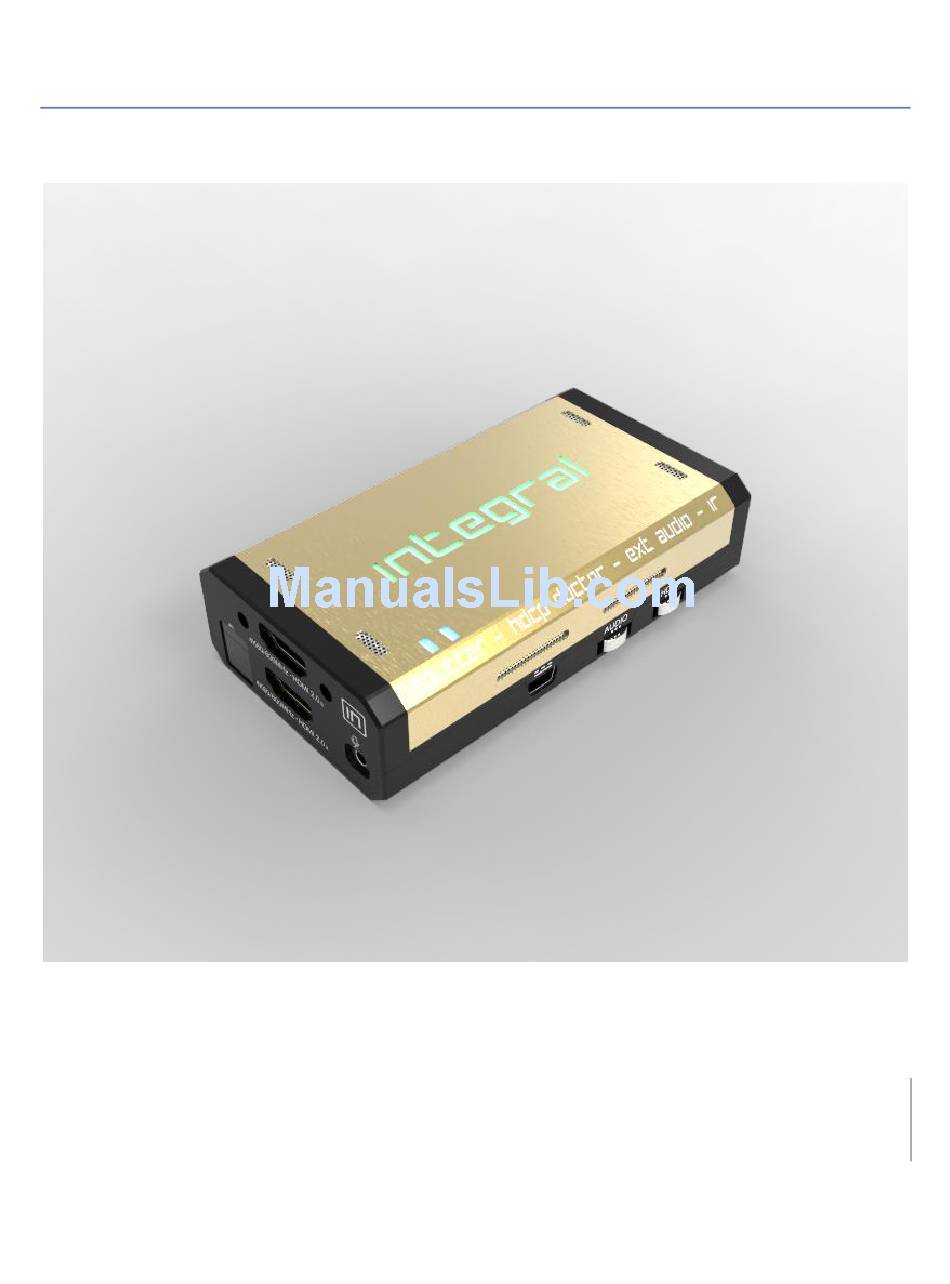

  • Page 1 4K Integral User Manual 4K Integral Rev 1.4...

  • Page 2: Table Of Contents

    4K Integral – User Manual Table of Contents Overview …...................... 3 Connecting Cables …..................4 Power Status/LED …..................5 Reset HPD/Factory Default…................6 EDID Mode Selection ..................7 CEC Trigger Button ……….................. 8 Input Switching and Matrix Mode..............9 HDCP Settings………………………..……………………………………………………………………. 10 Audio Settings…....................11 Combo RST + INP to select Custom EDID............

  • Page 3: Overview

    4K Integral – User Manual Overview The HDfury team would like to thank you personally for purchasing the 4K Integral! This unique HDMI2.0a and HDCP2.2 device supports true full 4K60 4:4:4 600MHz 18Gbps bandwidth signals. It will allow you to solve any HDCP error, Split any SD/HD/Full HD/4K or PC signals up to 600MHz, replace or extract HDMI audio, Input CEC commands, Update and switch between multiple edid banks, work as a Matrix, Inject Infoframe and more.

  • Page 4: Connecting Cables

    4K Integral – User Manual Connecting Cables To use your 4K Integral: • Connect a HDMI input cable to the HDMI input. • Connect a HDMI output cable to the HDMI output. • Connect the Integral power supply. • Connect any additional HDMI input/output cable or any audio input /output cable (optional). As shipped, the Integral defaults to HDCP1.4 on the Bottom output port.

  • Page 5: Power Status/Led

    4K Integral – User Manual Power/Status LED The Integral logo will glow Green when in use. When the Integral first receives an HDMI signal the logo will quickly turn on, then off, and then on permanently to indicate that the HDCP handshake has been completed.

  • Page 6: Reset Hpd/Factory Default

    4K Integral – User Manual Reset HPD (Short Press) or Reset to factory default (Long Press) The 4K Integral offers 2 functions per push button. [Short Press] on Reset Button will generate Hot Plug Detection event. [Long Press] (over 10s for security) will reset the Integral to factory default. Note: You can also Reset the unit or perform any others control with IR codes, from the USB GUI for Windows PC or via smartphone/tablet APP for Android and iOS.

  • Page 7: Edid Mode Selection

    4K Integral – User Manual EDID Mode Selection EDID slide switch has 3 positions. Switch should be set to middle position to allow control via USB, IR or Bluetooth device. [Automix Mode]: Create EDID based on mutual least capabilities so both displays will always show a picture and audio.

  • Page 8: Cec Trigger Button

    4K Integral – User Manual CEC Trigger Button CEC Trigger Button allows you to send two custom CEC commands on the HDMI/CEC network. Integral TOP output port is the CEC master output. [Short Press] on CEC Trigger Button will send CEC1 command. [Long Press] (over 2sec) on CEC Trigger Button will send CEC2 command.

  • Page 9: Input Switching And Matrix Mode

    4K Integral – User Manual Input Switching and Matrix mode Input Switch / Matrix Mode Button allow you to switch active inputs or enter/exit the Matrix mode. [Short Press] will switch the active input channels in Splitter Mode and swap/cross signals in Matrix mode.

  • Page 10: Hdcp Settings

    4K Integral – User Manual HDCP Settings HDCP slide switch has 3 positions. The switch should be set to the middle position to allow control via USB, IR or a Bluetooth device. [HDCP 2.2 Mode]: In this mode you always have HDCP 2.2 on the TOP output port and HDCP 1.4 on bottom output port.

  • Page 11: Audio Settings

    4K Integral – User Manual Audio Settings Audio slide switch has 3 positions. The switch should be set to the middle position to allow control via USB, IR or a Bluetooth device. [Audio Replaced] from 3.5mm input: HDMI output sound can be replaced by 44.1kHz (or 48kHz) audio from the 3.5mm input.

  • Page 12: Combo Rst + Inp To Select Custom Edid

    4K Integral – User Manual Combo Hold RST + Press INP to select Custom EDID Since FW 0.55.0.30 Users now have the possibility to select a custom EDID directly from the unit push buttons by performing the below combo. HOLD RST button + press INP button X number of times to select custom EDID. Ex: Hold RST and press 8 times INP button to select EDID table 8 –...

  • Page 13: List Of Custom Edid Available

    4K Integral – User Manual List of Custom EDID available. Since FW 0.55.0.30, User can now select an EDID from all below EDID tables or force the creation of an Automix EDID with below options. [FIXED EDID with L/R stereo] 1080p-444 148MHz Stereo [CUSTOM USE] 1 –...

  • Page 14: Backside Sticker

    4K Integral – User Manual Backside Sticker A sticker is available on the back of the unit to remind you the basic configuration options available from the physical button and slide switches as well as the Short Press [SP] and Long Press [LP] functions of each button.

  • Page 15: Selecting The Windows Pc Driver For Usb Gui And Firmware Update

    4K Integral – User Manual Selecting your Windows PC Driver for USB GUI and Firmware update Make sure to install the right Silabs driver for Windows PC based on your Windows OS version and USB port version. Silabs Driver 4.0.0 for XP/VISTA/WIN7/WIN8/WIN10 Silabs Driver 4.0.0 - ZIP - 9.18 Mo USB2.0: WIN XP / VISTA / WIN7 / WIN8 / WIN10 USB3.0: WIN10 / Partial support for others Windows version.

  • Page 16: Update The Integral Firmware With A Windows Pc

    4K Integral – User Manual Updating your Integral Firmware for Windows PC The Integral Firmware Updater is compatible with all Windows from Win XP to Win 10. Make sure you have installed the right Silabs driver based on your Windows version and USB port as described in previous page.
  • Page 17 4K Integral – User Manual Flashing time is around 50 seconds Do not disconnect your device while the upgrade process is running. Once completed, you will hear a windows notification sound and the below window will pop up. Simply click OK and the main updater will display the below message. This confirms the FPGA update process is completed;...
  • Page 18 4K Integral – User Manual MCUUpdate Instructions Double-click UpdateMCU executable (if needed, right-click and select Run as Administrator) The below window will open. Click Update Firmware as shown on the above picture. Flashing time is less than 5 seconds. Once completed, you will hear a windows notification sound and the below window will pop up. Simply click OK and the main updater will display the below message.

  • Page 19: Integral Usb Gui For Windows Pc

    4K Integral – User Manual Integral USB GUI (Software for Windows PC) The USB GUI is compatible with all Microsoft Windows version from Win XP to Win 10. Make sure you have installed the right Silabs driver based on your Windows version and USB port as described in p.15 You can download the latest GUI version for your Integral device from the Download Tab on the Integral Product page: here.
  • Page 20 4K Integral – User Manual The USB GUI for Windows PC allows the following control: - Display Information on source device when available. - Display Input signal resolution, refresh rate and bandwidth. - Display Input signal colorspace. - Display the Firmware revision. - Display Active input and output link information.
  • Page 21 4K Integral – User Manual The TOP SECTION of the USB GUI for Windows PC: ver: 0.54.0.29 on the top right corner indicate the current FW version of your Integral unit. The middle boxed area will provide you with the following information: Source Info: When available it will display information about the source device in use.
  • Page 22 4K Integral – User Manual The EDID MANAGER section of the USB GUI for Windows PC: [Automix Mode]: Create EDID based on mutual least capabilities so both displays will always show a picture and audio. Some Flags can be checked or unchecked so you can force and override some parameters to match your needs.
  • Page 23 4K Integral – User Manual [Fixed EDID with L/R Audio]: This mode is a 1080p60 2channel stereo basic table. It can be used as a security EDID to ensure a picture in every setup/situation. Read Integral EDID: This option could be useful if for example you want to double check the build capabilities of an Automix EDID in your setup using external software such as AWEE (AW EDID Editor from Analog Way).
  • Page 24 4K Integral – User Manual The CEC COMMANDER section of the USB GUI for Windows PC: [CEC ENABLE]: Checked by default, it allows Integral to answer and process CEC requests and commands and appear on the CEC network map. Uncheck it if you do not want Integral to answer external CEC requests or process Internal CEC commands.
  • Page 25 4K Integral – User Manual [CEC COMMAND]: Enter the CEC command of your choice in this text field in HEX format. If you are not sure about how to format your command, we recommend you to visit the very well done cec-o-matic website made by Kwikwai.
  • Page 26 4K Integral – User Manual The INFOFRAME/HDR section of the USB GUI for Windows PC: [FORCE HDR ALWAYS ACTIVE]: Unchecked by default, once activated it will turn ON the HDR mode of any HDR display. Make sure to select the right kind of HDR mode first: Full HDR mode is selected by default for LG, Sony, JVC or any other brands, if you have a 2015 Samsung, make sure to select Samsung HDR mode first before activating the FORCE HDR ALWAYS ACTIVE mode.
  • Page 27 4K Integral – User Manual If you are not sure about how to format your InfoFrame, we recommend you to visit our Infoframe Injection thread in our support forum. (Advanced Users only) [Send IF]: By clicking this option, the InfoFrame metadata that you entered in the INFOFRAME INJECTION text field will be injected LIVE from the Integral unit to the HDMI signal toward outputs ports.
  • Page 28 4K Integral – User Manual The CONFIG section of the USB GUI for Windows PC: [LED CONTROL]: Enable by default, GREEN LED for Logo and BLUE LEDs can be turned ON/OFF at will. Some users might found Integral LEDs visually disturbing in their HT setup. You have the possibility to turn either Green or Blue LEDs OFF or both.
  • Page 29 4K Integral – User Manual [AUTOMIX ALGO] 4 algorithms are available to mix your sinks devices EDID as you wish. - Max Audio, Min Video [Default] - Min Mixed Capabilities - TOP Output Priority - Max Audio, Max Video Automix Algo results are also based on enforceable flags set (see p.22) [BETA test mode]: Special test mode added for HDCP1.4/1080p/4K30 MAX AVR.

  • Page 30: Integral Total Control App

    4K Integral – User Manual 4K Integral Total Control APP 1.0.5 for Android Disclaimer: party and/or custom firmware providing extra features are not covered in this manual.
  • Page 31 Main Features of the Android Total Control APP 1.0.5 for Integral This APP request Bluetooth authorization and SD card/file writing permissions when installing. The app will allow you to control and operate your HDfury Integral and CEC components within your Home Theater setup. It can perform the following: - Reset/HPD/Read/Modify and Upload Configuration.

  • Page 32: Frequently Asked Questions (Faq)

    4K Integral – User Manual What is the difference between Splitter and Matrix option, what are the options for each mode? The below picture represents the available options for both mode. Can we pass-through 4K60 4:4:4 and have one output at 4K60 4:2:0? Yes, when activated, the 4K60 4:4:4 >...
  • Page 33 For 600MHz users must use "high speed" cables, or 600MHz/18Gbps certified. For 4K30, 1080p or less almost all cables are ok. HDfury Integral acts as a HDMI repeater device. So having a HDfury Integral in the path will amplify and recover the signal. You should not need any passive (or active) HDMI amplifiers, especially if you put the HDfury Integral in the middle of your cable run.
  • Page 34 (you only have 2 speakers in your TV): Do I need to use the USB power supply? Yes. Due to the advanced features, the integral draws more power than previous HDfury models. The integral power supply must be used at all times.
  • Page 35 4K Integral – User Manual Is the Integral power supply the same as that used by the HDfury1, HDfury2, and GammaX? No. The power supply for the HDfury1, HDfury2 and GammaX kits are 0.5A max current. The HDfury3 is 1A max current. The Integral power supply can supply up to 2.0A. Do not use an HDfury1, HDfury2, or GammaX power supplies with the Integral.
  • Page 36 Highlight Features: Unique HDCP Doctor Providing a total of 6 HDCP 1.4 and 2.2 engines for decryption/encryption, HDfury Integral offers a total HDCP workaround solution including HDCP 1.4 > HDCP 2.2 and HDCP 1.4 > HDCP 2.2 both ways conversion within the same unit. It is capable of connecting any HDCP1.x or HDCP2.x source devices to any HDCP1.x or HDCP 2.x sink devices.
  • Page 37 4K Integral – User Manual HDMI Audio Extracting HDfury Integral can extract HDMI audio up to 5.1 and pass-thru any sound format including Atmos via HDMI, it have a simultaneous output of analog L/R stereo and up to 5.1 optical S/PDIF via 3.5mm combo jack connector.

  • Page 38: Specifications

    Color Support Flexible/Portable/Plug’n Play 3D Ready: Capability to pass 3D stereoscopic signal formats. Just like any recent HDfury hardware, it comes with USB upgradable firmware that allows you to unleash furious features. Disclaimer: party and/or custom firmware providing extra features are not covered in this manual.

  • Page 39: Technical Specifications

    4K Integral – User Manual Supported Audio/Video Signals Supported Format: SD/HD/FullHD/UHD/4K30/4K60, basically INPUT/OUTPUT any video format up to 4K60 4:4:4 600MHz 18Gbps. Supported Resolution examples: 480p/720p/1080i/1080p24/1080p25/1080p30/1080p50/1080p60/1440p50/1440p60/2160p24/2160p2 5/2160p30/2160p50/2160p60 Support all UHD/BR standard resolution: 4K60 4:2:0 10bit BT2020 HDR, 4K60 4:2:0 12bit, 4K30 4:4:4 12bit, ..

  • Page 40: Certifications

    4K Integral – User Manual Certifications Integral CE Certification Integral RoHS Certification Integral FCC Certification Disclaimer: party and/or custom firmware providing extra features are not covered in this manual.
  • Page 41 4K Integral – User Manual 7 Quality Tests certified by AV T.O.P. UHD 60Hz signal pass through - HDR infoframe injection - AVI Infoframe modification - Split function for UHD signals to two display devices - 10 Bit UHD signal pass through - Submission of CEC commands - HDMI Audio replacement Disclaimer: party and/or custom firmware providing extra features are not covered in this manual.
  • Page 42 4K Integral – User Manual Pro Tips - When testing a setup in splitter mode, prefer BOTTOM INPUT for 600MHz unless you have always working 600MHz HDMI cables. - Recommended Configuration for testing a setup: Audio slide on HDMI, HDCP slide on 1.4 - Ex of AVI InfoFrame: BT.2020 RGB 00:E8:64:5D:00 BT.2020 YCbCr 4:2:2 20:E8:64:5D:00...
  • Page 43 4K Integral – User Manual Team HDfury thanks you for your support For help visit our support forum contact www.HDfury.com Disclaimer: party and/or custom firmware providing extra features are not covered in this manual.
