Summary of Contents for PRO DG GT 2X8 L.A.

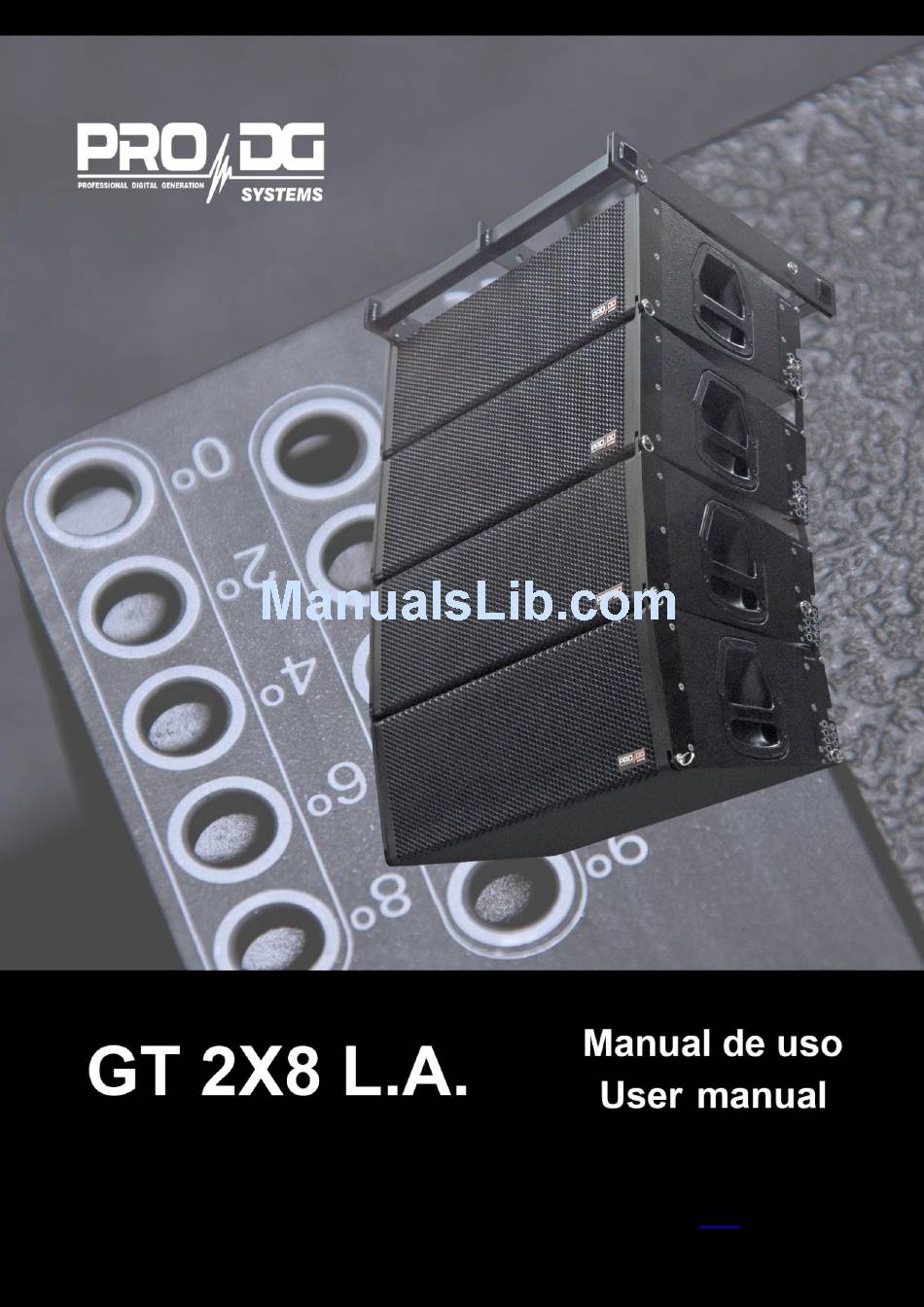

  • Page 1 An updated .pdf version of this manual is always available here...
  • Page 3 LINK EN ESPANOL JEJ LINK EN ESP AÑOL JEJEJE LINK ESPAÑ...
  • Page 4 FÁBRICA / FACTORY: Pol. Ind. Santa Bárbara C/Aceituneros, Nº 5 - 41580 Casariche (SEVILLA) ESPAÑA D. José Carlos López Cosano fabricante y representante de PRO DG SYSTEMS INTERNATIONAL / JCL PRODUCTION S.L. Mr. José Carlos Lopez Cosano manufacturer and representative of PRO DG SYSTEMS INTERNATIONAL / JCL PRODUCTION S.L.

  • Page 5: Table Of Contents

    Pro DG Systems GT 2X8 L.A. Manual de usuario User manual Indice – Index. Introducción / Introduction ………………………………………………………………. Pag 5 - Descripción / Description - Especificaciones técnicas y arquitecturales / Technical ………...……………..…………………….……..…. Pag 6 and arquitectural specifications Interior del GT 2X8 L.A. / Inside GT 2X8 L.A.

  • Page 6: Introducción / Introduction

    Europeos. [EN] This manual has been designed to help all the users of the system GT 2X8 L.A. of Pro DG Systems to its correct use as well as for the understanding of the benefits and versatility of the same. GT 2X8 L.A. is a Line Array system totally designed, manufactured and optimized in Spain, exclusively using European components.

  • Page 7: Especificaciones Técnicas Y Arquitecturales / Technical And Arquitectural Specifications

    Mylar diaphragm. High Frequency Cut-off: 1200 Hz Linkwitz-riley 24 filter - 18000 Hz Linkwitz-riley 24 filter Recommended Amplifier: Pro DG Systems GT 1.2 H, GT 4.0 or Lab.gruppen FP 6000Q, FP 10000Q. Connectors: 2 NL4MP Neutrik speakon connectors. Acoustic Enclosure: CNC model, 15mm made from birch plywood plated on the exterior.

  • Page 8: Interior Del Gt 2X8 L.a. / Inside Gt 2X8 L.a

    Interior del GT 2X8 L.A. - Inside GT 2X8 L.A. [ES] El interior del GT 2X8 L.A. está compuesto por dos altavoces Beyma de 8”, 300 W (RMS). Especialmente diseñados bajo nuestros propios parámetros para el mejor rendimiento del sistema. [EN] GT 2X8 L.A.

  • Page 9: Frequency Response And Distortion

    THIELE-SMALL PARAMETERS* MOUNTING INFORMATION Resonant frequency, fs 65 Hz Overall diameter 212 mm (8,35 in) 5,2 Ω D.C. Voice coil resistance, Re Bolt circle diameter 198 mm (7,8 in) Mechanical Quality Factor, Qms 9,54 Baffle cutout diameter: Electrical Quality Factor, Qes 0,34 - Front mount 181 mm (7,12 in)

  • Page 10: Constant Directivity Horn

    Pro DG Systems de 50 W RMS, acoplados a una guía de ondas. Las características de directividad constante de este modelo aseguran poder cubrir 120º de amplitud horizontal y 20º...

  • Page 11: Compression Drivers, Key Features ( One Unit ), Frequency Drivers And Distortion Curves, Impedance Curve, Horizontal And Vertical Dispersion, Technical Specifications, Dimension Drawings, Mounting Information, Construction Materials

    Interior del GT 2X8 L.A. - Inside GT 2X8 L.A. [ES] GT 2X8 L.A. está compuesto además por dos motores de compresión Beyma de 50 W RMS acoplados a una guía de onda. Especialmente diseñado bajo nuestros propios parámetros para el mejor rendimiento del sistema.
  • Page 12 Interior del GT 2X8 L.A. - Inside GT 2X8 L.A. VERTICAL DISPERSION HORIZONTAL DISPERSION Notes: dispersion measured with two waveguides coupled to a 90º x 5º horn in anechoic chamber, 1w @ 2m. All angle measurements are from the axis (45º means +45º). TECHNICAL SPECIFICATIONS DIMENSION DRAWINGS Throat diameter...

  • Page 13: Hardware De Vuelo / Rigging Hardware

    Hardware de vuelo - Rigging Hardware. [ES] El pinlock magnético es una fijación de seguridad innovadora que evita la pérdida del mismo y permite un fácil encaje con el marco de vuelo gracias a sus propiedades magnéticas. [EN] The magnetic pinlock is an innovative security fixing which avoids its loss and allows an easy fit with the flight hardware thanks to its magnetic...

  • Page 14: Software De Predicción / Prediction Software

    Pro DG Systems. Para más información consulte con nuestro servicio técnico en: sat@prodgsystems.com [EN] In Pro DG Systems we know that making high quality speakers is an important part of our job. Then, offering the warranty of using speakers properly is another part which is also fundamental in our job. Good tools make the difference for an optimal use of the system.

  • Page 15: Accesorios / Accessories

    Accesorios - Accesories. [ES] Pro DG Systems ofrece a sus clientes todo tipo de equipamiento y accesorios para sus sistemas. GT 2X8 L.A. dispone de flight case o patín y funda de transporte, además de cableado completo del sistema listo para funcionar.
