Summary of Contents for Tuncmatik POWERNOTE SLIM

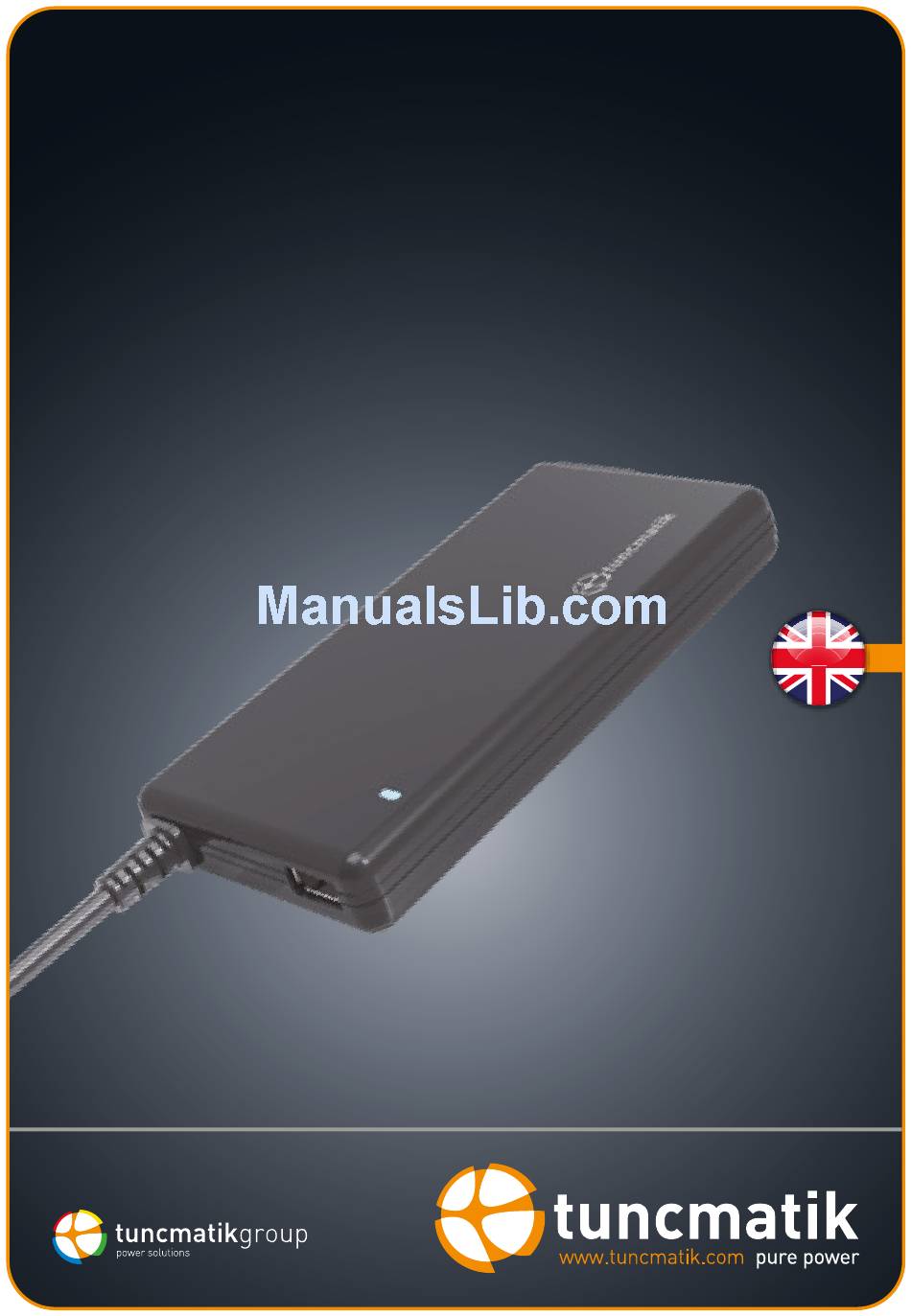

- Page 1 POWERNOTE SLIM 90W USB ADAPTER USER MANUAL...
- Page 2 Firstly thank you for purchasing our new POWERNOTE SLIM adapter, which is especially designed for charging and supplying power for laptops. The max power of POWERNOTE SLIM can reach 90W. Also it adopts the widest output voltage technology and switch voltage automatically.
-
Page 3: Installation
Product Specification AC Input: AC110~240V 50-60HZ 2A DC Output: 12V~24V USB Output: 5V / 1A Power: 90W Blue LED indicator Efficiency: >85% Dimensions: 134 x 67 x 17 mm Key Features ¥ 90W universal notebook power adapter for indoor use. ¥... -
Page 4: Function Illustration
Function Illustration DC Output DC Tip AC Input USB Port SMART DIGITAL MP3-MP4 PHONES CAMERAS PLAYERS Operation Steps Output Voltage Tip No. 1. Connect the AC power cable to the power supply and to the power socket, (Picture A) 2. Choose the right connector for your laptop/ultrabook, for example, choose D, you’ll find output voltage 19V. - Page 5 Operation Instruction Check the DC voltage of your notebook. Method one: you can check from the back of your notebook. MODEL NO: CL32 DC RATING: 19V 3.42A Voltage=19 Volt Method two: you can look at the label of your notebook adaptor. INPUT: 100-240V~1.5A (1.5A) 50-60Hz OUTPUT: 19V 3.42A (3.42A)
- Page 6 TUNCMATIK MÜŞTERİ HİZMETLERİ 0850 201 6 877 For Turkey Only Üretici & İthalatcı / Manufacturer & Importer: Tunçmatik Elektrik Malzemeleri Sanayi ve Ticaret A.Ş. Yenişehir Mah. İmar İskan Blokları Cad. No: 1BU 34779 Ataşehir, İstanbul, Turkey T : +90.216.314.51.51 F : +90.216.420.35.29...
