Required Clearances
The boiler requires certain clearances to combustibles, reference
the tables below to ensure the location selected is suitable for in-
stalling the boiler. It is highly recommended that the boiler be pro-
vided with adequate clearances for ease of installation, service, and
maintenance, these clearances are referenced below

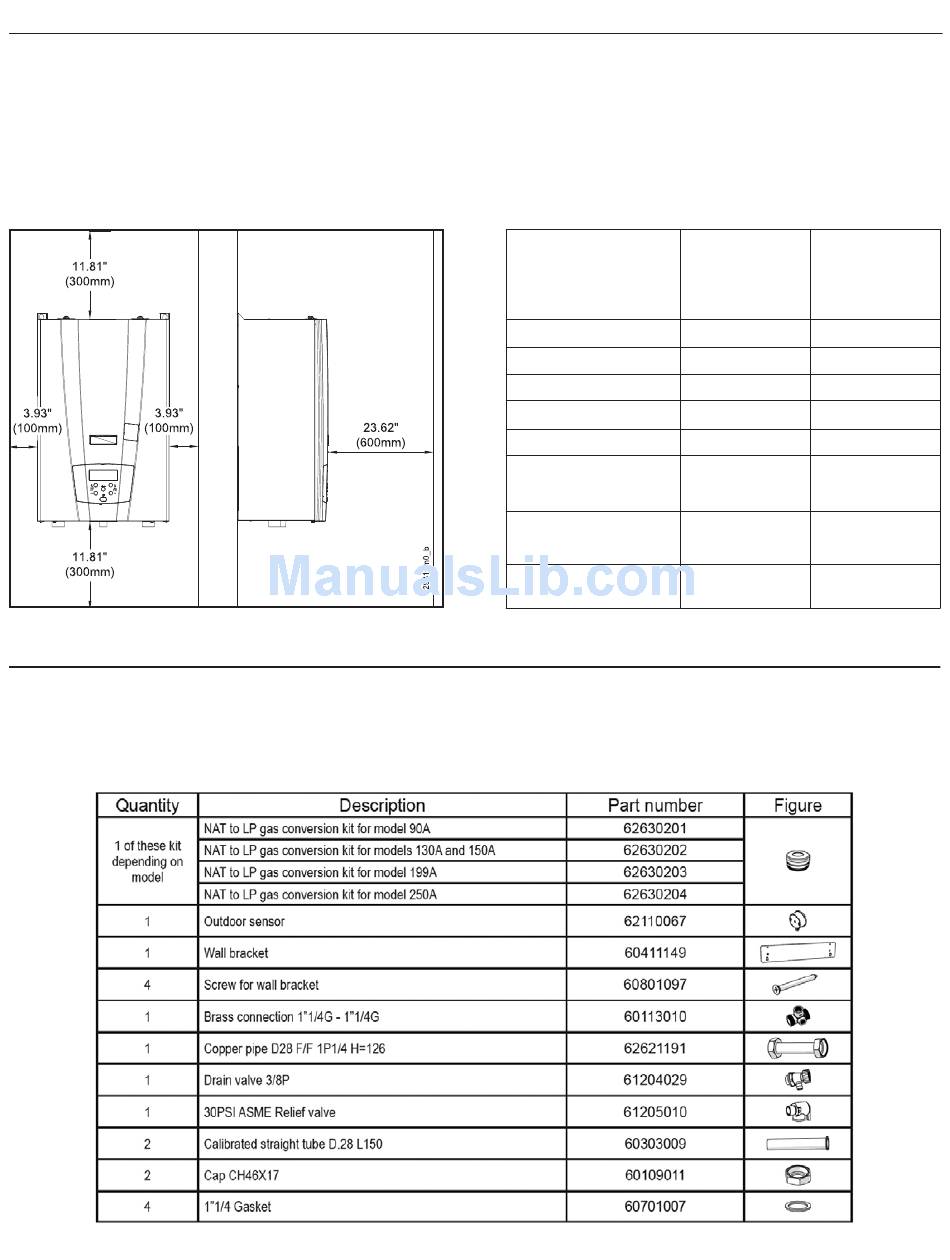

Figure 1. Service clearances
Unpacking the Boiler
The boiler is packaged with the following list of parts and fittings. Please inspect the contents of the
packaging and make sure everything on the list has been removed from the box before disposal.
Slant/Fin VSL II Quick Start Guide
Clearances to
Ceiling
Front
Rear
Left/Right side
Floor
Vent (first 3ft
from the boiler)*
Vent (Beyond 3ft
from the boiler)*
Supply/Return piping
Minimum
Recommended
Required
Service
Clearances
Combustibles
2
12
2
24
0
0
2
4
2
12
See vent
1
manufacturer
See vent
1/4
manufacturer
1/4
N/A
