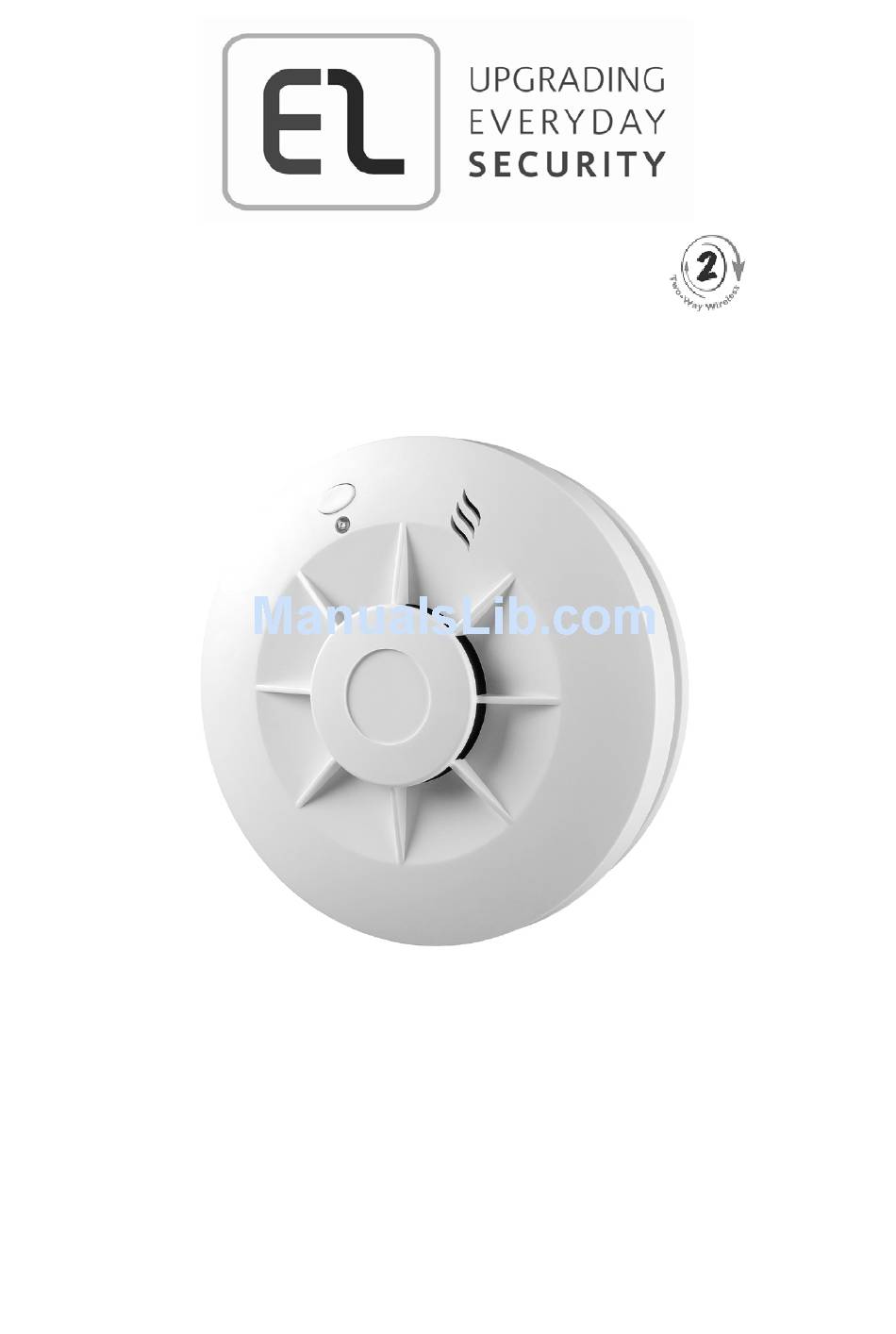

- Page 1 2-WAY WIRELESS SUPERVISED PHOTOELECTRIC SMOKE DETECTOR Model: EL-4703 INSTALLATION INSTRUCTIONS...
-
Page 2: General Description
GENERAL DESCRIPTION Electronics Line's smoke detector is single station, photoelectric smoke detector with a built-in supervised wireless transmitter. When sufficient smoke is detected, or the test feature is operated, the detector will sound its alarm horn and the transmitter will send an ALARM message. The Alarm output in the receiver will remain activated until the alarm condition clears. -
Page 3: Selecting A Location
SELECTING A LOCATION Smoke detectors should be installed in accordance with the NFPA Standard 74 (National Fire Protection Association, Batterymarch Park, Quincy, MA 02169). For complete coverage in residential units, smoke detectors should be installed in all rooms, halls, storage areas, basements, and attics in each family living unit. Minimum coverage is one detector on each floor and one in each sleeping area and attics in each family living unit. - Page 4 ♦ If ceiling mounting is not possible and wall mounting is permitted by your local and state codes, put wall-mounted detectors between 4 and 6 inches (10 ~ 15 cm) from the ceiling, also see Figure ♦ If some of your rooms have sloped, peaked, or gabled ceilings, try to mount detectors 3 feet (0.9 meter) measured horizontally from the highest point of the...
- Page 5 Where to Install Your Smoke Detectors in Mobile Homes and RVs Mobile homes and RVs built after about 1978 were designed and insulated to be energy-efficient. In mobile homes and RVs built after 1978, smoke detectors should be installed as described above. Older mobile homes and RVs may have little or no insulation compared to current standards.
- Page 6 ♦ In very cold or very hot areas, including unheated buildings or outdoor rooms. If the temperature goes above or below the operating range of smoke detector, it will not work properly. The temperature range for your smoke detector is 4°C to 38°C (40°F to 100°F).
-
Page 7: Installation
Smoke Detectors” sections in this Manual before installing. To install the detector, perform the following steps (see Figure 7). Registration The EL-4703 must identify itself to the iConnect 2-Way receiver as follows: Set the system to registration mode. Go to the main menu and select [9]>[1]>[1] (Programming >... - Page 8 Mounting a Detector Locking Pin ♦ Detector Select the installation location. ♦ Remove locking pin securing the mounting bracket to the unit (see Figure 7). Bracket ♦ Remove the mounting bracket Screws from the unit by rotating it counterclockwise. ♦ Use the bracket as a template for marking the mounting holes ♦...
-
Page 9: Red Indicator
RED INDICATOR When the red LED indicator (see Figure 9) flashes once in 30 seconds, it indicates the detector is under normal operation. When the red LED flashes very frequently and an audible alarm sounds simultaneously, it indicates that the detector senses smoke. -
Page 10: Taking Care Of Your Smoke Detector
TAKING CARE OF YOUR SMOKE DETECTOR To keep your detector in good working condition, you must test the detector weekly, according to the “Testing Your Smoke Detector” section. CLEANING THE SMOKE DETECTOR Clean the housing with a dry or damp cloth to remove dust and dirt. If necessary, open the smoke chamber and clean the interior of the detector. -
Page 11: Specifications
Catalog Number E8US206SMK0A @ 868.35 MHz E4US206SMK0A @ 433.92 MHz In order to continue improving the product, Electronics Line reserves the right to change specifications and/or designs without prior notice. Note: Smoke detectors are not to be used with detector guards unless the combination has been evaluated and found suitable for that purpose. - Page 12 Rishon Le Zion, Israel Tel: (+972-3) 963-7777 Fax: (+972-3) 961-6584 All rights reserved. No part of this document may be reproduced in any form without prior written permission from the publisher 5IN1575 Electronics Line 3000 Ltd. 07/2011 Wireless Supervisor Photoelectric Smoke Detector...
