Summary of Contents for Brooklands VeraTemp
- Page 1 VeraTemp™ Personal Use Non-Contact Thermometer By Brooklands Inc. READ INSTRUCTIONS BEFORE USE...
-
Page 2: Intended Use
It measures the infrared energy emitted from the skin surface of the forehead. Because there is no need to touch the skin, the VeraTemp™ is hygienic and there is no need for probe covers. INTENDED USE The VeraTemp™... - Page 3 • Do not drop or expose to electrical shocks. • The thermometer must only be use in an ambient temperature between 10°C and 40°C (50°F and 104°F) • Do not expose this thermometer to extreme temperature conditions of >50°C or <-20°C (>122°F or <-4°F) •...
- Page 4 • Dispose batteries properly. Batteries may explode if overheated. INTRODUCTION Thank you for buying the VeraTemp™ Personal Non-Contact Thermometer, which has been developed using the most advanced technology. This technology allows a forehead temperature to be taken from a distance of about 5-8 cm (2-3 inches).
- Page 5 The VeraTemp™ Personal Non- Contact Thermometer is calibrated at the factory before shipping. No calibration is necessary. temperature, allow the thermometer to adjust to the “new” temperature for at least 15 minutes before use in order to obtain a reliable result.
- Page 6 When one is hot, the blood vessels in the skin dilate and carry the excess heat to the skin surface. You begin to sweat and as the sweat evaporates it helps to cool the the skin is decreased allowing conservation of body heat. The involuntary act of shivering causes the muscles to generate more heat that can be conserved.
- Page 7 Because of heat loss from various parts of the body that are not covered by clothing, the normal temperature measured on a person’s forehead is usually lower than covered parts of the body. The VeraTemp™ Personal Non-Contact Thermometer’s internal software automatically adjusts the temperature to provide a reading which approximates the body temperature.
- Page 8 Examples of Body Temperature Measurement Ranges Metho d Fah renheit C elsius Rectal 97.9°F – 100.4°F 36.1°C – 38.0°C Tympanic (inner ear) 96.4°F – 100.4°F 35.8°C – 38.0°C Oral 95.9°F – 99.5°F 35.5°C – 37.5°C Axillary (Armpit) 94.5°F – 99.1°F 34.7°C –...
- Page 9 Before using, familiarize yourself with the device. • To measure a body temperature, point the VeraTemp 2-3 inches 5–8 cm away from the patient’s forehead and press the scan button •...
- Page 10 • The screen will be orange when the measured temperature is between 37.4°C and 37.9°C (99.3°F to 100.2°F). • The screen will be red when the measured temperature is greater than 38°C (100.4°F ). • The temperature display will remain lit for about 5 seconds after the button is released.
- Page 11 Display background color: • Green: Mode Between 36.3°C to 37.3°C Celsius (97.3°F and 99.1°F) Temperature • Orange: Fahrenheit Between 37.4°C to 37.9°C (99.3°F and 100.2°F ) • Red: Memory Greater than 38°C (100.4°F) Low Battery The color change of the display is to alert the user of a potential increase in body temperature.

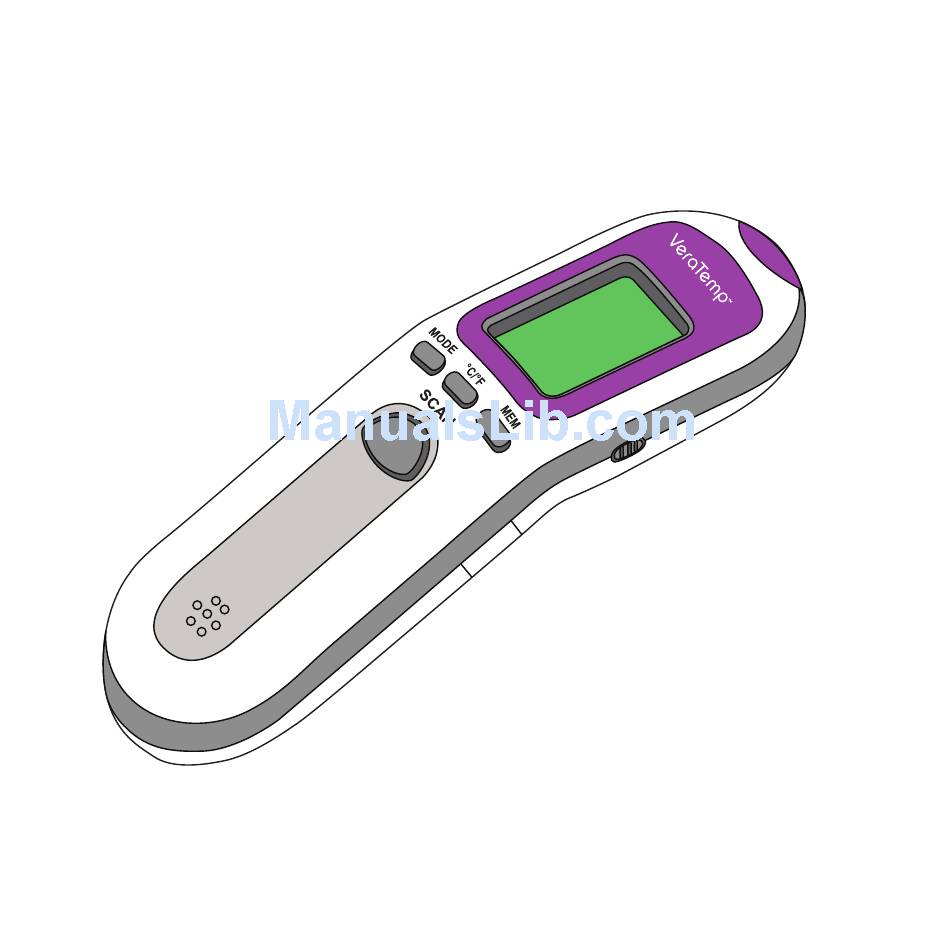

- Page 12 Front: Display Infrared lens MODE: Press to switch between Surface temp, Body and Room C/ F: Press to switch between Celsius and Fahrenheit MEM: Press to retrieve the last 32 readings, from most recent to oldest SCAN: Press to view and record a temperature reading Covers...
- Page 13 Back: Battery cover Product label Serial number Model number Two AAA batteries. Note: orientation of battery polarity...
- Page 14 Practical Considerations When Taking Temperature • To ensure accurate temperature measurements, it is essential that each user has received adequate information about the device and its proper use. • Take temperature in a neutral context. The patient must not have undertaken vigorous physical activity prior to temperature measurement.
- Page 15 » By age 6 variations gradually increase to 2 degrees per day. » In adults there is less body temperature variation. To Receive a Stable Reliable Result • Push back any hair from the forehead. • Wipe away any perspiration on the forehead. •...
- Page 16 Initial Setup 1. Remove battery door and install two AAA batteries. When batteries are new wait about 10 minutes before 2. Remove the display How to Take a Temperature 1. Before taking a temperature, ensure the forehead is free of perspiration and that hair has been moved aside. 2.
- Page 17 Common Errors • If the temperature appears low, check the MODE. If attempting a BODY temperature in the SURFACE Temperature mode, Temperature may read 1.4-6.5°F lower than actual. 5–8 cm (2–3 inches) away from forehead • If the screen displays while on BODY mode, you may be pressing the SCAN button before aiming at the patient’s forehead.
- Page 18 Technical Characteristics 1. Operating Temperature Range: 10°C to 40°C (50°F to 104°F) and < 85% relative humidity 2. Temperature Measurement Ranges: » – measurement 32°C to 42.9°C (89.6°F to 109°F). 3. Power: DC 3 volt (two AAA batteries) 4. Size: . 49 mm x 161 mm x 41 mm (1.9 in. x 6.4 in. x 1.6 in.) 5.
- Page 19 Although The VeraTemp™ Personal Non-Contact NOTE: Thermometer can measure temperature below 32°C and above 42.9°C (89.6°F to 109°F) these temperature’s are outside the range in which the precision is guaranteed Accessories Supplied • User manual • Quick start card • Storage bag...
- Page 20 Brooklands Incorporated 125 NW 11st Boca Raton, Fl 33432 Info@brooklandsinc.com P.+1.561.994.2536 F.+1.561.994.3476 PRODUCT CODES DESCRIPTIONS 11-900 VERATEMP Personal Use Non-Contact thermometer Lotus Global Co., Ltd 15 Alexandra Raod London UK NW80DP Tel: 0044-20-75868010 Fax: 0044-20-79006187 11-3200-1...
