Summary of Contents for Spypen Designer

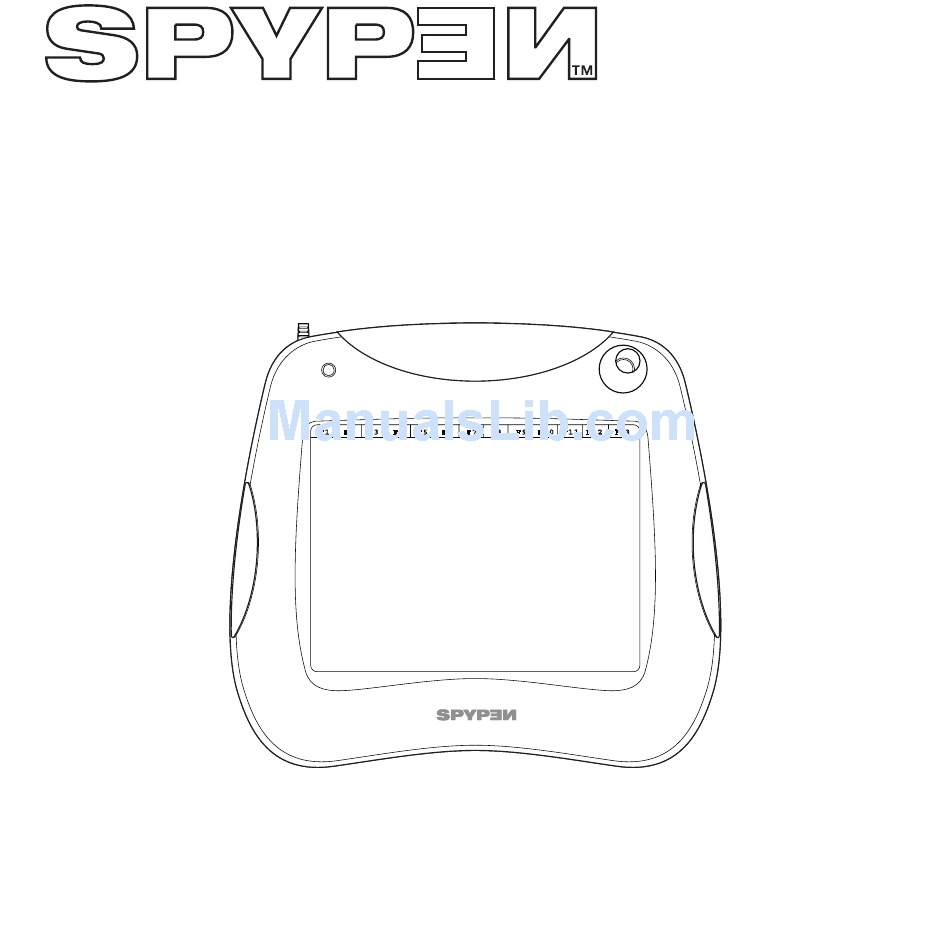

- Page 1 SPYPEN Designer DESIGNER User’s Manual © 2002 plawa...
-
Page 2: Introduction
Congratulations on purchasing the SPYPEN Designer. We hope you have many hours of fun with this amazing USB device for your PC. The SPYPEN Designer is a complete drawing, painting and writing tool. It features a 512-level pressure-sensitive drawing pad, a cordless three-button mouse and cordless two-button pen. -
Page 3: Table Of Contents
2. Package Contents ....................4 3. Getting Started ....................5 Battery Installation ..................5 How to install the SPYPEN Designer Driver ..........6 How to connect Your SPYPEN Designer ............7 How to install PenSoft ................. 7 How to use PenSoft..................7 How to install PhotoStudio®... -
Page 4: System Requirements
• Colour Monitor with minimum 16-bit colour graphic capability or higher • Standard mouse and keyboard 2. Package Contents DESIGNER Cordless Mouse Tablet SPYPEN Designer Software CD-ROM User’s Manual 2 x AAA Batteries includes Art Pad II Driver, PhotoStudio® 2000, Pen Soft, Microsoft® NetMetting™ and Acrobat® Reader) -
Page 5: Getting Started
3. Getting Started 3.1 Battery Installation Cordless Mouse 1. Open the battery door on the back of the cordless mouse. Insert the 1 x AAA alkaline battery into the battery compartment. (Make sure you follow the correct polarity (+) (-) as indicated.) 2. -
Page 6: How To Install The Spypen Designer Driver
Tips! Leaving the mouse on the SPYPEN Designer will slow down the access of other les and programs or starting your computer. 3.2.2 To Uninstall the Art Pad II Driver 1. -
Page 7: How To Connect Your Spypen Designer
3.3 How to connect Your SPYPEN Designer... -
Page 8: Handwriting Recognition
A shortcut for this is to select the F11 key. With the icon selected to pen operation open your word processing document (eg, MS Word) and with the pen and SPYPEN Designer surface write individual letters which will appear on screen. - Page 9 Screen Savers Produce your own unique screen savers using SPYPEN Designer and the software PhotoStu- dio® 2000 by going through the following process; Quick set up Step 1 Go to Start > Programs > PhotoStudio 2000 > PhotoStudio 2000 > File > New.
- Page 10 “apply” to save your settings. Go to Settings ‹ System and adjust Pause time (secs) if your screen saver does not operate. Important! Remove the Mouse & Pen away from the SPYPEN Designer surface for the screen saver to operate. Repeat steps to produce another unique screen saver. Penlock PenLock provides security for your les.
- Page 11 le. 3. Forgotten password: If you forget your password or signature, please follows these steps. Put the SPYPEN Designer CD (supplied) disk in the CD-ROM. Go through the Pensoft set up and Click the Security Explorer icon.
-
Page 12: How To Install Photostudio® 2000
PC desktop. Your SPYPEN Designer Manager will appear. Pen Settings Step 2 Select the “Buttons” Tab on the SPYPEN Designer Manager. Decide what functions you want your Pen to perform when acting as a mouse. - Page 13 Select the Scope Tab (Adjust Working Area) Step 3 Adjust the SPYPEN Designer working surface to suit your own needs. Either drag the blue area with the mouse to adjust the sizes, click on the buttons FULL AREA/SCREEN RATIO/RESERVE EDGES or type in the sizes in the PEN AREA and PEN AREA OFFSET BOXES.
-
Page 14: How To Use Photostudio® 2000
3.8 How to use PhotoStudio® 2000 Editing your photo using your Tablet Start > Programs > PhotoStudio 2000 > PhotoStudio 2000 > File > Open. Using the toolbar to create fancy photo edges and using your tablet to brighten up your photo as shown below. Stamp Type of Stamps You could also select area [background] using the “Freehand select”... -
Page 15: How To Install Microsoft® Netmeeting
3.9 How to install Microsoft® NetMeeting™ NetMeeting™ provides the most complete conferencing solution for the Internet and corporate intranet. Using your SPYPEN Designer , PC and the Internet, you can now use the shared Whiteboard facility in NetMeeting and write to your friends in real-time! 1. -
Page 16: How To Use Microsoft® Netmeeting
3.10 How to use Microsoft® NetMeeting™ 1. Make sure your SPYPEN Designer is connected to your PC. 2. Put your SPYPEN Designer on at surface. 3. Connect your microphone (not included) to your audio card’s external microphone connector and web camera (not included) to your computer. -
Page 17: Customer Support
Or you can visit the following website: http://www.microsoft.com/windows/netmeeting 4. Customer Support plawa-feinwerktechnik GmbH & Co. KG Bleichereistr. 18 73066 Uhingen - Germany Helpline: +49 (7161) 93872-0 (English, Deutsch) Website: www.spypen.com, www.plawa.de Email: support@plawa.de... -
Page 18: Troubleshooting
My cordless mouse or stems from the cable or ports or USB controller pen will not work. that connects the SPYPEN Designer to your PC. 5. Select “+” on “Human Interface Devices”, “HID- compliant device” should be displayed. If this is not displayed, your PC has not recognised the SPYPEN Designer Cordless Mouse. -
Page 19: Battery Guidance
6. Battery Guidance... -
Page 20: Technical SpeciCations
Microsoft® NetMeeting™ and Acrobat® Reader. SPYPEN Designer Cautions • Never immerse any part of the SPYPEN Designer or its components into any uid or liquid. • Disconnect the SPYPEN Designer from your PC before cleaning it. • Remove dust or stains with a soft cloth dampened with water or neutral detergent. -
Page 21: Fcc Notice
8. FCC Notice This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
