Gpstracker.net.in
Freedom is lost now...!

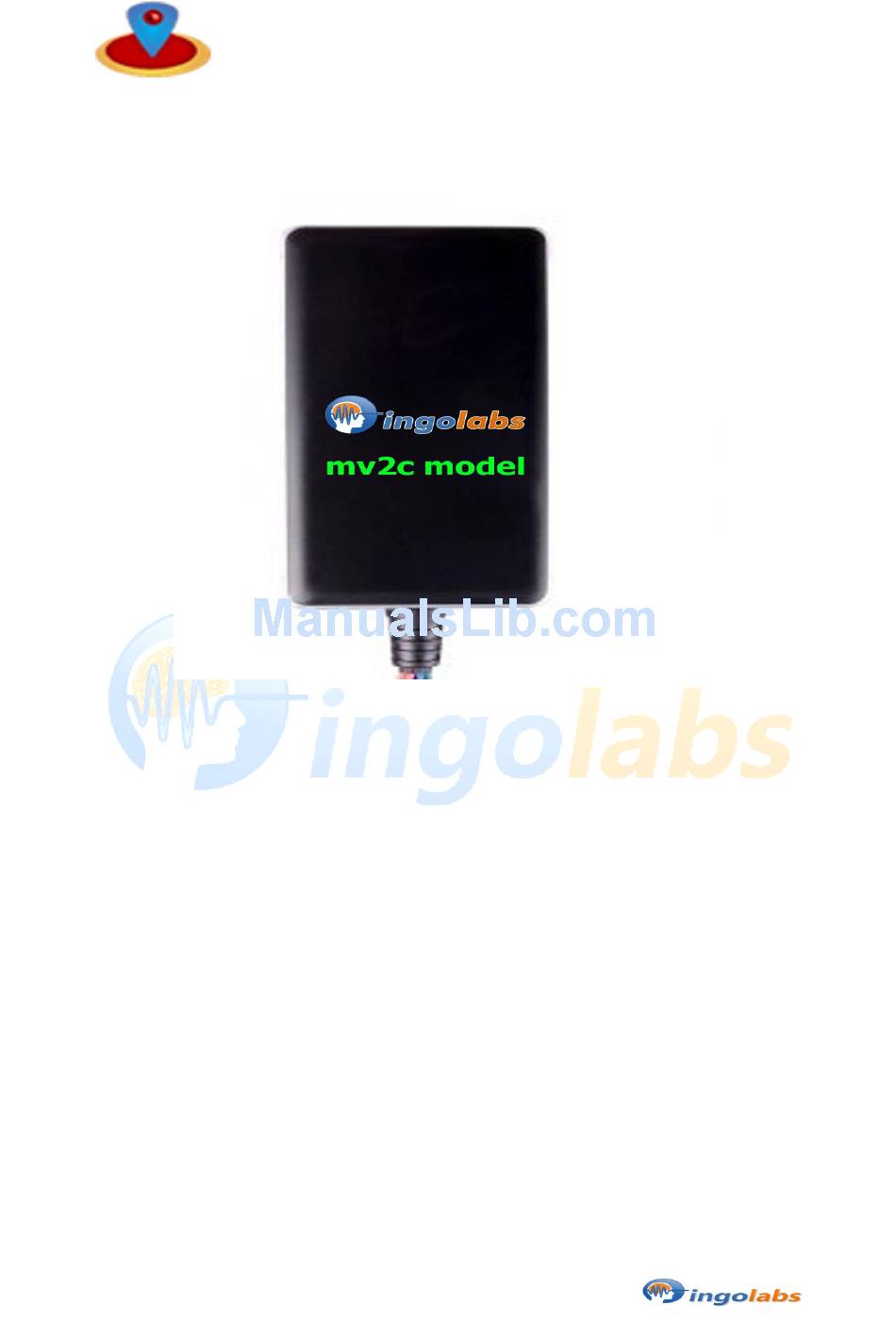

Mv2c User Manual
Please read this manual carefully before attempting installation
and illustration purposes only
1: Feature:
GSM850/900/1800/1900 Quad band
Easy voice instructing function
Wide for voltage inpute rang:9-100V DC
Check location via SMS
Built-in vibration sensor ,thefproof
Tele-cut off petrol or electricity) function
Voice monitor function
Alarm when the power supply is disconnected intentionally(with backup battery)
2: LED light status
Advertisement
Related Manuals for Ingolabs MV2C
Summary of Contents for Ingolabs MV2C
- Page 1 Gpstracker.net.in Freedom is lost now…! Mv2c User Manual Please read this manual carefully before attempting installation and illustration purposes only 1: Feature: GSM850/900/1800/1900 Quad band Easy voice instructing function Wide for voltage inpute rang:9-100V DC Check location via SMS Built-in vibration sensor ,thefproof...
-
Page 2: Getting Started
Gpstracker.net.in Freedom is lost now…! Clor Status Means Flashing GSM working normally Continuously in bright GSM calling/GPRS start Blue Flashing GPS is find the signal Continuously in bright GPS found the signal 3: equipment Wiring Precautions 4. Getting Started Please follow below instructions for ensuring safe and correct use. 4.1 Install the SIM card Place the SIM card into the device with the gold-colored side facing down. -
Page 3: Quick Operation Instructions
Gpstracker.net.in Freedom is lost now…! You need to choose somewhere that it won't be found, because the whole point of fitting covert GPS vehicle tracker is the secrecy element. Installation please refers to below picture. NOTE: 1. Any high power devices such as reversing radar, anti-theft device or communication equipment would affect the signal of the device. - Page 4 Gpstracker.net.in Freedom is lost now…! SMS command to the device to delete the number. SOS,D,serial NO.1,serial NO.2,serial NO.3# “D” means to delete the number, for example: SOS,D,1# means to delete the first number SOS,D,3# means to delete the third number If you want to delete more than one numbers, you can send this command: SOS,D,1,3# means to delete the first and third numbers.
- Page 5 Gpstracker.net.in Freedom is lost now…! 5.5 Check parameter setting Send command to the terminal, you can check the parameter setting. Command format: PARAM# e.g.: PARAM# Information replied: IMEI: 354419032348877 ---IMEI number of the device; GPRS Interval: 10,10; ---GPS data uploading Interval; TIME:20 ---the gps working time when ACC is off,the time rang from 1-999mins(default as 20min)
- Page 6 Gpstracker.net.in Freedom is lost now…! The time ranges from 10-18000s For example: TIMER,10# It means the device will upload data to the server every 10s. NOTE: To turn off GPRS function just SMS: TIMER,0# 5.8 Sensor alarm time setting When the vehicle power is off and ACC is in low-level, if ACC is off over 10 minutes, the device will enter sensor alarm state.
- Page 7 Gpstracker.net.in Freedom is lost now…! When there is something wrong with the link of GPRS, e.g., The parameter setting of the device is correct, but you can't track the car on the platform. At this moment you can send a command to the device to reboot the device. The format is: RESET# After receiving this command, the device will reboot after...
- Page 8 Gpstracker.net.in Freedom is lost now…! Power off: Just turn off the power switch. 6.2 Check location 6.2.1: via phone: Dial the number of the device by your fixed-line telephone or mobile ,and press 2 according to the voice instruction,then the device will send a localtion message(E.G:Data:14-03-04 13:23 http://maps.google.com/maps?q=17.845212,E=78.434123) to you 6.2.2.
- Page 9 Gpstracker.net.in Freedom is lost now…! After successfully receiving the message LISTEN# ,the device will call back in few minutes,just answer the phone and you will enter the voice monitoring state directly 8 .Oil cut-off 8.1Via phone 8.2Via SMS Firstly, you should set a center number. Please refer to 6.6.Only center number can send the command to the device to cut off and restore oil.
- Page 10 Gpstracker.net.in Freedom is lost now…! 9.2 Via SMS Only center number can send the command to the device to restore oil. The format is: RELAY,0# After the command is carried out, it will receive “Restore fuel supply:Success!” 9.3 Via platform 10.
- Page 11 Gpstracker.net.in Freedom is lost now…! Note: Normally we don’t suggest to open phone callalarm function,the specific number should be presetThe specific numbers should be preset 10.3 Low battery alarm When the device is only working with battery, once the internal voltage of battery is less than 3.7V, device will send low battery alarm sms to specific number and alarm on platform.
- Page 12 FENCE,OFF# Note:1. to know additional features of server plz click on this link. http://www.gpstracker.net.in/premiumserversupport.html 2.for quick setup manual download from below link http://gpstracker.net.in/download/mv2c.pdf 3. download android gps settings application : http://gpstracker.net.in/download/Gps%20Settings.apk 4.Download desktop application from http://www.gpstracker.net.in/download/pwebtrack.rar 5.for other network sim card apn names: http://www.gpstracker.net.in/download/apnnames.pdf...
