Page 1: User Manual

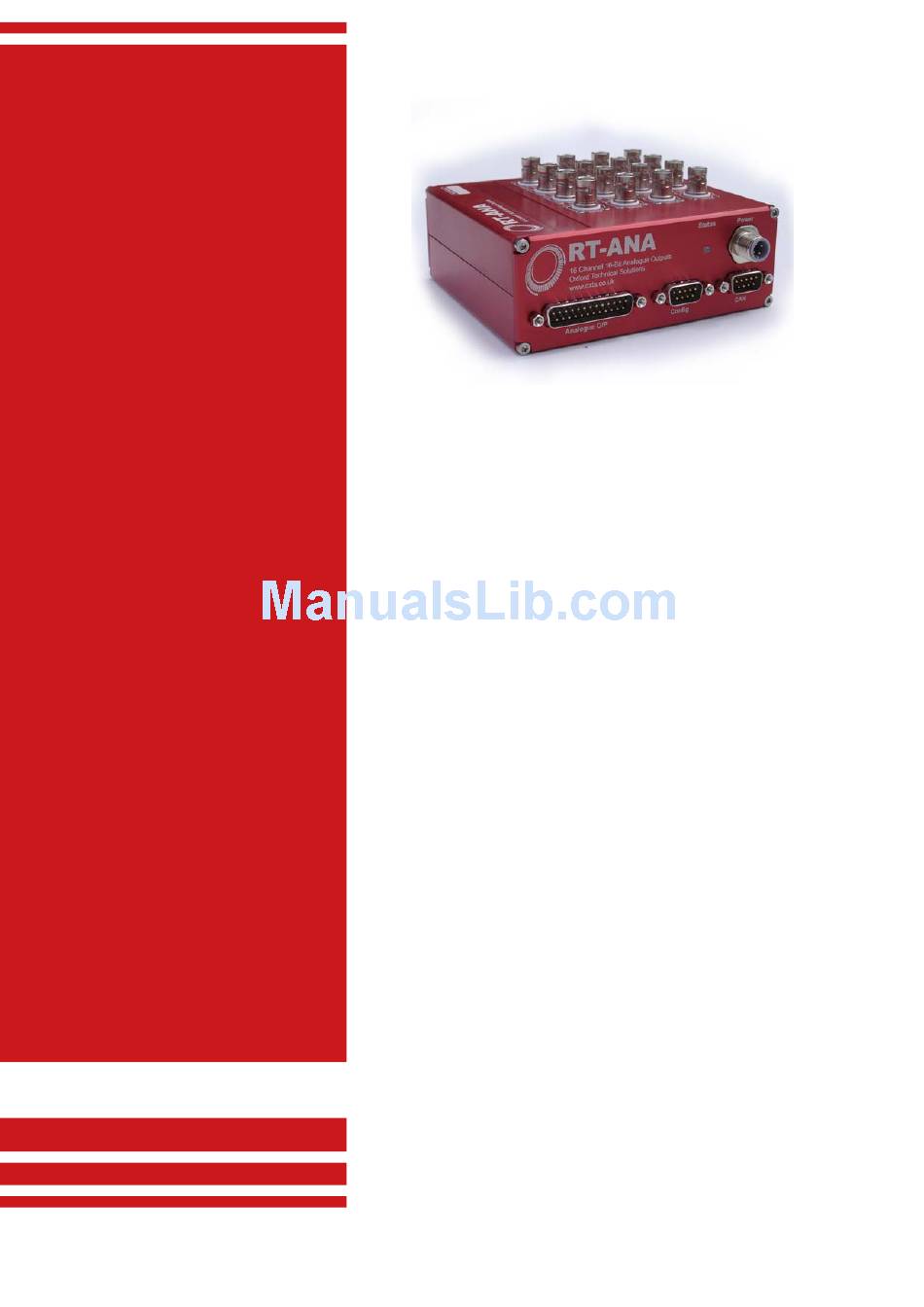

RT-ANA Analogue Interface for the RT3000 User Manual Confidently. Accurately.
Page 2 Legal Notice Information furnished is believed to be accurate and reliable. However, Oxford Technical Solutions Limited assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Oxford Technical Solutions Limited.
Page 3: Table Of Contents
RT-ANA User Manual Table of Contents Introduction Scope of Delivery Specification Warranty Functional Overview Configuration Command Syntax Connections Revision History Revision: 040510...
Page 4: Introduction
The RT-ANA unit is an interface converter that accepts CAN messages from the RT3000 and converts them to analogue voltages. The RT-ANA has up to 16 analogue output channels with a range of ±10V. The RT-ANA uses precision 16-bit DACs and precision op-amp drivers to ensure the highest levels of accuracy can be achieved.
Page 5: Scope Of Delivery
RT-ANA User Manual Scope of Delivery Table 1, below, lists all the items that are delivered with each RT-ANA unit. Table 1. Summary of the RT-ANA Components Description RT-ANA Unit 77C0002B Power Cable 14C0037A CAN Cable Null Modem Serial Cable (for configuration) Figure 1.
Page 6: Specification
Specification The technical specification of the RT-ANA unit is shown in Table 2, below. Table 2. Technical Specification Parameter Specification Input 6.6ms (low latency mode), 16.6ms (fast-update mode) Calculation Delay Outputs 16 Analogue Channels Output Rate 100 Hz (low latency mode), 1.6kHz (fast-update mode) Output Range ±10V...
Page 7: Warranty
RT-ANA User Manual Warranty Oxford Technical Solutions Limited warrants the RT3000 products to be free of defects in materials and workmanship, subject to the conditions set forth below, for a period of one year from the Date of Sale. ‘Date of Sale’ shall mean the date of the Oxford Technical Solutions Limited invoice issued on delivery of the product.
Page 8: Functional Overview
LED state. CAN Running. The LED will flash Orange/Off every 100 CAN messages (100 Orange then 100 Off). Since the RT3000 updates at 100Hz and there are 4 CAN messages per update, the LED will cycle with a frequency of 2Hz.
Page 9: Configuration
Configuration There are two configuration parameters that may need changing by the user before operation begins. These are the CAN baud rate (so it matches the RT3000 and the other devices on the bus) and the fast-update mode. To configure the RT-ANA a serial terminal program is required. Windows comes with HyperTerminal, but other suitable programs can also be used.
Page 10 Table 4. Serial Terminal Settings Parameter Specification Example from Hyperterminal Baud Rate 19200 Data Bits Parity None Stop Bits Flow Control None Apply power to the RT-ANA, the terminal will respond as shown in Figure 3, below. Oxford Technical Solutions...
Page 11: Command Syntax
RT-ANA User Manual Figure 3. RT-ANA Configuration Output at Start-up At Start-up the Dev Id is the version of software running in the RT-ANA unit. This may be required when contacting Oxford Technical Solutions for support. The user commands that the RT-ANA responds to are listed in Table 5, below.
Page 12 SAVECONFIG command or they will be forgotten when the power is removed. CONFIG command. The CONFIG command is used to list the settings in the RT-ANA box. The command will list all the configurations, not just the ones for the user. Do not change any configurations apart from the ones described here.
Page 13 RT-ANA User Manual CANBAUD command. The CANBAUD command is used to change the baud rate settings of the RT-ANA. This setting does not become active until the RT-ANA is next powered on. Syntax CANBAUD <RATE> Valid values for <RATE> are listed in Table 6, below.
Page 14 If a system samples the low- latency RT-ANA output at 100Hz then the timing is only known to 10ms. If it samples the fast-update RT-ANA output then it knows the timing to 0.6ms. For some applications the improved timing is more critical than the additional delay.
Page 15: Connections
RT-ANA User Manual Connections The RT-ANA should be connected to the RT3000 CAN bus as shown in Figure 5, below. Figure 5. RT-ANA Connections to RT3000 The pin assignments for the connectors on the RT-ANA are given in the following tables.
Page 16 Figure 6. RT-ANA Front Panel Connectors Table 8. Power Connector Pin Assignments Cable Colour Description Brown Power Supply 9–18 V d.c. White Not Connected Blue Ground Black Not Connected Connector type: Hirschmann ELST 412 PG9. Also known as an E-serial M12 plug.
Page 17 Ground Ground CAN+ (CAN High) Notes: Other Pins not connected. There is no CAN bus termination resistor inside the RT-ANA. The CAN bus must have at least one 120R resistor between CAN– and CAN+. Connector type: 9-way D-type, male. Table 10. Configuration RS232 Pin Assignments...
Page 18 Table 11. Analogue Outputs (25-way) Description Analogue Ground Channel 0 Channel 1 Analogue Ground Channel 2 Channel 3 Analogue Ground Channel 4 Channel 5 Analogue Ground Channel 6 Channel 7 Analogue Ground Channel 8 Analogue Ground Channel 9 Channel 10 Analogue Ground Channel 11 Channel 12...
Page 19: Revision History
RT-ANA User Manual Revision History Table 12. Revision History Revision Comments 040510 Initial Version Revision: 040510...
