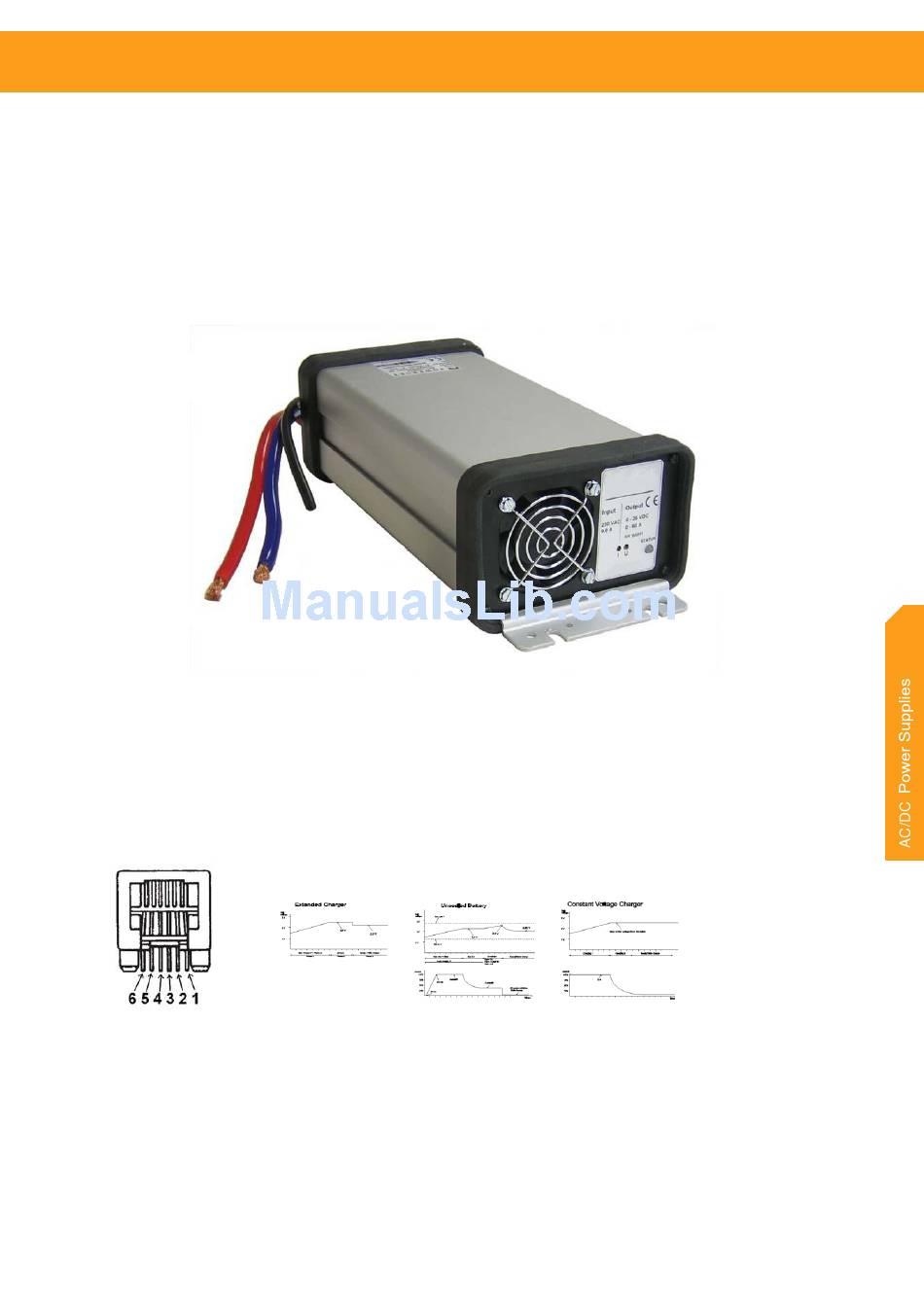

1600W Power Supplies and Battery Chargers
Analog control by external 0-5VDC voltage
Analog control
modular connector
zentro-elektrik GmbH KG
| Tel.: +49 (0) 72 32 / 3131 0 | Fax: +49 (0) 72 32 / 3131 399 | E-mail: info@zentro-elektrik.de
©We reserve the right to change the specification without
notice
ZAT1600 SERIES
TASHEET / OPERATING INSTRUCTIONS
Wide output adjustment range 0...72VDC
Temp.comp charging, sense as on option
Power fail relay alarm
Master-Slave connection
Microprocessor controlled charging curves for all kind of
batteries
Master-Slave
connection
Advertisement
Table of Contents
Summary of Contents for Zentro Elektrik ZAT1600 SERIES
- Page 1 1600W Power Supplies and Battery Chargers ZAT1600 SERIES TASHEET / OPERATING INSTRUCTIONS Wide output adjustment range 0…72VDC Analog control by external 0-5VDC voltage Temp.comp charging, sense as on option Power fail relay alarm Master-Slave connection Master-Slave Analog control Microprocessor controlled charging curves for all kind of...
- Page 2 DATASHEET / OPERATING INSTRUCTIONS POWER SUPPLIES AND BATTERY CHARGERS, TRIMMER ADJUSTABLE Input voltage range Nominal Voltage Nominal Current Installation / dimensions Type (Width x Height x Depth, mm) output setting output setting power voltage range current range 55-264VAC/78-340VDC 24 VDC 0-36 VDC 60 A 0-60 A...
-
Page 3: Technical Data
DATASHEET / OPERATING INSTRUCTIONS TECHNICAL DATA 50…260 VAC (50…200VAC reduced power, see curve below) Input voltage 50…340 VDC (50…200VDC reduced power) Input current Power factor >0.99 Efficiency (230VAC, 10…100% load) > 88% Inrush current <30A, cold start Line regulation 0.01% Load regulation 0.2V Output setting accuracy... -
Page 4: Installation
DATASHEET / OPERATING INSTRUCTIONS INSTALLATION ← The location must be dry, dust-free indoor use. The acceptable temperature range at full power is -25°C to +40°C. A higher ambient temperature will limit the power, see diagram at first page. The power supply is not waterproof. Keep it dry and away from areas of high humidity to avoid the risk of electrical shock and damage to the charger. -
Page 5: Optional Alarm Relay
DATASHEET / OPERATING INSTRUCTIONS SELECTION TABLE OF ZAT1600 FEATURES This table shows which features are possible at the same time. IF N THEN then not possible. Trimmer adjustment Analog control (isolated) Relay alarm BusOut (RS-232 control to slave) BusIn Temp.comp. Sense Customised charging algorithm chargers with code Switch... - Page 6 DATASHEET / OPERATING INSTRUCTIONS OPTIONAL ANALOG CONTROL VERSIONS Analog control option allows full control for output current and voltages and it gives measured values for both of these. There is also available +5V internal power source for logic use. The analog input have 500V electrical insulation to power supply’s input and output.
- Page 7 DATASHEET / OPERATING INSTRUCTONS TEMPERATURE COMPENSATION MODELS, type number example ZAT1600/27,4/60/T The temp.comp cable enables the charger to adjust the output voltage in accordance with battery voltage and temperature fluctuations See instructions for changing and adjusting the output voltage Temp.comp. / sense Modular connector OPTIONAL MASTER SLAVE CONNECTION Using master power supply together with Slave unit.
- Page 8 DATASHEET / OPERATING INSTRUCTIONS PROGRAMMED VOLTAGES FOR TEMP.COMP. MODELS, type number example ZAT1600/27,4/60/T ZAT1600/27,4/60/T 24VDC 60A Code switch Nominal Voltage Adjustment range Output position Battery voltage factory setting Current 5 VDC 4,75 VDC 5,25 VDC 60 A 12 VDC 11,4 VDC 12,6 VDC 60 A 12 VDC...
- Page 9 DATASHEET / OPERATING INSTRUCTIONS INSTRUCTION TO CHANGE THE PROGRAMMED VOLTAGE FOR TEMP.COMP./SENSE MODELS, type number example ZAT1600/27,4/60T ← Disconnect the power cord from the power line. ↑ Disconnect the output cables from the battery. → See the current code switch position of the unit. ↓...
- Page 10 DATASHEET / OPERATING INSTRUCTIONS INSTRUCTION TO ADJUST TEMP.COMP/SENSE MODELS VOLTAGE BY THE TRIMMER, type number example ZAT1600/27,4/60T If the battery is charged in a very cold place or desired constant voltage didn’t found from the charging algorithm list, then there may be need to tune the output voltage. The output voltage can be tuned +/-5% from its nominal value. ←...
