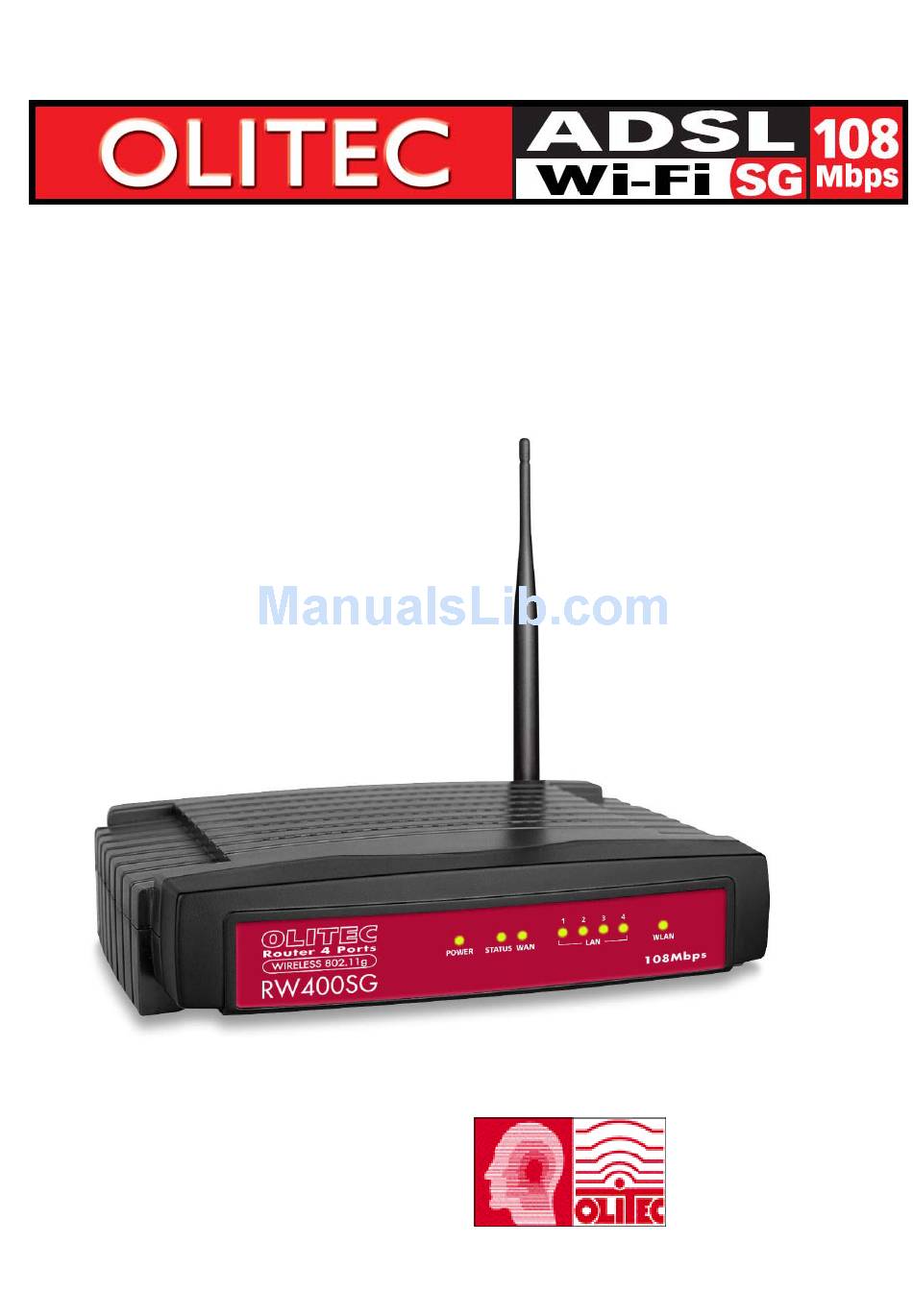

  • Page 1 User's Guide...

  • Page 3: Table Of Contents

    Chapter 1: Introduction... 1 2.1 Overview of the Router ... 1 2.2 Features... 1 2.3 Panel Layout ... 2 2.3.1 The Front Panel ... 2 2.3.2 The Rear Panel... 3 Chapter 3: Connecting the Router ... 4 3.1 System Requirements... 4 3.2 Installation Environment Requirements...
  • Page 4 5.10.2 Oray.net DDNS ... 42 5.10.3 Comexe.cn DDNS... 43 5.11 System Tools ... 44 5.11.1 Time ... 45 5.11.2 Firmware ... 45 5.11.3 Factory Defaults ... 46 5.11.4 Reboot ... 46 5.11.5 Password ... 47 5.11.6 Log ... 48 5.11.7 Statistics ... 48 Appendix A: FAQ...

  • Page 5: Chapter 1: Introduction

    The RW400SG 108Mbps Wireless Router integrates 4-port Switch, firewall, NAT-router and Wireless AP. Its design is dedicated to Small Office/Home Office (SOHO) wireless network solutions. The RW400SG 108Mbps Wireless Router will allow you to connect your network wirelessly better than ever, sharing Internet Access, files and fun, easily and securely.

  • Page 6: Panel Layout

    2.3 Panel Layout 2.3.1 The Front Panel The front panel of the RW400SG consists of several LED indicators, which is designed to indicate connections. Viewed from left to right. Table 2-1 describes the LEDs on the front panel of the router.

  • Page 7: The Rear Panel

    WAN RJ45 port for connecting the router to a cable, DSL modem, or Ethernet Four LAN 10/100Mbps RJ45 ports for connecting the router to the local PCs AC power socket: only use the power adapter supplied with the RW400SG 108Mbps Wireless Router, use of a different adapter may result in product damage.

  • Page 8: Chapter 3: Connecting The Router

    Chapter 3: Connecting the Router 3.1 System Requirements Broadband Internet Access Service (DSL/Cable/Ethernet) One DSL/Cable modem that has an RJ45 connector (you do not need it if you connect the router to Ethernet) Each PC on the LAN needs a working Ethernet Adapter and an Ethernet cable with RJ45 connectors TCP/IP protocol must be installed on each PC Web browser, such as Microsoft Internet Explorer 5.0 or later, Netscape Navigator...
  • Page 9 RESET To WAN To LAN Switch/Hub （ 、 、 ） XDSL Cable Ethernet Figure 3-1: Hardware Installation of the RW400SG 108Mbps Wireless Router - 5 -...

  • Page 10: Chapter 4: Quick Installation Guide

    Chapter 4: Quick Installation Guide After connecting the RW400SG Router into your network, you should configure it. This chapter describes how to configure the basic functions of your RW400SG Wireless Router. These procedures only take you a few minutes. You can access the Internet via the router immediately after successfully configured.

  • Page 11: Quick Installation Guide

    If the result displayed is similar to that shown in figure 4-1, the connection between your PC and the router has been established. Figure 4-2: Failed result of Ping command If the result displayed is similar to that shown in figure 4-2, it means that your PC has not connected to the router.
  • Page 12 Figure 4-4 Login Windows Note: If the above screen does not prompt, it means that your web-browser has been set to a proxy. Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears, cancel the Using Proxy checkbox, and click OK to finish it. If the User Name and Password are correct, you can configure the router using the web browser.
  • Page 13 Figure 4-7 Quick Setup - PPPoE User Name and Password - Enter the User Name and Password provided by your ISP. These fields are case sensitive. If you have difficulty with this process, please contact your ISP. If you choose " Dynamic IP", the router will automatically receive the IP parameters from your ISP without needing to enter any parameters.
  • Page 14 In this page, you can configure the following wireless parameters: Wireless Radio - indicates whether the Access Point feature of the router is enabled or disabled. If disabled, the WLAN LED on the front panel will not be lit and the wireless stations will not be able to access the router.

  • Page 15: Chapter 5: Configuring The Router

    Chapter 5: Configuring the Router This chapter describes each web page's key functions. 5.1 login After your successful login, you can configure and manage the router. There are ten main menus on the left of the web-based utility. Submenus will be available after you click one of the main menus.

  • Page 16: Quick Setup

    Figure 5-1: Router Status 5.3 Quick Setup Please refer to Section 4.2: "Quick Installation Guide." 5.4 Network Figure 5-2: the Network menu There are three submenus under the Network menu (shown in figure 5-2): LAN, WAN and MAC Clone. Click any of them, and you will be able to configure the corresponding function.

  • Page 17: Lan

    5.4.1 LAN You can configure the IP parameters of LAN on this page. MAC Address - the physical address of the router, as seen from the LAN. The value can't be changed. IP Address - Enter the IP address of your router in dotted-decimal notation (factory default: 192.168.1.1).
  • Page 18 Figure 5-4 WAN – Dynamic IP This page displays the WAN IP parameters assigned dynamically by your ISP, including IP address, Subnet Mask, Default Gateway, etc. Click the Renew button to renew the IP parameters from your ISP. Click the Release button to release the IP parameters.
  • Page 19 Figure 5-4a: WAN - 802.1X + Dynamic IP User Name - Enter the user name for 802.1x authentication provided by your ISP Password - Enter the password for 802.1x authentication provided by your ISP. Click Login button to start 802.1x authentication. Click Logout button to end 802.1x authentication.
  • Page 20 If you are also given a user name and a password for 802.1x authentication, you should select 802.1x + Static IP for WAN Connection Type, a box will then appear requesting a user name and a password, shown in figure 5-5a: Figure 5-5a: WAN - 802.1X + Static IP User Name - Enter the user name for 802.1x authentication provided by your ISP Password - Enter the password for 802.1x authentication provided by your ISP.
  • Page 21 Caution: Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time, since some applications is visiting the Internet continually in the background. Connect Automatically - Connect automatically after the router is disconnected. To use this option, click the radio button. Time-based Connecting - You can configure the router to make it connect or disconnect based on time.

  • Page 22: Mac Clone

    it is necessary for your ISP. Service Name/AC Name - The service name and AC (Access Concentrator) name, this should not be done unless you are sure it is necessary for your ISP. ISP Specified IP Address - If you know that your ISP does not automatically transmit your IP address to the router during login, click “Use the IP Address specified by ISP”...

  • Page 23: Wireless

    5.5 Wireless Figure 5-9: Wireless menu There are three submenus under the Wireless menu (shown in figure 5-9): Wireless Settings, MAC Filtering and Wireless Statistics. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.
  • Page 24 wireless function of the router in a region other than one of those specified in this field. If your country or region is not listed, please contact your local government agency for assistance Note: Some regions may not use 108Mbps Mode since the operation for the wireless interface in 108Mbps Mode is illegal.
  • Page 25 Automatic , WPA –PSK or WPA2-PSK as authentication options. • When you select WPA/WPA2 as an authentication type you can select Automatic ,,WPA or WPA2 as authentication options. WEP Key Format - You can select ASCII or Hexadecimal format. ASCII Code Format stands for any combination of keyboard characters in a specified length.

  • Page 26: Mac Filtering

    Radius Port - Enter the port that the radius service used. Radius Password - Enter the password for the Radius Server. Be sure to click the Save button to save your settings on this page. Note: The router will reboot automatically after you click save. 5.5.2 MAC Filtering The Wireless MAC Filtering for wireless networks are set on this page, figure 5-11: Figure 5-11: Wireless MAC address Filtering...
  • Page 27 Figure 5-12: Add or Modify Wireless MAC Address Filtering entry To add or modify a MAC Address Filtering entry, follow these instructions: Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0A-EB-B0-00-0B.

  • Page 28: Wireless Statistics

    1. Click the Enable button to enable this function. 2. Select the radio button: Deny the stations not specified by any enabled entries in the list to access for Filtering Rules. 3. Delete all or disable all entries if there exist any entries already. 4.

  • Page 29: Dhcp

    Figure 5-13: The router attached wireless stations MAC Address - The connected wireless station's MAC address Current Status - The connected wireless station's running status, one of STA-AUTH / STA-ASSOC / AP-UP / WPA / WPA-PSK /WPA2/WPA2-PSK/None Received Packets - packets received by the station Sent Packets - packets sent by the station You cannot change any of the values on this page.

  • Page 30: Dhcp Clients List

    DHCP Server - Enable or Disable the DHCP server. If you disable the Server, you must have another DHCP server within your network or else you must manually configure the computer. Start IP Address - This field specifies the first of the addresses in the IP address pool.

  • Page 31: Address Reservation

    5.6.3 Address Reservation When you specify a reserved IP address for a PC on the LAN, that PC will always receive the same IP address each time when it accesses the DHCP server. Reserved IP addresses should be assigned to servers that require permanent IP settings. This page is used for address reservation (shown in figure 5-17).

  • Page 32: Forwarding

    Note: The function won't take effect until the router reboots. 5.7 Forwarding Figure 5-18: the Forwarding menu There are four submenus under the Forwarding menu (shown in figure 5-18): Virtual Servers, Port Triggering, DMZ and UPnP. Click any of them, and you will be able to configure the corresponding function.

  • Page 33: Port Triggering

    protocols supported by the router). Enable - The Enable checkbox to enable the virtual server entry. Common Service Port - Some common services already list in the pull-down list. To setup a virtual server entry: Select the service you want to use from the Common Service Port list, and select the ID you want to use, and click Copy to button.
  • Page 34 Once configured, operation is as follows: 1. A local host makes an outgoing connection using a destination port number defined in the Trigger Port field. 2. The router records this connection, opens the incoming port or ports associated with this entry in the Port Triggering table, and associates them with the local host. 3.

  • Page 35: Dmz

    Select the protocol used for Incoming Ports Range from the pull-down list, either TCP or UDP, or All. Select the Enable checkbox to enable. Click the Save button to save the new rule. There are many popular applications in the Popular Application list. You can select it and the ID, then click the Copy to button, the application will fill in the Trigger Port, incoming Ports Range boxes and select the Enable checkbox.

  • Page 36: Upnp

    To assign a computer or server to be a DMZ server: Click the Enable radio button Enter the local host IP Address in the DMZ Host IP Address field Click the Save button. Note: After you set the DMZ host, the firewall related to the host will not work. 5.7.4 UPnP The Universal Plug and Play (UPnP) feature allows the devices, such as Internet computers, to access the local host resources or devices as needed.

  • Page 37: Security

    5.8 Security Figure 5-23: the Security menu There are six submenus under the Security menu (shown in figure 5-23): Firewall, IP Address Filtering, Domain Filtering, MAC Filtering, Remote Management and Advanced Security. Click any of them, and you will be able to configure the corresponding function.

  • Page 38: Ip Address Filtering

    Enable MAC Filtering - set MAC Address Filtering is enabled or disabled. You can select the default filtering rules of MAC Address Filtering, either Allow or Reny accessing the router. 5.8.2 IP Address Filtering The IP address Filtering feature allows you to control Internet Access by specific users on your LAN based on their IP addresses.

  • Page 39: Domain Filtering

    Keep the field open, which means all LAN IP Addresses have been put into the field. LAN Port - type a LAN Port or a range of LAN ports in the field. For example, 1030 - 2000. Keep the field open, which means all LAN ports have been put into the field. WAN IP Address - type a WAN IP Address or a range of WAN IP Addresses in the field, in dotted-decimal notation format.
  • Page 40 Before adding a Domain Filtering entry, you must ensure that Enable Firewall and Enable Domain Filtering have been selected on the Firewall page. To Add a Domain filtering entry, click the Add New… button. The page " Add or Modify a Domain Filtering entry "...

  • Page 41: Mac Filtering

    Click the Next button to go to the next page and the Previous button to return to the previous page. For example, if you want to block the PCs on your LAN to access websites www.xxyy.com.cn, www.aabbcc.com and websites with .net in the end on the Internet while no limit for other websites, you should specify the following Domain filtering list: 5.8.4 MAC Filtering Like the IP Address Filtering page, the MAC Address Filtering page (shown in figure 5-29)

  • Page 42: Remote Management

    To add or modify a MAC Address Filtering entry, follow these instructions: Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-0E-AE-B0-00-0B. Type the description of the PC in the Description field. Fox example: John’s PC. Status - Select Enabled or Disabled for this entry on the Status pull-down list.

  • Page 43: Advanced Security

    Web Management Port - Web browser access normally uses the standard HTTP service port 80. This router’s default remote management web port number is For greater security, you can change the remote management web interface to a custom port by entering that number in this box provided. Choose a number between 1024 and 65534, but do not use the number of any common service port.
  • Page 44 Packets Statistic interval (5 ~ 60) - The default value is 10. Select a value between 5 and 60 seconds in the pull-down list. The Packets Statistic interval value indicates the time section of the packets statistic. The result of the statistic used for analysis by SYN Flood, UDP Flood and ICMP-Flood.

  • Page 45: Static Routing

    Host IP Address- The IP address that blocked by DoS are displayed here. Host MAC Address - The MAC address that blocked by DoS are displayed here. To update this page and to show the current blocked host, click on the Refresh button. Click the Clear All button to clear all displayed entries.

  • Page 46: Ddns

    To delete all the entries: Click the Clear All button. Click the Save button. Note: You can set up to 8 entries. 5.10 DDNS The router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP Address. It is useful when you are hosting your own website, FTP server, or other server behind the router.

  • Page 47: Comexe.cn Ddns

    Figure 5-36: Oray.net DDNS Settings To set up for DDNS, follow these instructions: Type the User Name for your DDNS account. Type the Password for your DDNS account. Click the Login button to login the DDNS service. Connection Status - the status of the DDNS service connection is displayed here. Domain Name - the domain names are displayed here.

  • Page 48: System Tools

    Figure 5-37: Comexe.cn DDNS Settings To set up for DDNS, follow these instructions: Type the domain names your dynamic DNS service provider gave. Type the User Name for your DDNS account. Type the Password for your DDNS account. Click the Login button to login to the DDNS service. Connection Status -The status of the DDNS service connection is displayed here.

  • Page 49: Time

    5.11.1 Time You can set time manually or get GMT from the Internet for the router on this page (shown in figure 5-39): Time Zone - Select your local time zone from this pull down list. Date - Enter your local date in MM/DD/YY into the right blanks. Time - Enter your local time in HH/MM/SS into the right blanks.

  • Page 50: Factory Defaults

    If the router is not experiencing difficulties, there is no need to download a more recent firmware version, unless that version has a new feature that you want to use. Note: When you upgrade the router's firmware, you may lose its configuration settings, so make sure you write down the router settings before you upgrade its firmware.

  • Page 51: Password

    Click the Reboot button to reboot the router. Some settings of the router will take effect only after rebooting, which include: • Change LAN IP Address. (System will reboot automatically) • MAC Clone (system will reboot automatically) • DHCP service function. •...

  • Page 52: Log

    5.11.6 Log This page (shown in figure 5-44) allows you to query the Logs of the router. The router can keep logs of all traffic. You can query the logs to find what happened to the router. Click the Refresh button to refresh the logs. Click the Clear Log button to clear all the logs.
  • Page 53 The IP Address displayed with statistics IP Address The total amount of packets received and transmitted by the router. Packets Total The total amount of bytes received and transmitted by the router. Bytes The total amount of packets received and transmitted in the last Packets Packets Statistic interval seconds.

  • Page 54: Appendix A: Faq

    Appendix A: FAQ How do I configure the router to access Internet by ADSL users? First, configure the ADSL modem configured in RFC1483 bridge model. Connect the Ethernet cable from your ADSL modem to the WAN port on the router. The telephone cord plugs into the Line port of the ADSL modem. Login to the router, click the “Network”...
  • Page 55 MAC register, login to the router and click the "Network" menu link on the left of your browser, and then click "MAC Clone" submenu link. On the "MAC Clone" page, if your PC’s MAC address is proper MAC address, click the "Clone MAC Address"...
  • Page 56 I want to build a WEB Server on the LAN, what should I do? Because the WEB Server port 80 will interfere with the WEB management port 80 on the router, you must change the WEB management port number to avoid interference.
  • Page 57 The wireless stations cannot connect to the router. Make sure the "Wireless Router Radio" is enabled. Make sure that the wireless stations' SSID accord with the router's SSID. Make sure the wireless stations have right KEY for encryption when the router is encrypted.

  • Page 58: Appendix B: Configuring The Pcs

    Appendix B: Configuring the PCs In this section, we’ll introduce how to install and configure the TCP/IP correctly in Windows 95/98. First make sure your Ethernet Adapter is working, refer to the adapter’s manual if needed. Install TCP/IP component On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
  • Page 59 Figure B-3: Configuration tab Click on Properties. The following TCP/IP Properties window will display and the IP Address tab is open on this window by default. Now you have two ways to configure the TCP/IP protocol below: • Assigned by DHCP Sever Select Obtain an IP address automatically, as shown in the figure below: Figure B-4: IP Address tab Do not type anything into the New gateway field on the Gateway tab.
  • Page 60 Figure B-5: Gateway tab Choose Disable DNS on the DNS configuration tab, as shown in the following figure: Figure B-6: DNS Configuration tab • Setting IP address manually Select Specify an IP address on IP Address tab, as shown in the following figure.
  • Page 61 Figure B-7: IP Address tab Type the router’s LAN IP address (the default IP is 192.168.1.1) into the New gateway field on the Gateway tab, and click on the Add button, as shown in the figure: Figure B-8: Gateway tab On the DNS Configuration tab, click Enable DNS radio, and type your computer name in to the Host field and a Domain (such as szonline.com) into the Domain field.
  • Page 62 click Add button. Shown below: Figure B-9: DNS Configuration tab Now, all the configurations are finished, it will take effect after reboot. - 58 -...

  • Page 63: Appendix C: Specifications

    Appendix C: Specifications General Standards IEEE 802.3, 802.3u, 802.11b and 802.11g Protocols TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP Ports One 10/100M Auto-Negotiation WAN RJ45 port, Four 10/100M Auto-Negotiation LAN RJ45 ports supporting Auto MDI/MDIX Cabling Type 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) Radio Data Rate 108/54/48/36/24/18/12/9/6Mbps or 11/5.5/3/2/1Mbps...

  • Page 64: Appendix D: Glossary

    Appendix D: Glossary WLAN Transmission Technology - 108M Super G WLAN 108M Super G Transmission Technology employs multiple performance-enhancing techniques including packet bursting, fast frames, data compression, and dynamic turbo mode that combine to improve the throughput and range of wireless networking products. Users can experience link rates of up to 108Mbps, twice the industry-standard maximum data link rate of 54Mbps, while preserving full compatibility with traditional 802.11g or 802.11b networks.
  • Page 65 Domain Name - A descriptive name for an address or group of addresses on the Internet. DoS (Denial of Service) - A hacker attack designed to prevent your computer or network from operating or communicating. DSL (Digital Subscriber Line) - A technology that allows data to be sent or received over existing traditional phone lines.
