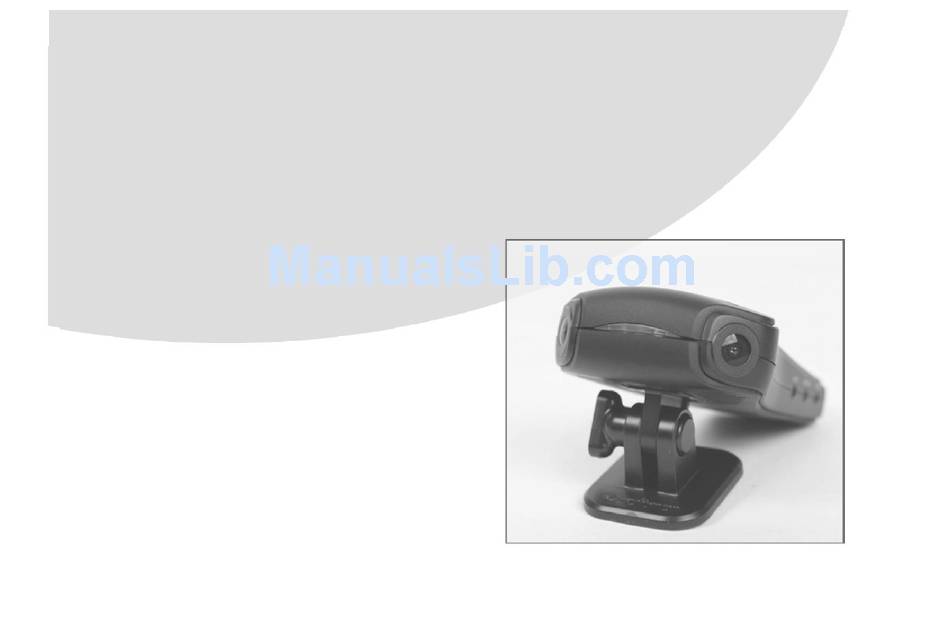

- Page 1 Tecell Elektronik Hyperview Cam HC-200 User Manual www.hyperviewcam.com (English) www.hyperviewcam.de (Deutsch) Ver. 2016/06/10...
- Page 2 Thank you for purchasing HyperviewCam HC-200. This manual contains important safety information, product description and instructions to use HC-200 The latest version of this guide can be downloaded from the website www.hyperviewcam.de Before using the product, please read the contents of this manual! Technical or editorial errors and improvements are possible.
-
Page 3: Table Of Contents
Content 1 Safety and Precautions 2 Included components 3 Optional Components 4 Camera components 5 Installation 6 Configuration commands 7 Configuration of the camera - manually 8 Configuration application 9 Operation 10 Camera modes 11 Export of live videos 12 Memory capacity 13 Playing of individual video files 14 VideoStitcher: Player mode 15 VideoStitcher: Recovery of defective Videos... -
Page 4: Safety And Precautions
1 Safety and Precautions (1/2) If you do not comply with the following contents, Warning If you do not comply to following content, it may it may cause damage to the user. Warning cause damage to users and goods! • Plug in the cables into camera and car correctly. Otherwise, fire or malfunction may occur. - Page 5 • Do not configure and control the camera during driving. It can cause accidents. • Tecell Elektronik GmbH assumes no responsibility for the accuracy of the content or for any damages arising from the use of the camera and the user manual.
- Page 6 2 Provided Components and Parts Components 1) Holder with self adhesive tape 2) Hyperview Cam HC-200 3) Video output cable 4) Power Cable (3m long) (3m long) 5) Mini CD incl.: 6) MicroSD card Adapter - Hyperviewcam VideoStitcher/Player 7) MicroSD card - Setup Programm - User manual (EN and DE) 8) Printed user manual (DE)
-
Page 7: Optional Components
3 Optional Components Video-Ausgangskabel GPS-Receiver SD-Card to USB Adapter (4-pole-RCA) Optional parts you can purchase from your HypervievCam supplier or www.hyperviewcam.com... - Page 8 4 Camera Big Blue Button Short press: Manual Recording Video Function Buttons Long press: Camera Power ON / OFF Short: MIC REC ON / OFF Long: Voice (beep) ON / OFF Short: Manual recording 5 Power connector (DC 13,8-12V) Long: Parking mode entry / release Connect the power cable.
-
Page 9: Installation
5 Installation (1/2) Identify appropriate place for the camera Insert the MicroSD card into camera ● In most cases is the best place behind the mirror in area cleaned by wipers. Insert micro SD card always with the gold color contacts Nottice by wipers cleaned area! facing down, towards “SD CARD IN”! Camera should not obstruct driver view! - Page 10 5 Installation (2/2) 2.1 Mount camera hanging Join the camera and the holder. or inversely, 2.2 staying Insert the power Notice by wipers cleaned area on the cable jack windscreen. Find a suitable location for into camera. the camera, probably behind the mirror. Remove the protective strip from the adhesive foil and attach the bracket with the camera on 2.1 the...
- Page 11 6 Configuration Bedeutung Beispiel Wertebereich Standardwert Soundspeaker volume spk:8; Microphone sensitivity mic:6; G-Sensor sensitivity (Drive mode) gsensor:2; G-Sensor sensitivity (Parking mode) gsensorp:5; Movement recognition sensitivity motion:2; Beep-Tone when individual video start/stop beep:1; 0 or 1 Permanent recording normalsave:1; 0 or 1 Activate front LED-light when recording video secureled:0;...
-
Page 12: Configuration Of The Camera - Manually
7 Configuration of the Camera – manually Example for the setting of: Volume, G-sensor sensitivity, date and time and the broader video on the video output jack. In a text editor program write following commands and parameters. (see example) (Filecoding: ANSI, Filename: tnn_config.txt, Directory: root of microSD-Card) Save the commands in a txt file named: "tnn_config.txt"... -
Page 13: Configuration Application
8 Configuration application Configuration program produces tnn_config.txt file and places it on the "C:" partition. Not necessary commands you can delete in an editor. Then copy the tnn_config. txt file on the microSD memory card, insert the memory card into the camera and start the camera. After the start, camera looks every time in the root directory of the memory card, if the file is tnn_condfig.txt available, it executes the commands and when configuration is finished, camera deletes the file tnn_config.txt on microSD Card. -
Page 14: Operation
9 Operation Turn on the camera: Plug the power cord into the camera. Plug the other side of the power cord into the 12V DC cigarette socket. (Camera do not operate with 24V DC!) When the camera power supply is quickly increased by more than 1V, the camera automatically turns on. -
Page 15: Camera Modes
10 Camera modes 1) Driving mode: After switching on, the camera is in driving mode. In this mode, the function "Permanent Record" is activated: This is the default setting. Also after the execution of command "normal save: 1;" the camera takes continuously 1 min. long videos on (left and right video). After execution of the command "Save normal: 0;“... -
Page 16: Export Of Live Videos
11 Exporting Live-videos Connect the camera with the monitor/TV using the enclosed video cable. Plug RCA plug in a monitor. Use only the enclosed original cable, otherwise the connected devices may not operate properly and cause damage. • External GPS... -
Page 17: Memory Capacity
12 Memory capacity Depending on whether the function "Permanent Record" by command "normalsave" [1 or 0] is enabled or not, the space on the microSD card will be divided accordingly. In driving mode and permanent recording state (normalsave = 1;) 4 directories are partitioned: Normal/Event/Parking/Manual in the ratio 6:2:1:1. -
Page 18: Playing Of Individual Video Files
13 Playing individual video files You can select a left or right video file. The player Insert the microSD card from the camera into PC. If necessary, use the automatically selects the appropriate L or R video file and supplied card adapter. play them together, then the next in chronological order. -
Page 19: Videostitcher: Player Mode
14 VideoStitcher: Player Mode 1 Switch to Player mode when in the Stitcher mode 13 Select single video pair 2 Switch to Stitcher mode when in the Player mode 14 Select folder with stitched videos (single files) 3 Check if new software version is available 15 Select single stitched video 4 Settings (select language, enable/disable automatic updates) 16 Slider for position in the video... -
Page 20: Videostitcher: Recovery Of Defective Videos
15 VideoStitcher: Recovery of defective videos In Player mode, can Videostitcher repair defective videos. See icon 1 and 2. Repaired videos have no sound, but can be played normally and exported into one good stitched file. For example, you use completely new camera and the internal battery is not charged or after long time internal battery no more works. When suddenly power interrupt occur (engine turned off ->... -
Page 21: Videostitcher: Stitcher Mode
16 VideoStitcher: Stitcher Mode See Video-Player Mode Stop 12 13 14 7 8 9 18 19 20 21 24 25 1 Open video 14 Adjust brightness 2 File name 15 Left click on the "K1" or other to set +/- changing step 3 Select size 100, 75, 50 or 25% of the recorded video as an input video size 16 Enter parameters numerically or adjust with "+"... -
Page 22: Videostitcher: Usage
17 VideoStitcher: Usage 1 Installation The HyperviewCam VideoStitcher requires at least Microsoft .NET Framework 4 on PC to function properly. Before installing the VideoStitcher, install the Microsoft .NET Framework 4 or higher if it is not already on your PC. Windows8 already comes with the Microsoft .NET Framework. - Page 23 2.2 In Stitcher mode: In Stitcher-mode always first press Reset button to activate the existing default correction, overlapping and calibration parameters. Then set for your camera individual optimal combination of height adjustment and overlapping . Now you can also select most interesting scene and adjust optimal contrast. You can export current scene as a png image or export into specified directory with or without sound current dual-video into into single-file video.
-
Page 24: Videostitcher: Optimization Of Calibration Parameters
18 VideoStitcher: Optimisation of calibration parameters In Stitcher-mode you can improve existing calibration parameters by yourself: 1) Export the existing standard parameters as ZIP file by pressing "Export", so you will create your backup of standard parameters. 2) Set the input video scaling (in %) to 100%. 3) Open a video, which shows some regular rectangular structure (grid, ceramic plates, house storefront with vert./hor. -
Page 25: Specifications
19 Specifications Model name HyperviewCam HC-200 Colour / Dimension / Weight Schwarz / 107x59x29mm / 88g Memory microSD up to 32 GB normal (with/without permanent recording) event Recording mode 1280x720p x2, 30 fps manual parking left camera: 120°, right camera: 120°, together: ~200° Recording angle HD 1280x720p 30fps Video... - Page 26 www.hyperviewcam.com...
