Summary of Contents for DailyChek HL568AA

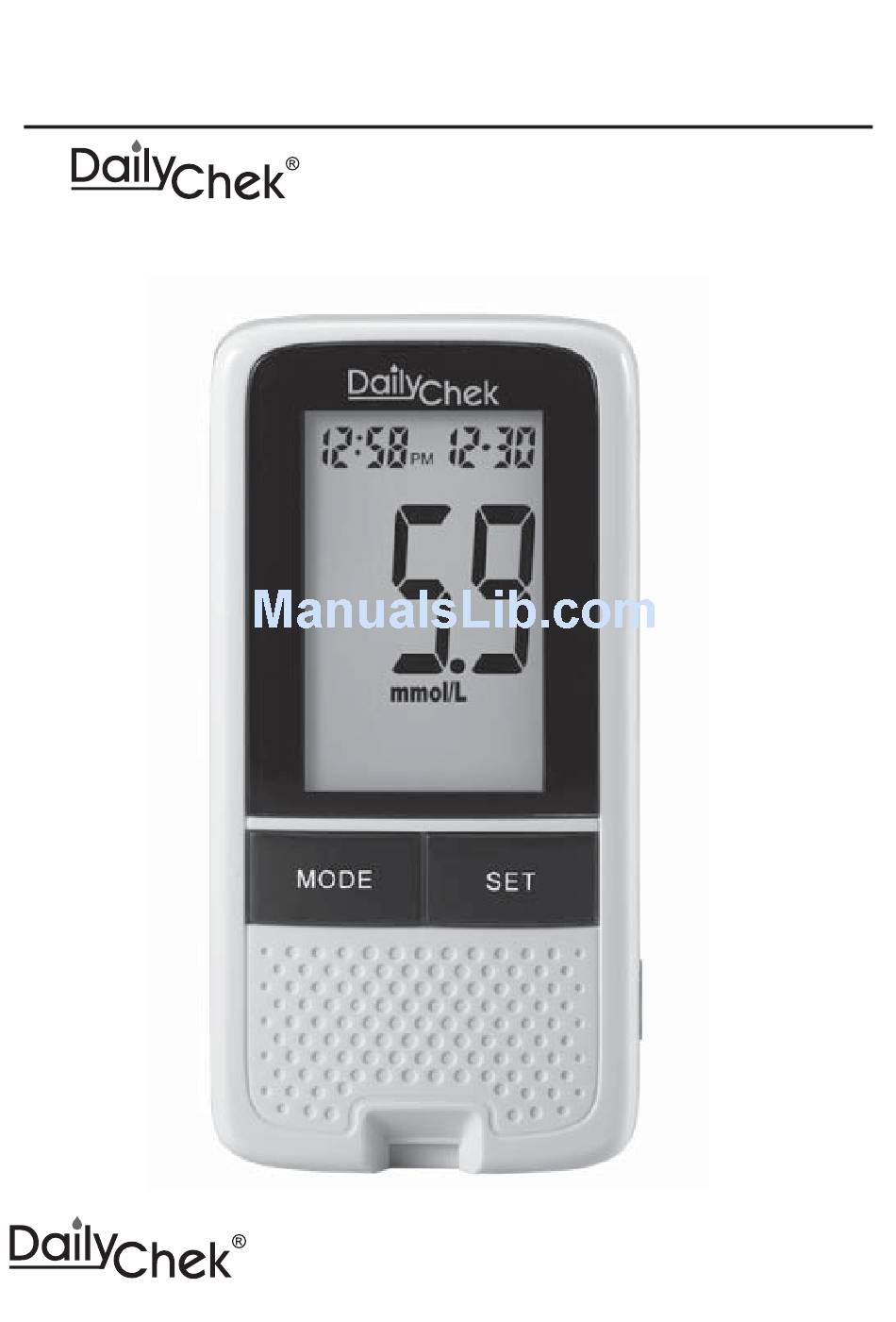

Page 1 User’s Manual Premium Self-Monitoring Blood Glucose System Premium Blood Glucose Meter...
Page 3 LTD. ofﬁce or authorized distributor during business hours. To make sure that the meters would work properly, please follow ® the instructions to setup the batteries accessorized DailyChek Premium Blood Glucose Meters. If you need any information about maintenance of meters, please call our HEALTH &...
Page 4 Premium SMBG System for testing. If your symptoms are not consistent with your blood glucose test results ® and you have followed all instructions described in DailyChek Premium SMBG System User’s Manual, call your healthcare professional. Please discard the medical waste according to the local regulations.
Page 5 Appendices Explanation of Symbols Item Explanation Caution! Consult accompanying documents This product meets the requirements of Directive 98/79/EC 0537 in vitro diagnostic medical devices Lot number Use by in vitro diagnostic medical device AAA (1.5 V) alkaline battery x 2 Do not reuse +40 C Temperature limitation...
Page 6: Table Of Contents
Table of Contents ....... ® About DailyChek Premium SMBG System ................Key Features ..............Get Ready for Testing ............. Quality Control of the System ..........Perform the Blood Glucose Test ............Use the Data Link Function ..............Maintain Your Meter ...............
Page 7: About Dailychek Premium Smbg System
® About DailyChek Premium SMBG System ® Thank you for choosing DailyChek Premium Self-Monitoring Blood Glucose System. Designed for ease of use, the system can help you and your healthcare professional monitor and adjust your treatment plan to gain better control of your diabetes.
Page 8 The amount of the current is proportional to the amount of glucose present in the blood sample. Test results are “plasma equivalent”. ® The system consists of three main products: DailyChek Premium ® Blood Glucose Meter, DailyChek Blood Glucose Test Strips ®...
Page 9 4. Warranty Card NOTE ® ® DailyChek Blood Glucose Test Strips and DailyChek Glucose Control Solution (High and Low Levels) are sold separately. Please consult your provider/local distributor. Please review the contents of your purchase. If any items are missing from your kit, please return it to the place of purchase.
Page 10 ® About DailyChek Premium SMBG System Component Description ® DailyChek Premium Blood Glucose Meter Display Screen Shows blood glucose results, messages, and glucose results stored in memory. MEM AVG CODE SET SET Button Press to set up your system. "...
Page 11: Meter Display
® About DailyChek Premium SMBG System Component Description Meter Display " " Ketone mmol/L mg/dL High mmol/L mg/dL Indicates mean of test Measurement units. Hour results in different days. CODE Battery Symbol Appears with the code Warns when the battery is Minute low.
Page 12 NOTE ® ® DailyChek Blood Glucose Test Strips are used with DailyChek Premium Blood Glucose Meter only. Do not touch the strip with a wet hand. Do not use strips beyond the expiration date printed on the vial since they may cause inaccurate results.
Page 13 ® About DailyChek Premium SMBG System Component Description Lancing Device It is used with sterile lancet to obtain the blood for the testing. Release Button Cocking Handle Lancet Ejector Depth Settings & Indicator Lancets It is used with lancing device to obtain the blood for the testing.
Page 14: Key Features
® ® You can access DailyChek GDTS (DailyChek Glucose Data Transmission Software) from the free software program CD and refer ®...
Page 15 Key Features The function was set off at the factory. Press SET button again to select the function to be “on”. (If “of” selected, the function will remain in “set-off” status.) Or press MODE button to return to Standby Mode. NOTE The factory-set setting for the Meal Comment Function is AC (after meal testing) where the...
Page 16 Key Features Ketone Warning Ketone is a waste product produced when the body is using fat as an energy source as a result of inadequate insulin or inadequate calorie intake. Ketones are acids, and can cause damage or death to cells. Excess ketones accumulate in the blood and are excreted in the urine.
Page 17: Get Ready For Testing
Get Ready for Testing To avoid inaccurate results caused by electromagnetic interference between electrical and electronic equipments, do not use the device near a mobile phone or microwave oven. Battery Installation The device uses 2 pieces of AAA (1.5 V) alkaline battery. Install the batteries when you use the meter for the ﬁrst time, or replace with new battery when the low battery symbol “...
Page 18 Get Ready for Testing Pre-setting Preset time, date and unit of measurement whenever you install or replace the batteries. Please preset your device according to the following steps. Press any button to switch the meter on. Press and hold the MODE button for 3 seconds to enter the Setting Mode.
Page 19 Get Ready for Testing The ten-digit number starts ﬂashing. NOTE Make sure the code on the meter is the same as the code on the test strip vial each time before you test. Test results may not be accurate if the code number displayed on the meter does not match that printed on the strip vial.
Page 20 Get Ready for Testing Precautions!! Fig. 1 Fig. 3 Fig.1 Fig.3 Insert the strip correctly. Inserting the strip with up- side down will not turn on the meter. Fig. 2 Fig. 4 Fig.2 Fig.4 Inserting the strip with the Inserting the strip with the wrong end will not turn on the wrong end will not turn on the meter.
Page 21: Quality Control Of The System
NOTE To assure the accuracy of both blood glucose test results and control ® solution test results, use only DailyChek Glucose Control Solution. The test results under the Control Solution Test Mode will not be stored in the memory.
Page 22 Quality Control of the System Insert the test strip into the meter. If the code number matches that on the test strip vial, you can go to next step. If not, refer to section "Code Setting" to set the code number. When the symbol ﬂashes on screen, press SET button to enter the Quality...
Page 23 Low and high control range values are printed on the test strip vial label. You may mmol/L ® also refer to DailyChek Glucose Control Solution instruction. Understanding the Reading! If the test reading falls within the expected range printed on the test strip vial, then the system is working correctly.
Page 24: Perform The Blood Glucose Test
Perform the Blood Glucose Test Perform the Blood Glucose Test CAUTION To avoid infection, do not share the lancing device and lancets with other people. The sterile lancet is single use only. Do not reuse the lancets. To avoid being punctured and infected by the used lancet, please save the lancet protective cap, and be sure to put it back on to the lancet before you discard the lancet after the test.
Page 25 Perform the Blood Glucose Test Twist off the protective cap of the lancet and save it for later use. Replace and screw the cap snugly. C h o o s e t h e d e p t h o f l a n c i n g . Select 1~2 for soft o r thin skin , 3-4 for average skin, 5-6 for thick or calloused skin.
Page 26 Perform the Blood Glucose Test Insert a new test strip; make sure it goes all the way in. The meter will turn on automatically when it detects the test strip. If the code number matches that on the test strip vial, you can go to next step.
Page 27 Perform the Blood Glucose Test Put the drop of blood to the edge of the test strip. Do not put it on the top of the test strip. Make sure that the blood fills the reaction zone completely. If too little blood enters the reaction zone (an "underfill"), an erroneous result may be produced.
Page 28 Perform the Blood Glucose Test Once the blood droplet is been automatically drawn into the collection zone, the meter will beep. Move the blood droplet away from the strip. After 5 seconds, the device will beep again and display “OK” indicating the testing is completed.
Page 29 Perform the Blood Glucose Test After test is completed, turn off the meter by removing the strip. Or the meter will automatically shut down after 2 minutes if without any operation. Unscrew the cap of the lancing device and re-cap the lancet, then push the lancet ejector forward to remove the lancet.
Page 30 Perform the Blood Glucose Test LO and HI Readings ® DailyChek Premium SMBG System displays results from 1.1 to 33.3 mmol/L (20 to 600 mg/dL). If your test result is lower than 1.1 mmol/L (20 mg/dL), “LO” will appear on the meter display. The result will be stored in the memory but won’t be calculated for the 7/14/28/60/90-day average.
Page 31 Perform the Blood Glucose Test Memory Recall ® DailyChek Premium Blood Glucose Meter stores latest 500 test results with time and date in the memory automatically. It also provides 7/ 14/ 28/ 60/ 90 day average of your blood glucose test results.
Page 32 Perform the Blood Glucose Test To view 7/14/28/60/90 day average: Step 2-6 The 7 day average value will appear ﬁrst. Continue to press MODE button, the 14/28/60/90 day average record will mmol/L appear in order. You can then review the last 500 individual test result in memory.
Page 33 Perform the Blood Glucose Test Press MODE button to view the average record for last 60 days. mmol/L Press MODE button to view the average record for last 90 days. mmol/L To view the records in the memory After the 90-day average, the latest reading appears with the memory sequence number, then the date and time instead.
Page 34 Perform the Blood Glucose Test To delete all records P r e s s S E T a n d M O D E b u t t o n s s i m u l t a n e o u s l y f o r 3 s e c o n d s , t h e s c r e e n w i l l s h o w "...
Page 35: Use The Data Link Function
Use the Data Link Function To transfer test results to your personal computer for home viewing, ® ® DailyChek Glucose Data Transmission Software (DailyChek GDTS) and an USB cable are required for installation. System requirements Hardware requirements : Compatible computer with USB port ®...
Page 36 Be sure to insert the batteries prior to using Data Link Function. Transfer data ® Follow the instructions in DailyChek Glucose Data Transmission Software User’s Manual to transfer the test results in the meter memory to your computer.
Page 37: Maintain Your Meter
Maintain Your Meter Display Check When the meter is off, press any key to switch it on. The display should look exactly like the picture as right and remain 3 seconds. If it does not, call the HEALTH & LIFE CO. "...
Page 38: System Speciﬁcations
Never reuse a test strip that had either blood or control solution applied to it. ® Use DailyChek Premium SMBG System at room temperature between 10 ~ 40°C (50 ~ 104°f). Out of this range, the system will not work.
Page 39 System Speciﬁcations Product Speciﬁcations ® DailyChek Premium Blood Glucose Meter Model Name 1.1 ~ 33.3 mmol/L (20 ~ 600 mg/dL) Range 5 seconds Response time 500 sets Memory sets Temperature 10 ~ 40°C (50 ~ 104°F) Operating Humidity R.H. ≤ 80%...
Page 40: Display Messages And Troubleshooting
Display Messages and Troubleshooting Display messages What it means Troubleshooting If you have an "Er 1” M a k e s u r e t h e message, that means operation condition the strip is wet. is within 10 ~ 40° C and R.H.
Page 41 Display Messages and Troubleshooting Display messages What it means Troubleshooting If you have a “ ” or Do not artiﬁcially heat “ ” reading, that o r c o o l t h e m e t e r. m e a n s t h e t e s t Repeat the test after e n v i r o n m e n t a l the meter and test...
Page 42: Device Information
Device Information ® DailyChek Premium SMBG System ® DailyChek Premium Blood Glucose Meter ® DailyChek Blood Glucose Test Strips (Sold Separately) 0537 ® DailyChek Glucose Control Solution (Sold Separately) HEALTH & LIFE CO., LTD. 9F, No. 186, Jian Yi Road, Chung Ho City 235, Taipei, Taiwan...
Page 43 Device Information Lancing Device Meets the requirement of MDD 93/42/EEC SteriLance Medical (Suzhou) Inc. No. 68, Litanghe Road, Xiangcheng, Suzhou, China 215131 Tel: +86-512-65799308 www.sterilance.com Lancets Meets the regairement of MDD 93/42/EEC SteriLance Medical (Suzhou) Inc. No. 68, Litanghe Road, Xiangcheng, Suzhou, China 215131 Tel: +86-512-65799308 www.sterilance.com...
Page 44 If during this two-year period, the meter does not work properly because of a defect in materials or workmanship, HEALTH & LIFE CO. ® SERVICE will repair the meter or replace it with a new DailyChek Premium Blood Glucose Meter or equivalent product free of charge.
