iNels eLAN-IR-003 Installation Manual

Smart ir box
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
eLAN-IR-003
Rev.:1
Page 1 of 15

Advertisement

Table of Contents
loading

Summary of Contents for iNels eLAN-IR-003

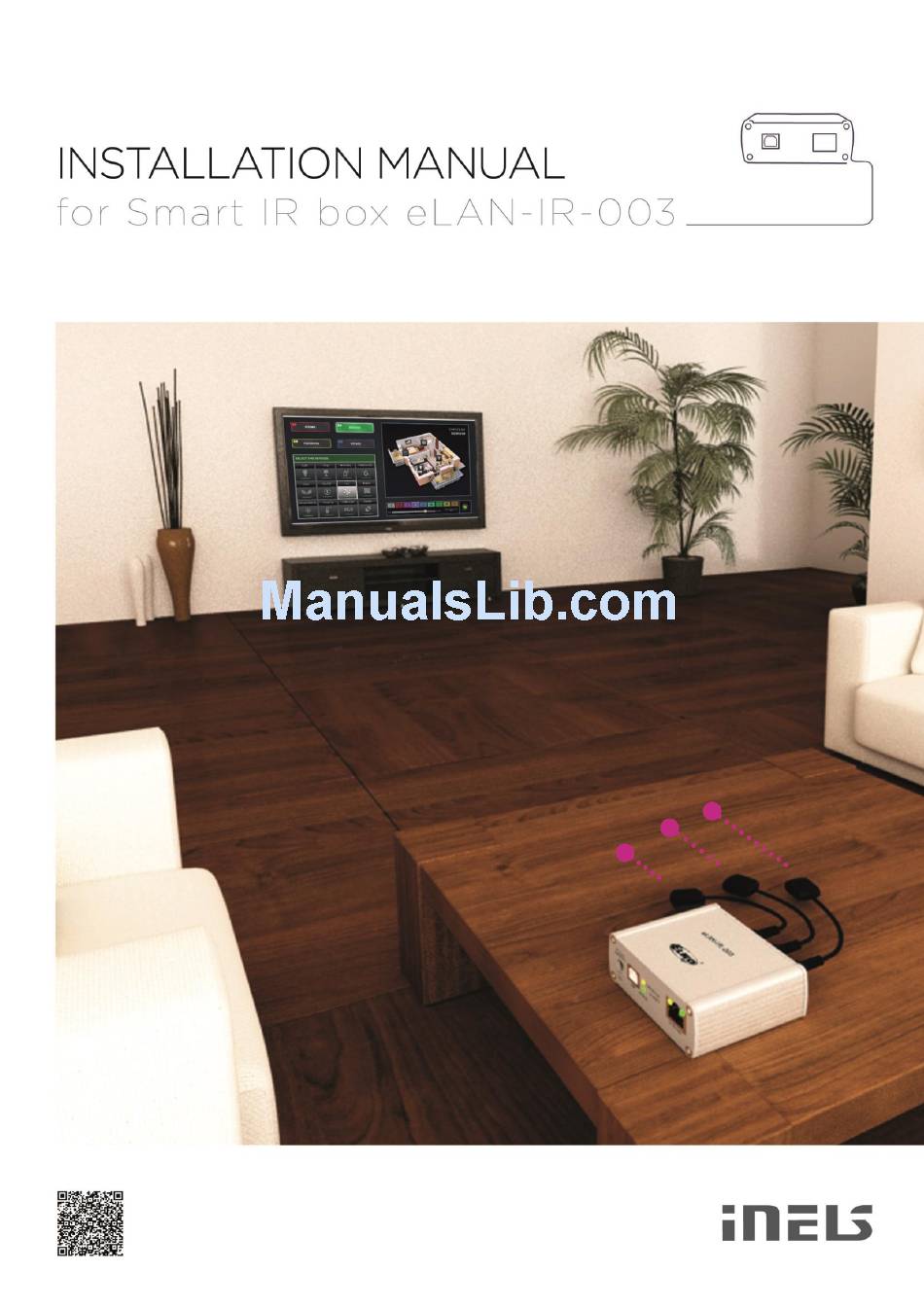

  • Page 1 Rev.:1 Page 1 of 15...

  • Page 2: Table Of Contents

    Contents Introduction ........................... 3 Characteristics eLAN-IR-003 ....................... 3 Technical parameters: ........................4 Hardware installation ........................5 Description of eLAN-IR-003 .................... 5 Requirements for installation .................... 6 Connecting the eLAN-IR-003 ..................7 Configuring the eLAN-IR-003 ..................... 8 Configuration panel ......................9 Description of functions ....................

  • Page 3: Introduction

    TV, VCR, satellite receiver, DVD player, amplifier, hi-fi , air conditioning, fans and others.  In case of integrating a smart box to the iNELS system for controlling, we should use: The complex iHC application for intended iNELS system and its iMM multimedia superstructure.

  • Page 4: Technical Parameters

    3. Technical parameters: SENSOR IR – LEARNING MODE IR sensor: Infrared sensor for learning IR codes The carrier IR frequency: 20 - 455 kHz Learning distance: till 1m OUTPUTS Output: 3 x IR transmitter Connection: 3 x 3.5 Jack connector, cable length 3 m...

  • Page 5: Hardware Installation

    4. Hardware installation 4.1 Description of eLAN-IR-003 Front panel: Receiver of IR Green STATUS LED signals Outputs for IR transmitters  IR LEARN - IR receiver for loading IR codes.  Outputs IR1 – IR3 - for connecting up to three IR transmitters. The IR transmitter is connected via a 3.5mm jack.

  • Page 6: Requirements For Installation

    Requirements for installation environment  Place the eLAN-IR-003 in a spot where it can be connected to the Ethernet network and a power source. eLAN-IR-003 may not be placed in a spot where it would be exposed to moisture or excessive temperatures.

  • Page 7: Connecting The Elan-Ir-003

    4.3 Connecting the eLAN-IR-003  Connect the eLAN-IR-003 to the power supply.  Using the Ethernet cable, connect the eLAN to your local network. Your local network (router) assigns the eLAN-IR-003 an IP address.  Connect to output IR1 (IR2, IR3) IR transmitter (included in package). Place the IR transmitter at the required distance from the controlled device.

  • Page 8: Configuring The Elan-Ir-003

     Run the web browser.  In the Internet browser in the Address panel fill in the IP address of your eLAN-IR-003. After confirming the entered IP address, the web server's login page will come up.  A sign-in window will appear on the start screen.

  • Page 9: Configuration Panel

    5.1 Configuration panel Rev.:1 Page 9 of 15...

  • Page 10: Description Of Functions

     By pressing Log out, you will log out of the web interface eLAN-IR-003.  By pressing the button Save settings, you can save the current settings of your eLAN-IR-003 including network settings.  By pressing the button Load settings, you can restore your stored settings, which you have already stored in your PC (the file has the extension .bin).
  • Page 11 In case you wish to set static IP address, please mark relevant line and fill in the details: IP Address – enter the new IP address of the eLAN-IR-003 (in dotted decimal format). In case you set the static IP address, you have to find it by using the application (see detailed manual for applications).
  • Page 12 Panel Floorplans here you can add floorplans (images, layouts….). Button (+) - add a new floorplan: 1. Select the required image for the floorplan (stored in your PC). 2. ID – enter the name of the floorplan. Confirm by pressing OK.
  • Page 13  The Devices panel is used to add devices into the eLAN-IR-003 and assign IR codes for their control. ATTENTION: You can only add individual devices after loading IR codes from your controller into the eLAN-IR-003 (see IR codes).
  • Page 14  The panel IR codes is used to load IR codes from your controller to the eLAN-IR-003. By clicking on (+) on the panel IR codes, options appear with buttons: Record – pressing this activates the IR signal receiver on the eLAN-IR-003. Then you can load codes from the controller.

  • Page 15: Troubleshooting

    6. Troubleshooting  The product is not communicating (cannot connect to the web server) Check to see that the eLAN-IR-300 is connected to the power supply, and the POWER ◦ LED on the front panel is illuminated. Check for connection to the Ethernet network - the yellow Ethernet LED is lit and the ◦...
