Summary of Contents for ADP Designs Enduralite

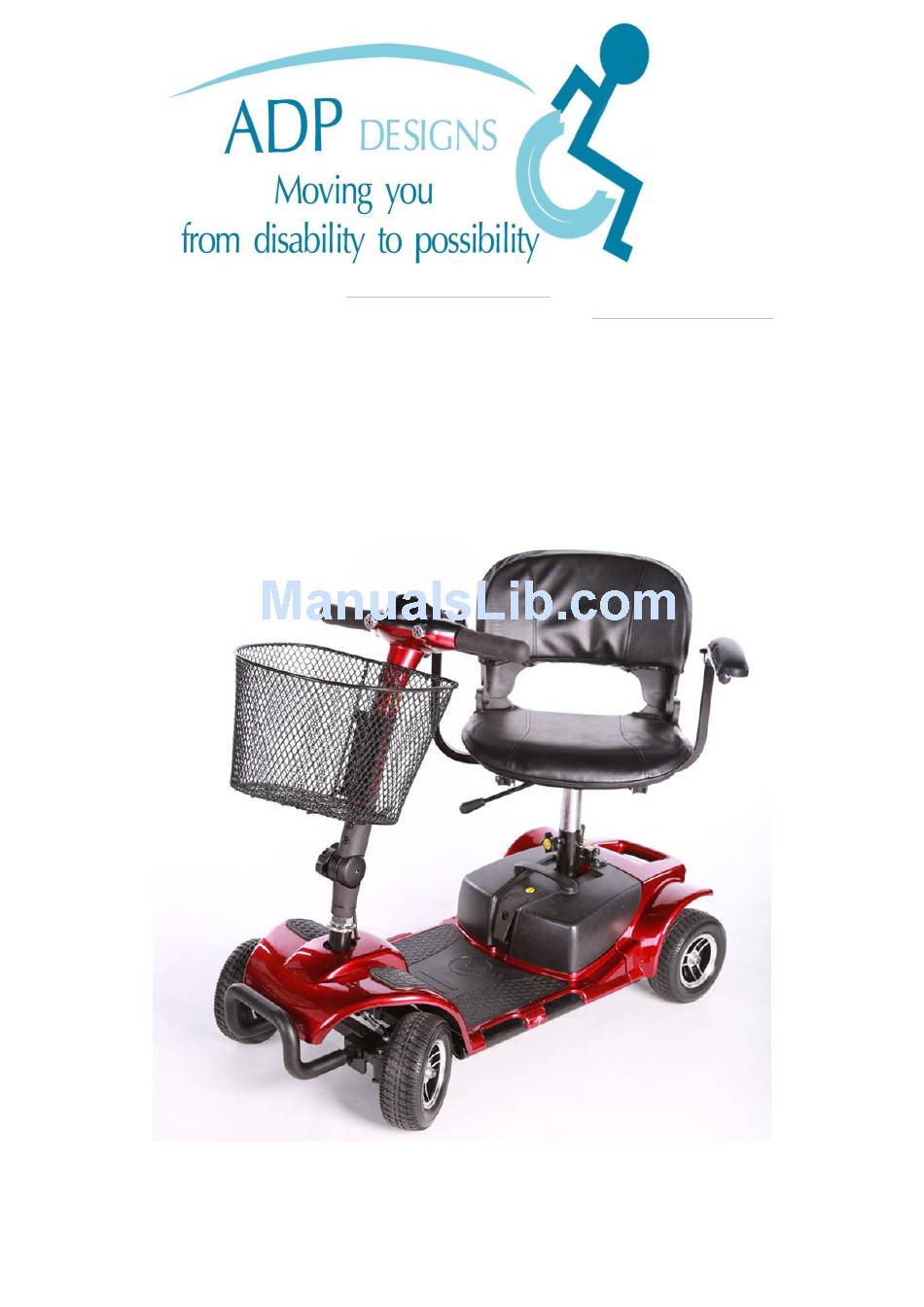

- Page 1 083 284 2973 rosslyn@adpwheelchairs.co.za sales1@adpwheelchairs.co.za Tel: Email: Fax:086 232 5223 Web: www.cheapest-wheelchairs.co.za ORwww.adpwheelchairs.co.za OWNERS MANUAL FOR THE ENDURALITE DETACHABLE SCOOTER...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION……………………………………………………..3 SPECIFICATIONS AND STRUCTURE…………………………4-5 III. INTITIAL ASSEMBLY……………………………………………….6 DISASSEMBLY…………………………………………………………7 COMFORT ADJUSTING……………………………………………8 OPERATION…………………………………………………………….9-10 VII. BATTERY AND CHARGING………………………………………..11-13 VIII. CARE AND MAINTENACE………………………………………….14-15... -
Page 3: Introduction
Your understanding of these instructions is essential for the safe operation of your new scooter. ADP Designs is not liable for damage to property or personal injury resulting in the failure of a person and/or user to follow the instructions and recommendations set forth in this manual or any other demands contained on the scooter itself. -
Page 4: Specifications And Structure
II. STRUCTURE AND SPECIFICATION Your scooter mainly consists of four parts: 1. A front section 2. A rear section 3. A seat unit 4. A battery Tiller Console Seatback Armrests Tiller Seat lock lever Lock-nut Rear section Front section... - Page 5 Specifications Overall Dimensions 950mm X 500mm X 840mm Seat Height 520mm Seat Width 400mm Seat depth 350mm Armrest height 700mm Backrest height 390mm Turning radius <1.2m Overall Weight (with batteries) 37kg Maximum speed <6km/h Maximum weight capacity 120kg Batteries Lithium, 24V/10Ah x 2 Motor power 24V/180W Travel Ranging...
-
Page 6: Intitial Assembly
III. INITIAL ASSEMBLY For your convenience of transportation and reduction of possible damage, the batteries and the seat unit are separately packaged. So you need to assemble them onto the main frame of your scooter. OPENING THE PACKING BOX Open the packaging box of your new scooter, and take off all the protective lining, then take out the folded scooter from the box. -
Page 7: Disassembly
IV. DISASSEMBLY For convenience to transport and store, your scooter is designed to be disassembled easily Shut off the power and pull the lock lever under the seat base to unlock the seat. Lift the seat up and off the scooter. Loosen the nuts on the plug of the front and rear power connector, then remove it. -
Page 8: Comfort Adjusting
V. COMFORT ADJUSTMENT Remove the key from the key switch before adjustments. Never attempt to make adjustments while the scooter is motion. Before operating the scooter, you may find the need to make some adjustments to increase your comfort. Seat height adjustment You can choose the different holes to change the seat height Pull the seat lock lever back to unlock the seat Lift the seat up and off the scooter... -
Page 9: Operation
VI. OPERATION Tiller console The tiller console houses all of the controls needed to drive your scooter. Speed adjustment knob Battery condition Headlight indicator button Key slot Horn button Power switch Plug the key into the key slot Indicator on the gauge will illuminate When you plug out the key, the power indicator switches off Do not use the key switch to stop the scooter unless under urgent circumstances. - Page 10 Speed adjustment knob The knob allows you to preset and limit your scooter’s top speed Before you master operating your scooter, please preset the speed adjustment knob to the lowest position. Battery When your scooter is powered up, this indicator shows the remaining capacity of the batteries by 3 colour ranges Green range indicates that the batteries are fully charged Yellow range indicates half of the batter’s capacity remains and that it needs to be...
-
Page 11: Battery And Charging
When your scooter is in freewheel mode, the brake system is disabled Never use your scooter in freewheel mode without assistance. Doing so can result in personal injury Never climb onto your scooter while it is in freewheel mode Never put your scooter in freewheel mode on any incline When your scooter is in powered on, your scooter must be in drive mode to guarantee that the brake system works normally. - Page 12 When it is almost done charging, the green light will turn on. You should continue to charge the batteries for some time It is recommended that you charge your batteries for 10 – 12 hours When the batteries are fully charged, unplug the off-board from the wall socket and then from the 3-pin charger receptacle Put the charger with its cord into the back bag of your scooter The battery can also be charged while detached from the scooter.
- Page 13 HOW CAN I GET MAXIMUM RANGE PER CHARGE? Rarely do you have an ideal driving situation such smooth, hard terrain with no hills or curves. More often you are presented with hills, side walk cracks, uneven and loosely packed surfaces and curves. All of these factors will affect the running distance or running time on the battery charge.
-
Page 14: Care And Maintenace
VIII. CARE AND MAINTENANCE Moisture You should avoid positioning your scooter in damp areas of any kind. Direct exposure to water or dampness could cause your scooter to malfunction electronically and mechanically. Water can cause electrical components to corrode and the scooter’s frame to rust. Should your scooter come into contact with water: ... - Page 15 In extremely cold temperature, the battery may be frozen. Temperature above 45*C may cause the scooter to operate at a reduced speed Sleep timer Shut off the power after each use in order to prolong the battery service time. Your scooter has the specially designed function to save energy.
