Summary of Contents for Ruby Tech CRV0007

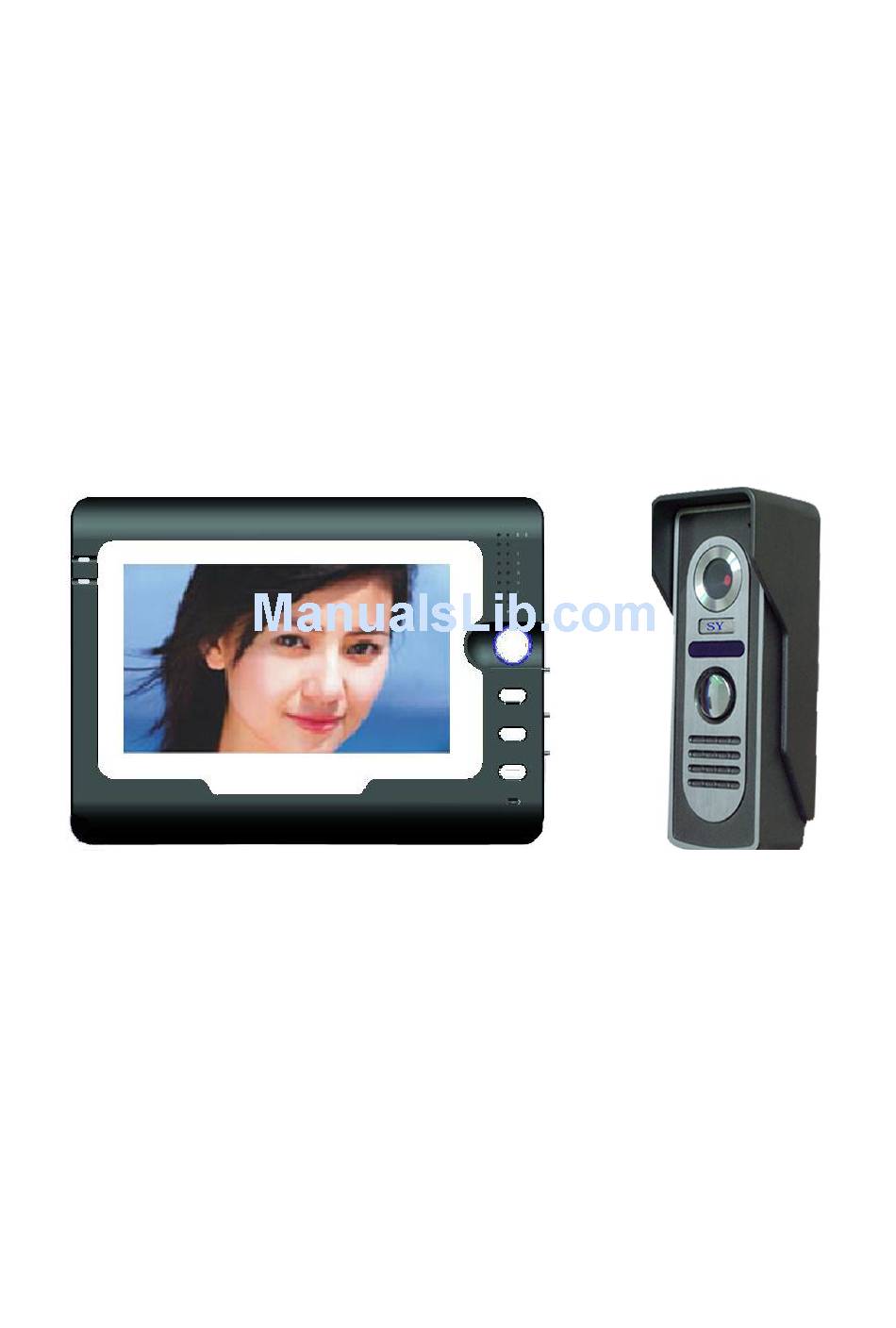

- Page 1 7"TFT LCD Color Video Doorphone CRV0007+CRS0015 Instruction Manual 1-13...
- Page 2 Catalogue 1.Technical Parameters „„„„„„„„„„„„„„„„„„3 2.Host & Accessories „„„„„„„„„„„„„„„„„„„4 3.Product Features „„„„„„„„„„„„„„„„„„„„5 4.Description of outdoor & indoor units „„„„„„„„6 5.Installation „„„„„„„„„„„„„„„„„„„„„8 6.Cable connection instructions „„„„„„„„„„„„„9 7.Operating instructions„„„„„„„„„„„„„„„„„10 8.Cautions „„„„„„„„„„„„„„„„„„„„„„„„11 9.Packing List „„„„„„„„„„„„„„„„„„„„„„12 2-13...
-
Page 3: Technical Parameters
Technical Parameters ●7" TFT LCD Color Screen，（16:9/4:3 Display）. ●Resolution：480*RGB*234. ●Size：154.08（H)*86.58(V)MM. ●Indoor Unit Size：230.2*164.2*32.5MM. ●Outdoor Unit Size：121*51*45MM. ●Power Input：AC100V-240V 50HZ/60HZ. ●Power Output: DC15V. ●Current Output：1500MA. ●Calling Duration Time：90S±10％. ●Monitoring Duration Time：60S±10％. ●Cable supplied：50M（6*0.65MM2). ●Power Consumption：Static≤0.5W,Calling≤10W. ●Maximum Transmitting Distance：200M. ●Camera Viewing Angle：92°. ●Working Temperature：-10℃～+50℃. - Page 4 Host Indoor Unit Outdoor Unit Accessories Mounting Plate Adapter 4-13...
- Page 5 Cable 4Pin 10M Small Parts Features 1.Fashionable Aluminium Alloy Indoor Unit. 2.Waterproof,Oxidation proof,Durable Krisite Alloy Outdoor Sheath. 3.7" TFT LCD Color Screen. 4.Hand Free Vedio Intercom. 5.Electric Unlock Function. 6.Monitor the outside scene. 7.12 Melody rings selectable. 8.Adjustable volume/brightness/contrast. 9.Easy DIY installation. 10M Connection Cables. 5-13...
- Page 6 Function Instructions for outdoor & indoor units 1、1 Unlock indicator light:Blue 2、2 Power indicator light:Red 3、3 Intercom 4、4 Display Menu 5、5 Monitor button 6、6 Display Menu“+” Function button 7、7 Display Menu“-” Function button 8、8 “-”Function button 9、9 Melody 10、 Speaker 11、...
- Page 7 1、1 Camera 2、2 Brand 3、3 Infrared light 4、4 Call Button 5、5 Speaker ●IR distance：1M ●Working Temperature：-10℃～+50℃ ●Resolution：＞380 TV line ●Outdoor unit size：121*51*45MM ●Outdoor unit size：0.34KG 7-13...
- Page 8 Indoor unit installation Mounting Indoor Unit 1.After the cable connected,fix the plate with the attached screw PA3*30.Then place the monitor onto the plate. 2.The outdoor unit should be mounted at a height of 1.5m. 3.The intercom distance is approximately 30cm. 4.If the cable is not long enough,it can be lengthened to a range of 10-50m.
- Page 9 Wiring Diagram Indoor Outdoor ●Connection instruction ●Connection instruction 1.Audio Line AK 1.Audio Line AK 2.Earth Line GND 2.Earth Line GND 3.Power Line 3.Power Line 4.Vedio Line 4.Vedio Line 9-13...
-
Page 10: Operating Instructions
Operating Instructions 1.The visitor presses the CALL button from the outside, the internal monitor willl ring and the visitor will be seen. The host can talk with the visitor by pressing the TALK button. Press TALK again to cancel.Duration time 90s. 2.Press the UNLOCK button to oper the electric lock. - Page 11 CAUTION 1.Same as TV,pls don't mount the indoor unit near any location of high temperature or humidity. 2.Don't touch the unit with wet hands. 3.To ensure the image quality,pls don't use aggressive chemicals or corrosive liquids.Pls clean the lens and LCD with soft cloth. 4.Avoid sudden shocks to the units.
-
Page 12: Packing List
Packing List ●Indoor monitor 1PCS ●Outdoor unit 1PCS ●DC15V power adapter 1PCS ●Mounting plate 1PCS ●10M Cable 1PCS ●Screw bag 1PCS ●Installation & operation manual 1PCS ●Unlock Cable 1PCS 12-13... - Page 13 制作 审核 批准 13-13...
