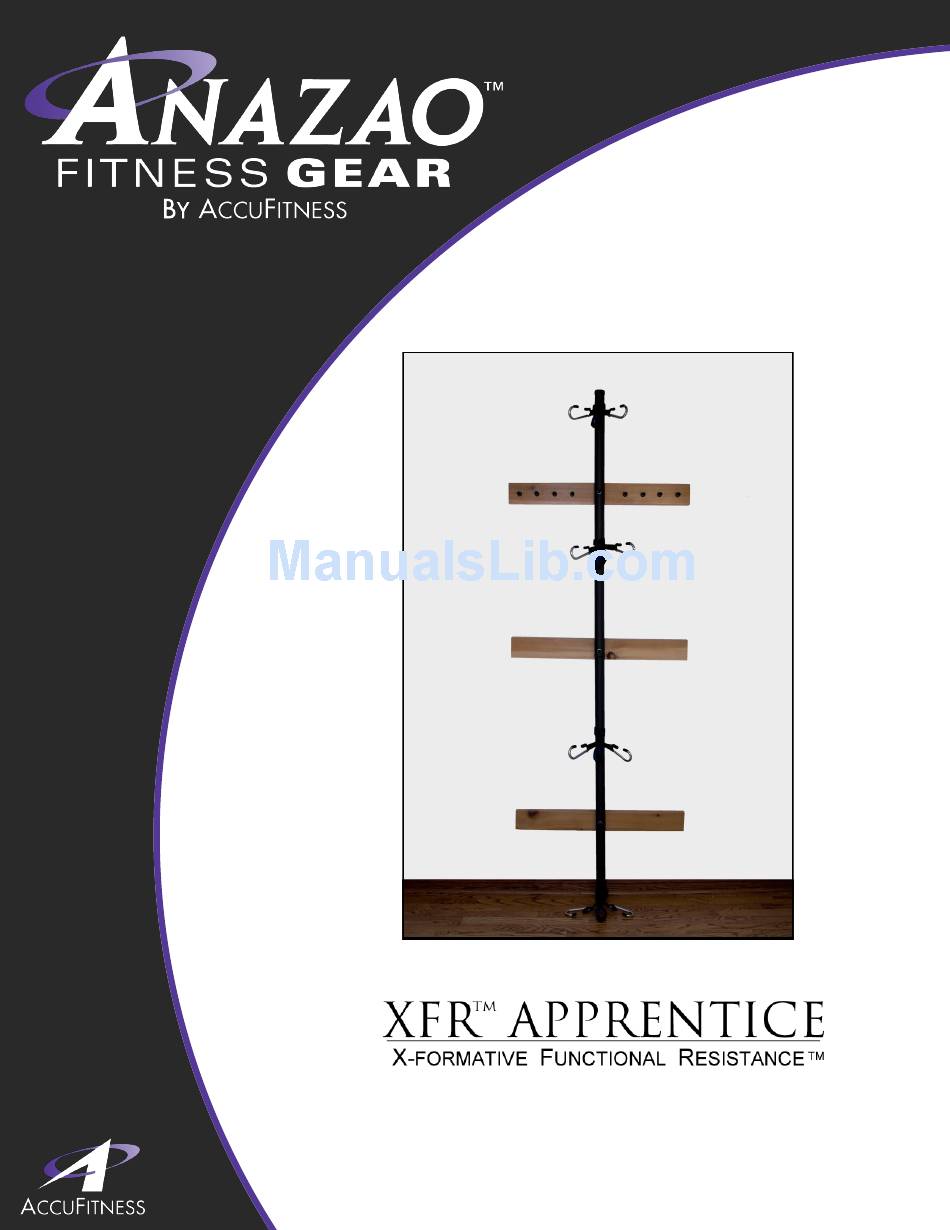

Summary of Contents for ANAZAO XFR APPRENTICE
- Page 1 Contents: Recommended Tools What’s in the box? Mounting Prep Assembly Anchor Straps Assembly Instructions Assembly Instructions...
-
Page 2: Recommended Tools
1/2” and 5/8” Sockets PLEASE NOTE: AccuFitness, LLC and Anazao Fitness Gear, Inc. recommends that a qualified person install your XFR Workout Station to assure proper and safe connection to studs or other type of wall structure (can be connected to concrete walls as well using concrete anchors). - Page 3 XFR Apprentice Workout Station Assembly Instructions What’s in the box? (1) Metal Bar (split into two sections) (1) Large Rubber O-ring for metal bar (3) 31” Support Boards (4) Anchor Straps (8) Wooden Dowels (8) Small Rubber O-rings ...
- Page 4 XFR Apprentice Workout Station Assembly Instructions Prep for mounting on wall PLEASE NOTE: The support boards are 31” wide in order to accommodate studs that are 16” or 24” from center, or for unusual spacing. Use the 5/8” x 4” lag screws (included) to mount these boards Step 1 Use a stud finder to locate the studs in your wall where you want to mount your station.
- Page 5 XFR Apprentice Workout Station Assembly Instructions Step 1 Assemble metal bar by sliding the top portion over the bottom portion and lining up the holes. Make sure the fit is tight. Steps 2 and 3 Set the support boards along side of the holes in the metal bar.
- Page 6 XFR Apprentice Workout Station Assembly Instructions Step 4 Place lag bolts in the holes and screw. Tighten snugly but not fully. NOTE: Lag bolts already have proper lock washers and washers on them. Steps 4, 5 and 6 Put a few drops of wood glue in the dowel holes and insert wooden dowels.
- Page 7 XFR Apprentice Workout Station Assembly Instructions Step 7 Place the assembled XFR Workout Station against the wall where it will be installed. Line up the pre-drilled holes in the studs with the pre-drilled holes in the support boards. Using the 5/8” x 4” Lag Screws and a socket wrench, bolt the station on to the wall.
- Page 8 XFR Apprentice Workout Station Assembly Instructions Install Anchor Straps Wrap the anchor strap around Insert hooks and neoprene loop the metal bar. through the larger nylon loop Pull tight To move an anchor strap up or down, loosen the strap,...
