i3BOARD
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i3board and is the answer not in the manual?

Questions and answers

Summary of Contents for i3 i3board

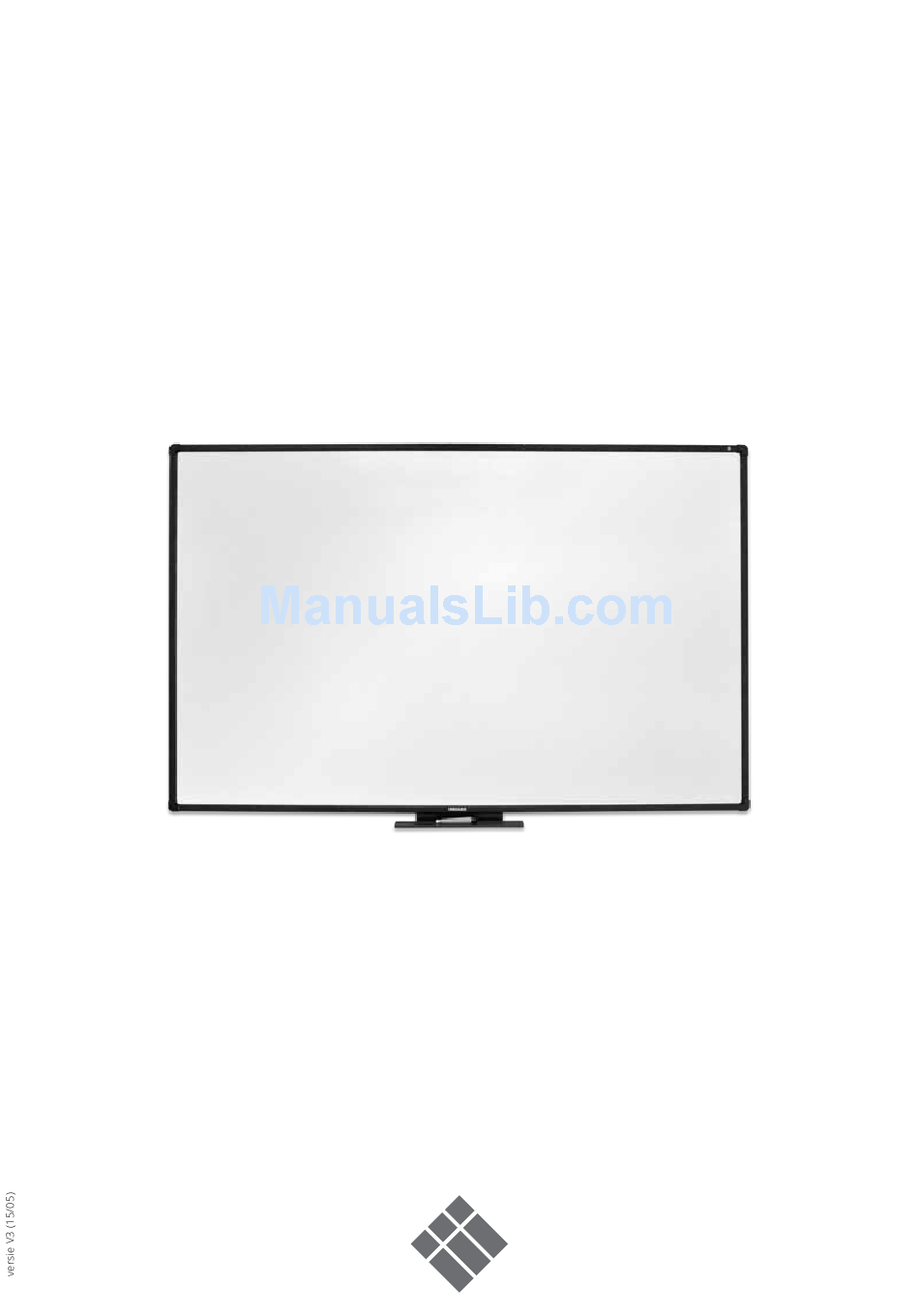

  • Page 1 MANUAL...

  • Page 2: Table Of Contents

    10. What to do if windows calibration does not start 11.Disabling “USB Selective suspend setting” 12. No touch after installing the driver 13. What to do if you can’t duplicate your screen Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com...

  • Page 3: I3Board Basic Questions & Answer P3

    How does i3BOARD works An i3BOARD is connected to a PC or laptop via a USB cable. This requires no additional power since power comes directly from the computer through the USB connection. When you turn on your computer the board automatically starts.

  • Page 4: Hardware Installation Manual

    III. Hardware installation manual 7309LT Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com...

  • Page 5: Wall Mount

    1. Wall Mount i3BOARD Manual...
  • Page 6 Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com...
  • Page 7 Manual...

  • Page 8: Mount On I3Hawm

    3. Make sure there are no objects all around the i3BOARD, on the left/right or top/bottom sides that could block the leds in the i3BOARD frame or cause light reflection.

  • Page 9: Installation Drawings

    The below drawing indicates the best installation of a i3BOARD 87inch & i3PROJECTOR 2402W. For the i3BOARD 77inch the projector distance (309mm & 654mm) is the same. The board has the same height but another width (4 :3). On the drawing the use of VGA is similar to HDMI. The use of RJ45 is optional.

  • Page 10: Mounting I3Board With Any Projector

    Draw a second line 1.1 centimeters lower than the line you have drawn. This line height is the height where the holes of the horizontal bracket needs to be drilled. For further information, please refer to the i3BOARD mounting instructions.

  • Page 11: Mounting Plan I3Board 100Inch

    Mounting plan i3BOARD 100inch i3BOARD Manual...

  • Page 12: Configuration & Driver Installation

    IV. Configuration & driver installation 1. Driver download Go to the i3-learning website www.i3-learning.com and download the latest drivers (products -> drivers -> i3BOARD drivers) 2. Connecting the board Connect the i3BOARD to the supplied USB cable Connect the other end of the cable to your computer IInstall the projector in order to calibrate the board later on.
  • Page 13 Run the installer and click 4 times “next” and finally “install”. If you can finish the installation, the drivers will ask for a reboot. Reboot your computer to finish the installation. If the installation was successful, skip step 4 i3BOARD Manual...

  • Page 14: What To Check When Drivers Can't Be Installed

    5. Power supply The i3BOARD needs around 5 volts to be recognized & work properly. The board is powered via the USB-cable and the USB- port of your computer. In very seldom situations (!) a i3BOARD will have touch but show strange behavior such as random “ghost touch points”...

  • Page 15: Usb-Cabling Of The I3Board

    6. USB-cabling of the i3BOARD Normally a computer and a i3BOARD will communicate without any troubles if only the delivered USB-cable is used. In some cases however other cabling is necessary because of insufficient power (see step 5) or because the PC is located away from the board.
  • Page 16 Choose “duplicate” to see the computer image on both PC display and projector, or “projector only” to see the computer image only on the projector. Make sure the image shown on both your computer screen as on the i3BOARD is full screen. Prevent black borders left/right or top/bottom. This means there is a difference in resolution.
  • Page 17 Choose resolution 1280*800 (applicable for i3 PROJECTOR & the 87” i3BOARD). This is a 16:10 resolution and the WXGA native aspect ratio of your i3 PROJECTOR. If 1280:800 is not available, choose a resolution as close to 1280:800 as possible.

  • Page 18: Calibrating The I3Board

    Calibrate your board. The best method to calibrate is using the V-sense drivers. Go to start -> all programs -> i3learning -> V-sense -> V-Sense Driver Configuration. If you have a windows 8.1 computer, search for the V-sense driver in the search field of the start screen Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com...
  • Page 19 Choose calibration and press on the 9 red circles with your finger (or the i3BOARD pen to increase accuracy) from the top left side to the bottom right side. This concludes the calibration. Check if your board is calibrated well. If so, the board is ready to be used. Before using the board, please check step 11.

  • Page 20: What To Do If Calibration Is Still Inaccurate

    “screen resolution” (see step 7) and choose “extend” instead of duplicate and apply. Now go to “control panel” -> “tablet PC settings” (windows 7 / windows 8) Choose “Setup” Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com...

  • Page 21: What To Do If Windows Calibration Does Not Start P21

    “duplicate” again to duplicate your computer screen on the board. Calibrate again with the V-sense drivers and test the result. If the i3BOARD is still not calibrated fully accurately, the problem might be related to your computer graphical card or its drivers that needs to be upgraded.
  • Page 22 With this step you identify the board as the touch screen to be used in windows. Finish with “escape”. Now choose “calibrate and press with your finger on the black crosses Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com...

  • Page 23: Disabling "Usb Selective Suspend Setting" P23

    11. Disabling “USB Selective suspend setting” Some customers experience that touch is lost after 15 minutes. This is because the i3BOARD is feeded by the power supplied from the USB-port of the computer and some computers have “USB selective suspend setting” enabled to save power. Go to Control Panel\All Control Panel Items\Power Options\Edit Plan Settings.

  • Page 24: No Touch After Installing The Driver

    Check if you have touch when opening the V-sense driver and selecting “mouse” mode in settings and then “apply”. If you have touch, you might need a driver update. Check if you downloaded the latest drivers on the website and if so, contact i3 support if you don’t have touch using “mouse”...
  • Page 25 If you don’t see 32 touch points, the driver is not running correctly. You might need a driver update. Check if you downloaded the latest drivers on the website and if so, contact i3 support. - The “turn on fast start-up function”...

  • Page 26: What To Do If You Can't Duplicate Your Screen

    It can happen the settings you change in “display -> screen resolution” only change the onboard graphics settings while the device connected to your HDMI-port is controlled by the graphics card and it is difficult to duplicate. When duplicating you see this instead of Learn more about i3BOARD and the rest of the i3 product line? Visit www.i3-learning.com...
  • Page 27 In that case you need to enter the control panel of your graphics card and choose duplicate or clone with laptop display. Below is an example of Nvidea: i3BOARD Manual...
  • Page 28 AUTHORISED DISTRIBUTOR WWW.I3-TECHNOLOGIES.COM INFO@I3-TECHNOLOGIES.COM...
