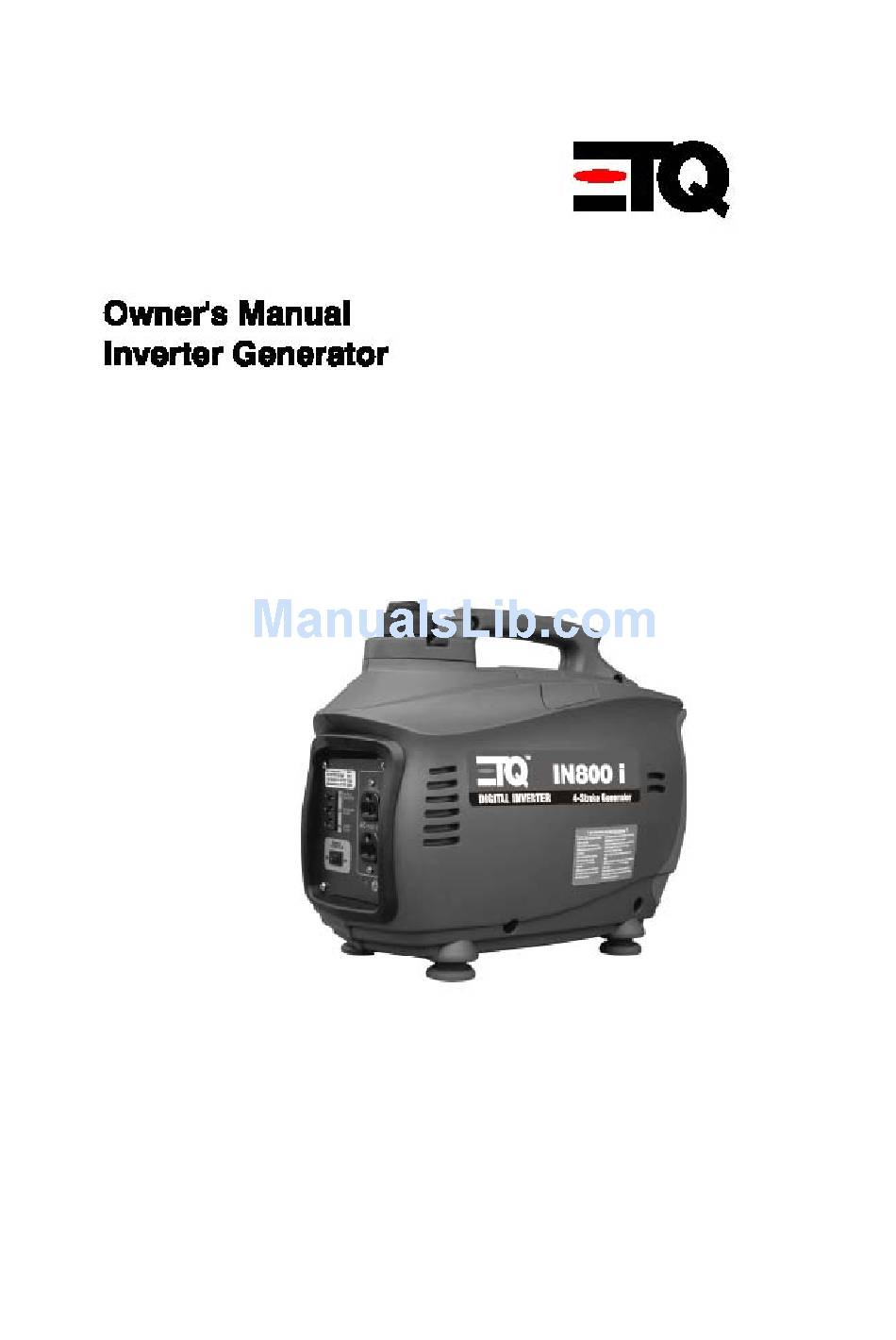

ETQ IN800 i Owner's Manual

Inverter

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the IN800 i and is the answer not in the manual?

Questions and answers

Summary of Contents for ETQ IN800 i

Page 2 THEMETHOD OF GASOLINE PRESSURE ADDING DEVICE: When the gasoline inside the tank is less than halfway, and also meets the following situations. Then there is a need to use the pressure adding device. 1). First time using the engine. 2). Restarting the Engine after during long periods of storage. 3).
Page 3 • Circuit protector • AC and DC outputs • Low oil level sensor The ETQ air-cooled gasoline generators are widely used when electrical power is scarce. Our generators provide a portable mobile solution in supplying power for field operations during project construction.
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS COMPONENT IDENTIFICATION PRE-OPERATION CHECK STARTING THE ENGINE GENERATOR USE STOPPING THE ENGINE MAINTENANCE TIPS AND INSTRUCTIONS TRANSPORTING/STORAGE TROUBLESHOOTING (FAQS) 10) SPECIFICATIONS 11) WARRANTY...
Page 5: Safety Precautions
1) SAFETY PRECAUTIONS Generator is designed to give safe and dependable service if operated according to instructions. Read the Owner’s Manual before operating the generator. Failure to do so could result in personal injury or equipment damage. Operate the generator ONLY outdoors, and at least 3 feet away from open doors or windows. Never run the generator indoors as the engine gives off poisonous carbon monoxide, an odorless and colorless gas.
Page 6 The muffler is very hot during operation, and remains hot for some time after the engine has stopped. Do not touch the muffler while it is hot. Allow the engine to cool down before moving the generator (Pay attention to the warnings that are attached to the generator).
Page 7: Component Identification
2) COMPONENT IDENTIFICATION FUEL CAP LEVER CHOKE LEVER FUEL CAP Picutre 4 CONTROL PANEL FUEL VALVE LEFT SIDE MAINTENANCE COVER STARTER GRIP ENGINE SWITCH SPARK PLUG MAINTENANCE COVER Picture 5 MUFFLER...
Page 8: Control Panel
CONTROL PANEL Picture 6 OUTPUT INDICATOR LIGHT OVERLOAD INDICATOR LIGHT OIL ALERT INDICATOR LIGHT GROUND AC RECEPTACLE...
Page 9: Pre-Operation Check
3) PRE-OPERATION CHECK Be sure to check the generator on a level surface when the engine does not work. 1) Check oil level. Open the left side maintenance cover by unscrewing the cover screw. Remove the oil filler cap, and wipe the dipstick with a clean rag. Check the oil level by inserting the dipstick in the hole without screwing it in.
Page 10 Fuel Tank Capacity: 1.8L UPPER LIMIT MARK FUEL CAP Picture 7 3) CHECKING THE AIR FILTER Check the air filter in order to verify that it is clean and in good condition. Loosen the cover screw OPEN and remove the left side maintenance cover. Press the latch tab on the top of the air filter body, remove the air filter cover, and check the air filter.
Page 11 Picture 10 AIR CLEANER CASE AIR CLEANER ELEMENTS...
Page 12: Starting The Engine
4) STARTING THE ENGINE NOTE: Verify that no appliance(s) are plugged into the generator before starting the engine. 1) Turn the fuel cap lever to the ON position (fully clockwise). NOTE: Turn the fuel cap lever to the OFF position when transporting the generator. 2) Turn the engine switch/fuel valve to the ON position.
Page 13 shooting other areas. CLOSED Move choke lever to the left to open.
Page 14: Generator Use
5) GENERATOR USE To prevent electrical shock from faulty appliances, the generator should be grounded. Connect with a heavy wire between the generator ground terminal and on external ground source. Connections from standby power to a building’s electrical system must be made by a qualified electrician and must comply with all applicable laws and electrical codes.
Page 15 Correct the problem and restart the engine. NOTE: When an electric motor is started, the overload indicator LED (red) might turn on. If it does not turn off after 4 seconds, consult your ETQ dealer.
Page 16 Oil Alert System The Oil Alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase falls below a safe limit, the oil alert system will automatically shut down the engine.
Page 17: Stopping The Engine
6) STOPPING THE ENGINE To stop the engine in an emergency, turn the engine switch to the STOP position. IN NORMAL CONDITION: 1. Switch off all connected appliances and disconnect them from the generator receptacles. Picture 15 PLUG 2. Turn the engine/fuel valve switch to the OFF position. It should be located on the side of the generator under the recoil starter.
Page 18 3. Turn the fuel cap lever counter clockwise to the “OFF” position. FUEL CAP LEVER CAUTION: Be sure the fuel cap lever and the engine switch are on the “OFF” position when stopping, transporting and/or storing the generator.
Page 19: Maintenance Tips And Instructions
7) MAINTENANCE TIPS & INSTRUCTIONS The purpose of the maintenance schedule is to keep the generator in optimal operating condition. Inspect and service the generator as scheduled in the following table. Turn the engine off before performing any maintenance. If the engine must be running, verify that the area is well ventilated.
Page 20 1. CHANGING OIL Drain the oil while the engine is still warm (helps drain the oil faster). CAUTION: Make sure to turn the engine switch and the fuel cap lever to the OFF position before draining. Loosen the cover screw and remove the left side maintenance cover. ●...
Page 21 extremely dusty areas. Do not use gasoline or low flash point solvents for cleaning. They are flammable and explosive under certain conditions. COVER SCREW LEFT SIDE MAINTENANCE COVER...
Page 22 COVER SCREW AIR CLEANER CASE AIR CLEANER ELEMENTS SPONGE ELEMENT CAUTION: Never run the generator without an air cleaner installed. Rapid engine wear may occur • Remove the cover screw and the left side maintenance cover. • Press the latch tab on the top of the air filter body, and remove the air filter cover. •...
Page 23 3. SPARK PLUG SERVICE RECOMMENDED SPARK PLUG TYPE: NGK CR5HSB To ensure proper engine operation, the spark must be properly gapped and free of deposits. Remove the spark plug maintenance cover. Picture 18 SPARK PLUG MAINTENANCE Remove the spark plug cap. COVER Clean any dirt around the spark plug base.
Page 24 8) TRANSPORTATION/STORAGE Transportation: If the generator has been running, let it cool for at least 15 minutes before loading it into a vehicle. A hot generator can seriously burn you or can ignite flammable materials. To prevent fuel leakage, the engine should be upright (normal operating position) nicely secured.
Page 25: Transporting/Storage
Cold weather starting tips: Most gas-powered generators are more difficult to start during cold temperatures. This generator has been tested for cold weather starting, but it will still be more difficult to start the engine in below-freezing temperatures. Ease of starting improves if the generator has been stored under normal temperate conditions, such as in a garage or a basement.
Page 26: Troubleshooting (Faqs)
9) TROUBLESHOOTING (FAQ) CAUTION: The motor will automatically shut off if the engine oil level is too low. If the generator will not start, check the oil level first. Condition Cause Corrective Action The spark plug is loose. Tighten the spark plug securely. Insufficient Tighten the cylinder head bolt The cylinder head bolt is loose.
Page 27: Specifications
10) SPECIFICATIONS Engine Engine Type 4-stroke, overhead valve, single cylinder Displacement 38 cc Bore x Stroke φ40.0×30 mm Compression Ratio 10:1 Engine Speed 4200～5,500 rpm Cooling System Forced Air Ignition System Full Transistor Oil Capacity 0.16 Liter (5.4 fl oz) Fuel Tank Capacity 1.8 Liter (0.48 gallon) Spark Plug...
Page 28: Warranty
11) LIMITED WARRANTY Eastern Tools & Equipment, Inc. will repair or replace, free of charge, any part or parts of the generator that are defective in material or workmanship or both. Transportation charges on parts submitted for repair or replacement under this Warranty must be borne by purchaser.
Page 29 Normal wear: Engines and generators, like all mechanical devices, need periodic parts service and replacement to perform well. Warranty will not cover repair when normal use has exhausted the life of a part of an engine. Improper maintenance: The life of an engine or your equipment depends upon the conditions under which it operates, and the care it receives. Some applications, such as tillers, pumps, and rotary movers, are very often used in dusty or dirty conditions, which can cause what appears to be premature, wear.
Page 30 CALIFORNIA & USEPA EMISSION (OR EVAPORATIVE) CONTROL WARRANTY The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB) and Eastern Tools & Equipment, Inc. are pleased to explain the Federal and California Emission Control System Warranty on your small non-road engine. In California, new small nonroad engines must be designed, built and equipped to meet the State’s stringent and anti-smog standards.
Page 31 IMPORTANT NOTE: This warranty statement explains your rights and obligations under Emission Control system Warranty (ECS Warranty), which is provided to our by Eastern Tools & Equipment, Inc. pursuant to California law, Eastern Tools & Equipment, Inc. also provides to original purchasers of new Eastern Tools &...
Page 32 PRODUCT REGISTRATION For more efficient customer service, please fill out the information below and mail to Eastern Tools & Equipment, Inc. Product Warranty and Registration Division. Model No.___________________ Engine Serial No._______________ Purchase Date _____/_____/_____ Purchased from: [ ] Retail Location [ ] Private Consumer [ ] Other_______________________________________________ Name__________________________________________________________________________________________...
