Dive computer

Owner's manual
WARNING!!
Read this manual in its entirety, before using your AQUALAB.
Failure to follow the instructions it gives, or to heed the warnings it provides, can lead to
serious personal injury or death.
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUALAB and is the answer not in the manual?

Questions and answers

Related Manuals for Seac Sub AQUALAB

Summary of Contents for Seac Sub AQUALAB

  • Page 1: Dive Computer

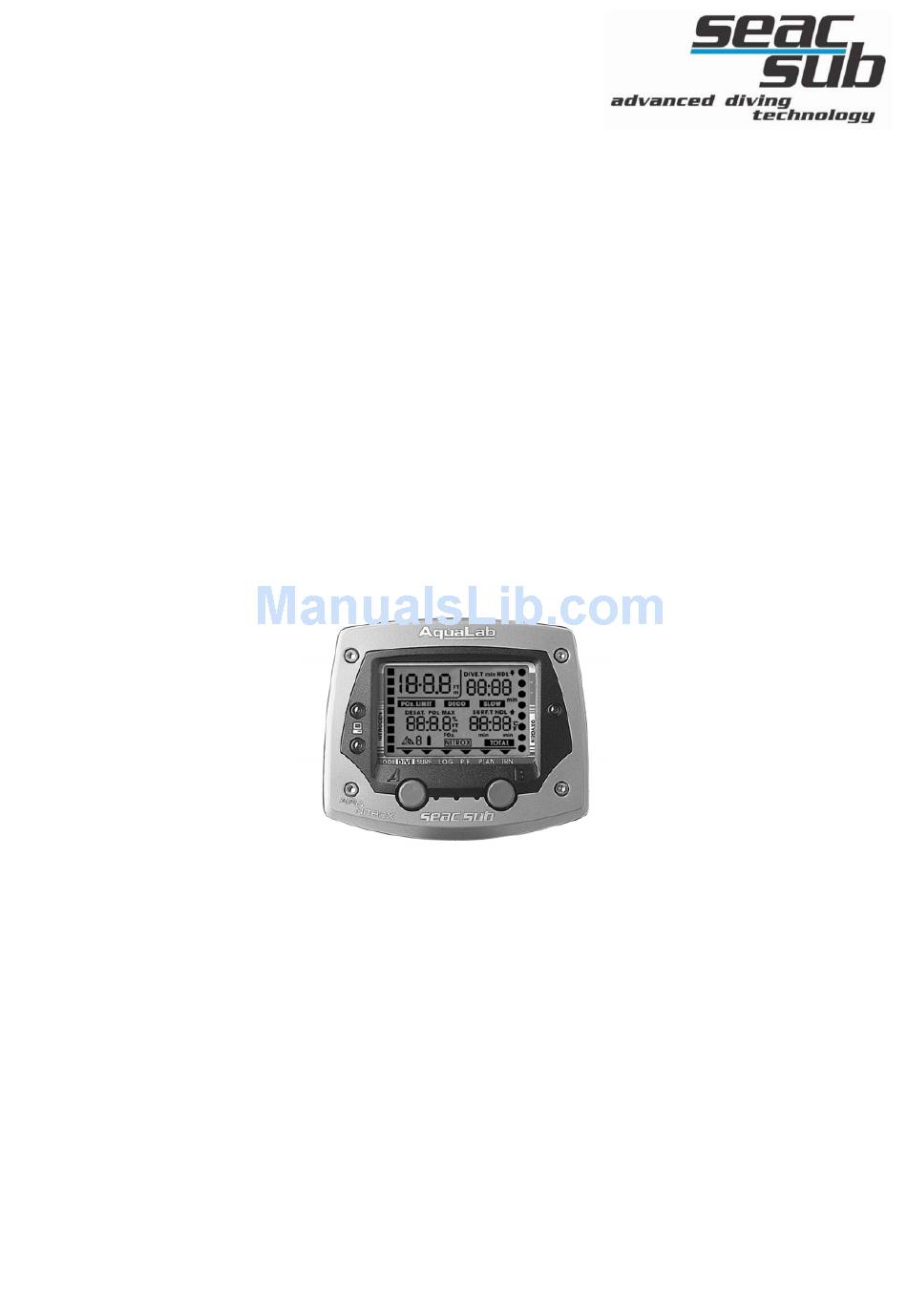

    Dive computer Owner’s manual WARNING!! Read this manual in its entirety, before using your AQUALAB. Failure to follow the instructions it gives, or to heed the warnings it provides, can lead to serious personal injury or death.
  • Page 2 The AQUALAB dive computer can be used for NITROX diving in which the tank's gas mixture can be adjusted. However, persons who lack expertise or training in NITROX diving should avoid using NITROX.
  • Page 3 Modalità di immersione Dive Mode pag. 29 Modalità di regolazione “data e ora” Time setting Mode pag. 30 Specifiche del computer Aqualab Aqualab Features pag. 31 Modalità di cambio dell’unità di misura Units of measurement setting Mode pag. 32 Avvertenze relative all’uso del computer Caution Points for users pag.
  • Page 4 Aqualab Limited Warranty • Seac Diving Pro – at its sole discretion - repair or replace AQUALAB system components proved to be damaged by faulty manufacture or material, at no cost, for a period of up to two years ( 730 days) from the date of purchase.
  • Page 5 Aqualab Dive computer Buttons, Switches, display • Button Left side • Button Right side Switch C Right side - Water detection switch “ dive mode”. Above Switch* Left side - Water detection switch “ dive mode”. Below Switch Left side - P.C. Connector...
  • Page 6 - - - - - - 48 meters minutes - - - - - - The symbol “---“ indicates that the limits set in the AQUALAB concerning the oxygen toxicity risks have been exceeded. No datum is therefore displayed for safety reasons.

  • Page 7: Surface Mode

    Surface Mode NORMAL DISPLAY DISPLAY ON SURFACE AFTER DIVE Operation of switches (Beginning from Surface Mode) Switch A • Press this switch to set dive plan mode. Switch B • Press this switch to set dive log mode. Switch C (Water detection switch) •...
  • Page 8 Description of functions The following functions are available during normal mode and surface mode. • Date This shows the current date. • Current time This shows the current time (colon blinks). • Altitude rank The computer automatically measures the current altitude and uses the rank symbols described below to indicate the altitude range.
  • Page 9 • Battery indicator The battery symbol indicates the battery's current voltage level. When symbol blinks, the AQUALAB will not enter dive mode, but can enter transfer mode. When battery symbol stays ON, the dive computer cannot enter dive mode or transfer mode.
  • Page 10 In such cases, the AQUALAB is disabled from entering dive mode for safety's sake. It can be reset to dive mode after the residual nitrogen level has returned to eight or fewer level indicators.

  • Page 11: Dive Plan Mode

    • Switch A Use this switch to set the depth rank. The number scrolls from shallower to deeper. If you press this switch when the display shows 157 feet (48 meters), the AQUALAB display returns to surface mode. You can also return to surface mode by pressing and holding this switch for at least two seconds.
  • Page 12 Description of functions The functions of the dive plan mode are further described below. • Depth rank and no decompression limit This mode displays a depth rank corresponding to the planned dive depth. The depth rank is indicated by the 14 rank level indicators shown below. This makes it possible to check the no decompression limit for the first dive or for a series of dives.
  • Page 13 • This indicates the current setting for the oxygen mix ratio (the percentage of oxygen in the nitrox mix). These settings are displayed as shown below. Setting Display 22% to 50% Percentage is displayed Default “ - - “ Note: The default settings are 99% oxygen and 79% nitrogen.
  • Page 14 When water is detected, the computer switch to dive mode automatically. Auto return • The AQUALAB dive computer automatically switches to surface mode if no switches are pressed for about 1 or 2 minutes. Description of functions The functions of the oxygen mix ratio setting mode are further described below.

  • Page 15: Dive Log Mode

    Dive Log Mode display 1 display 2 Display 1 • Dive date: Date of dive • Entry time: Time at start of dive • Exit time: Time at end of dive • Maximum depth: Bottom depth measurement during current dive Display 2 •...
  • Page 16 Operation of switches (beginning from “Dive Log Mode”) • Switch A Press this switch to toggle between Display 1 and Display 2. If you press and hold this switch for about four or five seconds, log data from the current log is called up and the mode switches to profile mode.
  • Page 17 Decompression stop violation warning Ascent rate warning Maximum depth warning...
  • Page 18 Oxygen toxicity exposure level warning Out of measurement range warning...

  • Page 19: Profile Mode

    • Switch C (Water detection switch) When water is detected, the computer switch to dive mode automatically. • Auto return The AQUALAB automatically switches to dive log mode if no switches are pressed for about 5 or 6 minutes.
  • Page 20 Description of functions This function calls up the dive profile and displays the current profile data. Profile data is recorded at 1 minute intervals and the profile data capacity is about 30 hours. CAUTION !! The following restrictions apply to log data and profile data. Address ------------------------------------------------->...
  • Page 21 Description of functions Use this mode to transfer log data and profile data from the AQUALAB dive computer to a personal computer P.C. • After switching to transfer mode, attach the separately sold transfer tool and run the PC's transfer software to transfer data from the AQUALAB dive computer to a PC.

  • Page 22: Dive Mode

    Dive Mode No decompression mode Decompression mode While switch A is pressed...
  • Page 23 Switch C (Water detection switch) • When depth is less than 5 feet (1.5 meters) and when water is not detected, the AQUALAB dive computer switch to surface mode automatically. Description of functions This mode shows various data during a dive.

  • Page 24: No Decompression Dive Mode

    • No decompression dive mode The following data applies to dives that do not exceed the no decompression limit. • Maximum depth: This shows the maximum depth measurement since the start of the dive. • No decompression limit: This shows the maximum amount of time allowable at the current depth with no decompression, calculated based on dive data so far.
  • Page 25 When switch A is pressed • Current time: The current time is displayed. • Current water temperature: The current water temperature is displayed. The temperature measurement is retaken at 1 minute intervals. • Partial pressure of oxygen (PO The partial pressure is displayed at the current depth. This value is calculated based on the oxygen mix ratio setting and the current depth.
  • Page 26 • Ascent rate warning This display appears and an alarm is sounded if the maximum safe ascent rate for the current depth is exceeded. The alarm display continues until a safe ascent rate is achieved or until the depth becomes less than 5 feet (1.5 meters). The alarm sounds for three seconds while the warning display (SLOW) and the depth rank blink for five seconds.
  • Page 27 • Partial pressure warning: The maximum depth is calculated based on the oxygen mix ratio setting. (For details, see the appendix). When a certain portion of the maximum depth value has been exceeded, the warning LIMIT) is displayed and an alarm is sounded. This warning is recorded in the dive log.
  • Page 28 Residual oxygen level warning CAUTION !! During a NITROX dive, the effects of oxygen on the body varies according to the maximum dive depth based on the oxygen mix ratio setting and the amount of dive time spent within the maximum depth range.
  • Page 29 When a measurement range has been exceeded, the corresponding display shows a blinking dash (- - -) and the warning is recorded in the dive log mode. After surfacing, the AQUALAB dive computer cannot be used for 48 hours, after which it returns to surface mode.
  • Page 30 • Switch C (Water detection switch) When water is detected, the computer switches to dive mode automatically. • Auto return The AQUALAB dive computer automatically switches to surface mode if no switches are pressed for about five or six minutes. Description of functions This mode includes functions for changing the current time, date, or year settings.
  • Page 31 Aqualab specifications Clock precision Accurate to within+/- 30 seconds per average month Water depth precision +/- 3% Temperature precision +/- 4° F (2° C) Water depth measurement Range is 0 to 328 feet ( 0 to 99,9 meters) Dive depth control...
  • Page 32 Change mode of measurement units This product's switches can be used to change the following units of measurement for depth and water temperature. Change water depth unit from meters to feet • The display range is 0 to 328 feet. Change temperature units from Centigrade to Fahrenheit.
  • Page 33 Note with caution that weather-related changes in air pressure can cause incorrect altitude rank displays. Do not use the AQUALAB dive computer for pressure chamber tests using air or gas as such conditions may impair sensor accuracy. This product is not to be disassembled by users. Such disassembly voids the warranty.
  • Page 34 Diving-related cautions Be sure to check the battery indicator before diving. Some of the AQUALAB dive computer's functions may stop during a dive if the battery is low level. The computer cannot be switched to dive mode if the battery indicator blinking.

  • Page 35: Troubleshooting

    • If more than five minutes have elapsed at the surface, the AQUALAB dive computer will be unusable for 48 hours, after which it is automatically reset • This is caused by an out of measurement range warning.
  • Page 36 Send the dive computer to the Seac Diving Pro s.r.l mode. for repair. • This occurs when the water detection switch area is The AQUALAB dive computer does still wet. not return to surface mode after a Use a soft dry cloth to dry off the computer dive.
  • Page 37 • The 7 years battery life was estimated based on 50 one-hour dives per year, with one ten-seconds The battery life was less than 7 alarm output per dive. years. More frequent use of the computer or its alarms will shorten the battery life.
