Sky

Ranger

GIANT RC QUADCOPTER SHOOTS BIG-TIME 720P HD VIDEOS

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the XTREEM and is the answer not in the manual?

Questions and answers

Summary of Contents for Skyranger XTREEM

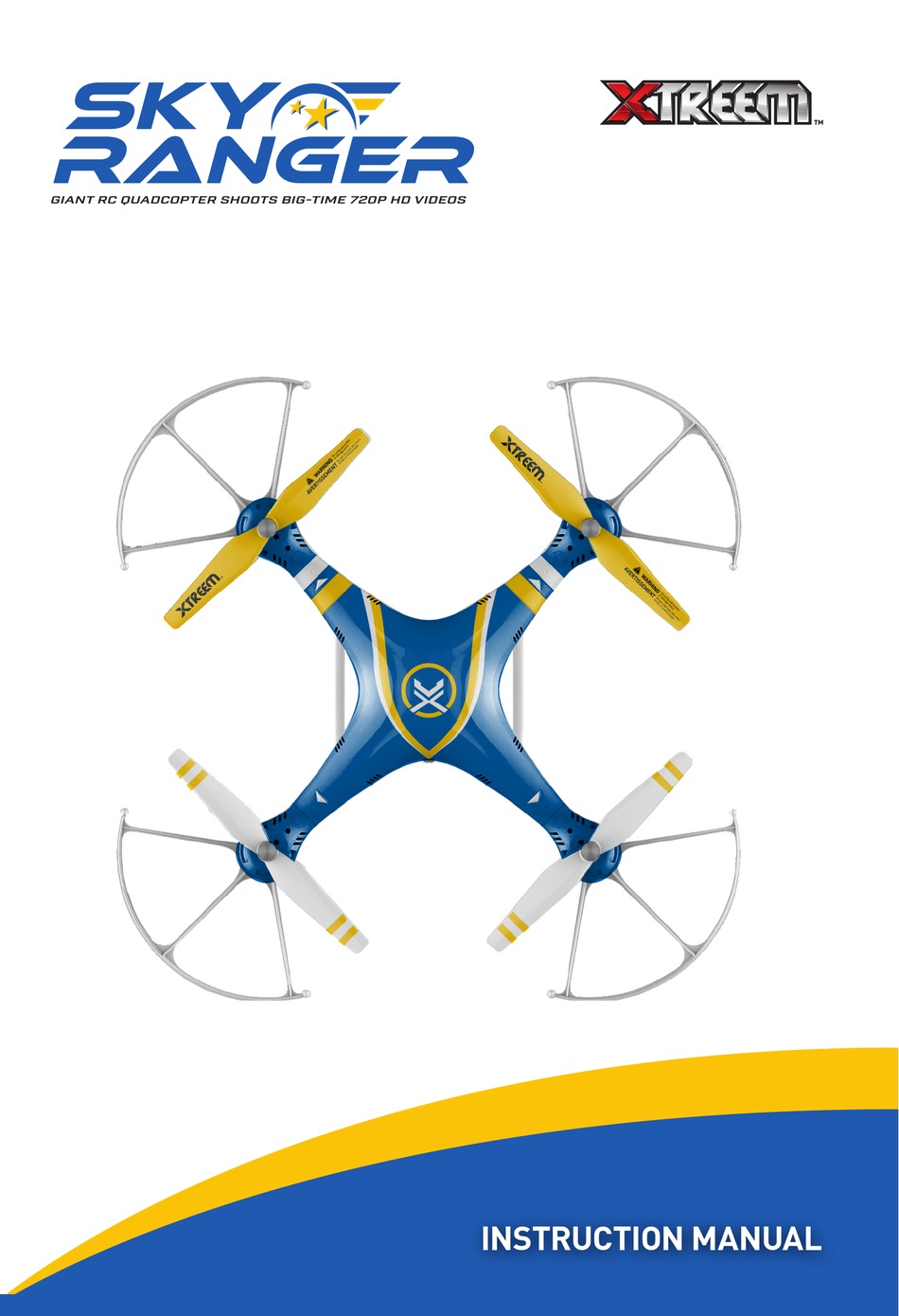

Page 1 Ranger GIANT RC QUADCOPTER SHOOTS BIG-TIME 720P HD VIDEOS INSTRUCTION MANUAL...
Page 2: Safety Precautions
SAFETY PRECAUTIONS NOTICE: Before using the Drone, read this instruction manual carefully, and obey all warnings and caution labels - seriously, it’s no fun if someone gets hurt. CHOKING HAZARD - Small parts, keep out of reach of small children. WARNING - Do NOT fly near eyes or face.
Page 3 SAFETY PRECAUTIONS LiPo battery information The Drone is equipped with a Lithium Polymer battery. These kind of batteries are light and powerful, as their chemistry is based on lithium, a light and extremely volatile metal. • Never completely exhaust the battery. When the Drone starts to lose power, turn it off and charge it as soon as practicable.
Page 4 YOUR CONTROLLER Note: Images shown in this instruction manual are for illustrative purposes only. Antenna Power LED Headless Flight / Flip Speed Control Left stick Right stick (Mode 1) Rotation trim (Mode 1) Sideway trim (Mode 2) Rotation trim (Mode 2) Sideway trim or Flight Mode Forward /Backward trim...
Page 5 PREPARE FOR FLIGHT Installing batteries in your controller battery cover 4 x “AA” alkaline batteries Charging the Drone LiPo battery The battery charger included with your Drone is designed to safely charge the LiPo battery which is partially charged at shipment. For longest flying time and best performance, fully charge the battery before the first use.
Page 6: Installing The Drone Battery
PREPARE FOR FLIGHT Installing the Drone battery Flip the Drone upside down and fully open the battery compartment cover. Take out the power connector located inside the battery compartment and connect it to the battery power cable. Put the battery into the compartment, making sure cables are not protruding, and then close the battery compartment cover.
Page 7: Installing The Camera
PREPARE FOR FLIGHT Fitting the landing gear The set of landing gear provides a stable platform for your Drone, enabling safer landing and added protection for the mounted camera. Installing the smartphone holder The smartphone holder featuring a spring-loaded clip to secure your device, conveniently slides in and out of the antenna on the controller.
Page 8: Pairing The Controller
PREPARE FOR FLIGHT Plug the camera power cable into the camera socket located next to the ON/OFF switch on the Drone. The camera's power is supplied by the Drone battery. The camera powers up when you turn on the Drone. Pairing the controller Flat, level surface Taking off...
Page 9: Basic Flight Controls
BASIC FLIGHT CONTROLS Two flight mode settings are available on the controller – mode one and mode two. To change between modes, first turn off the controller, push and hold the Flight Mode button to the right and then turn on the controller. Check the LCD screen to confirm the current flight mode.
Page 10: Connecting To The Camera
“FPV WIFI ****”. No password is needed to connect to the camera’s Wi-Fi network. Open the Xtreem FPV app and tap the Start button. The app shows the live view feed from the camera. Now secure your smartphone to the mobile device holder on the controller.
Page 11 FEATURES Headless Flight mode Sometimes it is easy to lose sight of your Drone’s orientation when you have flown it too far away, especially during night flying. With Headless Flight mode, there is now a quick way to bring it back closer to your position! In Headless Flight mode, the Drone flies in the direction you move the right stick of the controller relative to its defined reference heading, regardless of its orientation.
Page 12: Speed Control
FEATURES Hover mode Hover mode is a great way for beginners to learn how to fly! This feature maintains the Drone at a consistent altitude while allowing you to rotate and control directional movements normally. To activate Hover mode, bring the Drone up to the altitude you want, then release the Left (throttle) stick.
Page 13: Flying Tips
FLYING TIPS IMPORTANT Do not fly in restricted or no-fly zones. Check your local laws and regulations for information regarding the use of unmanned aerial vehicles. • Check that propellers and landing gears are firmly secured in their slots before each takeoff.
Page 14 HELP Question The Drone is not responding to stick movements. The Drone status lights are blinking. Answer It is time to recharge the battery. Question Propellers are spinning, but the Drone cannot lift off the ground. Answer Check propellers for any sign of damage. Bent or broken propellers should be replaced promptly with the spare propellers included in your package.
Page 15 REPLACING A DAMAGED PROPELLER...
Page 16 Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Xtreem. The end user is responsible for all freight charges incurred to send the product to Xtreem’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
