- Page 1 USER’S MANUAL Scouting Trail Camera...
-
Page 2: Table Of Contents
Contents 1. Whole View and Details of Camera ..............- 1 - Figure 1: Front View of Camera ................- 1 - Camera Screen Display (Test Mode Main Interface) ...........- 2 - 2. Camera Menu List Introduction ..............- 3 - 3. Quick Start ....................- 4 - Power On Camera ....................- 4 - Manual Photographing/ Video Recording ............- 4 - Enter Menu for Setup Functions .................- 4 -... -
Page 3: Whole View And Details Of Camera

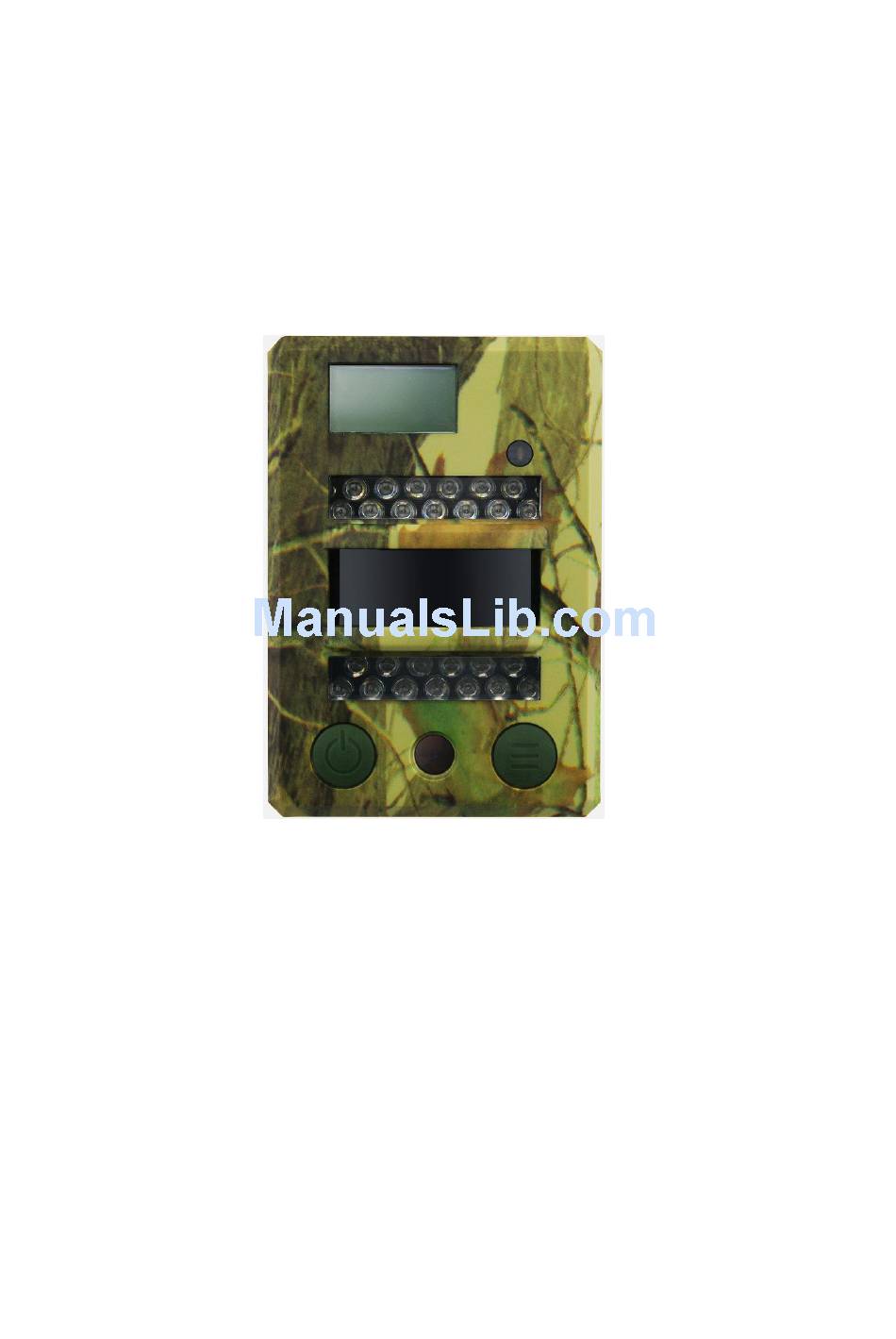

1. Whole View and Details of Camera Figure 1: Front View of Camera Light Sensor LCD Screen day/night Indicator Light 13 IR LEDs 13 IR LEDs PIR Sensor Lens Power/Navigation Button Menu/OK Button USB Port/ DC in SIM Card Slot Invalid Currently MicroSD Card Slot Screw Slot... -
Page 4: Camera Screen Display (Test Mode Main Interface)
Camera Screen Display (Test Mode Main Interface) Photo Mode Interface Photographing hour/min/sec Photo Resolution Multi Shot Number 0001: recorded file number of photos & video clips 9998: estimated available file number based on left memory space in memory card Video Recording Video Mode Interface Video FPS Video Resolution... -
Page 5: Camera Menu List Introduction
2. Camera Menu List Introduction 1) First Navigation Menu Camera ID Back to Photo Video Photo+Video Settings Delete Previous Page 2) Second Navigation Menu: Settings ： Photo Video Timer Time Lapse Delay Stamp SD Cycle Camera Sound Back to PIR Sensitivity GPRS Reset ON/OFF... -
Page 6: Quick Start
3. Quick Start 1. Open back cover to insert MicroSD Card and batteries; Power On Camera 2. Press and hold Power/Navigation button for 3 sec; camera will enter PIR Auto Working mode after indicator flashes 5 times; 3. Press Menu/OK button once to wake up camera LCD screen to enter TEST Mode;... -
Page 7: Camera Operation Flow Chart
Camera Operation Flow Chart Press and hold Power / Navigation button PIR Auto 3 sec; camera will enter PIR Auto Working mode Working Mode after indicator flashes 5 times; ON/OFF Camera In PIR Auto Working Mode, press Menu / OK (PIR Auto, TEST, OFF) TEST Mode button... -
Page 8: Detail Setups
4. Detail Setups Camera Modes (Default Settings) Camera ID Photo Video VGA (640*480) Photo+Video Settings Delete Back to Previous Page If wanted setting icon is not showing on camera LCD screen, press repeatedly until it appears. a. Set up Press to enter configuration page, press to set the next digit/ alphabet;... -
Page 9: Camera Settings (Default Settings)
b. Start Recoding Press and hold button 3 seconds to return back to TEST Mode main interface; then press to take a video clip. a. Set up Press to enter Photo + Video mode; icon OK appears at right bottom of interface Photo + Video b. - Page 10 PIR Sensitivity High Time/Date GPRS Switch Camera Password Reset If wanted setting icon is not showing on camera LCD screen, press repeatedly until it appears. a. Set up 1） Press to enter configuration page, press choose ON; press again to set timer; 2）...
- Page 11 Stamp ON/OFF; press to confirm setting. b. How does this work? Left battery volume, Moon phase, Temperature, Date/Time, and pre-set Camera ID will be displayed on every photo. a. Set up Press to enter configuration page, press to choose ON/OFF; press to confirm setting.
-
Page 12: Photo Settings (Default Settings)
Camera Password choose ON; press again to set Password; 2) Press to choose wanted password combination, press to confirm wanted digit/ alphabet and move to next number; 3) Press again to confirm. b. How does this work? Enable password protection for your camera; support totally 6 digits/ alphabets long password access. -
Page 13: Software Upgrade
Frequency 50Hz Audio Recording Set up Press to enter configuration page, press to choose desired Video Size Video Size (720P/VGA/CIF: 1280x720/640x480/320x240) Set up Press to enter configuration page, press to choose desired Video Length per Burst/ Trigger; press to confirm Video Length setting. -
Page 14: Usb Connection
9. Plug out batteries/or power cable; 10. Insert batteries/ or power cable; turn on camera. Done. Note: Don’t cut off power supply somehow; otherwise, camera will not be able to be turned on again unless software upgrade via PC. USB Connection When camera is connected via USB, press and hold button , camera speaker emits one Beep Sound, and red indicator LED lights up;... -
Page 15: Microsd Card Selection & Battery Life Test Report
5. MicroSD Card Selection & Battery Life Test Report MicroSD Card Selection A memory card is required to operate the camera. When the camera is "ON" and no memory card is inserted, screen displays "No SD Card". MicroSD Card slot of camera supports up 32 GB memory card. -
Page 16: Specification
6. Specification Model 2.8C Recording Video Format .avi Video Compression MPEG4 720P (1280*720) Video Resolution D1 (640*480) CIF (320x240) Video Frame Rate 15 / 30 FPS; programmable Video Length 5-60sec. programmable Still Image Format JPEG 2MP (1920x1080) Still Image Resolution... - Page 17 SD Card, up to 32G Memory Type and Size Display 1.0 inch B/W Screen Playback Zoom In Language English Sensor Type PIR (Passive Infrared) Sensor Range 12~15m; 50 feet Sensor Trigger Speed 0.8-1 sec Power Consumption 150mA(350mA--IR LEDs on) Low Battery Alert Stand-by Time 4 months (4AAbatteries) Operating Temperature...
-
Page 18: Warranty
7. Warranty With great pride and full confidence in our products, we always keep our words which are given to our customers as specified warranty terms and service below. Based on a strict QC system, we initially offer all our customers one year long time limited warranty, come along with selectable chargeable...
