Summary of Contents for ENERGY SISTEM ENERGY T4250

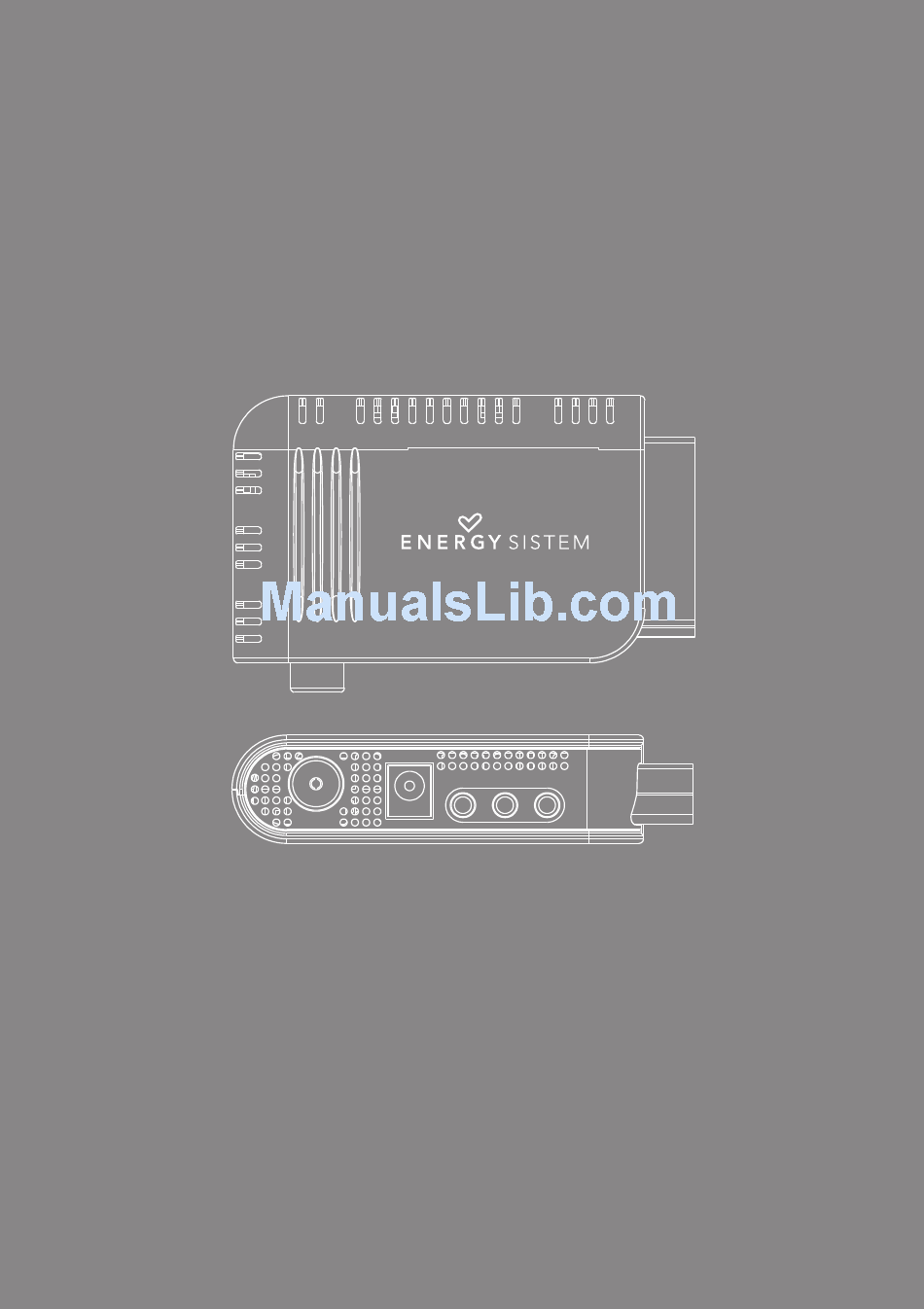

- Page 1 User manual...
-
Page 3: Table Of Contents
Contents 1. Safety instructions ..................... 4 2. Connections ......................5 3. Remote control ....................6 4. Main menu ......................11 4.1. Channels ....................12 4.1.1. TV Channel List 4.1.2. Radio channel list 4.1.3. Delete all favorites 4.1.4. Delete all 4.1.5. Group rename 4.2. -
Page 4: Safety Instructions
Safety inStructionS To avoid electric-shock hazards, do Keep the receiver away from liquids and not open the cabinet, refer servicing to liquid containers such as vases in order qualified personnel only. to avoid damaging the equipment. Do not expose the receiver to direct Do not block ventilation holes of the sunlight. -
Page 5: Connections
connectionS Antenna Power supply Stereo audio equipment Infrared receiver... -
Page 6: Remote Control
remote control... - Page 7 Standby on/off: Enters/exits standby mode. Mute: Press to disable/enable audio output. When the audio is disabled the following icon appears on screen: 0-9: While in TV/radio standard mode use the numeric keys to input the number of the desired channel. If the number does not correspond to a valid channel a “No channel!”...
- Page 8 Press [3] to view program details and [1] to switch between short and extended descriptions. MENU: Shows the main menu or steps back one menu if you are already browsing menus. PR+ PR-: When in standard mode use it to change to the previous or next channel. While using menus or lists use to select the next or previous item.
- Page 9 INFO: Shows information about the current program. Press it once to see first information screen which includes channel, time, current and next program and audio , subtitle and teletext availability data. Press[INFO] again to display technical information and reception quality/intensity of the current channel.
- Page 10 PAUSE: Pause/resume the image (sound does not pause). When the program is paused the following icon appears on screen: MSM: Multi Screen Mosaic. Shows nine channels on screen and allows you to browse them. FAV: Favourites. Shows the groups that contain your favourite channels. If you select one you will be limited to the channels contained in that group when pressing [PR+] or [PR-].
-
Page 11: Main Menu
main menu Enter [Main Menu] by pressing ‘MENU’. The contents of the [Main Menu] and the next level of menus are shown in the following diagram. -
Page 12: Channels
4.1. channelS 4.1.1. tV channel list Switch between Favorite Groups. Note that The currently selected channel is only “Edit” and “Find” are available when a shown in the preview frame. Favorite Channel group is selected. When you press ‘4’ The “Edit” function is explained to move a channel an in the next page You can sort the channels by:... - Page 13 Edit Skipped Locked Favorite Locks the selected channels after confirmation Skips the selected channels when using CH+/CH- after confirmation Use OK to select/deselect a channel Use 0 to select all channels Deletes the selected channels after confirmation Include the selected channels in a favorite group Type a new name for the selected channel...
-
Page 14: Radio Channel List
4.1.2. radio channel list The operation of this list is the same than [TV Channel List]. 4.1.3. Delete all favorites This erases the ‘Favorite’ attribute of the channels. Note that it will not erase the chan- nel database or your customized Group names. 4.1.4. -
Page 15: Installation
nels, Sally’s, Jude’s, etc) or to sort them by content (e.g. News, Movies, Sports, ...) 4.2. inStallation 4.2.1. auto Scan Scan mode: All (any channel), Free (only free to air channels). This screen will show while the channel scan is in progress: 4.2.2. -
Page 16: Antenna Feeding
4.2.3. antenna feeding Turns on/off the power supply to the active antenna (note that your antenna may not need feeding) 4.3. Setup 4.3.1. oSD language Select your preferred language for the On Screen Display between: English, French, Portuguese, Italian, Spanish, German, etc 4.3.2. -
Page 17: Region And Time
quality. CVBS (composite video): Basic video signal supported by all TVs with SCART connector. LCN Mode: Turns On / Off Logical Channel Number. 4.3.3. region and time There are three main modes depending on GMT Usage (gray means not applicable). Region <input>... -
Page 18: Osd Settings
4.3.5. oSD Settings 4.3.6. parental lock Fixed password: 3330 Default user password: 0000 Menu lock Turns on/off password checking when accessing the Installation menu. Channel lock Turns on/off password checking when trying to watch a channel marked as ‘Locked’. New password/Confirm password Changes the user password and asks for confirmation to avoid mistakes. -
Page 19: Game
4.4.2. Game There are three fun games: Tetris, Snake and Othello. 4.4.3. load factory default After asking for password all the parameters of the device will reset to its default value. 4.4.4. Software upgrade Upgrades the firmware. You should be careful with this option and use it only by manufacturer’s advice. -
Page 20: Troubleshooting
troubleShootinG Problem Possible causes What to do The LED on the remote Main cable not connected Check that the power control sensor does not adaptor is plugged into a light up power socket The LED on the remote The receiver is in standby Press the standby button control sensor is on but mode... -
Page 21: Technical Specifications
technical SpecificationS Channel database Channels 1000 Favorite groups Channel attributes favorite, lock, skip Picture in Graphics 7 days Connections Antenna IEC 169-2 female 21 pin SCART male video (CVBS, RGB) and audio (L/R) Stereo audio 3.5mm TRS minijack 3.5mm TRS minijack RS-232 3.5mm TRS minijack AV output... - Page 22 Warranty Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workmanship at the time of purchase. The warranty period is 36 months from the date of purchase. Warranty proceDure Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently Asked Questions).
-
Page 23: Declaration Of Conformity
902 119 034 NIF: A53107488 We declare under our own exclusive responsibility that the product: energy Sistem® DVb-t receiver enerGy t4250 Is in compliance with the essential directives, norms and standards of the European Union 89/336/EEC (EMC Directive). Manufacturing country:...
