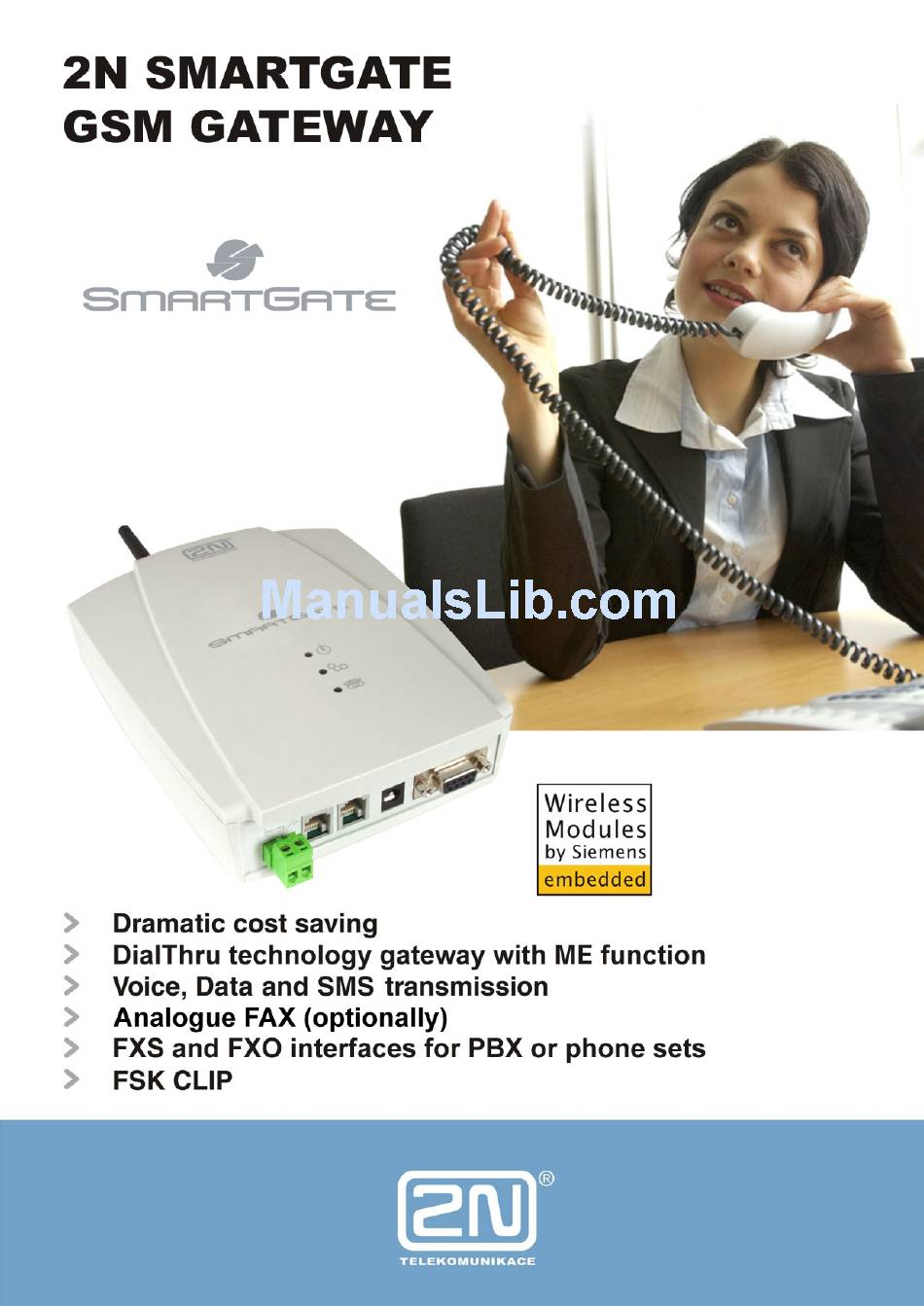

SMARTGATE 2N User Manual
  1. Manuals
  2. Brands
  3. SMARTGATE Manuals
  4. Gateway
  5. 2N
  6. User manual

SMARTGATE 2N User Manual

Gsm gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2N and is the answer not in the manual?

Questions and answers

Summary of Contents for SMARTGATE 2N

  • Page 2: Safety Precautions

    The voltage value mentioned on the power adapter may not be exceeded. If you connect SmartGate to another power supply, make sure that the voltage value is in the acceptable range. When your SmartGate comes to the end of its operational life, dispose of it in accordance with applicable regulations.
  • Page 3 The manufacturer continuously meets customer requirements by improving the firmware. For the latest SmartGate processor firmware, programming tool and User Manual see www.2n.cz. For a detailed description of the SmartGate firmware upgrade refer to the section devoted to the PC programming tool.

  • Page 4: Packing List

    Warranty certificate 1 pc Notes: 1) The delivery includes an antenna to be connected directly to the SmartGate SMA connector. An antenna with a cable should be used when GSM signal is poor or in case of interference with other devices.

  • Page 5: Table Of Contents

    OMBINATION OF RAFFIC WITH OICE ALLS 8.6. AT C ..................18 IST OF UPPORTED OMMANDS SMARTGATE PARAMETER PROGRAMMING ..............19 9.1......................19 BASED ROGRAMMING 9.2......................... 22 ARAMETER ABLES 10. TROUBLESHOOTING ....................... 40 11. LIST OF ABBREVIATIONS ....................41...

  • Page 6: Smartgate Purpose

    1.2. Advantages of SmartGate Use · Call cost cutting – the calls are routed to GSM or analog network according to their number prefix. Route all GSM calls from PBX to SmartGate to save a lot on PSTN – GSM calls.

  • Page 7: Installation

    · It is impossible to operate SmartGate on sites exposed to direct solar radiation or near heat sources. · SmartGate is designed for indoor use. It may not be exposed to rain, flowing water, condensed moisture, fog, etc. · SmartGate may not be exposed to aggressive gas, acid vapours, solvents, etc.

  • Page 8: External Antenna Connection

    For antenna and cable parameters see the “Technical Parameters“. 2.3. SIM Card Installation Open the SIM card holder on SmartGate’s backside, insert the SIM card and close it properly. Select the required GSM provider and SIM card services, such as call forwarding, call barring, preferred networks, SMS service centre, etc.

  • Page 9: Connector Description

    2.5.3. Gateway for trunk line of PBX Link free trunk line of your PBX to FXS interface on SmartGate. Program PBX to route all GSM calls to SmartGate. Incoming calls from GSM network will be routed to PBX.

  • Page 10: Power Supply Connection

    For backup power supply you can use EnergyBank – backup source with accumulators. Do not power on the supply until the antenna is connected to SmartGate to avoid the GSM module damage. 2.7. SMS Sending Input Connection You have got a special connector for easy connection to SmartGate.

  • Page 11: Smartgate Status Indication

    3. SmartGate Status Indication 3.1. Indication LEDs Name Meaning · Light = SmartGate is powered. Power supply · Flashes once in 2s = HW error, contact the manufacturer. · Light = registered into GSM network · Flashes once in 1s = not registered, SIM card inserted ·...

  • Page 12: Telephone Line Tones

    · The GSM network or connected PBX transmits this tone. Busy tone: , programmable cadency · In case of call routing to GSM network SmartGate generate busy tone in any of the following cases: The SIM card has not been installed.

  • Page 13: Sim Card Pin Protection

    4. SIM Card PIN protection If a SIM card is PIN-protected and the PIN is not programmed in SmartGate, GSM LED indicates the state and the PIN tone is transmitted on telephone line. 4.1. PIN Entering by PCManager Like other parameters, the PIN code can be entered using a PC programming tool.

  • Page 14: Automatic Pin Entering

    4.3. Automatic PIN Entering You need not enter the PIN upon power up if it is stored in SmartGate – it is entered automatically. This function is useful in case of power failure; SmartGate is operable in a short time after power recovery without any intervention by the operating staff.

  • Page 15: Voice Function

    The delay between dialed digits may not exceed 5 s (programmable parameter). The number is evaluated as complete after this timeout. 3. A short delay follows the last-dialed digit for SmartGate to await further dialing. Then, the dialing end is signaled and connection is established.
  • Page 16 3. Hang up. 5.1.6. Tariff pulses 16 or 12 kHz SmartGate has tariff pulse transmitter on FXS interface. You can use tariff pulses for outgoing call pricing. SmartGate offer pseudotariff only – tariff metering doesn’t correspond to real price of call, tariff pulses are transmitted according to programmed parameters and call duration.

  • Page 17: Gateway For Extension Line Of Pbx

    1. The CLI is compared with filled rows of GSM routing table. The call is rejected, or routed to FXO interface – extension line of PBX according to the routing table. 2. SmartGate hooks off the line. If there is filled in the “Dial in” parameter for given CLI, SmartGate dials it using DTMF.

  • Page 18: Gateway For Trunk Line Of Pbx

    The delay between dialed digits may not exceed 5 s (programmable parameter). The number is evaluated as complete after this timeout. 3. A short delay follows the last-dialed digit for SmartGate to await further dialing. Then, the dialing end is signaled and connection is established.

  • Page 19: Fax Function

    GSM fax message SmartGate with fax converter has ability to send and receive GSM fax messages using analogue fax Group 3 connected to telephone line FXS. The fax communication service must be registered with your GSM operator.

  • Page 20: Sms Sending Input

    Caution! Do not use in life-supporting or property-protection applications because of the character of SMS service and SmartGate equipment. The manufacturer shall not be liable for health and property damage incurred as a result of SMS sending failure.

  • Page 21: Com - Serial Interface

    The program is designed for SmartGate parameters programming. It can read configuration data from the memory and store them in SmartGate. Moreover, all parameters can be saved in your PC file for backup or saving into another SmartGate system. The SmartGate PCManager contains an easy monitoring tool too. With this tool you can identify the GSM provider’s name, signal strength, GSM module, SIM card, and so...

  • Page 22: Csd Or High-Speed Gprs Data Connection To Internet

    Outgoing and incoming calls even to GSM can be made during GPRS connection. The GPRS connection remains active during the whole call to GSM but no data can be transmitted (SmartGate is a GPRS terminal of class B). Once the call is terminated, data transmission is recovered immediately.

  • Page 23: List Of Supported At Commands

    AT commands carefully. You might misconfigure the GSM module thus making SmartGate inoperative. To solve most of these problems, switch SmartGate off and on again to make the central processor execute full initialization of the GSM module.

  • Page 24: Smartgate Parameter Programming

    SmartGate data uploading and storing, including firmware upgrade, are executed in a special mode, in which SmartGate waits for about 3s after power up (all LEDs are on). If instructed so by the PCManager during this timeout, SmartGate remains in this mode as long as it is necessary.
  • Page 25 They are not saved in a PC file for security reasons. If you load a PC file into the PCManager and then into SmartGate, the PIN and service password should not change unless you change them manually before saving.
  • Page 26 9.1.4. Monitoring Monitoring is active when SmartGate is in operation and registered to the GSM network. If SmartGate is not registered to GSM, the COM is blocked and no monitoring can be made. This simple informative function helps you identify: ·...

  • Page 27: Parameter Tables

    -SmartGate receives pulse dialing only Default setting: DTMF Timeout for dialing end recognize [s] Timeout during which SmartGate waits for further digits to be dialed. It starts to establish connection when this timeout passes. Setting options: 1-255 s Setting step:...
  • Page 28 Dial tone - cadence This tone is generated after Off-Hook in case SmartGate is ready to accept dialing. Setting options: Continuous -SmartGate generate continuous dial tone Morse A -SmartGate generate dial tone with 330/330/660/660 ms cadence Default setting: Continuous Busy tone – frequency [Hz] Setting of frequency/frequencies of busy tone.
  • Page 29 Call end -SmartGate sends tariff pulse when call ends. Call start -SmartGate sends tariff pulse when call starts. Call start and end -SmartGate sends tariff pulse when call starts and ends too. Default setting: None Tariff pulse frequency [kHz] Tariff pulse frequency setting.
  • Page 30 FXS and FXO interfaces. Default setting: medium volume level 9.2.2. Telephone interface FXO parameters Number of rings before Off-Hook If SmartGate is programmed as FXO gateway, parameter sets the count of rings before Off-Hook. Setting options: 1-255 Step: Default setting: 1...
  • Page 31 Setting options: 1-3400 Hz Setting step: 1 Hz Default setting: 425 Hz Dial tone - cadence This tone is generated after Off-Hook in case SmartGate is ready to accept dialing. Setting options: Continuous -SmartGate generate continuous dial tone Morse A...
  • Page 32 35 ms Default setting: 2030 ms BabyCall number If SmartGate is programmed as FXO gateway, parameter defines a number to be dialed for the automatic call function. If this item is blank, the function is disabled. Setting options: 0-20 characters (0-9,*,#,+)

  • Page 33: Fxs Routing Table

    Every table line includes a phone number prefix (of variable length) and other parameters. The parameters define SmartGate's behavior in case the beginning of the dialed number matches this prefix on the same table row. The table contains 120 rows for up to 120 different prefixes.
  • Page 34 are routed to GSM network. Their tariff is one impulse every 30 second and you can accelerate connection establishing by dialing of a # after the dialed number. Prefix Dialed number prefix identifying the call type. "Other numbers" line is used for calls with prefixes that are not included in the table.
  • Page 35 The Add parameter is used for automatic call routing. A defined string (prefix) is added to the beginning of the number to be dialed. Setting options: 0-16 characters (0-9,*,#,+) Default setting: blank Extra tariff Pseudo tariff metering setting (tariff is based on call duration) for GSM calls. Connected PBX must send tariff metering pulses for FXO calls.

  • Page 36: Fxo Routing Table

    PBX you can fill in the FXO routing table. According to the prefix of dialed number on FXO interface you can: · Bar the number to be dialed – SmartGate hangs up, the call isn’t established; · Accelerate connection establishing by knowing the number length for the given prefix;...
  • Page 37 Password for ME activation / disabling If you program SmartGate as DialThru gateway and fill in ME number, function ME is active. If you fill in password for ME activation/disabling, you can activate/disable function ME without PC programming. Off-Hook FXS line and dial PASSWORD plus to disable the function.
  • Page 38 The Add parameter is used for automatic call routing. A defined string (prefix) is added to the beginning of the number to be dialed. Setting options: 0-16 characters (0-9,*,#,+) Default setting: blank...

  • Page 39: Gsm Routing Table

    GSM routing table Incoming calls from GSM contain the CLI. According to received CLI SmartGate can do following: · Reject the call; · Route the call to FXS or FXO interface; · Automatic dial in. SmartGate dials preprogrammed PBX subscriber number (for example switchboard operator) to be connected with calling GSM subscriber.
  • Page 40 Route to It is possible to route incoming GSM call to FSX or FXO interface, or reject it. Remaining settings are planned to use for CallBack option in future. Setting options: -incoming call is routed to FXS -incoming call is routed to FXO reject -incoming call is rejected Default setting: FXS...
  • Page 41 9.2.4. SMS Sending Input Parameters Telephone number for SMS The telephone number to which an SMS is sent upon SMS input activation. If blank, the function is off. Setting options: 0-16 characters (0-9,*,#,+) Default setting: blank SMS text The SMS text to be sent to the preset telephone number. If the SMS text is blank, an empty SMS is sent.
  • Page 42 - ID is always sent. Default setting: According to provider Roaming enable/disable You can make SmartGate work even if it is registered to a foreign GSM network. Setting options: -Disable -The GSM module logs out of a foreign network and attempts to register again in within 5 minutes.
  • Page 43 Credit value position in received SMS If there are more numbers except credit value in text answer (e.g. date, time and so on) SmartGate seeks the number corresponding with credit value from given position in text. The seek algorithm skips every non-number character. If credit value is the first number in text you can leave setting 0.
  • Page 44 9.2.8. Security Parameters PIN – value Fill in the PIN value for automatic PIN entering upon SmartGate power up. It is applied only if the SIM card is PIN secured. If the given PIN fails to match the SIM, it is deleted automatically. If entered via a telephone line upon SmartGate start, the PIN is stored automatically.

  • Page 45: Troubleshooting

    · SmartGate is in the special PCManager-based programming mode - exit the PCManager to reset SmartGate. · Try to switch SmartGate off and on, the LEDs should go off in 3s and signal the status of SmartGate. SmartGate does not register to GSM ·...

  • Page 46: List Of Abbreviations

    - General Packet Radio Service - high-speed data transmission for GSM networks · - Hardware - an electronic device, circuit, board, component, etc. in this context · - Mobility Extension, special SmartGate function. · P(A)BX - Private (Automatic) Branch Exchange · - Personal Computer (based on the IBM PC standard) ·...

  • Page 47: Technical Parameters

    12. Technical Parameters GSM: MC45/MC55 EGSM 900 / GSM 1800 / GSM 1900 GSM module, GSM bandwidth MC46/MC56 EGSM 850 / GSM 1800 / GSM 1900 EGSM 850 / 900 MHz, Transmission power GSM 1800 / 1900 MHz Receiver sensitivity -104 dBm HR+FR+EFR Half rate+Full rate+Enhanced full rate Audio...
  • Page 48 D-Sub 9 pins Interface transmission rate 1200 - 115200 bps (autobauding) 8N1 Others: Dimensions (w/o connectors) 170 x 130 x 45 mm Operating temperature 0°C to 45°C Operating status signaling 3 LEDs (on, GSM network, line) © 2006, 2N TELEKOMUNIKACE a.s.
