Summary of Contents for FIREPITS Arcturus

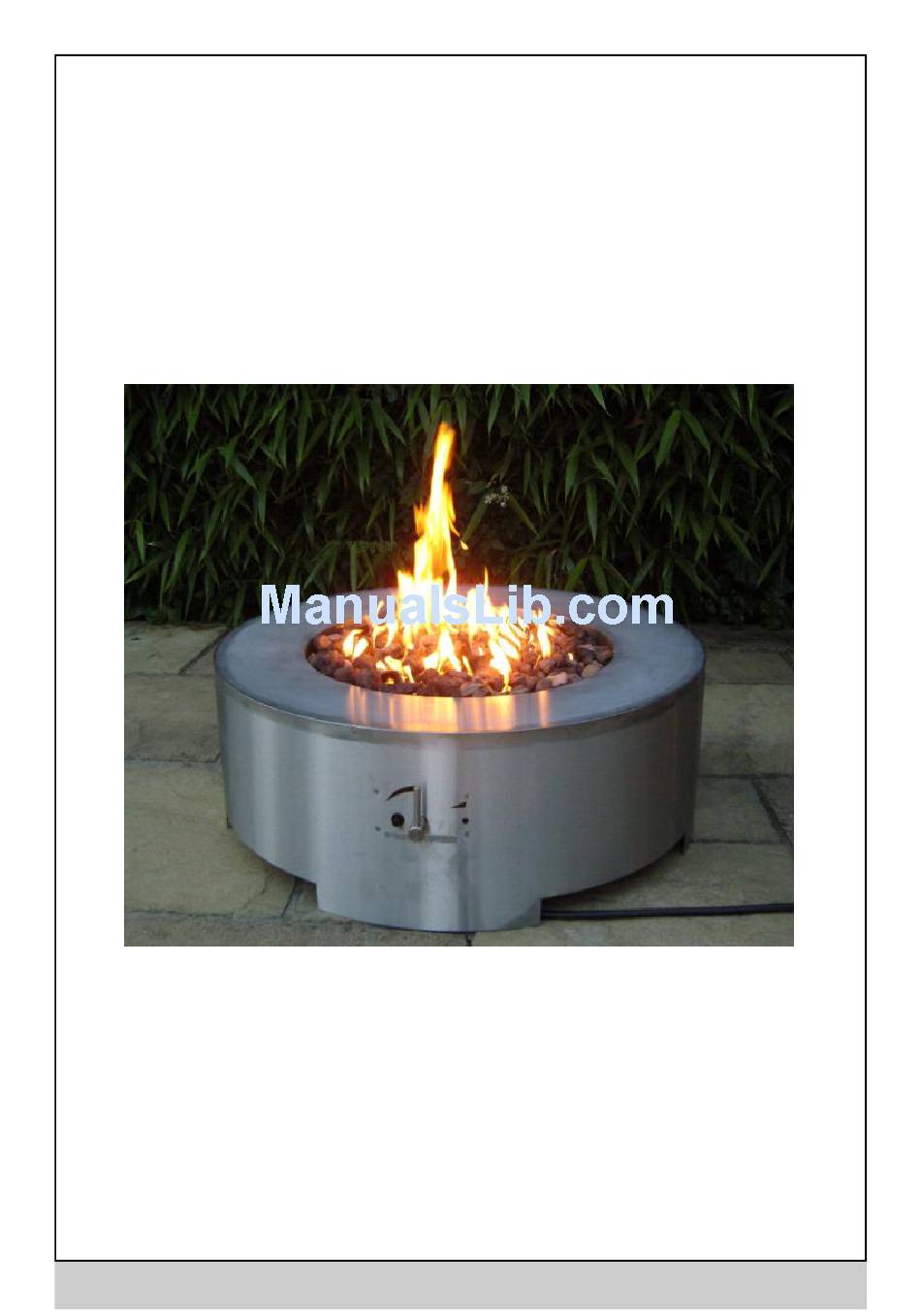

- Page 1 Gas Firepit Patio Heater Arcturus Instruction Manual Please read the ‘getting started’ section of this manual, BEFORE you unpack the burner...
-
Page 2: Table Of Contents
Contents Getting Started Safety Instructions What’s Included Assembly Operating Instructions Maintenance Troubleshooting Warranty Information Parts List Contact Information Specification The Gas Firepit Burner is designed to work with the following Gas Types Gas Type LPG - G31 Propane LPG - G30 Butane Appliance Category I 3+ I 3+... -
Page 3: Getting Started
Getting Started Unpacking the Box Your Gas Firepit will arrive in two boxes, one containing the burner, and the other with the lava rock. As you remove the main firepit, place it down carefully on the floor, keep- ing it upside-down for easy assembly. Extreme care should be taken when handling the assembly, to ensure the gas pipes, the thermocouple lead, and piezo HT lead underneath the burner are not loosened, or damaged... -
Page 4: Safety Instructions
Safety Instructions Please read before installing and operating your new Gas Firepit Burner. This appliance must only be used outdoors. WARNING Accessible parts may be very hot, Keep children away. Any modification to this appliance may be dangerous and is not permitted. The gas valve has been set by the manufacturer. -
Page 5: What's Included
What’s Included Gas Firepit Table includ- ing Burner Volcanic Lava Rocks 4 Mtrs Hose 2 x Hose Clips... -
Page 6: Assembly
Assembly Attach the Gas Hose With the unit upside-down, attach the gas hose to the gas inlet connector. Secure with the hose clip supplied. New hose can be quite stiff and hard to push onto the inlet pipe, so soften the end of the hose by running it under a hot tap for a few seconds. Try not to get water inside the hose. - Page 7 Location Select a Suitable Location Before you light the burner you must consider it’s location. The heat above the burner can be quite considerable so never place the Firepit under any form of roof covering, or near overhanging trees etc. It must be located at a safe distance from your house, or any combustible structure, such as a shed, or wooden fence etc.
-
Page 8: Operating Instructions
Operating Instructions Although the operation of the Firepit is relatively simple, this section mainly relates to the safety aspect. Before use Ensure there are no gas leaks. If you smell gas, DO NOT USE. See Safety Instruc- tions. Check the burner area for any combustible material that may have fallen into the pit, such as leaves, twigs, paper, or anything that does not belong. - Page 9 Operating Instructions After Use Turn lever to ‘Pilot’ position. The main burner will go out. Turn lever to ‘Off’ position. The pilot light will go out. Do not leave the area before the flames are completely out. ...
-
Page 10: Maintenance
Maintenance Ensure the Burner area is kept clean and clear of dirt and especially anything com- bustible. The lava rocks will show signs of soot, which will not harm the rocks, but could build up and block the Burner jets. Simply remove the rocks and wash and scrub with a stiff brush to remove the soot. -
Page 11: Warranty Information
Also, if purchased through a dealer or installer, his name and contact details. Firepits UK Ltd make every effort to ensure all firepit burners leaving our factory are in perfect work- ing order. Each burner is ‘burn tested’, to ensure it functions safely and correctly. -
Page 12: Parts List
Main Flexible Gas Pipe FP01-A04/1 Lava Rock FP01-A04/2 LPG Hose 4mtr FP01-A04/3 Hose Clips x 2 Contact Details Gas Firepit Patio Heater Name Firepits UK Ltd Phone 02380 336723 email sales@gasfirepits.co.uk 10 Shirley Road Southampton Address Hampshire SO15 3EU Serial Number:...
