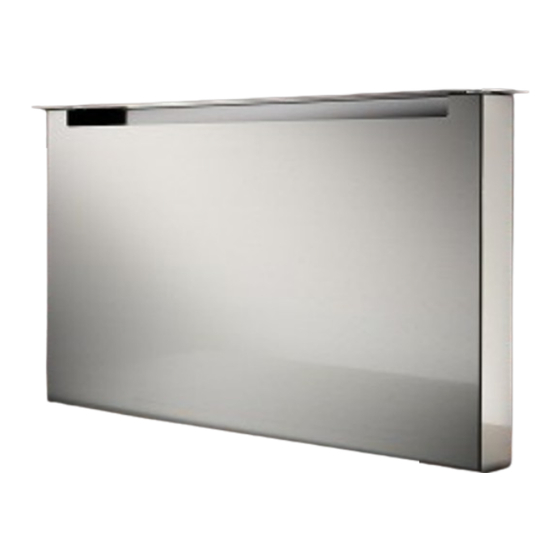

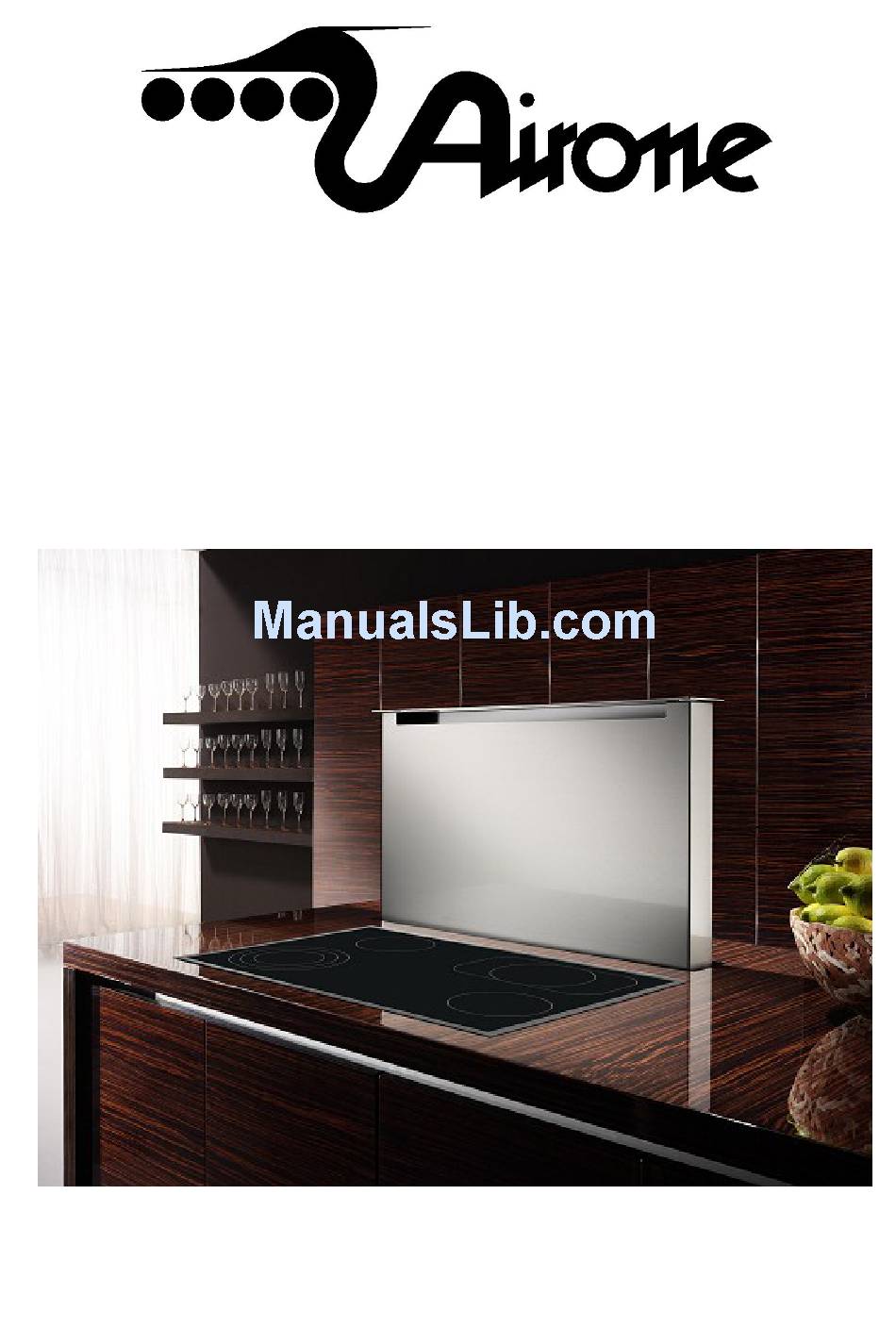

- Page 1 PARSIFAL INOX 90 – 120 PARSIFAL VETRO 90 - 120...
-
Page 2: Installation
INSTRUCTIONS FOR USE, MAINTENANCE AND INSTALLATION FOR THE DOWNDFRAFT. ATTENTION: The downdraft must only be installed from a qualified technician. Every responsibility regarding installations from unauthorized persons will be declined. Before proceeding with the downdraft installation, please read carefully these instructions. Keep this booklet together with the downdraft. - Page 3 When the filtering function is operating, with air recycle, carbon filters must be used. When the downdraft is used in the filtering function, there must be a suitable section for spillage of the air suction on the base of the kitchen. When the suction function is operating, exhausting the filtered air on the outside, a suitable compensation system must be used according to current standards in force.
- Page 4 The downdraft allows a height adjustment of the structure from 820mm to 900mm from the floor to under the work top. This adjustment is possible by working on the feet and on the feet supports (Fig. Fig. 1 As for the height adjustment of the moving part of the downdraft, see Fig. 2. According to the thickness of the work top and the cover, it is possible to adjust of 33mm.
- Page 5 In the INOX version, the gluing of the cover (as rule, use the same material of the work top) of the downdraft, must be performed in the same place after finishing the assembly of the downdraft. The space between the lid and hole on the top should be about 1.5mm long the whole perimeter. The support for the gluing of the cover is supplied with the downdraft.
-
Page 6: Control Functions
CONTROL FUNCTIONS REMOTO CONTROL BUTTON “A” With suction motor turned on, every time the button is pressed the motor speed will be reduced of one step. BUTTON “B” With the downdraft extracted from 20 to 50 cm, the suction motor can be turned on and/or off. - Page 7 FLAT CONTROL (OPTIONAL) BUTTON “A” With suction motor turned on, every time the button is pressed the motor speed will be reduced of one step. BUTTON “B” With the downdraft extracted from 20 to 50 cm, the suction motor can be turned on and/or off. KIT LED: With the downdraft extracted from 20 to 50 cm, the lights can be turned on and/or off.
- Page 8 ELECTRIC WIRING Safety Instructions: Before any manipulation of the controller power cord (230 volt) Before each operation, all devices connected Electrical connections must be performed by professionals Warning : Make all wiring connections to the wiring box before connecting the power supply 230V. Failure to observe this procedure can cause severe damages to electronics.
-
Page 9: Use And Maintenance
USE AND MAINTENANCE Before beginning any sort of cleaning and maintenance work, turn off the power of the downdraft by turning the main switch to 0 (OFF). Cleaning the metal filters The metal filters fitted in the downdraft should be washed every 2-3 months depending on how much they are used, using hot water and a non aggressive liquid detergent. - Page 10 WK20 Y2012 REL. 03 COD. DOLIPARSIFAL000014...
