INSTRUCTION MANUAL

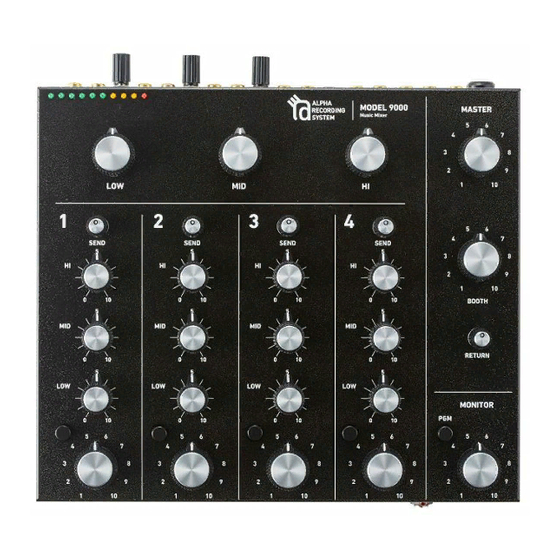

Model - 9000 Music Mixer

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9000 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALPHA RECORDING SYSTEM 9000

  • Page 1 INSTRUCTION MANUAL Model - 9000 Music Mixer...

  • Page 2: Specification

    SPECIFICATION Input 3 x Phono: 47K Ohm 5 x Line: 20K Ohm EFFECT LOOP 1: 20K Ohm EFFECT SEND 2: 20K Ohm Output HOUSE: RCA Unbalanced Impedance 600 Ohm / XLR Balanced Impedance 50 Ohm...

  • Page 3: Caution / Warning

    Front panel color: Black Turning on the power Due to the Model-9000 is designed for a professional use, there is no power switch to avoid accidentally power off while playing. To turn on the mixer, simply connect the power cord to the external power box then connect the plug to a standard wall outlet.
  • Page 4 Precautions Connect the effect loopcables here. If no external devices such as isolators, equalizers or effectors are used through EFFECT LOOP IN OUT connectors then the effect loop cables equipped with the mixer must be inserted as illustrated below. Otherwise there will be no audio output.
