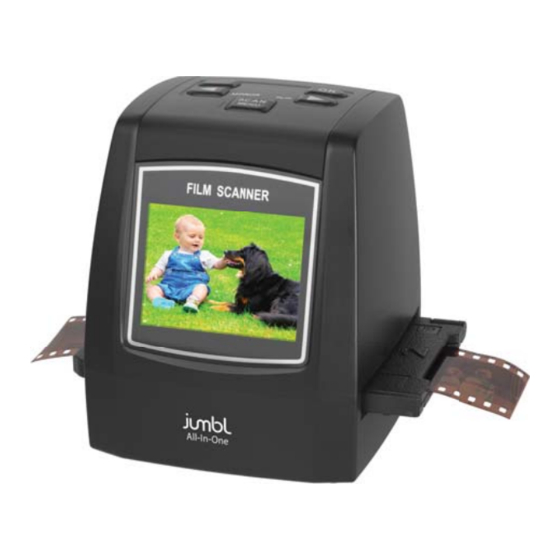

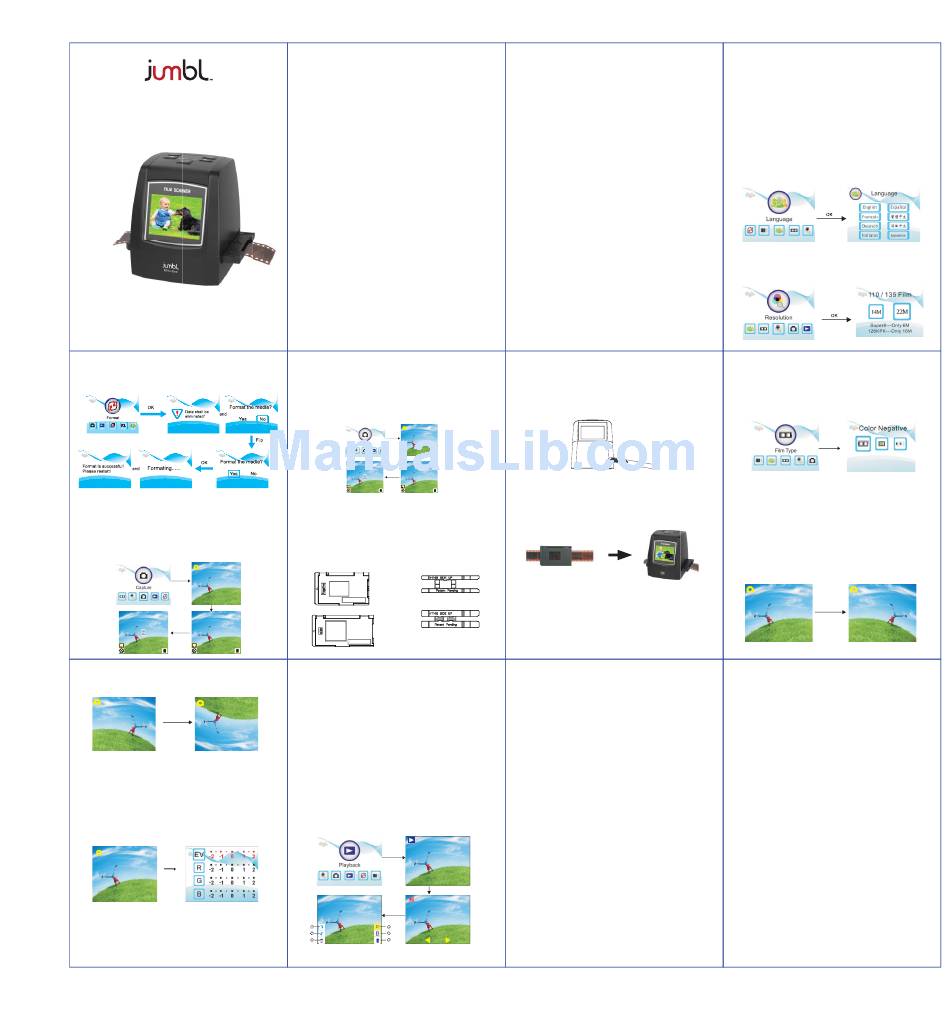

126KPK Super 8 Slides
& Negatives Scanner
User Manual
www.ItsJumbl.com
JUMBL is a trademark of C&A IP Holdings,LLC
©2014 All Rights Reserved
Distributed by C&A Marketing, Inc.
2 Bergen Turnpike, Ridgefield Park, NJ 07660
1-866-849-3049
MADE IN CHINA
3 To delete all saved data from your SD card, enter the Format submenu.
Be absolutely certain that you indeed wish to delete everything on your SD
card, as this cannot be undone. Once your card is formatted, there is no
way to retrieve the images on it.
Setting Film Type:
To ensure the scanner captures the full images on your films, it is important
that you set the device to read the correct film type.
1
When powering on, the Capture menu item will be highlighted by default.
2
Press Mirror twice to highlight the Film Type menu item.
3
Press OK to enter the Film Type submenu.
4
Use the Mirror and Flip to select your film type, and confirm your
selection by pressing OK.
E E V 0.0
OK
Convert/Mode
OK
3 To preview an upside-down image of your film, press Flip.
Alternatively, you can flip the image later when in Image Playback mode.
EV 0.0
EV 0.0
Flip
4 While in the preview window, press OK to enter the exposure
adjustment menu. Here you can fine-tune the coloration and relative
brightness of your captured image.
5 By default, all values are set to 0.0, and EV (Exposure Value) is highlighted.
6 Press Mirror to darken image, or Flip to brighten image.
7 Once you are satisfied with the EV settings, press OK to confirm and
proceed to Red, Green and Blue values.
8 Press Mirror to decrease and Flip to increase the highlighted value.
EV 0.0
OK
9 Press OK to confirm and proceed to the following value.
Converting/Digitizing Image:
You are now ready to convert your slide or film negative into a high-
megapixel digital image!
1
Press SCAN/MENU
2 To capture and save your image, press OK.
Introduction
Thank you for purchasing our 126KPK Super8 Slide & Negative Scanner,
and welcome to the Jumbl™ family. This user manual is meant to offer
you a brief walkthrough of the device's features and usage protocols. We
hope you find this manual helpful. For additional information and technical
support, please feel encouraged to contact our help team at
info@itsjumbl.com.
Jumbl™ created this wonderful, portable device to allow you to easily convert
your films into high-resolution digital images that last forever. No computer is
needed, as you could view those digitized images right on the unit's built-in
display. Connecting the scanner to your Windows or Mac computer via a USB
port lets you transfer the images saved on your SD card onto your computer.
Setting Film Type:
To ensure the scanner captures the full images on your films, it is
important that you set the device to read the correct film type.
1
When powering on, the Capture menu item will be highlighted by default.
2
Press Mirror twice to highlight the Film Type menu item.
3
Press OK to enter the Film Type submenu.
4
Use the Mirror and Flip to select your film type, and confirm your
selection by pressing OK.
EV 0.0
OK
Convert/Mode
OK
Using the Adapter Plates:
Once you've set your scanner to the correct film type, be sure to choose
and use the proper adapter for the job. Included are 2 adapter plates
and 2 adapter inserts, each precisely cut to accommodate a particular
type of film:
#1: Slide Adapter
#2: Negative Adapter
#3: Super8 Insert
#4: 110 Insert
Negative
110
Slide
Super 8
3 To cancel before saving, press Mirror or Flip.
4 Repeat the same process for all your films.
5 When the built-in or external memory is full, the screen will display a "Full"
icon. Refer to the "Connecting to Computer" section in this manual to
transfer your images to your computer and free up more memory on
your scanner and/or SD memory card.
Image Playback:
You can view all your saved images and even make some adjustments to
your liking:
1 From Main Menu, press Flip once to highlight Playback menu item.
2 Press OK to start an automatic slideshow of all saved images.
3 Press OK again to stop slideshow. You can then use Mirror and Flip to
manually scroll between captured images.
4 When in manual image playback, press OK to enter the editing submenu.
From here, you may choose the following:
• Rotate image clockwise
• Rotate image counterclockwise
• Delete selected image
• Exit to playback mode
• Save edited image
• Return to main menu
OK
OK
OK
1
Exit
4
2
5
3
6
Important Instructions
All information presented in this section is provided to instruct you in the
correct and safe operation of this device. Please read all instructions
carefully before using, and save this manual for future reference.
- Do not disassemble unit. Product does not contain user-serviceable
parts, and opening of outer casing may pose risk of electric shock.
- If unit is dropped or damaged, do not touch inner part of scanner.
- In the event of malfunction, such as smoke or a smell, stop using
immediately.
- Never handle device with wet hands or allow unit to come in contact
with liquid. Risk of electric shock. If device does get wet, unplug
immediately.
- Gently wipe scanner lens with included cleaning brush to ensure it is
clean before using. This helps produce a clean digital image.
- Do not clean scanner lens with alcohol, gasoline, diluent or other
organic solvent.
- Avoid using device in excessively dusty or damp environments.
- When connecting to computer, try to disconnect other USB devices.
Overloadingyour computer's USB connections may cause scanner to
perform poorly.
- Do not move or disconnect device from computer while transferring
data, as this may damage data and/or device.
- Please only use with film and negative sizes mentioned in this manual.
- Unplug USB cord or adapter when not in use for extended period of time.
Box Contents
1 x Scanner Unit
1 x Negative Adapter
1 x Slide Adapter
1 x 110 Insert
1 x Power Adapter
1 x TV Cable
1 x Super8 Insert
1 x USB-to-Mini USB Cable
1 x Cleaning Brush
1 x User Manual
1
Before inserting Adapter, set down scanner on flat, stable surface
with LCD display facing you.
2
Use included Cleaning Brush to gently wipe scanner lens.
3
DO NOT insert any plates from the left side of the unit.
4
Ensure "This Side Up" side of Adapter is facing upwards.
5
Ensure small arrow on Adapter is facing leftward.
6
From right side of unit, slide Adapter inward until it clicks.
7
To use Super8 or 100 Insert, open Negative Adapter fully and place
on flat surface.
8
Ensure "This Side Up" side of Insert is facing upwards.
9
Ensure small arrow on Insert is facing leftward.
10 Place Insert onto lower panel of Negative Adapter, and align in place
with Adapter's square cutout.
11 Close Negative Adapter and press until it clicks.
12 From right side of scanner unit, slide Adapter inward until it clicks.
Note: Our 126KPK Super8 Slide & Negative Scanner is a premium model.
Unlike cheaper models that require the user to fit each strip of film into an
Adapter or Insert before inserting into unit, this scanner allows you to
easily capture and convert one film after the other. Simply click the
Adapter/Insert in place, and feed your films into it at will.
5 Use Mirror and Flip to select from the menu.
6 Press OK confirm/execute selection.
Connecting to Computer:
Transferring your saved images to your Windows or Mac computer is easy:
1 Connect smaller end of included USB cable to USB input on back of
scanner unit.
2 Insert other end of cable into your computer's USB port.
3 From Main Menu, press Flip 3 times to highlight USB MSDC menu item.
4 After a few moments, your computer will automatically detect
your scanner:
a. Windows computers will detect it as a Removable Disk.
b. Mac computers will automatically launch their built-in image viewing/
editing software.
5 Copy/import your saved images to your computer.
Operation & Usage
The Basics:
1
The Jumbl™ Scanner can be powered from a standard wall outlet using
the included power adapter, or via USB connection to a computer.
2
Press Power button to turn device on/off.
3
The scanner has enough built-in memory to store approximately 40
digitized images. You may use an external SD memory card to store many
more images. When inserting SD card, be sure that its gold connector
strips are facing upwards. If no SD card is in unit upon power-up, display
will read "No Card".
4
Use the Mirror and Flip buttons to scroll between menu items.
5
Use the OK button to confirm and/or execute a selection.
Setting Scanner:
From Main Menu, press Mirror and Flip to highlight and adjust a number of
scanner settings:
1
Enter the Language submenu to select between 8 supported languages.
Press Mirror and Flip to highlight your preferred language, and confirm
selection by pressing OK.
2 Enter the Resolution submenu to select between 14 megapixels and 22
megapixels (interpolation) image conversion. Press Mirror and Flip to
highlight your preferred image quality, and confirm selection by pressing
OK. Please note: This selection is only available for 110/135 films.
Working with Your Films:
Now that your Adapter/Insert of choice is properly inserted into the
scanner, it is time to begin inserting your films into the device:
1
For a clear image, clean films with soft cloth or compressed air (not
included) prior to inserting them into Adapter.
2
Negatives and slides should be inserted with their shiny side up,
while Super8 films should be inserted with their perforated holes at
the topside.
OK
3 Always handle films with care to avoid scratches or fingerprints.
4 When inserting a negative, feed it in slowly until you see the full image
on the viewer display.
Adjusting Image Before Converting:
Before digitizing your images, there are a number of adjustments available at
your fingertips. Some of these help you achieve a better scan, while others
are implemented for convenience, sparing you the need to remove and
reload your film:
1 After inserting your slide or film, press OK to enter the image preview
window. The viewer display will show you a preview of the final
captured image.
2 To preview a mirror image of your inserted film, press Mirror.
Alternatively, you can rotate the image later when in Image Playback mode.
EV 0.0
EV 0.0
Mirror
Technical Specifications
USB Interface:
USB 2.0
Image Sensor:
14 Megapixel CMOS Sensor
Built-In Display:
Color 2.4" TFT LCD
Exposure Control:
Automatic/Manual (-2.0 EV~ +2.0EV)
White Balance:
Automatic
Resolution:
14 Megapixels/22 Megapixels (Interpolation)
Supported Film Types:
135 Film (36x24mm)
126KPK Film (27x27mm)
110 Film (17x13mm)
Super8 Film (4.01x5.79mm)
Monochrome
Slide
Picture Effects:
B&W, Slides, Negatives
File Format:
Picture/JPEG
TV-Out Type:
NTSC/PAL
Internal Memory:
128MB
External Memory:
SD Card Up to 32GB
Power Supply:
DC 5V Adapter/USB Port
Supported Languages:
S-Chinese
T-Chinese
English
French
German
Italian
Spanish
Japanese
Supported OS:
Windows XP
Windows Vista
Windows 7
Mac10.7.3
Dimensions:
4.11" x 3.56" x 4.03"
Weight:
9.6 Ounces

Advertisement

Table of Contents

   Also See for Jumbl 126KPK Super 8 Slides & Negatives Scanner

   Related Manuals for Jumbl 126KPK Super 8 Slides & Negatives Scanner

   Related Products for Jumbl 126KPK Super 8 Slides & Negatives Scanner

Comments to this Manuals

Symbols: 0
Latest comments:
