MS-7000: SuperStar Reader
The MS-7000 SuperStar Reader
The MS-7000 SuperStar Reader is intended for installation in proximity applications where an
extended read range is required. The reader provides an audible beeper and a multi colored LED to
annunciate the reader's status when used on a PXL-250, PXL-100, or IntelliProx.
•
Amber - to indicate normal operation awaiting an access event
•
Green - to indicate a valid card has been presented or the door has been unlocked for access
•
Red - to indicate an invalid card has been presented or the door is in an alarm condition
The MS-7000 SuperStar Reader is housed in a black or white, weatherproof, shock resistant
package. The reader provides optimum performance when mounted at least four inches away from
metal surfaces; read range is reduced if the reader is mounted on or near metal surfaces.
1.0
Specifications
1.1
Dimensions
•
8.50 inches High x 6.00 inches Wide x 0.75 inches Deep
•
21.59 cm High x 15.24 cm Wide x 1.91 cm Deep

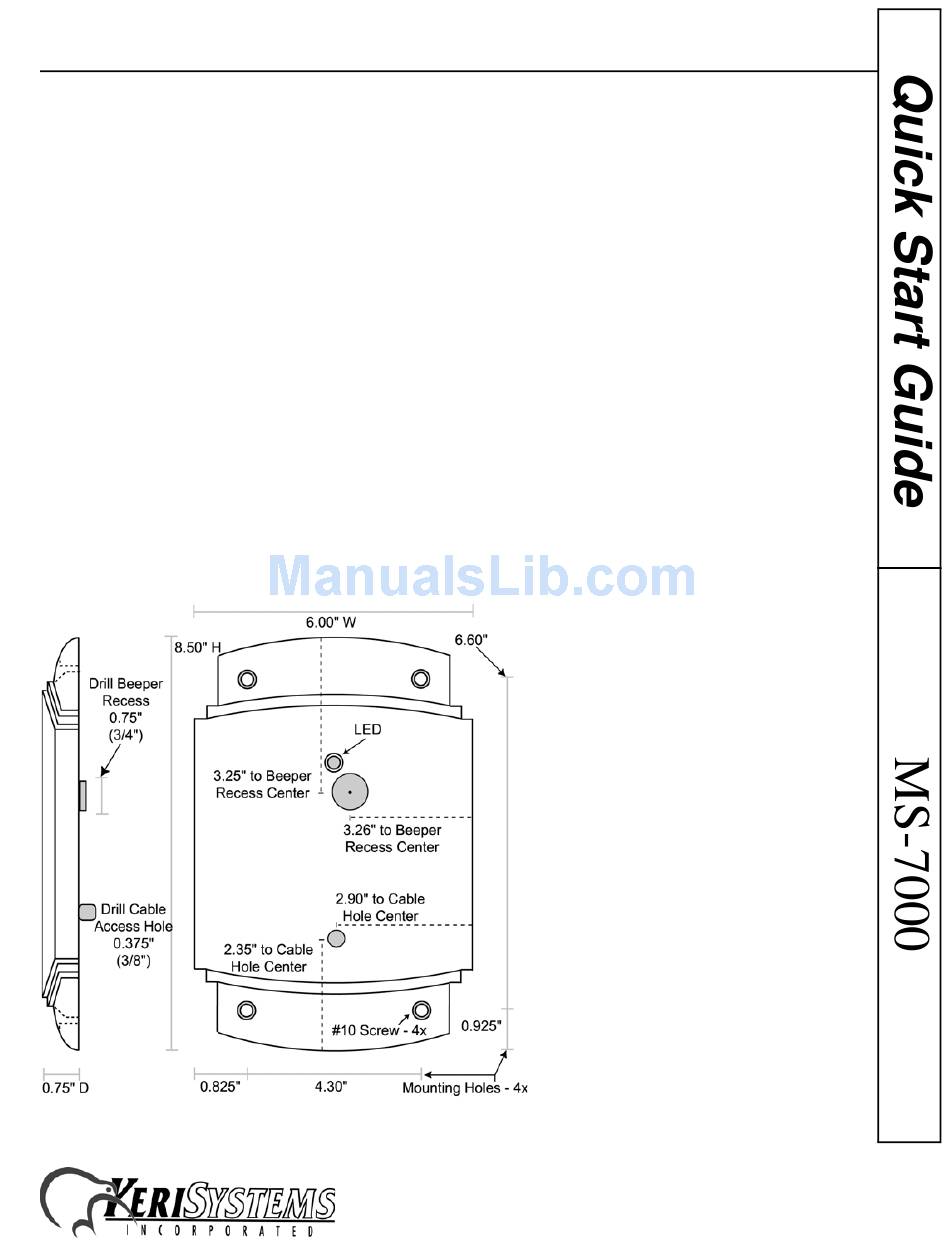

Figure 1: MS-7000 Dimensions
2305 Bering Drive
San Jose, CA 95131 USA
(800) 260-5265 (408) 435-8400 FAX (408) 577-1792
Web: www.kerisys.com E-mail: sales@kerisys.com
01826-001 Rev. G
Page 1 of 8
Advertisement
Table of Contents
Summary of Contents for KeriSystems MS-7000 SuperStar
- Page 1 Red - to indicate an invalid card has been presented or the door is in an alarm condition The MS-7000 SuperStar Reader is housed in a black or white, weatherproof, shock resistant package. The reader provides optimum performance when mounted at least four inches away from metal surfaces;...
- Page 2 MS-7000: SuperStar Reader Operating Voltage • 11v to 14v DC @ 200 ma Cable Specifications • up to 250 feet using six conductor, shielded, stranded AWG 24 wire • up to 500 feet using six conductor, shielded, stranded AWG 20 wire Mounting Instructions Five holes need to be drilled to mount the SuperStar Reader (see Figure 1 on page 1).
- Page 3 MS-7000: SuperStar Reader PXL-250 Connections The "A" reader connects to TB5, pins 1 through 6 (TB5 has a seventh pin, but no connection is made to that pin). The "B" reader connects to TB6, pins 1 through 6 (TB6 has a seventh pin, but no connection is made to that pin).
- Page 4 MS-7000: SuperStar Reader Connecting to the PXL-100 – TB2 Connecting to the PXL-100 – TB3 Pin # Function Wire Color Pin # Function Wire Color Green LED Brown Green LED Brown Beeper Green Beeper Green Reader Power Reader Power Reader Ground Black Reader Ground Black...
- Page 5 MS-7000: SuperStar Reader IntelliProx Connections The reader connects to TB1, pins 1 through 6. Connecting to the IntelliProx – TB1 Pin # Function Wire Color Reader Antenna Blue Beeper Green Greeen LED Brown Red LED White Reader Power Reader Ground Black Shield Silver...
- Page 6 MS-7000: SuperStar Reader Installation Verification The following information applies to an installation with a Keri Systems controller or IntelliProx unit. When used with an alternative host controller/alarm panel through an IntelliProx used in its Wiegand input device mode, the actions of the reader's LED and beeper are controlled by the alternative host controller/alarm panel and might not match those of a Keri Systems controller.
- Page 7 MS-7000: SuperStar Reader Troubleshooting the Reader Installation Problem Probable Cause Corrective Action The reader does 1. One or more of the • Power down the controller and verify the not recognize a reader's wiring wiring connections are correct for the card/tag (no connections are reader/controller combination per the...
- Page 8 MS-7000: SuperStar Reader Problem Probable Cause Corrective Action 5. You are using an • Make sure you are using an access card incorrect type of card. that is compatible with the reader. 6. The reader is unable to • Verify there is nothing that can interfere read the card.
