Summary of Contents for Aproli 280/700 STRONG

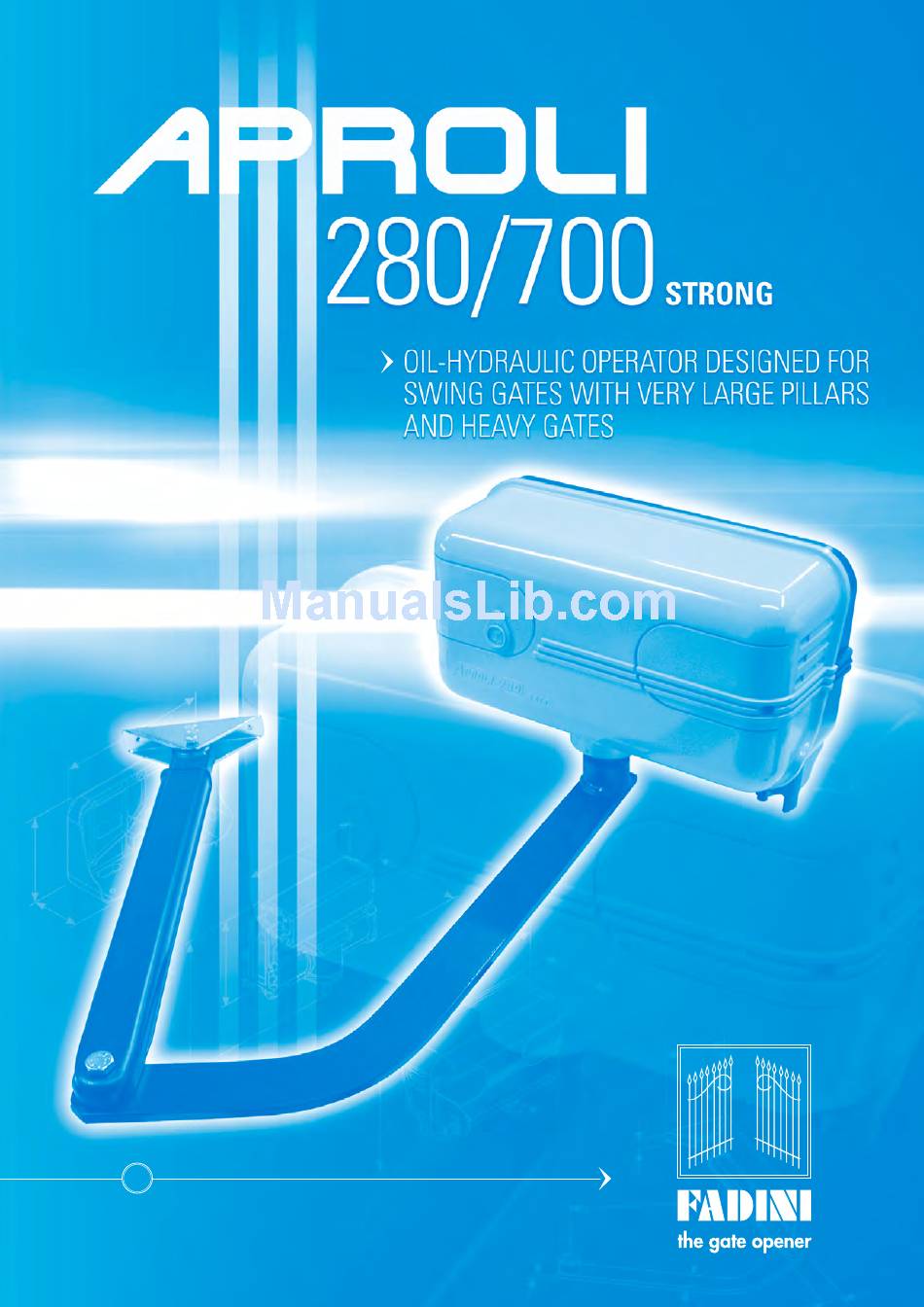

  • Page 1 INSTALLATION MANUAL ®...
  • Page 2: General Information

    It meets all the most demanding installation requirements thanks to the use of a bended steel arm and “telescopic” end section for leaf fixing. We recommend using the Aproli 280/700 Strong for leaves of no more than 3.0 metres long and weighing more than 300 kg. IMPORTANT: - The Aproli 280/700 Strong should only be installed on gates with leaves up to 3.0 metres long...
  • Page 3 BENDED ARM TO ROTATION SHAFT ROBUST LEFT-HAND BENDED ARM EXPLODED VIEW OF MAIN COMPONENTS OF LEFT-HAND APROLI 280/700 STRONG GATE OPERATOR PIC. 2 APPLICATION OF TWO APROLI 280/700 STRONG Before proceeding with the installation and use of the Aproli 280/700 Strong, it is essential to understand the exact position of each operator in the system.
  • Page 4 - Swing the lock cover flap placed on the left side of the front protection cover to one side (for both the RH and LH Aproli) and open the cover with the customized key provided (Pic. 4-A) - Remove the bended arm by unscrewing the fixing screws positioned on the rotation shaft (for both the RH and LH Aproli) (Pic.
  • Page 5 FIXTURE TO THE PILLAR Using a spirit level, fix the fixing base in position with suitable fixing PILLAR plugs depending on the type of pillar (Pic. 7) (not provided). When deciding the height at which to fix it to the pillar, consider at what point the articulated arm will be connected to the gate leaf: preferably FIXING PLUGS on a strong upright.
  • Page 6 1) “ELPRO 13 CEI” PROGRAMMER WITH PLUG-IN JUBI 433 RADIO RECEIVER 2) 0.03 A MAGNETO-THERMAL DIFFERENTIAL SWITCH 3) JUNCTION BOX 4) LEFT-HAND APROLI 280/700 STRONG 5) PHOTOCELL TRANSMITTER POLO 44 ON POST 6) GATE STOP IN OPEN GATE POSITION 7) JUBI SMALL 433 TRANSMITTER...
  • Page 7 Once all the electrical connections have been made, carry out the initial operation tests, adjust the motor run timer 09 for a period of 4-5 seconds more than the real gate opening time; the dwell timer 08, and the leaf closure delay 07 (Pic. 10) In order to set automatic or semiautomatic operation, flick the Dip-switch B: - Automatic Operation: with dip-switch lever No.
  • Page 8 FEATURES OF THE ELECTRONIC PROGRAMMER ELPRO 13 CEI FOR SWINGING GATES All the electrical connections are to be made as per the following instructions and diagrams. Supply the terminals 24-25 with 230V - 50 Hz single phase voltage. The “red LED” switches on and stays on as long as the board is properly supplied. Through the timer No. 9 you can control the running time of the motor in both cycles, OPEN and CLOSE.
  • Page 9: Features And Technical Specifications

    MANUAL RELEASE The Aproli 280/700 Strong manual release makes it possible to move the gate manually, in the case of a power failure or during the initial manual opening and closing tests. The manual release lever – S can be accessed by opening the protection cover with the customized key.
  • Page 10 NOTE: during factory production, the two hydraulic pressure regulators on each individual Aproli 280/700 Strong are distinguished by different colours: on the Right Aproli and the Left Aproli, the red regulator adjusts the drive force of the leaf during closing, while the green regulator adjusts the drive force of the leaf during opening (Pic.12)
  • Page 11: Technical Data

    TECHNICAL DATA ELECTRIC MOTOR OIL-HYDRAULIC PUMP Power output............0.18 KW (0.25 HP) Pump flow rate - P3 ............0.85 l /min. Supply voltage / Frequency........230 V c.a. / 50 Hz Average working pressure........1 MPa (10 bars) Absorbed current................250 W Max. pump pressure ..........3 MPa (30 bars) Absorbed power................1.2 A Working temperature.............–20°C +80°C Capacitor..................12 µF...
  • Page 12: Checking And Maintenance

    CHECKING AND MAINTENANCE: To achieve an optimum performance and longer life of the equipment and in observance of the safety regulations, it is recommended that inspetions and proper maintenance are made by qualified technicians to the whole installation ie. both the mechanical and electronic parts, as well as wiring.
