Summary of Contents for OpenVox FD140

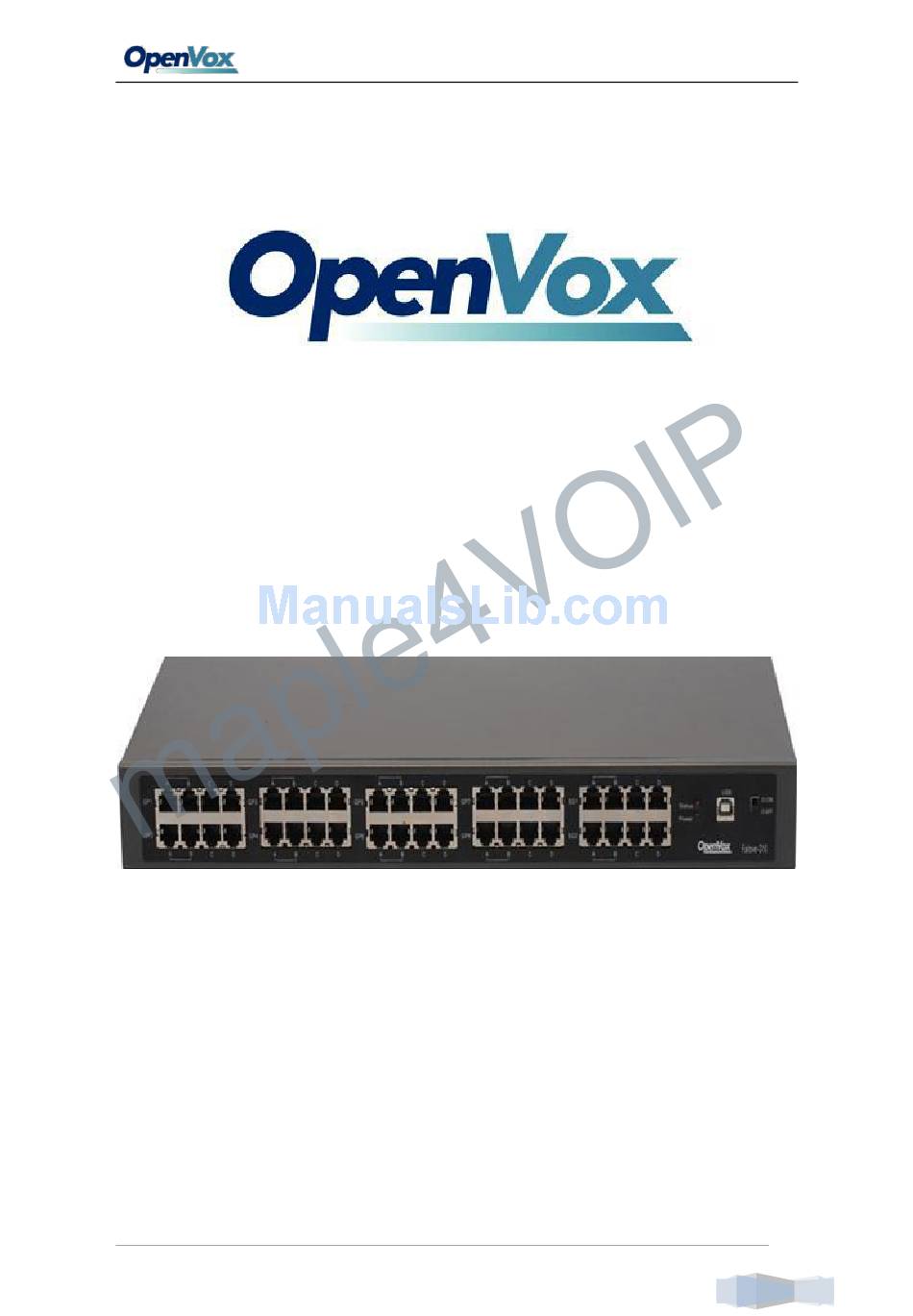

- Page 1 FD140 User Manual OpenVox FD140 User Manual OpenVox Communication Co. Ltd | www.openvox.c...
- Page 2 Address: F/2, Building No.14,Shangsha Science & Technology Park, No.9283,Binhe Road, Futian District, ShenZhen ,Guangdong 518048,China Tel:+86-755-82535095,82535461, Fax:+86-755-82535174 Email for Sales: sales@openvox.com.cn Email for Technical Support: support@openvox.com.cn Business Hours: 9:00AM-18:00PM from Monday-Friday Website： www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. Ltd | www.openvox.c...
-
Page 3: Table Of Contents
FD140 User Manual Contents FD140 Description ................... 4 FD140 Features ..................5 FD140 Installation Guide ................6 Hardware Connection ..............6 Device Driver Detection ..............6 FD140 Working Instruction ............... 8 FD140 Software Installation ..............9 Software Download ................9 Software Installation ................ -
Page 4: Fd140 Description
How to eliminate this problem? The release of OpenVox FD140 failover box for BRI/PRI answers it. The FD140 can automatically switch the BRI/PRI line to the redundant server when the power of the main PBX server has been cut off and will automatically switch back to normal when the power is on again. -
Page 5: Fd140 Features
FD140 work. Only when green light said Asterisk hangs, FD140 switch to the backup phone. Supports multiple FD140 devices in one system. Support the BRI or PRI circuit connection. Each network interface is divided into four mouth end, A, B, C, D, respectively, the interface of A and B are connected. -
Page 6: Fd140 Installation Guide
A or B, D connected to the main network，C connect backup network. FD140 Installation Guide Hardware Connection Device Driver Detection The device driver of FD140 has been integrated with many Linux distributions. Users can run the following command to see if the FD140 OpenVox Communication Co. Ltd | www.openvox.c... - Page 7 FD140 User Manual has been recognized or detected by the system. # dmesg | grep FTDI User can also run the lsusb command to check if the FD140 device is connected. # lsusb OpenVox Communication Co. Ltd | www.openvox.c...
-
Page 8: Fd140 Working Instruction
When the PBX Server is ON and Asterisk works, the signal goes from: 1->LAN(red) 2->Main Network(green) When the power of PBX cut off or Asterisk abnormal work, the signal goes form: 1->LAN(red) 2->Redundant Network(purple) OpenVox Communication Co. Ltd | www.openvox.c... -
Page 9: Fd140 Software Installation
1) Unzip the file #tar –xvzf failover-1.0.1.tar.gz #cd failover 2) Copy the file to res directory under asterisk # cp res_failover.c /usr/src/asterisk-**/res/ 3) Copy the configuration file to /etc/asterisk directory # cp failover.conf /etc/asterisk/ OpenVox Communication Co. Ltd | www.openvox.c... -
Page 10: Explanation Of Configuration Files
;autorun=yes [openvox_failover_1]：Name of FD140 Device, to distinguish from different devices, a must to configuration; device=/dev/ttyUSB0：Name of USB device that FD140 uses, a must to configuration; kick_time_interval：the time interval of software watch dog; the OpenVox Communication Co. Ltd | www.openvox.c... -
Page 11: Steps To Use
autorun：this decides if FD140 will start when asterisk boots; the default is yes which means the FD140 starts when asterisk boots; if no, the FD140 will not start when asterisk boots and user may need manually boot the device by running failover start command. - Page 12 FD140 User Manual 6) Check the connection *CLI>pri show spans 7)Reboot DAHDI *CLI>dahdi restart OpenVox Communication Co. Ltd | www.openvox.c...
-
Page 13: Technical Support
FD140 User Manual Technical Support If you meet any technical problems when using OpenVox products, you can check our Forum for help or contact us directly be the following ways: BBS feedback problems You can put your issued to our BBS encountered technical problems, we will in the shortest possible time solve the problem of you mentioned.
