2.1 Packing List

FOX512 moving light controller includes the items in the carton as follows:
 ONE FOX512 moving light controller
TIPS: Model of product and software version could be checked on boot screen.
 ONE power supply cable, ONE user's manual.
Optional Parts:
USB Disk;

2.2 Safety Caution

The controller must be connected with the protective groundwire!

 No liquid into the controller!
 Please mind dust and moist!

2.3 Interface and Connection of Controller

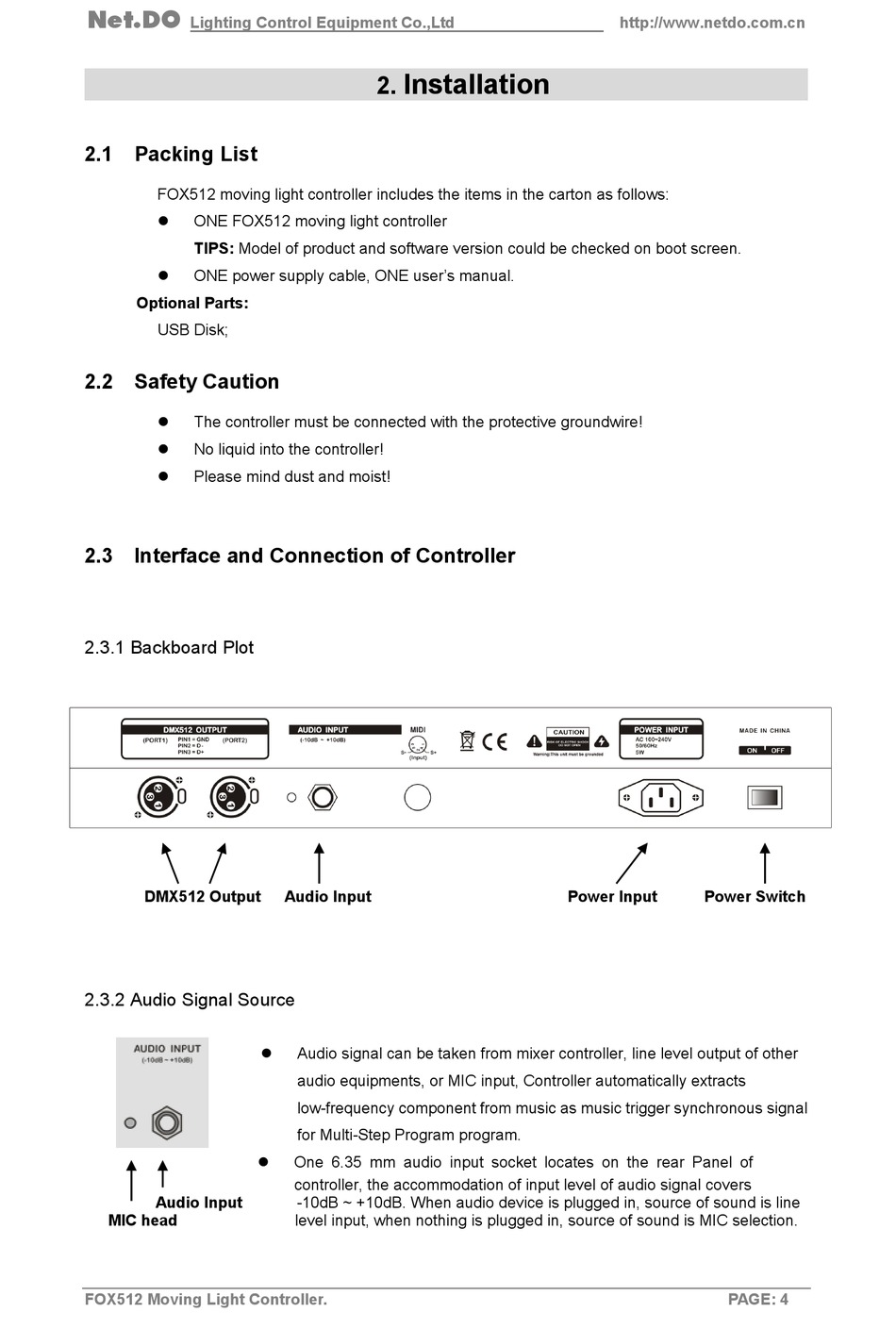

2.3.1 Backboard Plot

DMX512 Output

2.3.2 Audio Signal Source

Audio Input
MIC head
FOX512 Moving Light Controller.

Installation

2.
Audio Input
 Audio signal can be taken from mixer controller, line level output of other
audio equipments, or MIC input, Controller automatically extracts
low-frequency component from music as music trigger synchronous signal
for Multi-Step Program program.
One 6.35 mm audio input socket locates on the rear Panel of

controller, the accommodation of input level of audio signal covers
-10dB ~ +10dB. When audio device is plugged in, source of sound is line
level input, when nothing is plugged in, source of sound is MIC selection.
