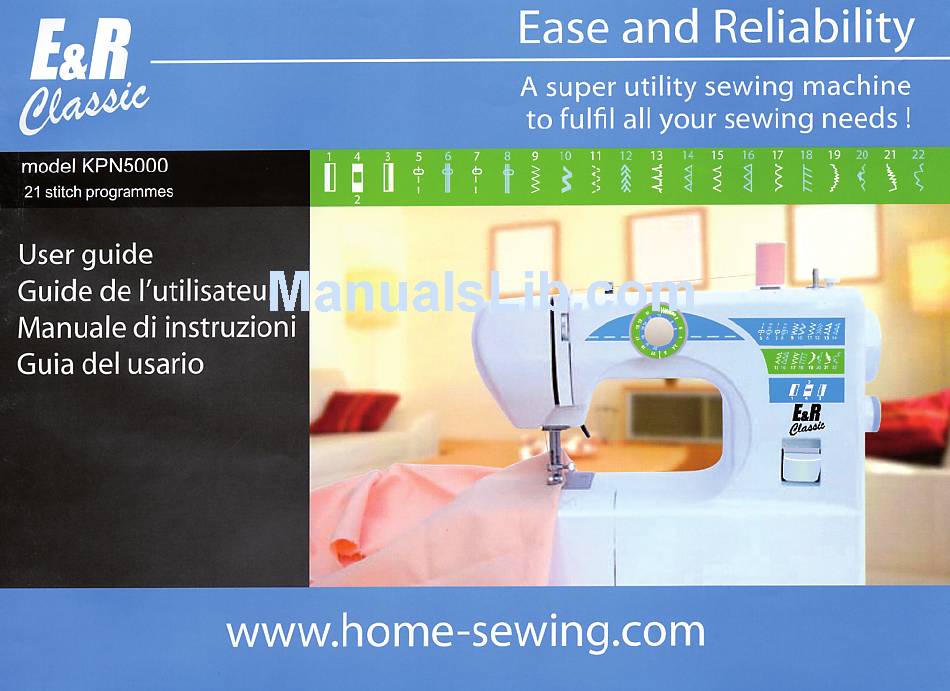

E&R Classic KPN5000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for E&R Classic KPN5000

  • Page 2 English English PDF created with pdfFactory trial version www.pdffactory.com...
  • Page 3 English PDF created with pdfFactory trial version www.pdffactory.com...
  • Page 4 Adjusting Stretch Stitch Balance Sewing Buttons SE CTIO N ESSENTIAL PARTS Reverse Stitch Control Buttonhole Stitching Seam Guide Line Names of Parts Darning Plate Left Needle Position SECTION DECORATIVE STITCHING SE CTIO N GETTING READY TO S EW Shell Tuck SECTIO N BA SI C SE WING Stretch Stitch Patterns...

  • Page 5: Essential Parts

    ESSENTIAL PARTS Names of Parts Bobbin Winder Thread Guide Spool Pins Thread Guide Bobbin Winder Take up Lever Spindle Bobbin Winder Stopper Carrying Handle Arm Cover Plate Face Plate Reverse Stitch Control Balance Wheel Needle Plate Presser Foot Lever Screw Stitch Length Stitch Selector Control...

  • Page 6: Connecting The Machine To The Power Supply

    G ET T IN G R EA D Y TO SE W Connecting the Machine to the Power Supply Foot Control Sewing Light Sewing speed can be The sewing light is located behind the face plate. varied foot Turn the screw counter-clockwise and remove the face cont rol.

  • Page 7: Extension Table (Accessory Storage Box)

    Extension Table (Accessory Storage Box) Extension Table The extension table provides added sewing surface and can be easily removed for free arm sewing. For free arm sewing Pull the end of the extension table away from the machine, as illustrated. For attaching the table Push the extension table until its lugs fit into the machine.

  • Page 8: Changing Needles

    Undo the needle clamp screw just enough to release the needle. Changing Needles Switch off the machine and disconnect the machi ne from the power point. Loosen the needle clamps screw by turning it counter-clockwise. Rem ove the needle from the clamp. Insert the new needle into the needle clamp with the flat side away from you.

  • Page 9: Setting Spool Pins

    Setting Spool Pins Removing or Inserting the Bobbin Case Switch off the machine w hile doing this. Recess of the hook race Horn U pper thread H ole U pper thr ead Tan gle Raise th e ne edle by turni ng the balance When inserting the bobbin case, place Open the hook cover.

  • Page 10: Threading Bobbin Case/Machine

    Threading Bobbin Case Place bobbin into bobbin case. Pull the thread into the bobbin Draw the thread under the tension Make sure the thread unwinds in case slot. spring and into the delivery eye. the direction of arrow. * Leave aboust 10 cm (4 inches) of free thread.

  • Page 11: Drawing Up Bobbin Thread

    Drawing up Bobbin Thread Raise presser foot and hold the needle thread Turn the balance wheel slow ly towards you Pull 15 cm (6") of both threads back and lightly with your left hand. with your right hand until the needle goes under the presser foot.

  • Page 12: Stitch Selector/Length Control

    Stitch Selector The stitch selector only determines the stitch you select, but also Setting mark regulates the stitch width for regular zigzag and rick rack stretch stitches. Stitch Selector NOTE: To avoid needle or fabric damage, be sure your needle is up and out of the fabric when adjusting this control.

  • Page 13: Adjusting Stretch Stitch Balance

    Adj usting S tretch S titch Balance To select Stretch Stitches, set this control at SS position. Stitch Length In stretch stitch sewing,Stitch Length Control should be in the Center position between-and+(SSposition) for mo st materials. Depending upon the type of fabric used.

  • Page 14: Straight Stitch Sewing

    BASIC SEWING Straight Stitch Sewing Make sure the take-up lever is at the highest position before starting Machine Setti n g Stitch Stitch selector Top thread tension Stitch length control control 2 to 6 1.5 ~ 4 The threads are cut the proper length Raise the presser foot and position the For fastening the ends of seams, press for starting the next seam.

  • Page 15: Overedge Stitch

    U TI LI TY STIT CHI NG Overcasting Overedge Stitch Machine Setting Machine Setting Stitch Stitch selector Stitch Stitch selector Top thread tension Top thread tension control 1 to 4 control 1 to 4 Stitch length Stitch length control control 1 to 2 Overedge stitch will be done most This type of stitch is used on the seam...

  • Page 16: Zipper Application

    Zipper Application Rolled Hem Machine Setting Stitch Stitch selector Top thread tension Stitch length Top thread tension Stitch length control 3 to 6 control 2 control 2 to 6 control1.5 to 4 Pin or baste zipper tape to fabric and place it under the foot.

  • Page 17: Sewing Buttons

    Sewing Buttons Machine Setting Stitch Stitch selector Zig Zag foot Stitch length control Top thread tension any number (not control 1 to 4 Darning plate necessary to adjust) Use the darning plate for button sewing. (See page 10 ) strengthen the shank, cut the A pin can be placed on top of the button to form a shank.

  • Page 18: Buttonhole Stitching

    Buttonhole Stitching M ac h in e S et ti ng S t i t c h Stitch selector Top thread tension Buttonhole control 1 to 5 foot. Set the stitch selector at " " , Set the stitch selector at Sew down the left side stopping at sew 5 stotches of bartack and raise Slide both...

  • Page 19: Shell Tuck

    DECO RATI VE STITC HING Shell Tuck Place the folded edge along the slot of Machine Setting foot. The needle should fall off the Stitch Stitch selector edge of the fabric. on the right forming a tuck. Stitch length Top thread tenston control 3 to 9 control 1 to 2 Zigzag foot...
  • Page 20 When caring for your machine, or cleaning it, unthread it and disconnect the presser, even when you change the needle. Disconnect your machine from the power souce CARE OF YOUR MACHINE Di sma n tling a nd A sse m b li ng Ho ok Race Oil with one drop of oil.

  • Page 21: Troubleshooting

    Trouble Shooting Co nd i t i on Cause Ref e ren ce C o n di t i o n Cause Referemce The mac hin e does no t S k ipp ed stit che s 1. Th reads have b een c aught in hook See Page 18 4.
  • Page 22 ADDENDUM USING THE NEEDLE THREADER 1. REMOVE THE PROTECTION COVERING FROM AROUND THE SMALL HOOK. 1.HOLDER 2.HOOK AREA 2. SWITCH OFF THE POWER TO THE SEWING MACHINE 3. MAKE SURE THE NEEDLE IS RAISED TO THE HIGHEST POSITION 4a. HOLD THE THREADER BY ITS HOLDER b.
  • Page 23 DO NOT THROW AWAY! We are committed to the protection of the environment. We strive to minimize the environmental impact of our products by continuously improving product design and our manufacturing methods. At end of life please dispose of this product in an environmentally responsible way. The crossed-out wheelie bin symbol featured above and on the product's data-plate means that this product falls under the scope of the E.U."Waste Electrical and Electronic Equipment"...
