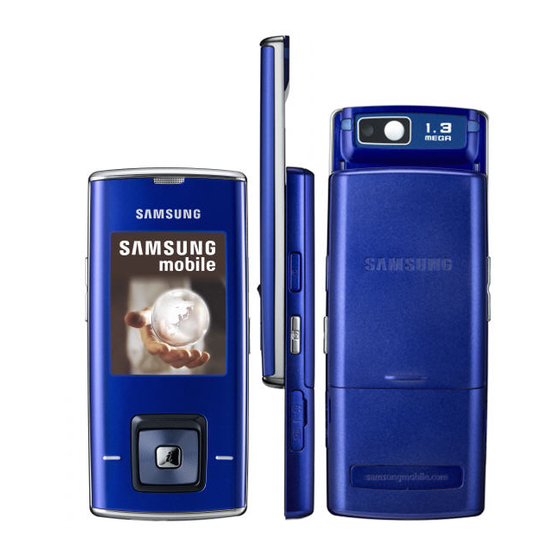

Samsung SGH-J600 Service Manual
Hide thumbs Also See for SGH-J600:

Advertisement

1. Specification
1-1. GSM/DCS1800/PCS1900 General Specification
Fr eq. Band[ MHz]
Uplink/Downlink
ARFCN r ange
Tx/ Rx sp acing
Mod. Bit rat e/
Bit Per iod
T im e S lot
Per iod/ Fra me
Period
Modu lation
MS Power
Power Cl ass
Sensitivity
T DM A M u x
Cell Radius
EG SM 900
Phase 2
880~915
925~960
0~124 & 975~1023
45 MHz
270.833 kbps
3.692 us
576.9 us
4.615 ms
0.3 GMSK
33 dBm~5 dBm
5 pcl ~ 19 pcl
-102 dBm
8
35 Km
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
DCS18 00
Ph ase 1
1710~1785
1805~1880
512~885
95 MHz
270.833 kbps
3.692 us
576.9 us
4.615 ms
0.3 GMSK
30 dBm~0 dBm
0 pcl ~ 15 pcl
-100 dBm
8
2 Km
1-1
PCS190 0
1850~1910
1930~1990
512~810
80 MHz
270.833 kbps
3.692 us
576.9 us
4.615 ms
0.3 GMSK
30 dBm~0 dBm
0 pcl ~ 15 pcl
-100 dBm
8
-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGH-J600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung SGH-J600

  • Page 1 0 pcl ~ 15 pcl 0 pcl ~ 15 pcl Sensitivity -102 dBm -100 dBm -100 dBm T DM A M u x Cell Radius 35 Km 2 Km SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 2: Gsm Tx Power Class

    8±4 dBm 8±4 dBm 9± 3dBm 6±4 dBm 6±4 dBm 7±3 dBm 4±4 dBm 4±4 dBm 5±3 dBm 2±5 dBm 2±5 dBm 0±5 dBm 0±5 dBm SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 3: Flow Chart Of Troubleshooting

    3. Flow Chart of Troubleshooting 3-1 BASEBAND 3-1-1. Power ON 'Power On' does not work Check the current Download again consumption more than 100mA Check the VBAT Charge the Battery more than 3.3V ① Check the VCCD_1.2V_C , Check UCD300 VCCD_1.8V C333 , C340 of UCD300 is more...
  • Page 4 Flow Chart of Troubleshooting RADIO_L STEREO1_IN_L RADIO_R STEREO1_IN_R STEREO2_IN_L/M STEREO2_IN_R/M STEREO_OUT_L STEREO_OUT_L STEREO_OUT_R STEREO_OUT_R PWR_KEEP PWR_KEEP JIG_ON PWR_SW2 PWR_ON PWR_SW1N MIC_B_D RAREF1 RAREF2 RAREF3 C318 C319 C320 KEY_BACKLIGHT LED1_DRV LED2_DRV LED3_DRV RXTX_DATA RXTXDATA RXTX_EN RXTXEN RXTX_I_N RXTXIN RXTX_I_P RXTXIP RXTX_Q_N RXTXQN RXTX_Q_P RXTXQP...
  • Page 5 Flow Chart of Troubleshooting RXTX_DATA RXTXDAT VCCD_1.8V RXTX_EN RXTXEN CP_WEN CP_OEN R211 RTCK IOBIT_0_RTCK FLASH_RST FLASHRSTN PWR_KEEP PWRKEEP TI_RST RESETN RFVDDSEL SCUSTB SCUSTB SM_ADDR_VALID SMADDRVALID SM_CLK SMCLK CLK26M_DBB SYSCLK C220 R218 TEST_0 TEST_1 TEST_2 TRSTN TRSTN TXPSTB TXPSTB UART0VDDSEL VSYN_2.8V VRF_2.9V SIMCLK UP_CLK...
  • Page 6 Flow Chart of Troubleshooting...
  • Page 7 Flow Chart of Troubleshooting 3-1-2. Initial Initial Failure ① Check VCCD_1.2V_C, VCCD_1.8V of UCD300 Check UCD300 and "High" when the phone C333 , C340 is boot on` ② Check the VCCD_2.9V of Check UCD300 and C339 UCD300 is "High" ③ LCD display is O.K? Check HEA601...
  • Page 8 Flow Chart of Troubleshooting RADIO_L STEREO1_IN_L RADIO_R STEREO1_IN_R STEREO2_IN_L/M STEREO2_IN_R/M STEREO_OUT_L STEREO_OUT_L STEREO_OUT_R STEREO_OUT_R PWR_KEEP PWR_KEEP JIG_ON PWR_SW2 PWR_ON PWR_SW1N MIC_B_D RAREF1 RAREF2 RAREF3 C318 C319 C320 KEY_BACKLIGHT LED1_DRV LED2_DRV LED3_DRV RXTX_DATA RXTXDATA RXTX_EN RXTXEN RXTX_I_N RXTXIN RXTX_I_P RXTXIP RXTX_Q_N RXTXQN RXTX_Q_P RXTXQP...
  • Page 9 Flow Chart of Troubleshooting...
  • Page 10: Sim Part

    Flow Chart of Troubleshooting 3-1-3. Sim Part Phone can't access SIM card ① Check the pin 1 of Check the circuit related to CN602(SIM) CN602 Voltage = 3V ② Check the SIM connector's resolder or change (CN602) CN602 connector's to SIM card ③...
  • Page 11 Flow Chart of Troubleshooting CN602 VSIM SIM_RST SIM_CLK SIM_IO C603 C602 C605 C606 C607...
  • Page 12: Charging Part

    Flow Chart of Troubleshooting 3-1-4. Charging Part Abnormal charging part ① The pin #19,#20 of Check TA & IFC501 IFC501 = 5V? ② The pin #4 of U300 is Check the R313 & U300 Low? The pin #8 of U300 is Check the U300 3.5 ~ 4.2V?
  • Page 13 Flow Chart of Troubleshooting VBAT CN601 BATT_OPEN_CHECK 4 NC 6 NC C601 C604 USB_5V VCCD_1.8V VBAT RADIO_ANT L500 R504 CN500 EAR_MIC+ EAR_MIC- EAR_R EAR_COMN EAR_L R505 EAR_SWITCH EAR_JACK_IN R506 SDS_TXD R507 SDS_RXD 13 13 14 14 R508 JIG_ON 16 16 USB_D+ USB_D- 18 18...
  • Page 14 Flow Chart of Troubleshooting 3-12...
  • Page 15: Microphone Part

    Flow Chart of Troubleshooting 3-1-5. Microphone Part Microphone does not work Check the assembled status of Reassemblage microphone microphone. ① Check the reference voltage on mic path resolder or change R408=2.4V (R408, C408) Is microphone ok? Check UCD300 R407 R408 2.2K,1% VAMICREF C409...
  • Page 16 Flow Chart of Troubleshooting HI_MONO_OUT_N HI_MONO_OUT_N HI_MONO_OUT_P HI_MONO_OUT_P LO_MONO_OUT_N LO_MONO_OUT_N LO_MONO_OUT_P LO_MONO_OUT_P MONO1_IN_N MONO1_IN_N MONO1_IN_P MONO1_IN_P MONO2_IN_N MONO2_IN_N MONO2_IN_P MONO2_IN_P MONO_OUT_N MONO_OUT_N MONO_OUT_P MONO_OUT_P RADIO_L STEREO1_IN_L RADIO_R STEREO1_IN_R STEREO2_IN_L/M STEREO2_IN_R/M STEREO_OUT_L STEREO_OUT_L STEREO_OUT_R STEREO_OUT_R PWR_KEEP PWR_KEEP JIG_ON PWR_SW2 PWR_ON PWR_SW1N 3-14...
  • Page 17: Speaker Part

    Flow Chart of Troubleshooting 3-1-6. Speaker Part Speaker does not work Is the terminal of check the specker FPCB Speaker OK? ① Check the Resolder SP K_P& SP K_ N SPK_P & SPK_N "HIGH" ② Change or resolder Check the output ci r cuit around U400 of U400(Audio AMP) ③...
  • Page 18 Flow Chart of Troubleshooting VBAT L403 U400 R400 RCV- L400 SPK- C400 R401 PVSS B3 HI_MONO_OUT_P C1 VIM HI_MONO_OUT_N SPK+ C401 R402 L401 R403 RCV+ AMP_EN C402 C403 R425 R426 C405 C404 R406 R404 R428 3-16...
  • Page 19 Flow Chart of Troubleshooting 3-17...
  • Page 20 Flow Chart of Troubleshooting 3-1-7. LCD LCD does not Display First, Check the connection of HEA601 and LCD ① Have a some problem of Replace a connector (HEA601) connector (HEA601) ② Change or resolder the related Backlight does work circuit of U101(AAT2845) ③...
  • Page 21 Flow Chart of Troubleshooting VCCD_2.9V VBAT HEA601 LCD_DO(0) LCD_DO(1) LCD_DO(2) LCD_DO(3) LCD_DO(4) LCD_DO(5) LCD_DO(6) 10 10 LCD_DO(7) LCD_BL_EN 12 12 LCD_RS_O 14 14 LCD_WEN_O LCD_REN_O 16 16 LCD_CS_O VSYNC 18 18 20 20 HSYNC 22 22 PCLK MCLK 24 24 CAM_Y(7) CAM_Y(6) 26 26...
  • Page 22 Flow Chart of Troubleshooting 3-20...
  • Page 23 Flow Chart of Troubleshooting 3-1-8. Camera Camera does not work Check the connection of CN2 and CAMERA Module Check camera FPCB Change camera module and check of CN101 and CN101 Check the voltage pin 3 & 8 of U101 Change or resolder the (Pin3: 2.8V &...
  • Page 24 Flow Chart of Troubleshooting 3-22...
  • Page 25: Gsm900 Receiver

    Flow Chart of Troubleshooting 3-2. RF 3-2-1. GSM900 Receiver CONTINUOS RX ON RF INPUT : 62CH Cell power : -50dBm CHECK NORMAL CONDITION c atch the channel? L103,L105,C104 CN100 U100 CHECK pin12 ≥ -65dBm? resolder or change U100 U100 CHECK resolder or change pin16 ≥...
  • Page 26: Dcs Receiver

    Flow Chart of Troubleshooting 3-2-2. DCS Receiver CONTINUOS RX ON RF INPUT : 698CH Cell power : -50dBm CHECK NORMAL CONDITION c atch the channel? L103,L105,C104 CN100 U100 CHECK pin12 ≥ -65dBm? resolder or change U100 U100 CHECK resolder or change pin18 ≥...
  • Page 27: Pcs Receiver

    Flow Chart of Troubleshooting 3-2-3. PCS Receiver CONTINUOS RX ON RF INPUT : 698CH Cell power : -50dBm CHECK NORMAL CONDITION c atch the channel? L103,L105,C104 CN100 U100 CHECK pin12 ≥ -65dBm? resolder or change U100 U100 CHECK resolder or change pin20 ≥...
  • Page 28 Flow Chart of Troubleshooting 3-26...
  • Page 29: Gsm900 Transmitter

    Flow Chart of Troubleshooting 3-2-4. GSM900 Transmitter CONTINUS TX ON CONDITION U100 p in12 : UCD200 U 100 MS TX level 19 a bout check & pin 6 : 2.8V CH : 62 2~5dBm? change RBW : 100KHz VBW : 100KHz SPAN : 10MHz U100 pin11 : RFS100, L103, L105,...
  • Page 30: Dcs Transmitter

    Flow Chart of Troubleshooting 3-2-5. DCS Transmitter CONTINUS TX ON CONDITION U100 p in12 : UCD200 U 100 MS TX level 12 about check & pin 6 : 2.8V CH : 698 -5~2dBm? change RBW : 100KHz VBW : 100KHz SPAN : 10MHz U100 pin11 : RFS100, L103, L105,...
  • Page 31: Pcs Transmitter

    Flow Chart of Troubleshooting 3-2-6. PCS Transmitter CONTINUS TX ON CONDITION U100 p in12 : UCD200 U 100 MS TX level 12 about check & pin 6 : 2.8V CH : 698 -5~2dBm? change RBW : 100KHz VBW : 100KHz SPAN : 10MHz U100 pin11 : RFS100, L103, L105,...
  • Page 32 Flow Chart of Troubleshooting CN100 C100 F100 ANT_PAD ANT_GND KMS-515 GSM_LNA_IN_N C104 L100 C102 R111 C101 R110 GSM_LNA_IN_P F101 C108 DCS_LNA_IN_N L101 L102 C110 C109 DCS_LNA_IN_P C111 F102 C112 PCS_LNA_IN_N L104 C114 C113 PCS_LNA_IN_P VCC2 U100 GND5 L106 GND4 VCC1 GND3 GND2 GND1...
  • Page 33 Flow Chart of Troubleshooting 3-31...
  • Page 34: Bluetooth Part

    Flow Chart of Troubleshooting 3-2-7. Bluetooth Part BT connection disable Check BT function ON Enable BT function Check the voltage of Check UCD300 and UCD300 is around change 1.8V Check 26KHz Clock on Check OSC101 U102 Check the Resolder or change assembled status of ANT100 ANT100...
  • Page 35 Flow Chart of Troubleshooting VBT_1.8V ANT100 U101 R104 C128 AIO0 VDD_ANA AIO2 VDD_CORE VDD_PADS PIO0 VDD_PIO PIO1 VDD_RADIO PIO2 VDD_USB PIO3 VDD_VCO C129 C130 C131 C132 PIO4 VSS_ANA PIO5 VSS_DIG PIO6 VSS_PADS PIO7 VSS_PIO F103 VSS_RADIO PCM_CLK PCM_CLK VSS_VCO PCM_TXD PCM_IN PCM_RXD UNBAL...
  • Page 36 Flow Chart of Troubleshooting 3-34...
  • Page 37: Array Course Control

    4. Array course control Test Jig (GH80-03307A) Test Cable (GH39-00478A) RF Test Cable (GH39-00182A) SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 38: Pre-Requsite For Downloading

    • Three binary files for downloading J600. – J600XXYY.s3 : Main source code binary. 4-2. Pre-requsite for Downloading • Downloader Program(OptiFlash.exe) • J600 Mobile Phone • Data Cable • Binary files SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 39: S/W Downloader Program

    2. Select the “Options” -> “Settings” -> “Generic” -> “Specify hardware platform”. Choose hardware platform for the downloader file setting. Set the everything else as the default values which are shown below SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 40 However, OptiFlash will use a slower speed if either the PC’s or the phone’s serial hardware is incapable of handling the selected speed SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 41 Set the directory path and choose the latest s/w binary, for example “J600XXYY.s3”, for the downloader binary setting. The reserved memory regions are included in optiflash program, platform.def. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 42 7. After finishing downloading, Certain memory resets should be done to guarantee the normal performance. 8. Confirm the downloaded version name and etc. : *#1234# Full Reset : *2767*3855# SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 43: Block Diagrams

    5. Block Diagrams SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 44: Pcb Diagrams

    TP204 TP205 CN602 ZD500 U200 VR200 TP200 U500 TP202 U102 TP500 TP_FM_RADIO TP203 TP214 UME200 ZD600 ZD601 UCD300 HEA600 U101 OSC300 CN100 ANT_GND ANT_PAD G501 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 45 U400 F600 V601 F200 V605 V604 ZD603 V603 F601 F602 U300 D300 ZD401 U600 U403 ZD504 ZD503 FPC603 OSC100 TH300 VR400 VR401 TP100TP101 TP402 TP401 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 46: Main Electrical Parts List

    VARISTOR 1405-001082 VR400 VARISTOR 1405-001082 VR401 VARISTOR 1405-001082 VR500 VARISTOR 1405-001082 VR501 VARISTOR 1405-001133 V600 VARISTOR 1405-001133 V601 VARISTOR 1405-001133 V602 VARISTOR 1405-001133 V603 VARISTOR SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 47 R-CHIP 2007-003006 R403 R-CHIP 2007-007308 R304 R-CHIP 2007-007314 R306 R-CHIP 2007-007317 R424 R-CHIP 2007-007318 R408 R-CHIP 2007-007528 R419 R-CHIP 2007-007741 R103 R-CHIP 2007-007766 R407 R-CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 48 R-CHIP 2007-008516 R102 R-CHIP 2007-008516 R220 R-CHIP 2007-008516 R425 R-CHIP 2007-008516 R426 R-CHIP 2007-008531 R502 R-CHIP 2007-008542 R310 R-CHIP 2007-008542 R427 R-CHIP 2007-008542 R429 R-CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 49 C-CER,CHIP 2203-002709 C433 C-CER,CHIP 2203-002709 C435 C-CER,CHIP 2203-005444 R111 C-CER,CHIP 2203-005450 C412 C-CER,CHIP 2203-005450 C418 C-CER,CHIP 2203-005481 C400 C-CER,CHIP 2203-005481 C401 C-CER,CHIP 2203-005482 C122 C-CER,CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 50 C-CER,CHIP 2203-006194 C116 C-CER,CHIP 2203-006194 C318 C-CER,CHIP 2203-006194 C319 C-CER,CHIP 2203-006194 C320 C-CER,CHIP 2203-006194 C508 C-CER,CHIP 2203-006257 C317 C-CER,CHIP 2203-006305 C142 C-CER,CHIP 2203-006318 C108 C-CER,CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 51 C-CER,CHIP 2203-006423 C314 C-CER,CHIP 2203-006423 C344 C-CER,CHIP 2203-006423 C500 C-CER,CHIP 2203-006423 C502 C-CER,CHIP 2203-006423 C504 C-CER,CHIP 2203-006426 C313 C-CER,CHIP 2203-006474 C315 C-CER,CHIP 2203-006556 C103 C-CER,CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 52 C-CER,CHIP 2203-006838 C334 C-CER,CHIP 2203-006838 C335 C-CER,CHIP 2203-006838 C340 C-CER,CHIP 2203-006838 C505 C-CER,CHIP 2203-006842 C602 C-CER,CHIP 2203-006979 C128 C-CER,CHIP 2203-006979 C131 C-CER,CHIP 2203-006979 C201 C-CER,CHIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 53 FILTER-EMI SMD 2904-001592 F100 FILTER-SAW 2904-001599 F101 FILTER-SAW 2904-001600 F102 FILTER-SAW 2909-001283 F103 FILTER-LC 3301-001208 L400 BEAD-SMD 3301-001208 L401 BEAD-SMD 3301-001342 F200 BEAD-SMD 3301-001659 L402 BEAD-SMD SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 54 3711-006514 BTC500 HEADER-BATTERY 4202-001310 ANT100 ANTENNA-CHIP BAT300 BATTERY-LI(2ND) 4302-001130 GH13-00044A U500 IC ASIC-SGHE490 GH70-02367A FPC600 ICT-ON-BOARD CLIP GH70-02367A FPC602 ICT-ON-BOARD CLIP GH70-02367A FPC603 ICT-ON-BOARD CLIP SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 55: Reference Data

    PS : Pilot Symbol QPSK: Quadrature Phase Shift Keying RS : Reed-Solomon SI : Service Information TDM : Time Division Multiplexing TS : Transport Stream SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 56: Safety Precautions

    ● Don't use as you pleases after change other material than replacement registered on SEC System. Otherwise engineer in charge isn't charged with problem that you don't keep this rules. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 57: Esd(Electrostatically Sensitive Devices) Precaution

    ● You must maintain electric contact between ESD and place due to be set up until ESD is connected completely to the proper place or a circuit board. SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
  • Page 58: Product Function

    - Camera and camcorder - Music player - FM radio - Java - Offline mode - Bluetooth - Web browser - Multimedia Message Service - SOS message 10-1 SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization...
