Summary of Contents for ASGUN K96BHAA

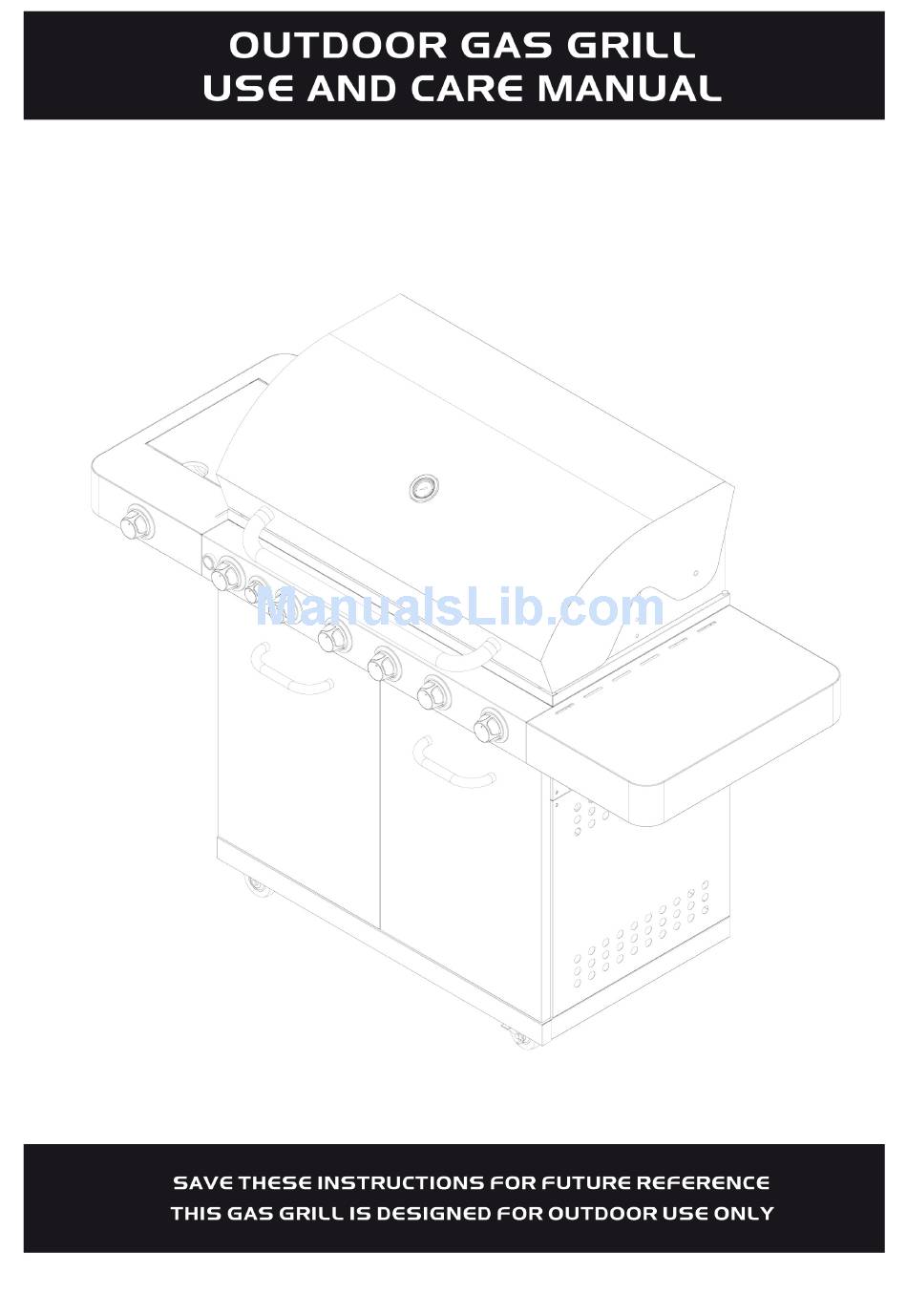

  • Page 1 BARBACOA A GAS VOGUE 8 FAVELLS...

  • Page 3: Exploded View

    2.Exploded View AGSUN...
  • Page 4 3. Single part list Seg. NO. Appellation Seg. NO. Appellation hand insulator hood handle assembly thermometer bezel thermometer hood assembly rear burner cover rear burner assembly rear burner ignition electrode thermocouple rear burner gas supply left side top panel firebox assembly rear side top panel right side top panel grease tray...
  • Page 5 4. Fixing elements hexagon screw M7 washer M5 washer 5/32-32X12 shoulder screw 1/4"-20X12 M6 washer 1/4-20x16 screw 1/4"-20 screw 5.Mounting steps Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill giving specific assembly procedures for each model. Follow these instructions carefully to ensure the correct and safe assembly of the grill.
  • Page 6 STEP2 Figure 2 STEP3 Figure 3 AGSUN...
  • Page 7 STEP4 Figure 4 STEP5 Figure 5 AGSUN...
  • Page 8 STEP6 Figure 6 STEP7 Figure 7 AGSUN...
  • Page 9 STEP8 Figure 8 STEP9 Figure 9 AGSUN...
  • Page 10 STEP10 Figure 10 STEP11 Figure 11 AGSUN...
  • Page 11 STEP 12 Figure 12 STEP 13 Figure 13 AGSUN...
  • Page 12 STEP 14 Figure 14 STEP15 Figure 15 AGSUN...
  • Page 13 STEP 16 Figure 16 STEP 17 Figure 17 AGSUN...
  • Page 14 STEP 18 Figure 18 STEP19 Figure 19 AGSUN...
  • Page 15 STEP 20 Figure 20 Injector Information Main 0.88mm - 3+(28-30/ 37) 0.82mm - 3B/P( 37) 0.80mm - 3B/P( 50) Side 0. 88mm - 3+(28-30/ 37) 0.80mm - 3B/P( 37) 0.75mm - 3B/P( 50) Rear 0. 85mm - 3+(28-30/ 37) 0.82mm - 3B/P( 37) 0.79mm - 3B/P( 50)

  • Page 16: Warning Information

    6.Preparation You will need to purchase a 13kg LPG gas bottle and the pressure regulator should correspond to the pressure and gas category of the appliance , which can be obtained from your nearest Gas Retailer. The regulator should comply with EN12864 with current version and national regulation. You will need to purchase a gas bottle and a regulator to operate this gas grill which can be obtained from your nearest Gas Retailer.
  • Page 17 7.Installation After purchasing your gas bottle you will then be ready to set it up with your gas grill. a) When changing the gas bottle which shall be carried out away from any source of ignition. Position the gas bottle can both underneath or at the side of your gas grill, keeping in mind that the bottle must be kept away from heat and in a safe position.
  • Page 18 How to disconnect a gas bottle a)Except for twin-cylinder installations with a changeover valve, turn off the gas tap if fitted to the appliance. For installations with a changeover valve, it is only necessary to switch off the empty cylinder. b)Replace the orange safety cap onto the empty cylinder.
  • Page 19 9.Safety precautions a) Always test gas line for leaks at connector with soapy water after making connections. b) The top lid must always be open when lighting the burner. c) Use oven gloves and sturdy, long handled gas grill tools when cooking on the grill. d) Be prepared if an accident or fire should occur.
  • Page 20 Side Burner Snap Ignition Note: Each control knob snap igniter creates a spark from the igniter electrode to the burner . You generate the energy for the spark by pushing in the control knob and turning to ”HI”. This will ignite each individual burner.

  • Page 21: Cleaning The Flame Tamers

    11.Storage Your Gas Bottle must be stored outdoors in a well ventilated area and must be disconnected from your gas grill when not being used. Ensure that you are outdoors and away from any sources of ignition before attempting to disconnect your gas bottle from your gas grill. When you are using your gas grill after a period of storage, please ensure to check for gas leaks and check for any obstructions in the burner etc.
  • Page 22 Cleaning the barbecue burners Burners clogged with food or insects can ignite in a flashback fire, which can severely damage your barbecue. To reduce the chance of flash back fire, you should clean the burner tubes and ports as per these instructions monthly in periods of heavy use, and again if the barbecue has not been used for a period over three months.

  • Page 23: Troubleshooting

    We recommend that you inspect the Spider/ Insect screens at least once a year. Also, inspect and clean the Spider/Insect screens if any of the following symptoms occur: 1. The smell of gas in conjunction with the burner flames appearing yellow and lazy. 2.
  • Page 24 If your problem is not resolved from the information above, please call the Gas grill helpline. a)Turn the burner on for 15 to 20 minutes. Grease drippings will be burned off from your grill as well as your lava rock. Ensure appliance is cold before continuing. b)Grids should be cleaned periodically by soaking and washing in soapy water.
