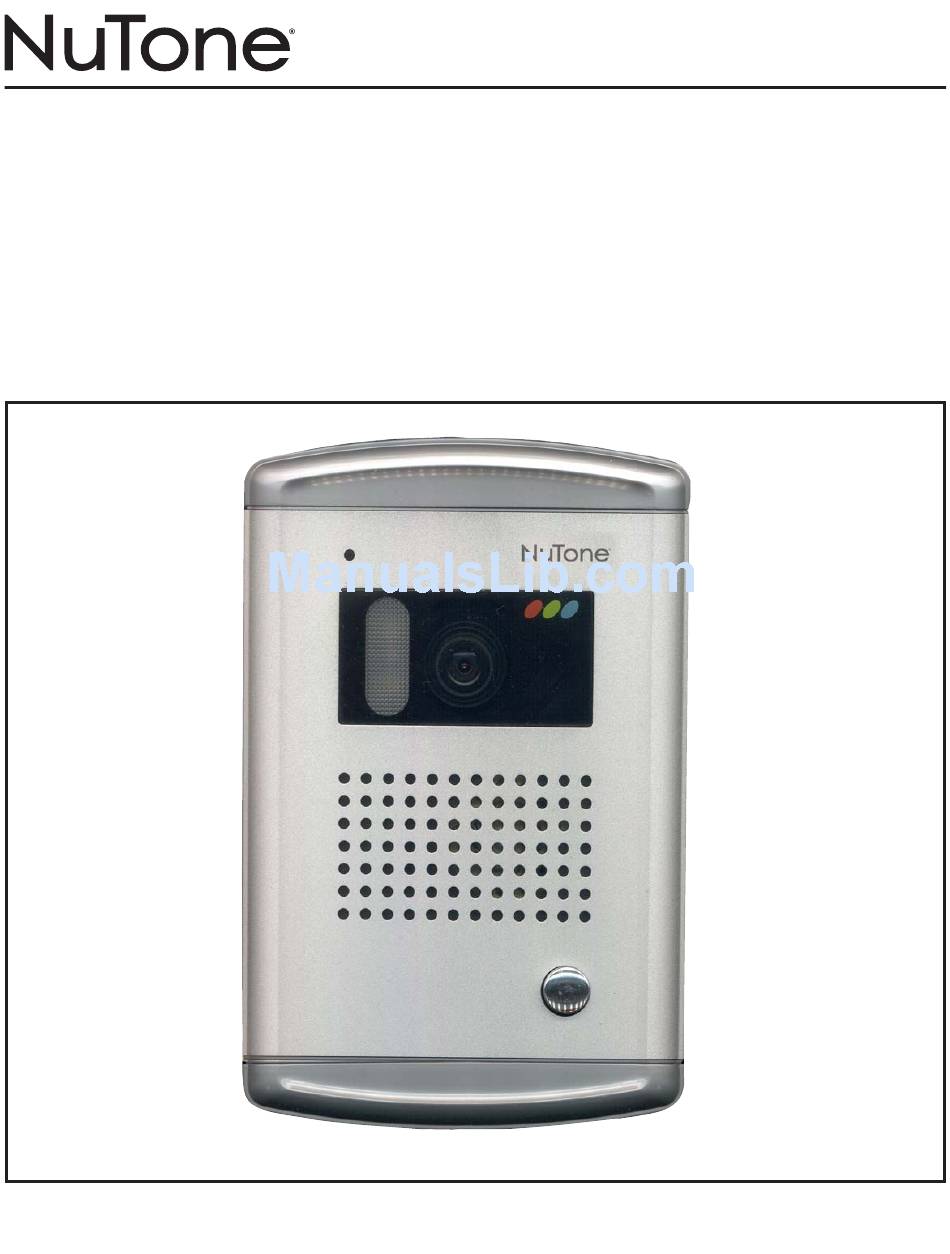

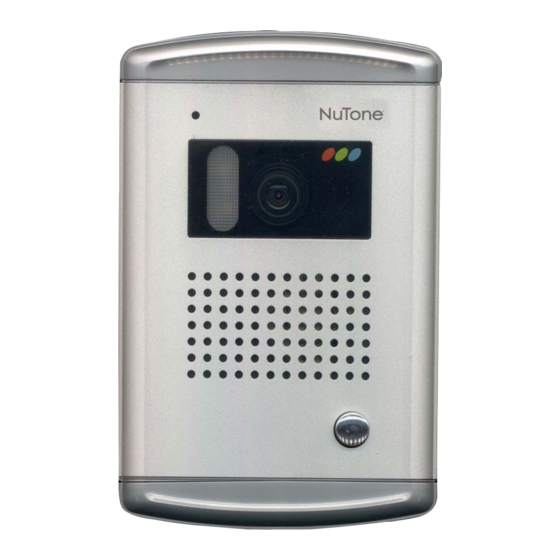

Recessed Mount Door Camera
Model VSC4R
Use with NuTone Models VSUC4RK and VSM4RK

INSTALLATION INSTRUCTIONS

This booklet contains information for installing the camera.
All system wiring and rough-in frames should be installed
before mounting and wiring the master station. Refer to the
installation instructions packaged with the rough-in frames
for detailed wiring information.
TO REGISTER THIS PRODUCT, VISIT WWW.NUTONE.COM
READ & SAVE THESE INSTRUCTIONS!
For more detailed information on wiring and mounting other
system components (i.e., optional camera, rough-in.), refer
to the installation instructions packaged with the separate
components.
INSTALLATION INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSC4R and is the answer not in the manual?

Questions and answers

Summary of Contents for NuTone VSC4R

  • Page 1: Installation Instructions

    Recessed Mount Door Camera Model VSC4R Use with NuTone Models VSUC4RK and VSM4RK INSTALLATION INSTRUCTIONS This booklet contains information for installing the camera. All system wiring and rough-in frames should be installed before mounting and wiring the master station. Refer to the installation instructions packaged with the rough-in frames for detailed wiring information.
  • Page 2: Explanation Of Graphical Symbols

    CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of unin- stalled “dangerous voltage”...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS READ THESE INSTRUCTIONS — All the safety and operating instructions should be read before the product is operated. RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference. HEED ALL WARNINGS — All warning on the product and in the operating instructions should be adhered to.
  • Page 4 the operation instructions. Adjust only those controls that are covered by the operating instruction, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
  • Page 5: Table Of Contents

    VSUC4RK & VSM4RK VIDEO DOOR ANSWERING REPRESENTATIVE WIRING ILLUSTRATION VSM4RK INSTALLATION CONTENTS OF CARTON Check (_) for following VSC4R carton contents: VSC4R Door Camera Hardware bag assembly containing: (2) #6 x 1 1/2" screws (2) #6 flat washers Installation Instructions...
  • Page 6: Precautions And Guidelines

    The door camera must not be mounted in an area that would be subject to direct sunlight or a strong reflec- tion from the sun. Wiring Specifications The VSC4R is designed to connect to the VSUC4RK, or VSM4RK video door answering system using category 5 or cat- egory 6 cable. • Maximum cable length: 250 ft...
  • Page 7: Operational Checkout

    Refer to the instructions provided with NuTone models VSUC4RK, or VSM4RK. Camera Volume Adjustment The VSC4R door camera is provided with a volume level adjustment set screw. The adjustment has been pre-set at the factory to provide the optimal volume level at the door camera. The vol- ume level can be adjusted if your specific application requires the level to be either increased or decreased.
  • Page 8: Fcc Information Part 15 Rules

    FCC Information Part 15 Rules This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion.
  • Page 9: Directives D'installation

    Caméra de surveillance encastrable Modèle VSC4R À utiliser avec les Modèles NuTone VSUC4RK et VSM4RK DIRECTIVES D’ INSTALLATION Cette brochure contient les informations nécessaires à l’installa- tion de la caméra. L’installation de tous les câbles de raccorde- ment et boîtiers doit être achevée avant le montage et le câblage de la station principale.
  • Page 10: Importantes Consignes De Sécurité

    AVERTISSEMENT: POUR PRÉVENIR LE RISQUE DE DÉCHARGE MISE EN GARDE: POUR RÉDUIRE LE RISQUE DE DÉCHARGE SIGNIFICATION DES SYMBOLES GRAPHIQUES Le symbole “éclair” doté d’une tête de flèche et contenu dans un triangle équilatéral signale à l’utilisateur la présence d’une zone de “tension dangereuse” dans le boîtier de l’appareil non installé. Cette tension est suffisamment élevée pour soumettre les personnes à...
  • Page 11 IMPORTANTES DIRECTIVES DE SECURITE 1. LISEZ CES DIRECTIVES — Veuillez lire toutes les directives relatives à la sécurité et au fonctionnement avant d’utiliser cet appareil. 2. CONSERVER CES DIRECTIVES — Veuillez conserver les directives relatives à la sécurité et au fonctionnement pour des références ultérieures.
  • Page 12 B. Du liquide ou des corps étrangers ont pénétré dans le boîtier de l’appareil. C. L’appareil a été exposé à la pluie ou à l’eau. D. L’appareil ne semble pas fonctionner normalement lorsque vous l’utilisez en respectant les directives données. N’effectuer que les réglages expliqués recommandés dans le manuel ;...
  • Page 13: Contenu De La Boîte

    (respecter les codes locaux 120 V c. a. classe 1) INSTALLATION CONTENU DE LA BOÎTE Vérifier (_) le contenu de la boîte du VSC4R, qui se com- pose comme suit: Caméra VSC4R Sac de matériel de fixation contenant: (2) vis no. 6 x 1/2"...
  • Page 14: Spécifications De Câblage

    à une forte réverbération du soleil. Spécifications de câblage La VSC4R est conçue pour être branchée au VSUC4RK ou au portier vidéo électronique VSM4RK avec un câble de catégorie 5 ou 6. • Longueur maximum du câble: 250 pieds.
  • Page 15: Réglage Du Volume De La Caméra

    Réglage manuel de la lentille de la caméra La caméra de surveillance VSC4R est dotée d’un réglage manuel de la lentille. Ce réglage peut être utilisé pour effectuer un ajustement précis de la lentille afin d’améliorer la visibilité des instal- lations ne se trouvant pas dans l’angle direct de la caméra.
  • Page 16 Règlement de la FCC, Partie 15 Cet appareil a été testé et reconnu conforme aux limites prévues pour des appareils numériques de classe B, tel que défini dans la partie 15 du règlement de la FCC. Ces limites sont conçues pour offrir une protection raisonnable contre des interférences dans une installation résidentielle.
