Summary of Contents for E-Boda Beat 100

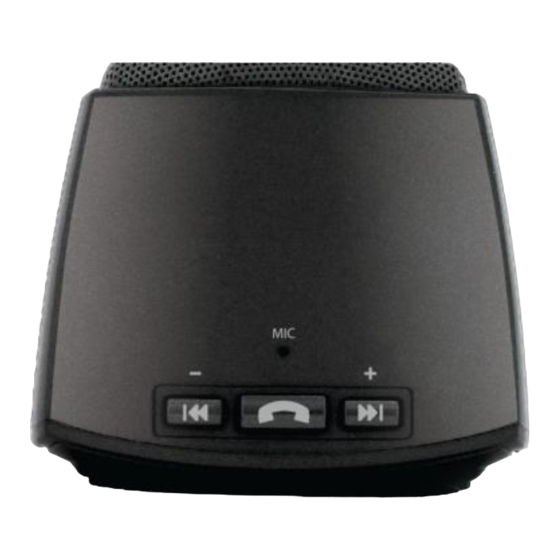

- Page 1 BLUETOOTH MOBILE SPEAKER User’s Manual E-Boda Beat 100...
- Page 2 Introduction Thank you for purchasing the Bluetooth Mobile Speaker, E-Boda The Beat 100. You can use this item with your smartphone or tablet to stream music, and enjoy hands free calling. In order to get the best results when using this device, please read this manual first before using.
-
Page 3: Specifications
Specifications Loudspeaker: 4Ω 3W Built-in Power: Li-ion 400mah Dimensions: 72MM(W)*72MM(L)*63MM(H) SNR: 80±3db Wireless Working Frequency:2.402-2.480GHz Wireless Transmission Distance: up to 10m Weight: 165g Speaker Dimension: 45mm Charging Time: 1-2 hours Package Contents Bluetooth Mobile Speaker USB Charging Cable 3.5mm audio cable User’s Manual... -
Page 4: Important Safety Precautions
Important Safety Precautions When using your Bluetooth Mobile Speaker, basic safety precautions should always be followed, including the following: 1. To avoid electrical hazards, do not expose to water or moisture. 2. Keep this product and its charging cable away from excessive heat. 3. - Page 5 A Quick Look at Your Device 1. Previous Press to access the last track in a playlist. Press and hold to lower the volume. 2. Phone Press this button to activate the speaker phone function. When music is playing, press to play or pause a track. 3.
- Page 6 A Quick Look at Your Device (continued) 1. Charging Port You can plug one end of the included USB Charging Cable into this jack, while plugging the other end into a USB port on your computer in order to charge your speaker’s built in lithium battery.
-
Page 7: Charging Your Speaker
2. ON/OFF Switch Slide this switch to the ON position to power on your speaker. Slide this switch to the OFF position to power off your speaker. Charging Your Speaker 1. Connect one end of the included USB charging cable to the charging port on your speaker. - Page 8 Solid Blue LED: Bluetooth connected. Pairing Bluetooth Devices to Your Speaker In order to pair your Bluetooth audio device to your E-Boda The Beat 200 for the first time, follow the steps below: 1). Make sure your Bluetooth audio source is held within three meters of your speaker.
-
Page 9: Using The Hands-Free Function
4). Search Bluetooth devices and select your speaker to start connecting. 5). Enter “0000” if your device asks for the PIN code. 6). Once paired, the blue LED light will turn on steadily and you can use your speaker to listen to audio from you Bluetooth sound source. Using the Hands-Free Function When a smartphone is connected to your speaker follow the steps below to take calls hands-free. -
Page 10: Troubleshooting
Troubleshooting The speaker doesn’t connect Speaker needs to be connected/re-paired to device to device A tone is heard every few Speaker needs to be charged seconds The speaker will not power on Speaker needs to be charged The speaker doesn’t control Speaker needs to be in Bluetooth mode track(s)/volume for full control...
