TECHNICAL OPERATION HANDBOOK
HD / SD VIDEO ENCODER - MODULATOR
The Document is supplied on the express terms that it is to be
treated as confidential and that it may not be copied, used or
disclosed to others for any purpose except as authorised by
ADVENT COMMUNICATIONS.
Preston Hill House
Nashleigh Hill
Chesham
Bucks HP5 3HE
England
Telephone:
Fax:
International
24 Hour Support
E-Mail
customersupport@adventcomms.com
DVE5000 SERIES
- HPA CONTROLLER
Advent Communications.
National
01494 774400
01494 791127
+44 (0)1494 810410
07802 392669
For

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVE5000 SERIES and is the answer not in the manual?

Questions and answers

Summary of Contents for Advent DVE5000 SERIES

  • Page 1 TECHNICAL OPERATION HANDBOOK DVE5000 SERIES HD / SD VIDEO ENCODER - MODULATOR - HPA CONTROLLER The Document is supplied on the express terms that it is to be treated as confidential and that it may not be copied, used or disclosed to others for any purpose except as authorised by Advent Communications.

  • Page 2: First Aid

    Advent Communications FIRST AID FIRST AID IN CASE OF ELECTRIC SHOCK DO NOT TOUCH THE VICTIM WITH YOUR BARE HANDS until the circuit is broken. SWITCH OFF. If this is not possible, PROTECT YOURSELF with DRY insulating material and pull the victim clear of the conductor.

  • Page 3: Emc Declaration

    Advent Communications EMC DECLARATION 209298 - DVE5000 Technical Operation Handbook - CL140042 Page 3 of 110...

  • Page 4: Federal Communications Commission (Fcc) Statement

    • Properly shielded and grounded cables and connectors must be used to meet FCC emission limits. Advent Communication Ltd is not responsible for any radio or television interference caused by using other than recommended cables or connectors. Unauthorized changes or modifications to the equipment could void the user’s authority to operate the equipment.

  • Page 5: Amendment Record Sheet

    Advent Communications AMENDMENT RECORD SHEET DATE SOFTWARE DESCRIPTION OF CHANGE VERSION 14/01/2007 16/02/2007 Draft Checking 23/02/07 0.05 First Release 07/03/07 0.05 Text error corrected 12/03/07 0.05 Menu operation clarification 02/04/07 0.05 31/5/07 1.03 Post Beta units Software Release 08/08/07 1.05...

  • Page 6: Table Of Contents

    Advent Communications CONTENTS FIRST AID EMC DECLARATION FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT AMENDMENT RECORD SHEET CONTENTS INTRODUCTION SPECIFICATION 2.1. PHYSICAL 2.2. INPUTS 2.3. OUTPUTS 2.4. REMOTE CONTROL / MONITORING / HPA CONTROL 2.5. PERFORMANCE 2.5.1 Baseband: 2.5.2...
  • Page 7 Advent Communications 6.3.1 OUTPUT MODE 6.3.2 RF OPTIONS 6.3.3 AUDIO VIDEO (A/V) OPTIONS 6.3.4 REMUX 6.4. SYSTEM 6.3.5 HELP 6.3.6 REMOTE INTERFACE 6.3.7 SERVICE 6.3.8 TIME 6.3.9 MISC. 6.3.10 LICENCES 6.3.11 TEMPERATURE OPERATION PROCEDURE - HPA CONTROL 7.1. INTRODUCTION 7.2.

  • Page 8: Introduction

    Advent Communications INTRODUCTION The DVE5000 series Digital Video Exciters are a combined HD / SD MPEG Encoder, Modulator and integral serial HPA controller, all contained within a single ½ width 1U-rack unit. Output options include: “70MHz” 52 - 88MHz “L- Band”...

  • Page 9: Specification

    Advent Communications SPECIFICATION 2.1. PHYSICAL Dimensions 1RU ½ width chassis x 350 mm deep Weight 1.7 Kg approx. Power connector 3 Pin IEC plug with dual fusing AC Supply 90-264V AC 47 to 63 Hz @ <60 VA Temperature Range 0 to +50°...

  • Page 10: Remote Control / Monitoring / Hpa Control

    Advent Communications 2.4. REMOTE CONTROL / MONITORING / HPA CONTROL Remote Control (serial) RS232 / RS485 auto switch by plug insertion For field up-grades Remote Control (Ethernet) 10/100Mbits/s IP Address (default) 192.168.0.90 255.255.255.0 Netmask MAC address 00.1D.65.xx.xx.xx (x is generated from serial...

  • Page 11: A/V Compression

    Advent Communications 2.5.2 A/V Compression: SD 4:2:0 Main Profile @ Main level 1.0 – 15 Mbits/s constant rate (I & P frames only) (minimum dependant on FEC) Option SD 4:2:2 Profile @ Main Level 1.0 - 50 Mbits/s constant rate (I &...
  • Page 12 Advent Communications HD 1080PsF30 SD PAL-N HD 1080PsF29 SD PAL-M HD 1080PsF25 SD PAL-I HD 1080PsF24 SD NTSC No Pedestal HD 1080PsF23 SD NTSC HD 1080p/30 HD 1080p/29 SD SDI 525 HD 1080p/25 SD SDI 625 HD 1080p/24 SD Horizontal resolution - HD 1080p/23 704 / 720 (options available).
  • Page 13 Advent Communications 2.5.4 RF: Frequency range 70MHz 52 – 88MHz (dependant on symbol rate / bandwidth) Frequency range L-Band 950 – 1750MHz +/-0.75dB Frequency step size 1KHz Frequency stability +/-2 x 10e-8 Phase Noise To IESS 308/309 On / Off ratio...

  • Page 14: Front Panel Detail

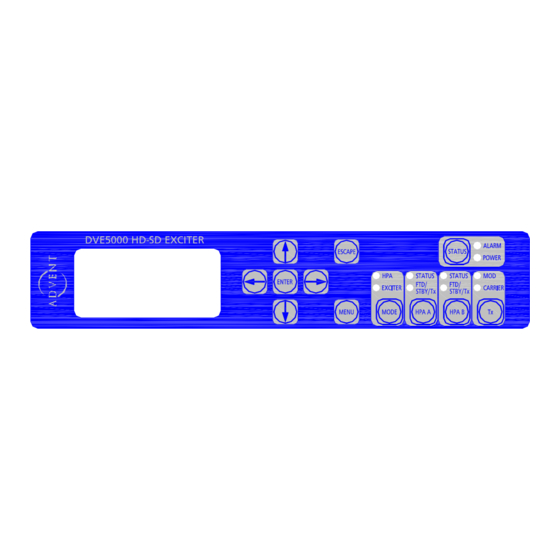

    Advent Communications FRONT PANEL DETAIL DVE5000 HD-SD EXCITER 3.1. SELECTION KEYS The <MENU> key allows rapid entry to main operating menu screen. Pressing while in main screen returns to top of previous menu tree accessed. The <ESCAPE> key acts like the UP ARROW key when navigating around the menus, taking the user up a level at each press.

  • Page 15: Led's

    Advent Communications 3.4. LED’S ALARM – This red LED illuminates when an internal error has occurred. The type of error is listed under the FAULT menu option. Causes for a fault to be indicated are: 1. Secondary alarm summary 2. Clock error 3.

  • Page 16: Menu Structure Exciter And Hpa Control

    Advent Communications MENU STRUCTURE EXCITER AND HPA CONTROL 209298 - DVE5000 Technical Operation Handbook - CL140042 Page 16 of 110...
  • Page 17 Advent Communications UNIT SYSTEM SETUP continued continued REMOTE OUTPUT MODE RF OPTIONS A/V OPTIONS REMUX HELP EVENT LOG SERVICE INTERFACES Serial Port Ethernet Port Signal Type BUC DC Supply Format HD / SD Internal Encoder Support Event log Mode Local Oscillator...
  • Page 18 Advent Communications HPA A Status HPA Status Screen Output Level CONFIGURATION SERVICE HPA Type Detected Address Detected Address VERSIONS HPA Control Type Module Software Revision DVE5000 Unit Library Menu Library HPA controller MENU TREE HPA type = None 209298 - DVE5000 Technical Operation Handbook - CL140042...
  • Page 19 Advent Communications HPA Status Screen HPA A Status HPA B Status Output Level SYSTEM GAIN CONFIGURATION REDUNDANCY SERVICE HPA A GAIN HPA Type Online HPA Detected Address HPA B GAIN Protection BUC GAIN Detected Address (l-band) ELAPSED HOURS HELIX RESET...

  • Page 20: Rear Panel Detail

    Advent Communications REAR PANEL DETAIL Note rear panel changed October 2008 ! ! ! ! CAUTION: the side ventilation grilles must be kept clear to allow adequate airflow. 4.1. AUDIO INPUT (A & B) Four channels of analogue or digital AES / EBU (option) are via a 15 way D male connector; pin...

  • Page 21: Monitor, Control Hpa Control And Mpeg Data

    Advent Communications 4.2. MONITOR, CONTROL HPA CONTROL AND MPEG DATA This connection is via a female 15way D connector, labelled at rear panel as RC&M/HPA/DATA. The pin assignments are defined below and are divided into separate functions for clarity but all share the same connector.
  • Page 22 Advent Communications HPA CONTROL: Serial control of a variety of HPA’s or SSPA’s can be controlled by connection to this 15 Way D Female, RS485 port as shown below. PIN# Signal Description Remark RS485 RX data - (B) FROM HPA...

  • Page 23: Ac Power

    Advent Communications 4.3. AC POWER Power in the range 90 – 264Vac is connected by means of a 3-pin IEC connector at the rear panel. Live & Neutral conductor fusing is employed. The two fuses integrated into the IEC connector should be ceramic at T5A rating each.

  • Page 24: Asi / If Output

    4.11. ETHERNET / USB PORTS The Ethernet port is used for remote control of the DVE5000. For further information please contact Advent Communications. The USB ports are provided to enable the DVE5000 to have any of the internal programmable parts up-graded in the field.

  • Page 25: Operation Guide - Exciter

    5.1. AC POWER CONNECTION Connect the unit to AC power source at the IEC inlet in the range 90 – 264V. After a few seconds the Advent logo will be displayed followed by the main menu – Example: L-band DVBS mode...

  • Page 26: Menu Navigation - Exciter

    Advent Communications MENU NAVIGATION - EXCITER With reference to the MENU TREE shown earlier, the following operational menus can be accessed, by pressing the MENU key, from the initial main menu screen. Then, using the up / down arrow keys to select the parameter to be changed followed by the ENTER key to select the next menu layer.

  • Page 27: Encoder

    Advent Communications 6.1. ENCODER By using the up / down arrow keys, highlight ENCODER and press ENTER key. This screen will be displayed: - - prompt - VIDEO FORMAT: AUDIO FORMAT: ENCODER SETUP: 6.1.1 VIDEO FORMAT By using the up / down arrow keys, highlight VIDEO FORMAT and press ENTER key.
  • Page 28 Advent Communications This screen will be displayed if in the menu VIDEO OPTIONS the FORMAT is set to SD: - - Video - Format: Bars: Resolution: Line Detect: FORMAT: the following video formats can be selected; Use up / down arrow keys to select, press ENTER to confirm or ESCAPE to cancel selection.

  • Page 29: Audio Format

    Advent Communications 6.1.2 AUDIO FORMAT Overview - A total of 4 inputs A, B, C, D (4 stereo pairs / 8 channels) may be processed by the DVE5000. Audios A and B may be used from a combination of sources, for example Audio A may come from the embedded (HD)SDI signal and Audio B from the Analogue inputs.
  • Page 30 Advent Communications Available inputs & associated processing:- Front panel Available Audio Selection processing. selection. MPEG Layer 1 R / AES MPEG Layer 2 EMBED Linear Dolby Pass Thru’ MPEG Layer 1 R / AES MPEG Layer 2 EMBED Linear Dolby Pass Thru’...
  • Page 31 Advent Communications Embedded combinations, menu display shown below – Audio A / C : Audio B / D: SDI Gp1 Ch 1+2 SDI Gp1 Ch 3+4 SDI Gp2 Ch 5+6 SDI Gp2 Ch 7+8 SDI Gp3 Ch 9+10 SDI Gp3 Ch 11+ 12...
  • Page 32 Advent Communications Audio selection - AUDIO A (B) By using the up / down arrow keys, highlight AUDIO A (B) and press ENTER key. This screen will be displayed: - - Audio x - Input: Test Tone: Standard: Lang: MORE>...
  • Page 33 Advent Communications MORE>: Further audio options are accessed from the next page The options available in this ‘MORE’ menu are dependant on the ‘Standard’ set on the previous screen. - Audio x - Input: Test Tone: Standard: Lang: MORE> Standard = Mpeg 2 Layer 1 or 2 –...
  • Page 34 Advent Communications AUDIO C (D) By using the up / down arrow keys, highlight AUDIO C (D) and press ENTER key. This screen will be displayed: - - Audio x - Input: Test Tone: Standard: Lang: MORE> INPUT: Choice is fixed at (HD)SDI HD (SDI) embedded selection is defined by ‘group’...

  • Page 35: Encoder Setup

    Advent Communications PRESS ESCAPE to return up a menu level. 6.1.3 ENCODER SETUP By using the up / down arrow keys, highlight ENCODER SETUP and press ENTER key. This screen will be displayed: - - prompt - PROFILE: SCRAMBLING: VBI/DATA: IDENTIFIERS: 6.1.4...

  • Page 36: Scrambling

    Advent Communications 6.1.5 SCRAMBLING By using the up / down arrow keys, highlight SCRAMBLING and press ENTER key. This screen will be displayed: - - Scrambling - Scrambling: Type: Key: NOTE- Parameters must be set in the following order – Scrambling ‘OFF’, Select ‘TYPE’, Set ‘KEY’, Scrambling ‘ON’.

  • Page 37: Vbi / Data

    Mode 1 is compatible mode with other manufacturers eg Tandberg. Mode 2 is proprietary with Advent IRD. Mode 3 is proprietary low delay with Advent IRD (contact factory for availability) Use up / down arrow keys to select, press ENTER to confirm or ESCAPE to cancel selection.

  • Page 38: Identifiers

    Advent Communications 6.1.7 IDENTIFIERS By using the up / down arrow keys, highlight IDENTIFIERS and press ENTER key. This screen will be displayed: - - prompt - Audio / Video IDs: NETWORK INFO: CARRIER INFO: NIT INFO: By using the up / down arrow keys, highlight A/V DATA and press ENTER key.

  • Page 39: Network Id's

    Advent Communications 6.1.8 NETWORK ID’S By using the up / down arrow keys, highlight NETWORK ID’S and press ENTER key. This screen will be displayed: - - Network - Service Name: Network Name: Network PID: TS PID: Service (name): Enter here the service name, select each character position and using the up / down arrow keys select the required character, use left / right arrow keys to move along the word.

  • Page 40: Carrier

    Enter up to 9 Characters; Use up / down arrow keys to select, press ENTER to confirm or ESCAPE to cancel selection. Note future release can take the data from GPS information of an Advent antenna control system. PRESS ESCAPE to return up a menu level.

  • Page 41: Nit

    Advent Communications 6.1.10 By using the up / down arrow keys, highlight NIT and press ENTER key. This screen will be displayed: - - Downlink - Downlink NIT: Freq: Posn: Pol: Dir: Downlink NIT: set here to ON to use the DVE5000 with a domestic / cable style downlink receiver, for none of these applications the ‘network information tables’...

  • Page 42: Presets

    Advent Communications 6.2. PRESETS A total of 200 ‘preset’ configurations can be stored, and recalled. A ‘preset’ is a ‘snapshot’ of the complete DVE5000. Press MENU key twice to navigate to this screen – - prompt - ENCODER PRESETS UNIT SETUP SYSTEM By using the up / down arrow keys, highlight PRESETS and press ENTER key.

  • Page 43: Unit Setup

    Advent Communications 6.3. UNIT SETUP Press MENU key twice to navigate to this screen – - prompt - ENCODER PRESETS UNIT SETUP SYSTEM By using the up / down arrow keys, highlight UNIT SETUP and press ENTER key. This screen will be displayed: -...

  • Page 44: Output Mode

    Advent Communications 6.3.1 OUTPUT MODE By using the up / down arrow keys, highlight OUTPUT MODE and press ENTER key. This screen will be displayed: - - Output Mode - Signal Type: Mode: Polarity: Rolloff: More> Signal Type: Choices of output type are, ASI only, 70MHz Only, L-band (with ASI monitor); Use up / down arrow keys to select, press ENTER to confirm or ESCAPE to cancel selection.

  • Page 45: Rf Options

    Advent Communications 6.3.2 RF OPTIONS By using the up / down arrow keys, highlight RF OPTIONS and press ENTER key. This screen will be displayed: - - RF Options - BUC DC SUPPLY: Power-on Tx: 0dB Level: MORE> BUC DC SUPPLY: 17V DC may be enabled on the main L-Band output using this menu option, so as to power an external SHF block Upconverter;...
  • Page 46 Advent Communications Power-on Tx: The choices are LAST or OFF. This menu function allows the operator to select the power up state of the Tx (modulation & carrier) function. LAST will set the modulation and carrier state to the state they were in when the DVE5000 powered down.

  • Page 47: Audio Video (A/V) Options

    Advent Communications 6.3.3 AUDIO VIDEO (A/V) OPTIONS By using the up / down arrow keys, highlight VIDEO OPTIONS and press ENTER key. This screen will be displayed: - - Audio / Video Options - Format: Video Loss: Coding / Aspect: Audio Std: Format: Choices are HD or SD, carrier must be turned off to allow this selection to be made.

  • Page 48: Remux

    Advent Communications 6.3.4 REMUX By using the up / down arrow keys, highlight REMUX and press ENTER key. This screen will be displayed: - - Remux - Internal Encoder: Ext ASI Input: ASI Rate: Remux: An external ASI signal may be connected to the DVE5000 at the rear panel using the connector labelled ASI I/P.

  • Page 49: System

    SERVICE 6.3.5 HELP The HELP screens should be used to provide information to Advent customer support department in the event of a problem or up-grade requests. By using the up / down arrow keys, highlight HELP and press ENTER key.
  • Page 50 Advent Communications By using the up / down arrow keys, highlight UNIT VERSION and press ENTER key. This screen will be displayed showing the software version (Sw) of the actual DVE unit and its serial number (Ser) and various other version numbers which should be quoted on request by cutomer service in the event of a problem: - NOTE: the serial number is set at the factory and should not be changed by user.

  • Page 51: Remote Interface

    Advent Communications 6.3.6 REMOTE INTERFACE By using the up / down arrow keys, highlight REMOTE INTERFACE and press ENTER key. This screen will be displayed: - - Remote Serial Port - SERIAL PORT ETHERNET PORT By using the up / down arrow keys, highlight SERIAL PORT and press ENTER key.
  • Page 52 00-1D-65 identifies the address as part of the Vislink group of companies, -10xx- identify this address as an Advent Communications product, and the final bytes are the HEX representation of the lower six digits of the unit serial number assigned at manufacture.

  • Page 53: Service

    Advent Communications 6.3.7 SERVICE Press MENU key twice to navigate to this screen – - prompt - ALARMS EVENT LOG REMOTE I/F SERVICE By using the up / down arrow keys, highlight SERVICE and press ENTER key. This screen will be displayed: -...

  • Page 54: Misc

    Advent Communications 6.3.9 MISC. By using the up / down arrow keys, highlight MISC and press ENTER key. This screen will be displayed: - - Miscellaeneous - Lamp Test: Contrast: Default Enc: Fault Test: Lamp Test: Selecting YES initiates a lamp test routine to check all are ok.

  • Page 55: Temperature

    Advent Communications 6.3.11 TEMPERATURE By using the up / down arrow keys, highlight TEMPERATURE and press ENTER key. This screen will be displayed: - - Temperature - Unit Temp: ENC Temp: UC Temp: Unit Temp: Read only display of unit temperature. This will normally be approximately 5 degrees above ambient.

  • Page 56: Operation Procedure - Hpa Control

    L-Band RF output. The modulated signal can be decoded by AUC5000, Exos and AUC5814 block up-converter products from Advent. The HPA control would be connected to the block up-converter in this configuration; a single L-band cable is the only required connection between the DVE and the HPA (via the up-converter).

  • Page 57: Menu Navigation

    When set to ‘L-Band’, a modulated FSK carrier is added to the L-band RF output of the DVE5000. The modulated signal can be decoded by AUC5000, Exos and AUC5814 block up-converter products from Advent. WARNING! 17V DC is applied to the L-Band RF output connector when in L-band control mode.

  • Page 58: System Gain

    This function is not available in RS485 mode, only L-Band control mode with AUC5000, Exos and AUC5814 block up-converter products from Advent. Output Level: This menu controls the drive level from the DVE5000 at L-band. 209298 - DVE5000 Technical Operation Handbook - CL140042...

  • Page 59: Redundancy

    Advent Communications PRESS ESCAPE to return up a menu level. 7.2.3 REDUNDANCY By using the up / down arrow keys, highlight REDUNDANCY and press ENTER key. This screen will be displayed: - - redundancy control - Online HPA: Protection: Online HPA: Choose between HPA or HPA B, this controls the waveguide switch at the output of the 2 HPA’s in a 1:1 redundancy system.

  • Page 60: Elapsed Hours

    Advent Communications 7.2.5 ELAPSED HOURS By using the up / down arrow keys, highlight ELAPSED HOURS and press ENTER key. This screen will be displayed: - - Elapsed Hours - HPA A HV Hours: HPA B HV Hours: HPA A (B) HV Hours: This menu option shows the number of hours the High Voltage has been applied to the TWTA.

  • Page 61: Reset

    Advent Communications PRESS ESCAPE to return up a menu level. 7.2.7 RESET By using the up / down arrow keys, highlight RESET and press ENTER key. This screen will be displayed: - - HPA Reset - HPA A Fault Reset: HPA B Fault Reset: HPA A (B): Fault Reset: In the event of a fault in an HPA , ‘reset’...
  • Page 62 Advent Communications HPA A Status HPA Status Screen Output Level CONFIGURATION SERVICE HPA Type Detected Address Detected Address VERSIONS HPA Control Type Module Software Revision Unit Library Menu Library DVE5000 HPA controller MENU TREE HPA type = None 209298 - DVE5000 Technical Operation Handbook - CL140042...
  • Page 63 Advent Communications HPA Status Screen HPA A Status HPA B Status Output Level SYSTEM GAIN CONFIGURATION REDUNDANCY SERVICE HPA A GAIN HPA Type Online HPA Detected Address HPA B GAIN Protection BUC GAIN Detected Address (l-band) ELAPSED HOURS HELIX RESET...

  • Page 64: Remote Control Revision History

    Advent Communications REMOTE CONTROL REVISION HISTORY AMENDMENT RECORD SHEET DATE SOFTWARE DESCRIPTION OF CHANGE VERSION 14/01/2007 29/01/2007 Remote lock function removed. Some comments updated 30/01/2007 Updated bulk status query command 31/01/2007 Added PTS & VBI commands 02/02/2007 Software version now 10 character...

  • Page 65: Remote Control (Rs232 /485)

    Advent Communications REMOTE CONTROL (RS232 /485) 8.1. INTRODUCTION This equipment is designed to be operated either locally (using the front panel) and/or remotely using remote control and monitoring software (not supplied) running on a PC platform. The remote command set enables control of all operational functions of the unit and querying of the current status of the unit.

  • Page 66: Setup Instructions

    Advent Communications 8.4. SETUP INSTRUCTIONS Connect a suitable cable between the PC COM port and the RC&M connector at the rear panel of the DVE5000 unit. The pin connections to be used are shown in the above section. The selection of RS232 or RS485 is controlled by pin 13 of the RC&M connector. OPEN...

  • Page 67: Packet Structure

    Advent Communications 8.5. PACKET STRUCTURE This product uses a non-printable packet format. This means that the full range of 255 ASCII characters can appear in the message. The format of all messages is: [STX] [BYTE COUNT] [ADDRESS] [DATA..] [CHECKSUM] [ETX] STX (start of transmission) STX is the ASCII character 2.

  • Page 68: Commands, Queries And Responses

    Advent Communications 8.6. COMMANDS, QUERIES AND RESPONSES 8.6.1 Definitions A command is an instruction sent from the remote PC to the unit to change some operating parameter or display mode. A query is an instruction sent from the remote PC to the unit for the unit to report one, or many, operating parameter.

  • Page 69: Response To Invalid Commands

    Advent Communications 8.6.3 Response to invalid commands A message can be invalid for four reasons: the unit is busy, the command was invalid or the parameters were invalid. Error 1 – unit busy This will occur if the unit is displaying “Unit busy, please wait” (for example during a...

  • Page 70: Dve5000 Remote Command Set

    Advent Communications 8.6.4 DVE5000 remote command set Note: All commands are case sensitive and should be entered as described (some commands are in upper case, some commands are lower case). These settings are not available from the front panel. These settings are only available if the correct options have been fitted These settings are dependent on other settings ↔...
  • Page 71 Advent Communications Encoder serial number Command not available Response not available Query RGSER Response RGSERxxxxxxxx Parameters xxxxxxxx –serial number Encoder Software Command not available revision Response not available Query RGSOF Response RGSOFxxxxxxxxxx Parameters xxxxxxxxxx – software revision Up-converter Software Command...
  • Page 72 Advent Communications Clear event log Command WCLRE1 Response RCLRE0 Query not available Response not available Parameters not available Alarm query Command not available Response not available Query REVNT Response REVNTxxxxxxxxxxxxxxxxxxxxxxxxxxxxx Parameters xxxxxxxxxxxxxxxxxxxxxxxxxxxxx – alarm list (1 = alarm, 0 = OK). The alarms are listed in the following order: 1.
  • Page 73 Advent Communications Event log query Command not available Response not available Query RELOG Response RELOGxxx… Parameters xxx… is a list of the 10 most recent events in the event log (if there are fewer than 10 events then the data will be padded with ‘-‘s).

  • Page 74: Remote Exciter Settings

    Advent Communications 8.6.6 Remote Exciter settings Carrier Command WCARRx Response RCARRx Query RCARR Response RCARRx Parameters x – carrier state (0 – OFF, 1 – ON, 2 – OFF due to an alarm) Modulation Command WCCARx Response RCCARx Query RCCAR...
  • Page 75 Advent Communications Note: this command takes the band into consideration; frequencies are as follows: 950000 1750000 5850000 6650000 7900000 8400000 KU-1 12750000 13250000 KU-2 13750000 14500000 KU-3 14000000 14500000 KU-6 13750000 14500000 DBS1 17300000 18100000 DBS2 17600000 18400000 Transmit gain Command WRGAIxxx.x...

  • Page 76: Remote Encoder Settings

    Advent Communications 8.6.7 Remote Encoder settings Profile Command WEPROx Response REPROx Query REPRO Response REPROx Parameters x – profile (0=4:2:0, 1=4:2:2) Auto video rate Command WEAUTx Response REAUTx Query REAUT Response REAUTx Parameters x – auto video rate (0=OFF, 1=ON)
  • Page 77 Advent Communications Response REGOPxx Query REGOP Response REGOPxx Parameters xx – GOP length (no units) Video PID Command WEPIDxxxx Response REPIDxxxx Query REPID Response REPIDxxxx Parameters xxxx – video PID (in range 32-8190) SD video input Command WVINPx Response RVINPx...
  • Page 78 Advent Communications Command WVAUDxxxx Audio SD DID Response RVAUDxxxx Query RVHAU Response RVHAUxxxx Parameters xxxx – HD audio DID Audio SD2 DID Command WVSD2xxxx Response RVSD2xxxx Query RVSD2 Response RVSD2xxxx Parameters xxxx – SD audio DID for channels C & D...
  • Page 79 Advent Communications Parameters 0= test tone (disabled), 1 = Analogue, 2 = SDI Emb 1, 3 = AES-EBU Audio A Bitrate Command WABITx Response RABITx Query RABIT Response RABITx Parameters x – bitrate (0=128Kbs, 1=160Kbs, 2=192Kbs, 3=224Kbs, 4=256Kbs, 5=320Kbs, 6=384Kbs, 7=448Kbs (layer I))
  • Page 80 Advent Communications Query RADOL Response RADOLx Parameters x – Dolby audio status (0=unlocked, 1=locked) Audio A Dolby Align Command WADELxxxx Delay Response RADELxxxx Query RADEL Response RADELxxxx Parameters xxxx – delay in uS (in range -41709 - +41709) Audio A Dolby Align...
  • Page 81 Advent Communications Parameters x – bitrate (0=128Kbs, 1=160Kbs, 2=192Kbs, 3=224Kbs, ↔ 4=256Kbs, 5=320Kbs, 6=384Kbs, 7 =448Kbs (layer I)) Audio B mode Command WBMODx Response RBMODx Query RBMOD Response RBMODx Parameters x – mode (0=stereo, 1=dual mono) Audio B Language Command...
  • Page 82 Advent Communications Response RBDELxxxx Parameters xxxx – delay in uS (in range -41709- +41709) Audio B Dolby Align Command not available Offset Response not available Query RBOFF Response RBOFFxxxx Parameters xxxx – align offset in uS (in range 0 - +41709)
  • Page 83 Advent Communications Audio C Dolby Auto- Command WCAUTx Align Response RCAUTx Query RCAUT Response RCAUTx Parameters x – auto align (0=OFF, 1=ON) Audio C Dolby Status Command not available Response not available Query RCDOL Response RCDOLx Parameters x – Dolby audio status (0=unlocked, 1=locked)
  • Page 84 Advent Communications Parameters x – language (0=Eng, 1=Spa, 2=Ger, 3=Fre) Audio D PID Command WDPIDxxxx Response RDPIDxxxx Query RDPID Response RDPIDxxxx Parameters xxxx – audio D PID (in range 32-8190) Audio D AES/Emb Command not available Lock Response not available...
  • Page 85 Advent Communications Query RTDAT Response RTDATx Parameters x – data (0=OFF, 1=ON) Input Data Baudrate Command WTBAUx Response RTBAUx Query RTBAU Response RTBAUx Parameters x – baud rate (0=1200 baud, 1=2400 baud, 2=4800 baud, 3=9600 baud, 4=19200 baud, 5=38400 baud)
  • Page 86 Advent Communications Response RZESW**************** Query not available Response not available Parameters xxxxxxxxxxxxxxxx – 16 digit key EBS key Command WZEBSxxxxxxxx Response RZEBS******** Not implemented Query not available Response not available Parameters xxxxxxxx – 8 digit key ASI Mode Command WMASIx...
  • Page 87 Advent Communications SI Network Name Command WMNETxxxxxxxxxx Response RMNETxxxxxxxxxx Query RMNET Response RMNETxxxxxxxxxx Parameters xxxxxxxxxx – 10 character network name PMT Pid Command WMPMTxxxx Response RMPMTxxxx Query RMPMT Response RMPMTxxxx Parameters xxxx – PMT PID (in range 32-8190) PCR Pid...
  • Page 88 Advent Communications Remux status Command not available Response not available Query RXACT Response RXACTx Parameters x – status (0=Not Active (indicates error if remux enabled), 1=Active) 420 DTS offset Command WG420xxx Response RG420xxx Query RG420 Response RG420xxx Parameters xxx – DTS offset (ms)

  • Page 89: Remote Modulation Settings

    Advent Communications Response ROANTx Parameters x – polarisation (0 = linear horizontal, 1 = linear vertical, 2 = circular left, 3 = circular right) PTS per Picture Command WPPTSx Response RPPTSx Query RPPTS Response RPPTSx Parameters x – enable (0 = Off, 1 = On)
  • Page 90 Advent Communications Parameters xx.xxxx – symbol rate in Msym, (decimal point allowed) OFDM Guard Interval Command WOGUAx Response ROGUAx Query ROGUA Response ROGUAx Parameters x – guard interval (0= 1/32, 1= 1/16, 2= 1/8, 3= ¼) Command WOFECx Response ROFECx...
  • Page 91 Advent Communications DVBS modulation mode Command WOSMDx Response ROSMDx Query ROSMD Response ROSMDx Parameters x – modulation mode (0 = QPSK, 1 = 16-QAM, 2 = 8- PSK) DVB-T modulation mode Command WOTMDx Response ROTMDx Query ROTMD Response ROTMDx Parameters x –...

  • Page 92: Up-Converter Commands

    Advent Communications 8.6.2 Up-converter Commands The write command to the E2PROM will return immediately indicating that an attempt is being made to write data to the address given. The read command will wait for the data to be returned to the calling comms routine. Note: time outs will be in operation should the command fail.

  • Page 93: Remote Bulk Status Query

    Advent Communications 8.6.3 Remote Bulk Status query A single command can be sent to query the complete status of the unit. As new features are regularly added to this unit, the length of the response will grow. In order to help maintain compatibility, all new settings will be added to the end of the bulk status response.
  • Page 94 Advent Communications Parameter Data Comments length Scrambling mode Video input Bars on input video loss Auto line standard detection Audio DID Frame rate Video Locked Profile Auto video rate Video bitrate Delay mode Horizontal resolution Aspect ratio GOP length Video PID...
  • Page 95 Advent Communications Parameter Data Comments length BUC PSU Modulation on/off Alarms PTS time stamp VBI in picture Dual Prime predictions in encoder Quant VBI – Qp in VBI stripe DVBS-2 Modulation Mode 209298 - DVE5000 Technical Operation Handbook - CL140042...

  • Page 96: Preset Commands

    Advent Communications 8.6.4 Preset commands The following commands are used to store and recall presets Store current settings Command WPSTSxxx (saves the current Response RPSTS settings under the preset number) Query not available Response not available Parameters xxx = preset number...
  • Page 97 Advent Communications Parameters Xxx = preset number Yyy = preset data in the following order: Preset name Output type Upconverter only mode Transmit band Transmit gain Transmit frequency Symbol rate Guard interval DVB-S modulation mode DVB-T modulation mode Polarity OFDM bandwidth...
  • Page 98 Advent Communications Program ID Scrambling on/off Scrambling mode Video input Bars on video loss Auto line standard detection Audio DID Profile Auto video rate Video bitrate Delay mode Horizontal resolutions Aspect ratio GOP length Video PID PTS time stamp VBI in picture...

  • Page 99: Communications Problem Solving

    Advent Communications 8.7. COMMUNICATIONS PROBLEM SOLVING There are a number of factors that could cause communications to fail. Following this list of actions should help to remedy most problems. Check that the communications parameters have been set correctly at both the PC and the unit.

  • Page 100: Remote Control (Web Browser)

    Advent Communications REMOTE CONTROL (WEB BROWSER) 9.1. INTRODUCTION This equipment can be controlled by use of a PC connected at the rear panel Ethernet connector. Supported Web browsers required on a PC are Internet Explore 7 (IE7) or Firefox version 2.0.0.11 or above.

  • Page 101: Web Page Setup Notes

    Advent Communications 9.3. WEB PAGE SETUP NOTES In order for the data to be refreshed correctly, you may need to change some settings on your browser. Please follow these instructions carefully. For Internet Explorer: 1. From the Tools menu, select Internet Options 2.

  • Page 102: Appendix A - Conditional Access Worked Example

    Advent Communications APPENDIX A - CONDITIONAL ACCESS WORKED EXAMPLE BISS-E uses four access codes for each transmission. Two of the codes are held in the receiver and two in the transmitter. Each pair of numbers is used in a calculation to create a key for the transmission –...
  • Page 103 Advent Communications As the codes on the exciter and Alteia don’t match at this stage, the Alteia will be unable to decode the transmission. However it will still be locked on the signal so the LOCK LED will be lit, the AUTHORIZED LED will flash and the ALARM LED will be lit. There will be no picture on the monitor (or freeze frame depending on the Alteia setting).

  • Page 104: Appendix B - Maintenance & Fault Finding

    Advent Communications APPENDIX B - MAINTENANCE & FAULT FINDING THERE IS NO ROUTINE MAINTENANCE REQUIRED FOR THE DVE5000. THE FOLLOWING FAULTS MAY OCCUR, SUGGESTED REMEDIAL ACTION IS SHOWN: Clock error – replace internal back up battery – refer to factory / agent.

  • Page 105: Appendix C - Formulae

    Advent Communications APPENDIX C - FORMULAE Useful Formula - Data Rate / Modulation Factor x FEC x Code Rate = Symbol Rate Where, Symbol rate is in MS/s. Data Rate is total bit rate (video, audio, data, mux overhead). Modulation Factor - QPSK=2, 8PSK=3, 8QAM =3, 16QAM=4 FEC Eg.

  • Page 106: Appendix D- Field Upgrade Procedure

    Advent Communications APPENDIX D- FIELD UPGRADE PROCEDURE Software up-grade files can be sent to customer, by e-mail / disc for transfer onto a USB memory device. Inserting the USB device into the rear and then powering the unit will cause the unit to automatically down load from the memory device.

  • Page 107: Appendix E- Dolby E Notes

    Advent Communications APPENDIX E- DOLBY E NOTES Things to remember about Dolby – 1. A Dolby E frame is the same length, and must be correctly timed and synchronous with, the video frame. 2. Correct timing is the responsibility of the preceding Dolby encoder and associated embedder, prior to the DVE5000.

  • Page 108: Figures

    Advent Communications FIGURES 209298 - DVE5000 Technical Operation Handbook - CL140042 Page 108 of...

  • Page 109: Figure 1 – Dve5000 General Assembly

    Advent Communications FIGURE 1 – DVE5000 GENERAL ASSEMBLY 209298 - DVE5000 Technical Operation Handbook - CL140042 Page 109 of 110...

  • Page 110: 209298 - Dve5000 Technical Operation Handbook - Cl140042

    Advent Communications FIGURE 2 – DVE5000 INTERFACE CABLE A41-207359 209298 - DVE5000 Technical Operation Handbook - CL140042 Page 110 of 110...
