Summary of Contents for SWP ZC224

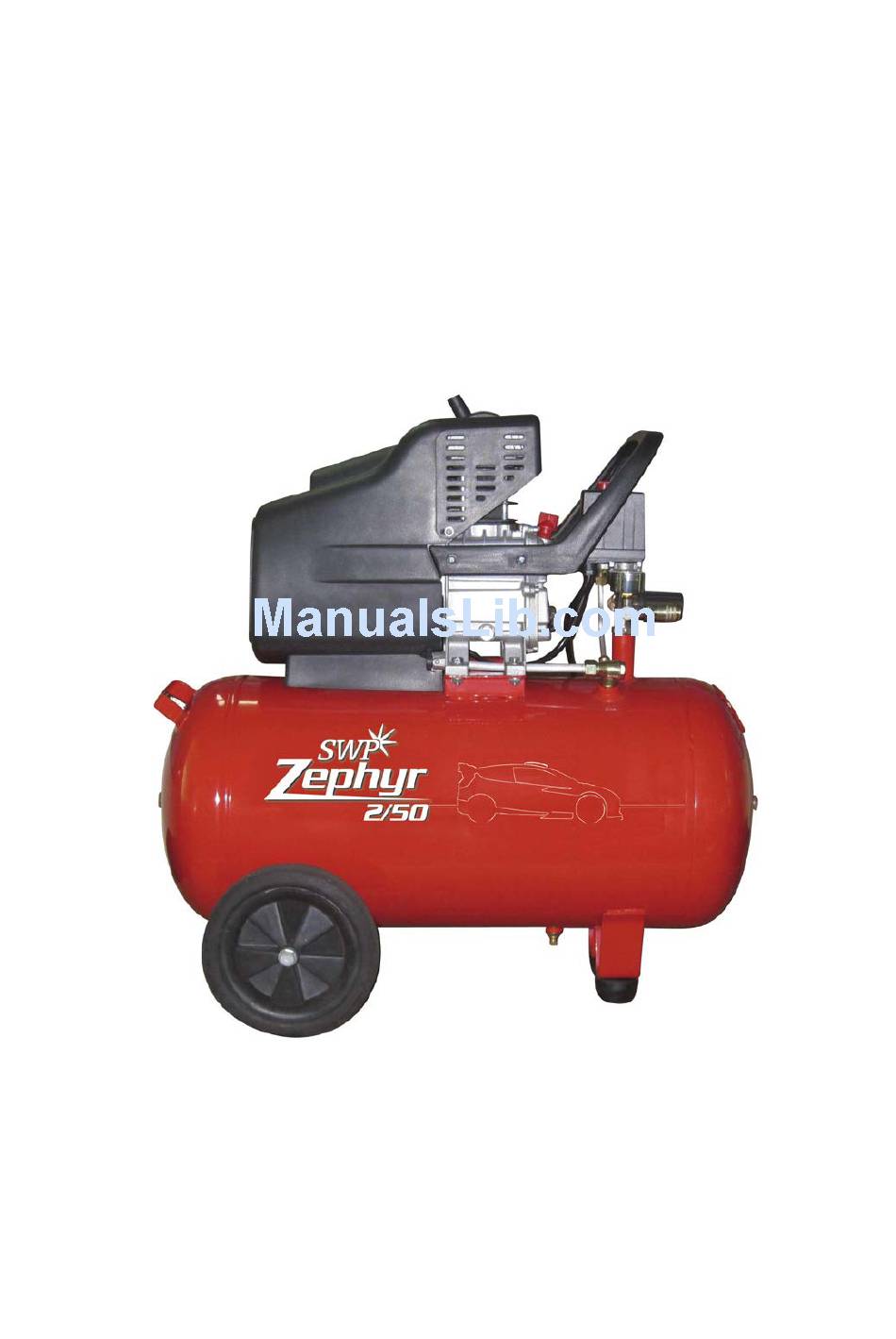

- Page 1 Air Compressor Operation Manual ZC224 / ZC250 Before operation be familiar with the operation manual first...
-
Page 2: Table Of Contents
Contents Brief Description……………………… Page 1 General View and Main Components… Page 1 Technical Specification……………….. Page 1 Preparation before Starting…………… Page 2 Operation and Adjustment……………. Page 2 Cautions………………………………. Page 3 Maintenance…………………………… Page 3 Trouble Shooting……………………… Page 4 Parts Diagram…………………………. Page 5 Parts List………………………………. -
Page 3: Brief Description
Pressure gauge Non Return Valve Drain Valve Wheel Delivery Pipe 10, Air Receiver 11, Safety Valve 12, Fan Cover Technical Specification ITEM DATA DATA Model ZC224 ZC250 Power 1.5Kw/2HP 1.5Kw/2HP Voltage 230V 230V Frequency 50Hz 50Hz Motor Rated Speed 2850 rpm... -
Page 4: Preparation Before Starting
Preparation before Starting Remove compressor from outer packaging DO NOT REMOVE TRANSIT PLUGS BEFORE FITTING THE WHEELS. Lie compressor on side to fit wheels and dampner Allow 5-10 minutes once compressor is upright before starting. Remove transit plugs and insert air filter supplied Insert oil breather plug supplied The ideal place to set the compressor should be... -
Page 5: Cautions
Cautions Never remove any connecting parts when the tank is under pressure. Never remove any electrical parts before isolating the electrical supply. Never adjust the pressure switch unnecessarily Always ensure that the electrical supply is sufficient for the compressor. Never use the electrical plug to start or stop the compressor. If the pressure switch isn’t working, switch off the machine immediately to reduce any long term damage. -
Page 6: Trouble Shooting
Trouble Shooting Trouble Possible Causes Possible Fix Motor unable (1) Fault in line, or voltage (1) Check the electrical supply to run, insufficient (2) Replace the cable running slow (2) Power cable to thin or too long (3) Repair or Replace or getting (3) Faulty pressure switch (4) Check and Repair... -
Page 7: Parts Diagram
Parts Diagram... -
Page 8: Parts List
Parts Illustration Description Description Bolt M8 X 103 Nut M8 Cylinder Head Rubber Foot Cylinder Head Gasket Bolt M8 x 25 Valve Plate Washer Valve Plate Gasket Drain Valve Cylinder Wheel Cylinder Gasket Threaded Connector Piston Ring Tank Piston End Plug Circlip Delivery Pipe Connecting Rod... -
Page 9: List Of Contents
Operation Manual Wheel Kit Warranty Information SWP’s Zephyr range of air compressors are covered by a 12-months warranty period providing the unit has been serviced maintained and installed in accordance with SWP guidelines. All compressors must be installed in a large, well ventilated, dust free area and sheltered away from either rain or frost.
