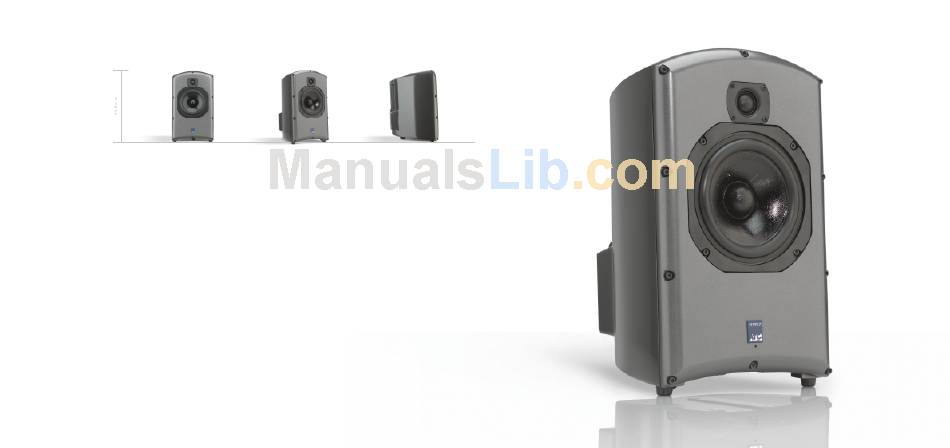

ATC SCM16A Specification Sheet

S C M 1 6 A : 2 - w a y
■ New soft dome HF unit.
F e a t u r e s
■ New ATC "CLD" driver with 45mm integral soft dome.
■ In-house, hand-wound precision flat wire coil.
■ Precision undercut bass pole for symmetrical magnetic field.
■ Massive optimised motor assembly.
■ On board ATC built two-way 250W amplifier.
■ Heavily damped Aluminium cabinet.
S p e c i f i c a t i o n s Drivers : HF 25mm, Mid/LF 150mm Amplitude Linearity (±2dB) :
Horizontal Dispersion : ±80°, Coherent Vertical Dispersion :
Male XLR
Input Connectors : Input Sensitivity :
200 W, 50 W
Amplifier Output : Bass High
Active FET momentary gain reduction plus thermal tweeter protection
Overload Protection :
Dimensions (HxWxD) : 448 x 270 x 330mm (17.6˝ x 10.6˝ x 12.2˝)
ATC reserves the right to vary products and specifications without prior notice.
a c t i v e
80Hz-17kHz Cut-off Frequencies (-6dB, free-standing) : 60Hz, 20kHz
±10°, Coherent Max. Continuous SPL (1 metre) : 108dB Crossover Frequency :
Variable 20dB Balanced > 10kΩ
Input Sensitivity Trim : Input Impedance :
Even Order Critically Damped
Filters :
Power on indicator
Front Panel Indicators :
Weight : 17.5kg / 38.5lbs
2.8kHz
+6dB @ 50Hz
LF EQ :
