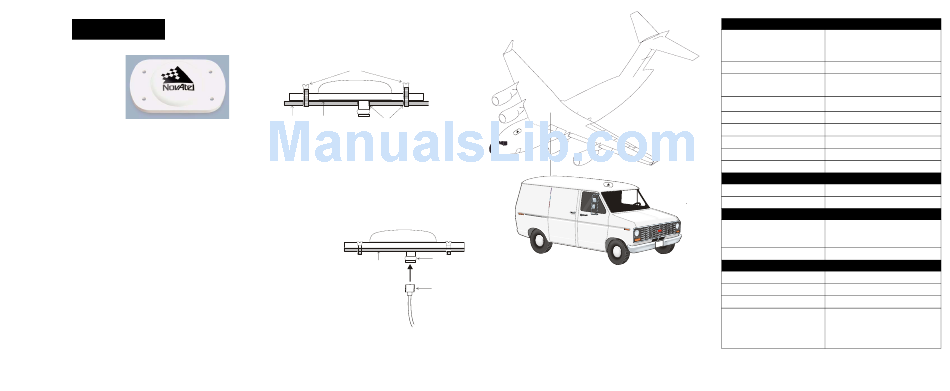

Novatel GPS-534 User Manual

GPS-534 and GPS-534-C
USER GUIDE
The GPS-534 is an active
antenna designed to operate at
the GPS L1 and L2 frequencies,
1575.42 and 1227.60 MHz and
across the L-Band from 1525 to
1560 MHz. The GPS-534-C
version is aircraft certified for
navigation. This guide provides
the basic information you need to install and begin using your
new antenna.
ADDITIONAL EQUIPMENT REQUIRED
• A device with an antenna input port that both receives the RF
signal and provides 2.5 to 24.0 VDC to the antenna is required
to set up the GPS-534. (NovAtel GPS receivers provide the
necessary power through their antenna RF connectors.)
• Coaxial cable with a male TNC connector
INSTALLING THE ANTENNA
Both the input DC power and the output RF signal flow over a
single coaxial cable that is connected to the unit's TNC female
connector.
The antenna can be attached to a surface by means of an
ARINC-743 Bolt Pattern.
Four screws pass through the housing of the antenna.
Install the antenna as follows:
1. The antenna is supplied with an o-ring. Place it in the o-ring
groove of the antenna base.
User-supplied o-ring grease can be used to hold the o-ring in
the groove during installation.
2. Pre-drill the mounting holes and the connector hole on the
surface, see the Mechanical Drawings section of this guide
for details on the ARINC-743 mounting pattern.
3. Attach the antenna to the surface using the four mounting
screws supplied. The o-ring compresses and creates a seal
between the surface and the antenna.
2
1
3 4 5
Ref. # Description Ref.# Description
1 534 antenna 4 O-ring
2 Countersink screws 5 Pre-drilled mounting holes
3 Mounting surface
4. Remove the dust cap from the antenna's TNC connector.
5. Attach the male TNC connector of the coaxial cable to the
antenna's TNC connector.
1
Ref. # Description
2
1 Antenna
screwed into
place
2 Surface
3 TNC connector
4 Coaxial cable
6. Attach the other end of the coaxial cable to the antenna input
port of the receiving device, which must provide power as
detailed in the SPECIFICATIONS section of this guide. All
NovAtel GPS receivers provide the necessary power
through their antenna RF connectors.
3
The graphic above shows examples of where the 534 antenna
may be placed on an aircraft or vehicle (not to scale).
4
ANTENNA CARE
The GPS-534 is designed to withstand the elements, including
rain, snow, and dust. However, to ensure your antenna performs
optimally, keep the radome clean and brush off any ice and
snow. In addition, ensure the TNC connector remains clean and
dry and replace the dust cap when a cable is not connected.
SPECIFICATIONS
RF
L1: 1575.42 ±13 MHz
3 dB pass band (typical) L2: 1227.60 ±13 MHz
LB: 1542.50 ±17.5 MHz
> 40 dBc
Out-of-band rejection (typical)
L1: +4.1 dBic, L2:+3.9 dBic,
θ
Gain at zenith ( = 90°) (min)
LB: +5.7 dBic
Gain roll-off (zenith to horizon) L1/LB: +8 dB, L2:+8 dB
LNA gain 40 dB ±3
Polarization Right-hand circular
Noise figure (typical) 1.9 dB
50 Ω
Nominal impedance
< 1.5 : 1
VSWR
POWER
Input voltage 2.5 - 24.0 VDC
< 35 mA
Current
PHYSICAL
Width 76.20 mm (3.000")
Size
Length 119.38 mm (4.700")
Height 20.00 mm (0.788")
Weight 191 g (6.8 oz.)
ENVIRONMENTAL
Maximum altitude 21336 m (70000 ft.)
Operating temperature -55°C to +85°C (-67°F to +185°F)
Storage temperature -55°C to +85°C (-67°F to +185°F)
RTCA DO-160D, RTCA DO-228,
Designed to meet these
MIL-C-5541, MIL-E-5400,
a
MIL-I-45208A, MIL-STD-810
standards
and SAE J1455
a. If you purchased the GPS-534-C version, your antenna has
the full FAA TSO-C144 certification.
