Summary of Contents for evolution wireless SKM 100

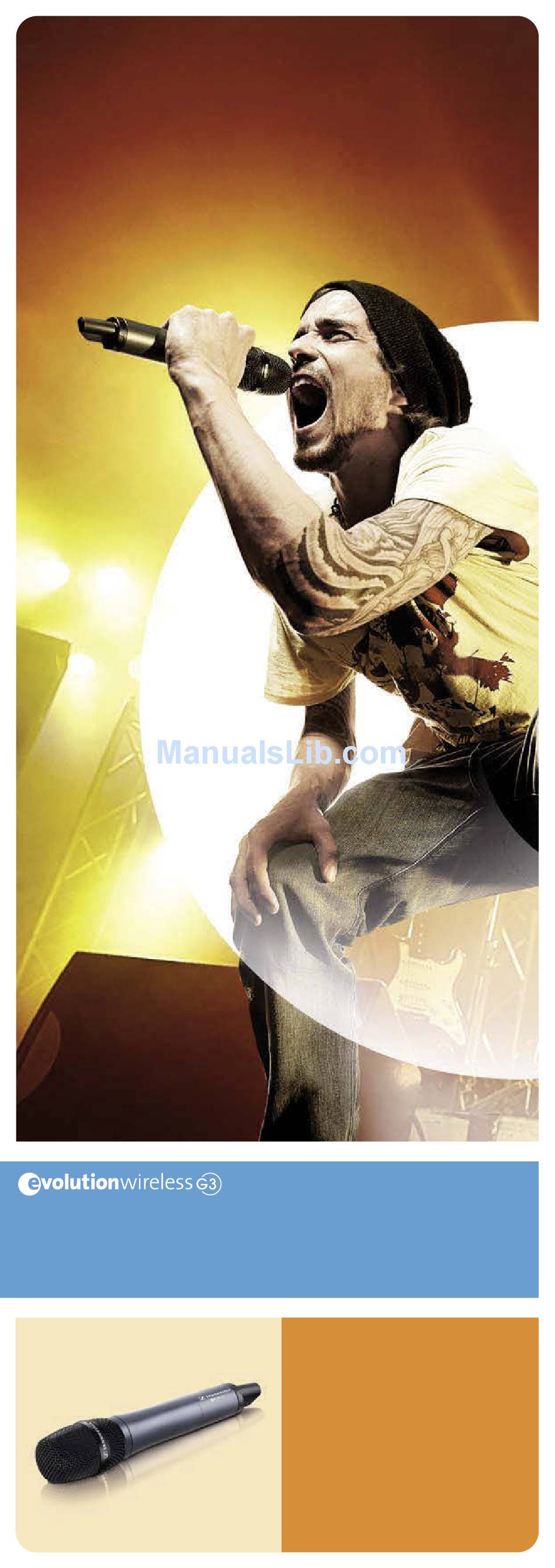

- Page 1 SKM 100 Instruction manual...
- Page 2 Tastensymbole / Button icons / Icônes de touches / Simboli dei tasti / Símbolos de las teclas / Símbolos dos botões / Символы кнопок / 按键图标 Taste ON/OFF ON/OFF button / Touche ON/OFF ON/OFF Tasto ON/OFF / Botón ON/OFF / Botão ON/OFF Кнопка...
-
Page 3: Table Of Contents
Contents Contents Important safety instructions ..........2 The SKM 100 G3 radio microphone family ......3 The frequency bank system ..........3 Areas of application ............4 Delivery includes ............... 5 Product overview ..............6 Overview of the SKM 100 radio microphone ....6 Overview of the displays ........... -
Page 4: Important Safety Instructions
Important safety instructions Important safety instructions • Read this instruction manual. • Keep this instruction manual. Always include this instruction manual when passing the device on to third parties. • Heed all warnings and follow all instructions. • Clean the device only with a slightly damp cloth. •... -
Page 5: The Skm 100 G3 Radio Microphone Family
For an overview of the frequency presets, please refer to the supplied frequency information sheet. Updated versions of the frequency informa- tion sheet can be downloaded from the SKM 100 G3 product page on our website at www.sennheiser.com. The frequency bank “U” allows you to freely select and store transmission frequencies. -
Page 6: Areas Of Application
The SKM 100 G3 radio microphone family Areas of application The radio microphone family can be combined with the EM 100 G3 stationary receiver. The EM 100 G3 stationary receiver is available in the same UHF frequency ranges and is equipped with the same frequency bank system with factory-preset frequencies. -
Page 7: Delivery Includes
Delivery includes Delivery includes The packaging contains the following items: 1 SKM 100 G3 radio microphone incl. microphone head 2 AA size batteries, 1.5 V 1 microphone clamp 1 instruction manual 1 frequency information sheet... -
Page 8: Product Overview
Product overview Product overview Overview of the SKM 100 radio microphone ¶ ² ´ ¿ » · º ¸ µ ¾ º ¹ µ µ ³ Microphone head (interchangeable) · Name and pick-up pattern of the microphone head (siehe Seite 4) »... -
Page 9: Overview Of The Displays
Product overview Overview of the displays After switch-on, the radio microphone displays the standard display “Frequency/Name”. For further illustrations and examples of the different standard displays, refer to Seite 12. The display backlighting is automatically reduced after approx. 20 seconds. 533.875 ew100 G3 MUTE... -
Page 10: Putting The Radio Microphone Into Operation
Putting the radio microphone into operation Putting the radio microphone into operation Inserting the batteries/accupack For powering the radio microphone, you can either use two 1.5 V AA size batteries or the rechargeable Sennheiser BA 2015 accupack. Unscrew the lower part of the radio microphone from the radio micro- »... -
Page 11: Charging The Accupack
Putting the radio microphone into operation Charging the accupack To charge the radio microphone with the inserted BA 2015 accupack (optional accessory): Use the LA 2 charging adapter to insert the radio microphone into the L 2015 charger (both the charger and the charging adapter are avail- able as optional accessories –... -
Page 12: Changing The Color-Coded Protection Ring
Putting the radio microphone into operation Changing the color-coded protection ring º ¸ The color-coded protection ring prevents the multi-function switch º from accidental operation. Protection rings in different colors are avail- able as accessories (information on accessories can be found on our web site at www.sennheiser.com). -
Page 13: Using The Radio Microphone
Using the radio microphone Using the radio microphone To establish a transmission link, proceed as follows: 1. Switch the receiver on (see the instruction manual of the receiver). 2. Switch the radio microphone on (see below). The transmission link is established and the receiver’s RF level display “RF”... -
Page 14: Deactivating The Lock Mode Temporarily
Using the radio microphone Deactivating the lock mode temporarily You can activate or deactivate the automatic lock mode via the “Auto Lock” menu item (siehe Seite 17). If the lock mode is activated, you have to temporarily deactivate it In order to be able to operate the radio micro- phone: Move the multi-function switch upwards/downwards. -
Page 15: Using The Operating Menu
Using the operating menu Using the operating menu The buttons Button Function of the button Press the • Switches the radio microphone on and off ON/OFF button • Cancels the entry and returns to the current ON/OFF standard display (ESC function) •... -
Page 16: Working With The Operating Menu
Using the operating menu Display Function of the menu item LCD Contrast Adjusts the contrast of the display panel (siehe Seite 19) Reset Resets the radio microphone (siehe Seite 19) Software Revision Displays the current software revision (siehe Seite 19) Exit Exits the extended menu “Advanced... - Page 17 Using the operating menu Canceling an entry Press the ON/OFF button to cancel the entry. ON/OFF The current standard display appears on the display panel. To return to the last edited menu item: Press the multi-function switch so many times until the last edited menu item appears.
-
Page 18: Adjusting Settings Via The Operating Menu
The relevant information is marked with the sync icon. For more detailed information on the operating menu, visit the SKM 100 G3 product page at www.sennheiser.com. The main menu “Menu” Adjusting the input sensitivity – “Sensitivity”... - Page 19 Adjusting settings via the operating menu Overview of the frequency banks and channels: Frequency bank Channels Type “1” to “20” up to 12 per System bank: frequency bank frequencies are factor-preset “U” up to 12 User bank: frequencies are freely selectable When setting up multi-channel systems, please observe the following: Only the factory-preset frequencies within one frequency bank are inter- modulation-free (siehe Seite 20).
-
Page 20: The Extended Menu "Advanced Menu
Adjusting settings via the operating menu The extended menu “Advanced Menu” Setting transmission frequencies and the frequency bank “U” – “Tune” When you have selected one of the system banks and then select the “Tune” menu, the radio microphone automatically switches to channel 1 of the frequency bank “U”. - Page 21 Devices of the ew 100 G1 series (generation 1) do not support the pilot tone function. Therefore, please observe the following when combining a radio microphone or receiver of the ew 100 G3 series (generation 3) with devices from an earlier evolution wireless generation: Radio microphone Receiver Make sure to ...
-
Page 22: Adjustment Tips
Adjustment tips Adjustment tips Synchronizing the radio microphone with a receiver When synchronizing the radio microphone with a receiver, please observe the following: Only use a radio microphone and a receiver from the same frequency range (see the type plate on the radio microphone and the receiver). Make sure that the desired frequencies are listed in the enclosed frequency information sheet. -
Page 23: Cleaning The Radio Microphone
Cleaning the radio microphone Cleaning the radio microphone CAUTION! Liquids can damage the electronics of the radio micro- phone! Liquids entering the housing of the device can cause a short-circuit and damage the electronics. Keep all liquids away from the radio microphone. Use a slightly damp cloth to clean the radio microphone from time to time. -
Page 24: If A Problem Occurs
If a problem occurs ... If a problem occurs ... Problem Possible cause Possible solution Radio micro- Lock mode is activated Deactivate the lock mode phone cannot (siehe Seite 12). be operated, “Locked” appears on the display panel No operation Batteries are flat or Replace the batteries or indication... -
Page 25: Specifications
Specifications Specifications RF characteristics Modulation wideband FM Frequency ranges 516–558, 566–608, 608–648, 626–668, 734–776, 780–822, 823–865 MHz (A to E, G, GB, siehe Seite 3) Transmission frequencies 1,680 frequencies, tuneable in steps of 25 kHz 20 frequency banks, each with up to 12 factory-preset channels 1 frequency bank with up to 12 user programmable channels... -
Page 26: Polar Diagrams And Frequency Response Curves Of The Microphone Heads
Specifications Approved by Canada Industry Canada RSS 210 IC: 2099A-G3SKMEM limited to 806 MHz FCC-Part 74 FCC-ID: DMO G3SKMEM limited to 698 MHz Microphone heads MMD 835-1 MMD 845-1 MME 865-1 Microphone type dynamic dynamic condenser Sensitivity 2.1 mV/Pa 1.6 mV/Pa 1.6 mV/Pa Pick-up pattern cardioid... - Page 27 Specifications Frequency response curve MMD 835-1 1.000 10.000 Frequency response curve MMD 845-1 1.000 10.000 Frequency response curve MME 865-1 1.000 10.000 0° 90°...
-
Page 28: Manufacturer Declarations
Manufacturer Declarations Manufacturer Declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner. In compliance with the following requirements •... - Page 29 Manufacturer Declarations FOR AUSTRALIA ONLY Sennheiser goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
- Page 30 Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany Publ. 04/16 www.sennheiser.com 529671/A03...
