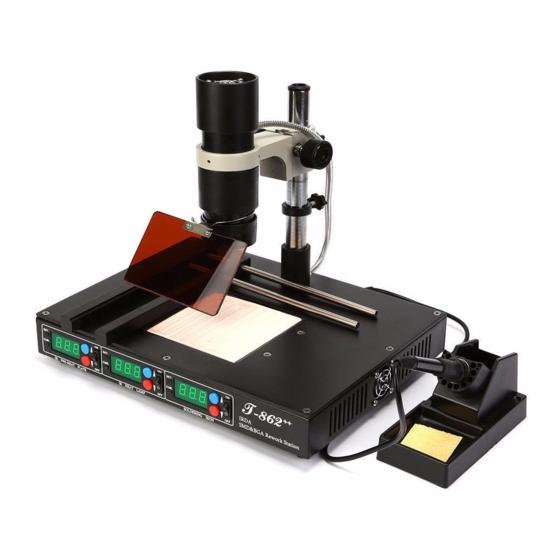

IR BGA Rework Station T862++
User Manual
TAIAN PUHUI ELECTRIC TECHNOLOGY CO. ,LTD
www.tech168.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T862++ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Taian Puhui T862++

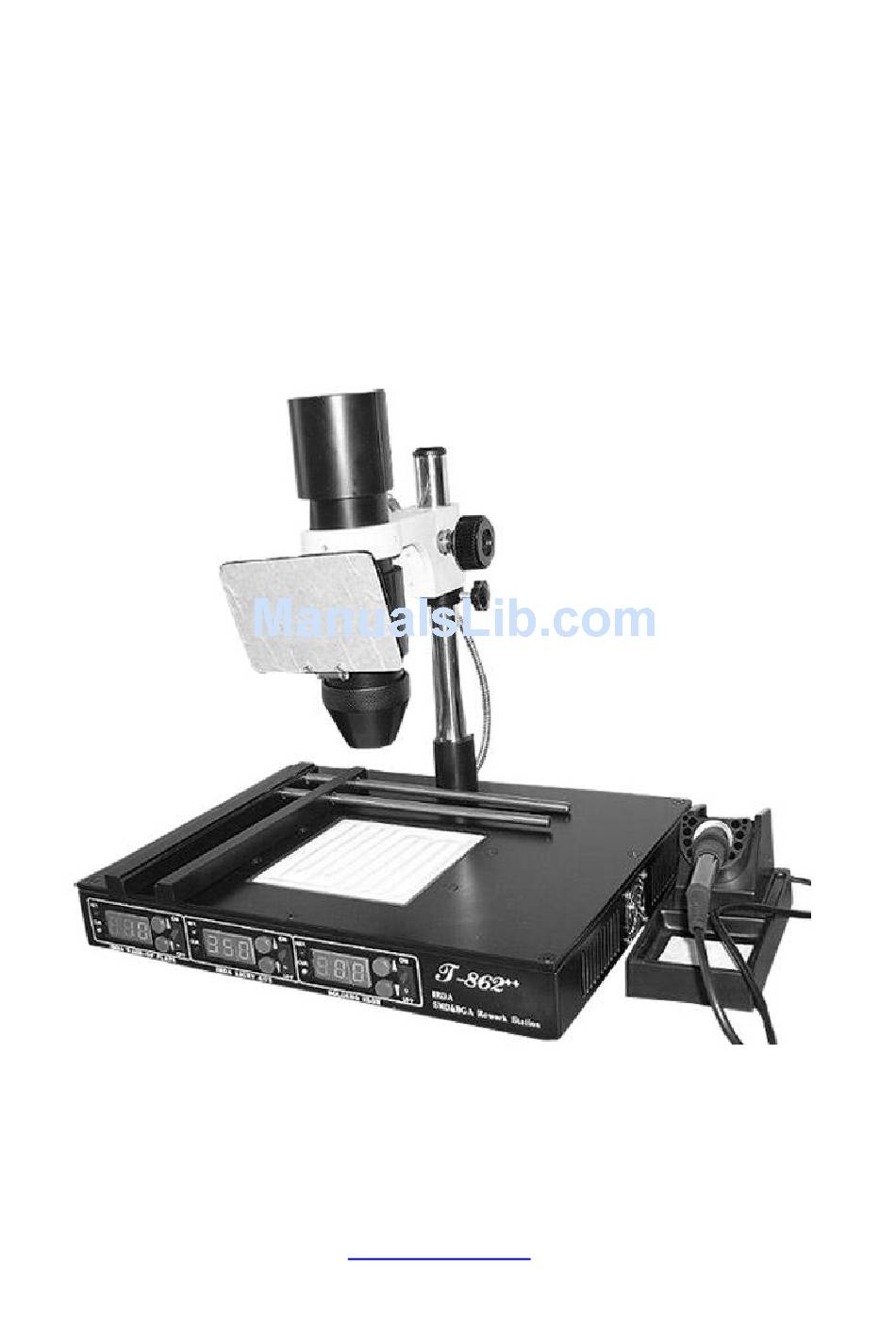

  • Page 1 IR BGA Rework Station T862++ User Manual TAIAN PUHUI ELECTRIC TECHNOLOGY CO. ,LTD www.tech168.cn...
  • Page 2: Table Of Contents

    IRDA BGA Rework Station T862++ User Manual CONTENT 1. Features…………………………………………..………….2 2. Technical Parameters……………………………………………..3 3. List of content…………..……………………………..……..……3 4. Description of the main parts………………..…………..……….4 (1) Main body……………………………………………..….………4 (2) Front panel……………………………………………….………4 (3) Back panel……………………………………………….………4 (4) Focusing support……………………………………….………5 5. Installation…..……………………………………………………7 (1) Install the guide rod……………………………………….….…7 (2) Install the locating ring……………………………….…………7 (3) Complete Assembly………………………………………………8 (4) Connecting wire of the lamp body ………………………..…...8...
  • Page 3: Features

    IRDA BGA Rework Station T862++ User Manual 1、Features 1)Use of infrared welding technology which is developed independently. 2) Use of an infrared heat lamp. Heat is easy to pierce and distribute evenly, which overcome disadvantage (burn out elements) of traditional welding machines.
  • Page 4: Technical Parameters

    IRDA BGA Rework Station T862++ User Manual Technical parameter AC220V/50Hz Working Voltage AC110V/60Hz Output power 800W Infra-red lamp body temperature adjustable 100℃-350℃ Preheating dish temperature adjustable 60℃-200℃ Components Illustration Description Quantity T-862++ Chassis PCB Board holder 936 Searing-iron 936 searing-iron rack Lamp Body and Lens(D=28mm) Lens(D=38mm) Lens(D=48mm)
  • Page 5: Front Panel

    IRDA BGA Rework Station T862++ User Manual T-862++ illustrated explaining (1)The whole machine The end covering Fan Protector Protection Cover Cell guide Lamp body Focus holder 钮 Focus holder control knob 钮 Eye Protection (IR Filter) Preheat plate searing-iron Lens for infrared lamp Holder for PCB board searing-iron support...
  • Page 6 IRDA BGA Rework Station T862++ User Manual The screen displayed The screen displayed the screen displayed the peak temperature temperature of the 936 iron temperature of the preheat plate of the IR lamp Touch-UP Iron Switch Infrared Lamp Switch Preheat Switch Temperature Set-Point Entry Buttons Rear Panel Connecter...
  • Page 7 IRDA BGA Rework Station T862++ User Manual (3)Infrared Lamp (Focus holder and others) IR Lamp Cooling Fan Cell guide Focus holder control knob Focus holder Focus holder Fasten nut for focus holder Fasten nut for steady ring steady ring Http://www.tech168.cn...
  • Page 8: Focusing Support

    IRDA BGA Rework Station T862++ User Manual Installation 1. Install the guide rod. Loosen the pinch nut of focusing support; put the guide rod in according to the direction of arrow icon pointing. Note: The Infrared Head, Body Mounting and Focus Assembly will be installed in the T-862 chassis later.
  • Page 9: Connecting Wire Of The Lamp Body

    IRDA BGA Rework Station T862++ User Manual □ Pick up focusing support; make the guide rod aim at the corresponding nut on the base, then rotate the guide rod. □ Fasten the focusing support by rotating pinch nut of it. □...
  • Page 10: Starting

    IRDA BGA Rework Station T862++ User Manual T-862++ Operation Infrared Lamp Body PC Board Support -862++ chassis 1. Starting 1)Inspect the infrared lamp body, temperature sensor and power line and see if they are in good connection. 2)Turn on the power switch, then use self-checking first (The previous setting value demonstrated on the keyboard display monitor after you turn on the machine).
  • Page 11 IRDA BGA Rework Station T862++ User Manual (1)When the area of the chips is below 15mm*15mm, please choose the IR-lamp temperature about 160-240℃, and choose the lens which D=28mm to avoid destroying other places, usually it will take you about 20-40seconds. (2)When the area of the chips is between 15mm*15mm and 30mm*30mm, please choose the IR-lamp temperature about 240-320℃, and choose the lens which D=38mm to avoid destroying other places, usually it will...
  • Page 12: Unsoldering Operation

    IRDA BGA Rework Station T862++ User Manual 2. Unsoldering operation Adjust temperature, make the center of the infrared lamp aim at the unsoldered chip. Once the tin is sufficiently melted, remove the chip. 3. Soldering operation ①Clean up the welding plate with a brush. Http://www.tech168.cn...
  • Page 13 IRDA BGA Rework Station T862++ User Manual ② Put the tin ball and spread soldering flux (not too thick, only a thin layer of it) on the soldering plate. ③ Put the chip in the accurate place after the solvent volatilizes out of soldering flux, heat the tin ball until it melts and solder the chip.
  • Page 14: Caution

    IRDA BGA Rework Station T862++ User Manual 4. Using the lead-free soldering iron Switch on the power, set the temperature that you need, turn on the It can be used separately, But be sure it must be connect with the chassis. If the component is too small, you needn’t use the IR-lamp, the 936 searing-iron is enough.
  • Page 15: Warranty

    IRDA BGA Rework Station T862++ User Manual regularly. 4. Pull out the power plug if you don’t use it for a long term. 5. Be careful of operating under high temperature conditions. Warranty statement Reminder: These machines are very heavy, between 8 to 15 kilograms and are not designed to be shipped on airplanes, but in containers that do not move.
