Summary of Contents for Sierra wave Solar Link 1000

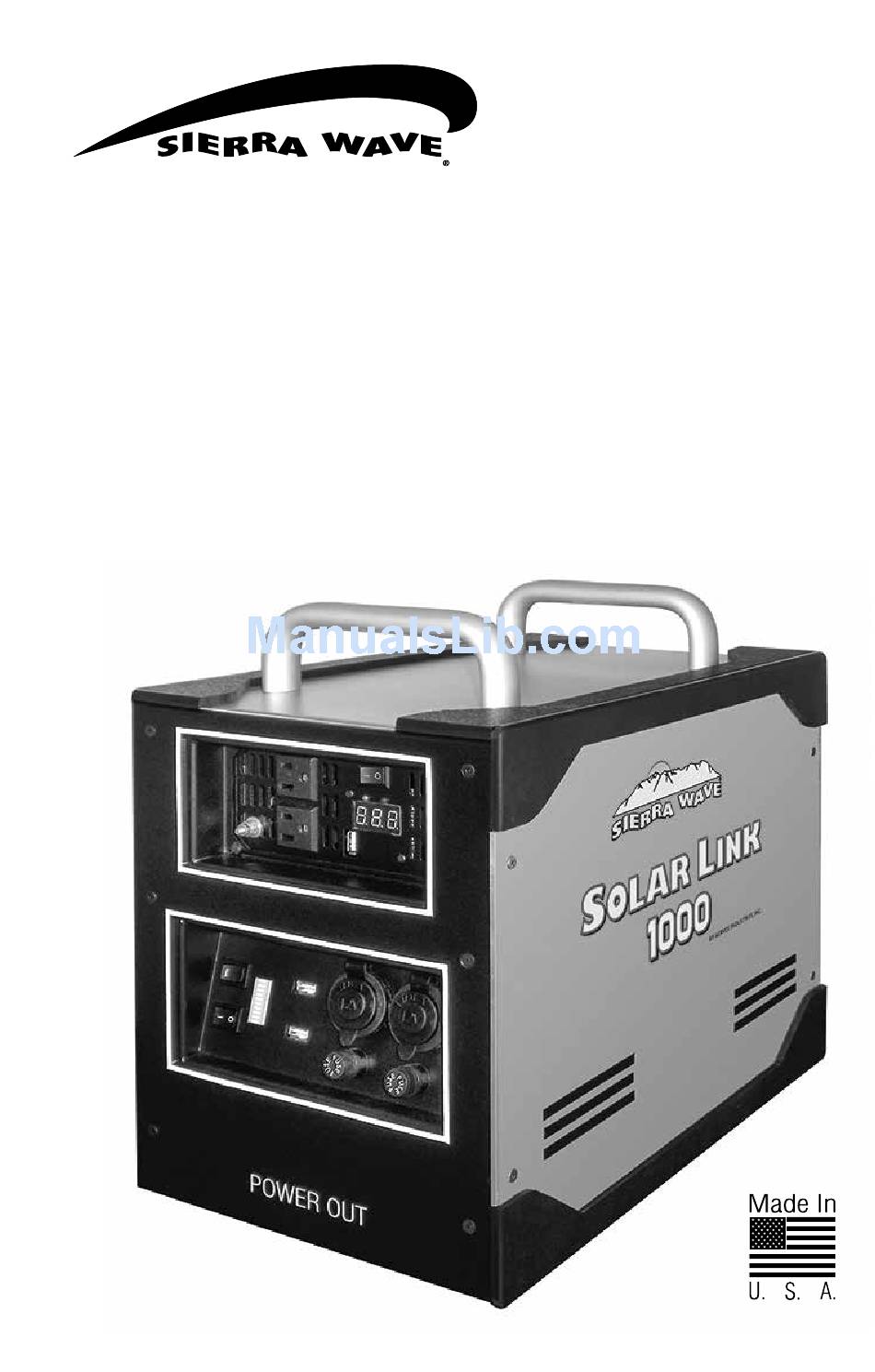

- Page 1 1000-Watt Energy Center OPERATING INSTRUCTIONS Patent Pending...
- Page 2 Sierra Wave® 1000-Watt Energy Center #9675 The Sierra Wave 1000-Watt Energy Center is a heavy duty and efficient portable power center offering 1000 watt hours of rechargeable power bringing portable energy to your home, office, or job site. Whether it is used as a backup power supply for areas experiencing power outages due to natural disaster or as a mobile generator for a campsite, the Energy Center powers your world.
-
Page 3: Fcc Requirements
THE ENERGY CENTER IS ONLY SERVICEABLE BY AN AUTHORIZED REPAIR FACILITY. DO NOT DISMANTLE. WARRANTY IS VOID IF THE DEVICE IS OPENED BY UNAUTHORIZED PERSONNEL. CALL AERVOE INDUSTRIES, INC. AT 800-227-0196 FOR REPAIR INFORMATION. The limited warranty described in the warranty is the sole and exclusive warranty provided by Aervoe Industries, Inc. -
Page 4: Parts Identification
PARTS IDENTIFICATION Inverter Exhaust Fan Solar Input LED DC IN Solar IN Solar Charge Complete LED POWER IN 120V AC CHARGER ANDERSON TO MC4 ADAPTER CABLE... -
Page 5: Power Out
220V AC Volt/AMP Outlet Status LEDs Meter Earth Ground Inverter ON/OFF DC ON/OFF 12V DC Outlets Battery 12V DC Meter Fuses ON/OFF Battery Meter USB Ports Main Power Keyhole POWER OUT MAIN POWER KEY... - Page 6 The Energy Center has a built in Linear Solar Charge Controller that can accept 12V and 24V solar panel systems, up to a maximum input of 150 watts. Aervoe recommends the Sierra Wave #9580 80- Watt Solar Collector or the Sierra Wave #9590 120-Watt Solar Collector.
- Page 7 Note: The BATTERY METER measures the battery voltage in a range of approximately 10.5 to 14.5 volts. When a charging voltage is present the BATTERY METER will indicate the charging voltage level, not the battery voltage. When voltage sources are removed, the Meter will again indicate the battery voltage level. The BATTERY METER can be left on to monitor the battery voltage levels during charging or power center operation.
- Page 8 DC Power The DC power operation includes a DC ON/OFF switch that when switched ON provides power to the USB ports and the 12V DC sockets. When the battery voltage is within the operating voltage range the Green LED on the DC power switch will glow. USB OPERATION: Turn the MAIN POWER KEY and the DC power switch to the ON position.
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE • Dust regularly with a clean dry cloth to prevent dust and dirt from building up on the vents and power inputs/outputs • Store in a clean, dry place when not in use • Charge after each use, every 3 months, and before storing so it is ready to use when needed •... -
Page 10: Technical Information
TECHNICAL INFORMATION SPECIFICATIONS BATTERY TYPE LiFePO4 (lithium iron phosphate) 80Ah - 12.8V BATTERY LIFESPAN 2000+ cycles (cycle = charge and discharge) 80% Depth of discharge PROTECTION CIRCUIT Built-in over voltage, self-discharge, reverse polarity, and short circuit protection SOLAR CHARGE CONTROLLER Built in 12V/24V 150W Linear Solar Charge Controller with over voltage, over current and reverse polarity protection 120V/60Hz INVERTER SPECIFICATIONS... -
Page 11: Available Accessories
6-8 hours SAMPLE RUN TIMES Times vary depending on user settings. #6905 Max Burton® Digital Stove To Go® 5-6 hours 9720/9721 Sierra Wave Portable Area Light 1 Light 70-80 hours, 3 Lights 20-25 hours 30” Television 12-15 hours Small thermo refrigerator... - Page 12 AERVOE INDUSTRIES, INC. Gardnerville, NV 89410 • 1-800-227-0196 www.aervoe.com • mailbox@aervoe.com 9675inst; cs1/16...
