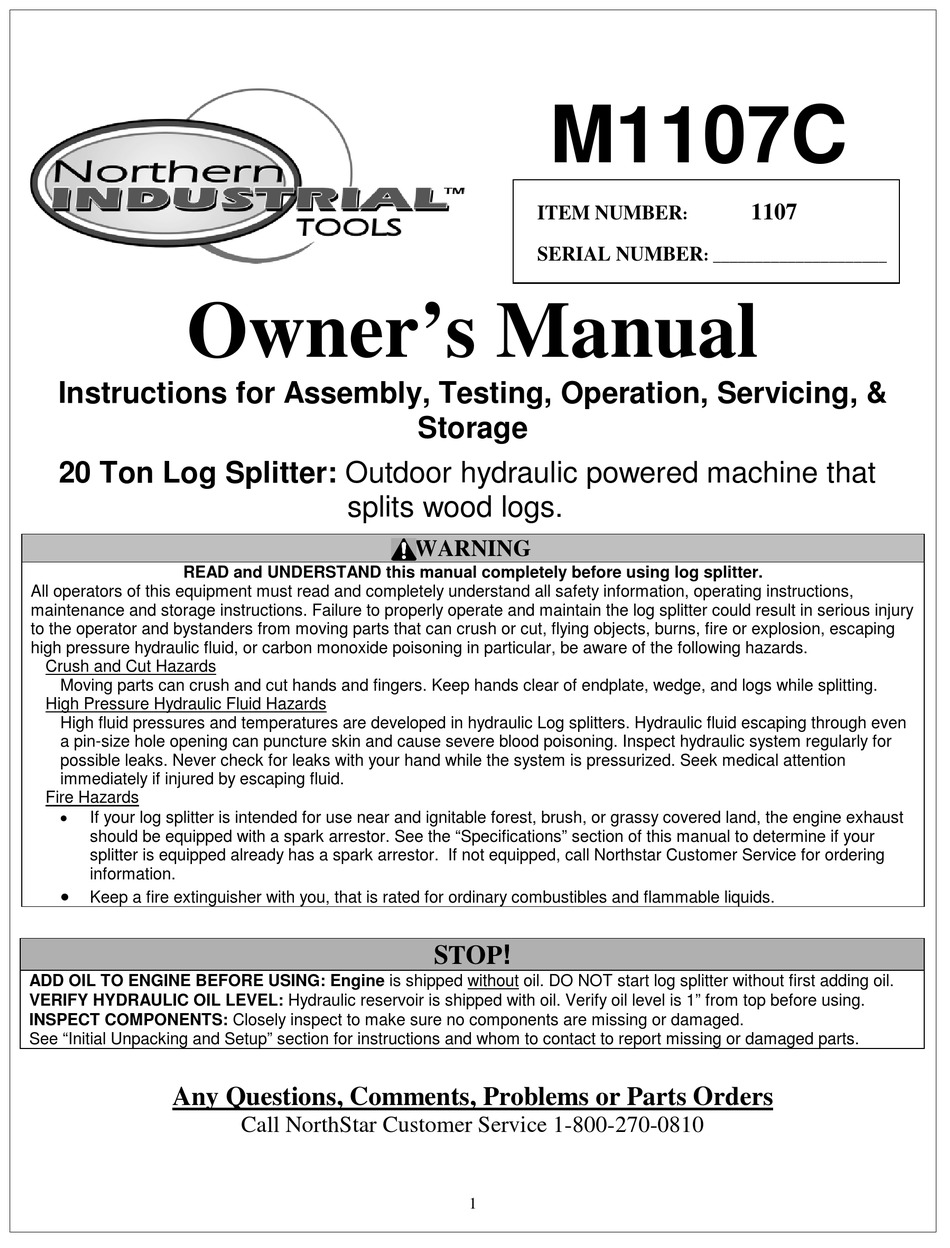

Northern Industrial Tools M1107C Owner's Manual

Instructions for assembly, testing, operation, servicing, & storage 20 ton log splitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual
Instructions for Assembly, Testing, Operation, Servicing, &
20 Ton Log Splitter: Outdoor hydraulic powered machine that
READ and UNDERSTAND this manual completely before using log splitter.
All operators of this equipment must read and completely understand all safety information, operating instructions,
maintenance and storage instructions. Failure to properly operate and maintain the log splitter could result in serious injury
to the operator and bystanders from moving parts that can crush or cut, flying objects, burns, fire or explosion, escaping
high pressure hydraulic fluid, or carbon monoxide poisoning in particular, be aware of the following hazards.
Crush and Cut Hazards
Moving parts can crush and cut hands and fingers. Keep hands clear of endplate, wedge, and logs while splitting.
High Pressure Hydraulic Fluid Hazards
High fluid pressures and temperatures are developed in hydraulic Log splitters. Hydraulic fluid escaping through even
a pin-size hole opening can puncture skin and cause severe blood poisoning. Inspect hydraulic system regularly for
possible leaks. Never check for leaks with your hand while the system is pressurized. Seek medical attention
immediately if injured by escaping fluid.
Fire Hazards
If your log splitter is intended for use near and ignitable forest, brush, or grassy covered land, the engine exhaust
should be equipped with a spark arrestor. See the "Specifications" section of this manual to determine if your
splitter is equipped already has a spark arrestor. If not equipped, call Northstar Customer Service for ordering
information.
Keep a fire extinguisher with you, that is rated for ordinary combustibles and flammable liquids.
ADD OIL TO ENGINE BEFORE USING: Engine is shipped without oil. DO NOT start log splitter without first adding oil.
VERIFY HYDRAULIC OIL LEVEL: Hydraulic reservoir is shipped with oil. Verify oil level is 1" from top before using.
INSPECT COMPONENTS: Closely inspect to make sure no components are missing or damaged.
See "Initial Unpacking and Setup" section for instructions and whom to contact to report missing or damaged parts.
Any Questions, Comments, Problems or Parts Orders
Storage
splits wood logs.
WARNING
Call NorthStar Customer Service 1-800-270-0810
M1107C
ITEM NUMBER
SERIAL NUMBER
STOP!
1
1107
:
: _____________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1107C and is the answer not in the manual?

Questions and answers

Related Manuals for Northern Industrial Tools M1107C

Summary of Contents for Northern Industrial Tools M1107C

  • Page 1 Fire Hazards  If your log splitter is intended for use near and ignitable forest, brush, or grassy covered land, the engine exhaust should be equipped with a spark arrestor. See the “Specifications” section of this manual to determine if your splitter is equipped already has a spark arrestor.

  • Page 2: Hazard Signal Word Definitions

    Hazard Signal Word Definitions...

  • Page 3: Table Of Contents

    About Your Log Splitter………………………………………………………………………………...4 Safety label Locations……………………………………………………………………………….….5 Machine Components Identification…………………………………………………...………………..7 Initial Unpacking & Set-up……………………………………………………………………….…….8 Moving & Towing to the Job Site…………………………………………………………………………. …..10 Before Each Use: Step One: Inspection/Maintenance…………………………………………………………………….. ….13 Step Two: Refueling……………………………………………………………………………………. …15 Step Three: Work site Selection & Set-up…………………………………………………………….. ….16 Splitting Operation………………………………………………………………………………………..…….18...

  • Page 4: About Your Log Splitter

    Attention: All Rental Companies and Private Owners who loan All persons to whom you rent/loan the log splitter must have access to and read this manual. Keep this owner’s manual with the splitter at all times and advise all persons who will operate the machine to read it. You must provide instruction on how to safely operate the splitter and remain available to answer any questions a renter/borrower might have.

  • Page 5: Safety Label Locations

    Reference Part Number Description number 777886 Splitter Warning Decal 39260 Hot Muffler Decal 39259 Waning Decal 777891 Hydraulic Fluid Warning Decal 777892 Moving/Towing Decal 777890 Fire Hazard Warning Decal 777887 Splitter Operating Instruction Decal 777889 Stuck Log Warning Decal Always make sure safety labels are in good condition. If a safety label is missing or not legible, order new labels or unsafe operation could result.
  • Page 6 Safety Label Locations...

  • Page 7: Machine Components Identification

    Machine Component Identification Description 2” Ball Coupler Horizontal Lock Lifting Handle Cylinder Hydraulic Oil Fill Cap Split Control Lever Control Valve Wedge Log Cradle Description Beam Endplate Support Leg Engine Hydraulic Tank Suction Strainer Pump Towbar Leg Safety Chains...

  • Page 8: Initial Unpacking & Set-Up

    3. Secure by inserting cotter pin in end of clevis pin and spreading ends apart. Closely inspect all log splitter components. Step Three: Inspect (See Machine Components section of this manual for diagram of components.) Log Splitter ...
  • Page 9 If hydraulic oil level is low: Add 10 wt. AW32, ASLE H-150, or ISO 32 oil to 1” from top. Note: The log splitter comes filled with LIGHT 150-ISO 32 hydraulic oil. If the 3. Replace fill cap. Step Five: Lubricate the surface of the slide rail beam with engine oil.

  • Page 10: Moving & Towing To The Job Site

    Moving and Towing to Job Site The log splitter is heavy. It can crush and cause serious injury if it rolls out of control or tips over. Follow the instructions below for safely moving and towing the log splitter. Moving the log splitter:...
  • Page 11 Attach log splitter to vehicle hitch (2” ball) 1) Attach log splitter’s coupler to a class 2 or higher hitch with 2” ball (only). 2) Adjust coupler to ball by raising locking lever and turning lock nut with fingers. 3) Proper adjustment is obtained when coupler is as tight as possible on ball and locking lever can still be opened and closed.
  • Page 12  Added length. Be aware of the added length of the splitter.  Speed limit. Never tow this log splitter over 45 mph. Faster speeds may result in loss of control.  Rough terrain. Drive slowly and take extra caution when traveling over rough terrain.

  • Page 13: Before Each Use-Inspection / Maintenance

    3. Fuel tank / lines Check fuel tank and fuel lines for leaks. Any fuel leak is a fire hazard. Fix any fuel leaks before starting engine. 4. Mechanical Check to be sure all nuts and bolts are tight to make sure the log splitter is in safe parts working condition.
  • Page 14 Fill as needed. Note: The log splitter comes filled with LIGHT 150-ISO 32 hydraulic oil. If the log splitter will be run for long periods of time in outdoor temperatures above 70 recommend changing the hydraulic oil to DEXTRON III.

  • Page 15: Before Each Use

    5. Spills / splashes Clean up fuel spills /splashes immediately. 1. Move the log splitter away from spilled fuel on the ground. 2. Wipe fuel off engine and wait 5 minutes for excess fuel to evaporate before starting engine.

  • Page 16: Step Three: Work Site Selection & Set-Up

    These spaces can trap poisonous gases, EVEN if you run a fan or open windows. • If you start to feel sick, dizzy, or weak while using the log splitter, shut off the engine and get to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
  • Page 17 Before Each Use – Work Site Selection & Set-Up 4. Lock both legs Lock both the support leg and the tow bar leg in the “DOWN” position. DOWN 5. Block wheels Block the wheels to prevent unintended movement of the log splitter.

  • Page 18: Splitting Operation

    Read manual. Do not allow anyone to operate the log splitter who has not read the Owner’s Manual or has not been instructed on the safe use of the splitter. The log splitter owner should instruct all operators in safe log splitter operation.
  • Page 19 Note: Musculoskeletal injury can result from lifting logs onto the log splitter if proper lifting techniques are not used or the logs are too heavy for a person’s size, weight, or strength. In some cases, logs as small as 8” in diameter and 14” in length may be heavier than what some persons should be repeatedly lifting onto the splitter.
  • Page 20 You CANNOT smell it, see it, or taste it. If you start to feel sick, dizzy, or weak while using the log splitter, shut off the engine and get to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
  • Page 21 The log splitter is designed only for cutting lengthwise with the grain, NOT for cutting across the grain. b) This log splitter is designed for cutting logs only up to a maximum of 24” long. Larger diameter logs could get stuck on the wedge and longer logs will not fit on the beam.
  • Page 22  Second person. Many accidents occur when there is more than one person involved in loading and operating the log splitter. Only one person should operate the controls. If a second person is assisting in loading logs, the operator must NEVER actuate the Split Control Lever until the assistant and all bystanders are at least 10 feet away.
  • Page 23 8. Important If a log does not split completely and becomes stuck on the wedge, follow the STUCK LOG instructions below to remove the log. A log can become stuck to the wedge if the wedge becomes embedded in the log and the procedure log doesn’t split and separate.
  • Page 24 10. Remove split Remove split wood from area. wood Move each log away from log splitter after it is split. Split logs left near the log splitter are a trip hazard. 11. After use 1. Turn off engine. 2. Remove engine debris.

  • Page 25: Storage

    – EVEN IF the log splitter’s gas tank is empty, residual gasoline vapors could ignite. NOTE: Do not store the log splitter near fertilizer or any other corrosive material. 6. Gasoline Store gasoline in a cool, dry place in an UL approved tightly sealed container.

  • Page 26: Periodic Maintenance

    Relieve system pressure by moving Split Control Lever back and forth several times. IMPORTANT: If a part needs replacement only use parts that meets the manufacturer’s specifications. Replacement parts that do not meet specifications may result in a safety hazard or poor operation of the log splitter. 1. Engine As specified in...

  • Page 27: Troubleshooting

     Do not remove the hydraulic oil fill cap when the engine is running. Hot oil can escape causing severe burns. Allow the log splitter to cool completely before removing the hydraulic oil fill cap.  Do not adjust the pressure setting to the pump or valve.

  • Page 28: Specifications

    Maximum Pressure ... Maximum Flow ... Hydraulic Fluid Capacity... Hydraulic Fluid Type………… Coupler Size…………………… Maximum Towing Speed……… Maximum Log Length ... Pressure Relief Setting ... Hydraulic Cylinder Bore ... Hydraulic Cylinder Stroke ... Spark Arrestor…………………. Fuel Valve……………………... Overall Dimensions ... Dry Weight ...

  • Page 29: Parts Breakdown - Exploded View

    Parts Breakdown—Exploded View 1107 REV C...
  • Page 30 Parts Breakdown—Exploded View 1107 REV C PART# DESCRIPTION 38735 Cylinder, 4” X 24” 50RAS8 ½” NPT Elbow 50125 Hydraulic Hose, ½” X 25” 39240 ½” NPT nipple, long 50CSC128 ¾” NPT X ½” NPT Reducer 37494 Plate, control valve 39238 Control Valve 406518 1”...

  • Page 31: Summary Of Important Safety Information For Operation

    ● Pressure Setting. NEVER increase the pressure setting of the pump or control valve. ● Untrained Operators. Do not allow anyone to operate the log splitter who has not read the owner’s manual or been instructed on the safe use of the splitter.
  • Page 32 ● Securely attached. Be sure the log splitter is securely attached to the towing vehicle before towing. ● Tires. Be sure the tires are fully inflated and in good repair before towing the log splitter. When adding air to the tires, do not over-inflate –...
  • Page 33 Replacement parts. If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement parts that do not meet specifications may result in a safety hazard or poor operation of the log splitter. Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. Use extreme care when handling gasoline: ...
  • Page 34 Carbon monoxide. The running engine gives off carbon monoxide, a poisonous gas that can kill you. You CANNOT smell it, see it, or taste it. If you start to feel sick, dizzy, or weak while using the log splitter, shut off the engine and get to fresh air RIGHT AWAY.
  • Page 35  Loading/Unloading  Unsplit log pile. Do not pile logs to be split in a place that will make you reach across the log splitter in order to load them  Hold bark side. Hold the bark side of logs when loading or positioning, never the ends. Never place your hands or any part of your body between a log and any part of the log splitter.
  • Page 36  Storage location. Store the log splitter in a location away from sources of heat, open flames, sparks or pilot lights – such as water heaters, space heaters, furnaces, clothes dryers, or other gas appliances. Even if the log splitter’s gas tank is empty, residual gasoline vapors could ignite ...
